SKU:16710-12

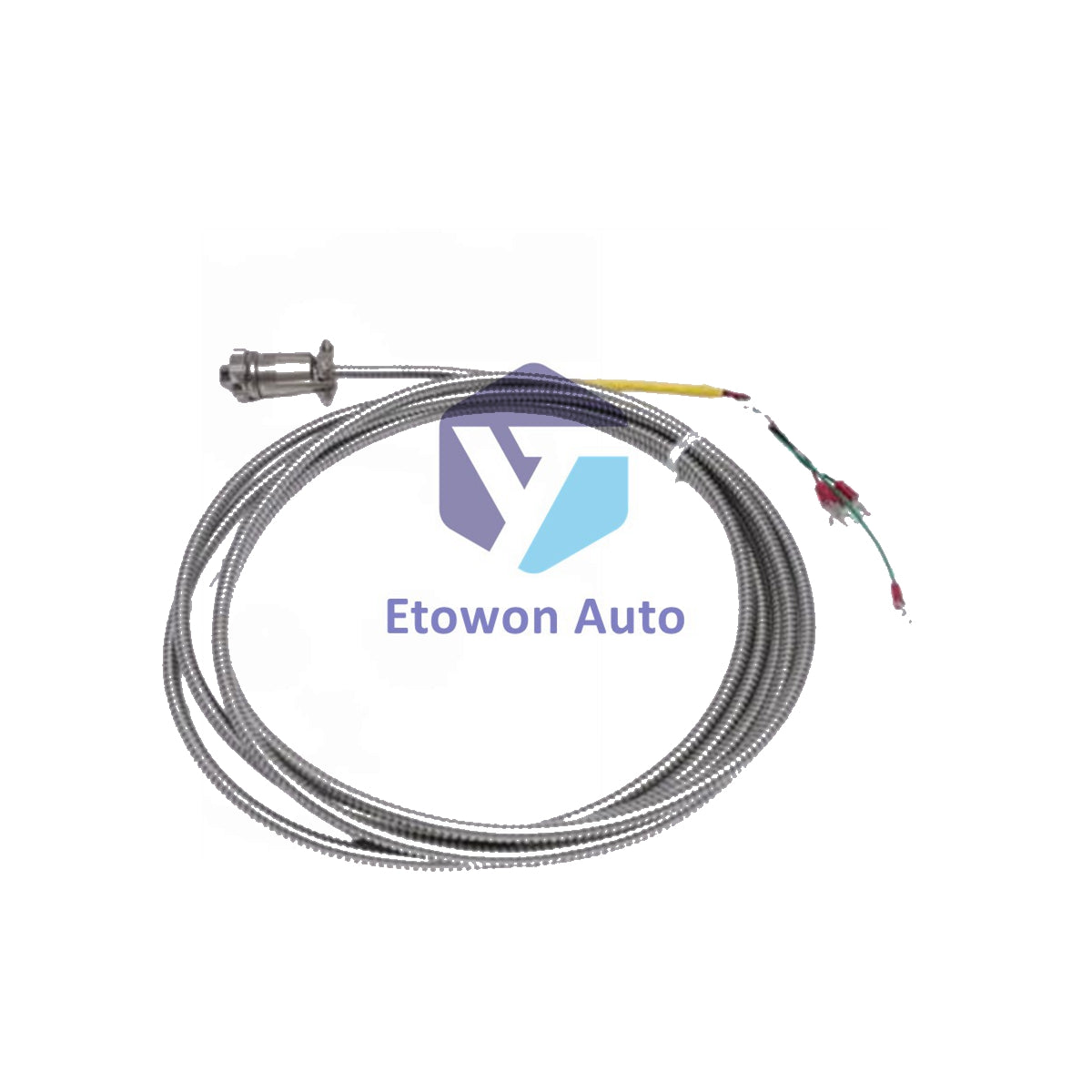

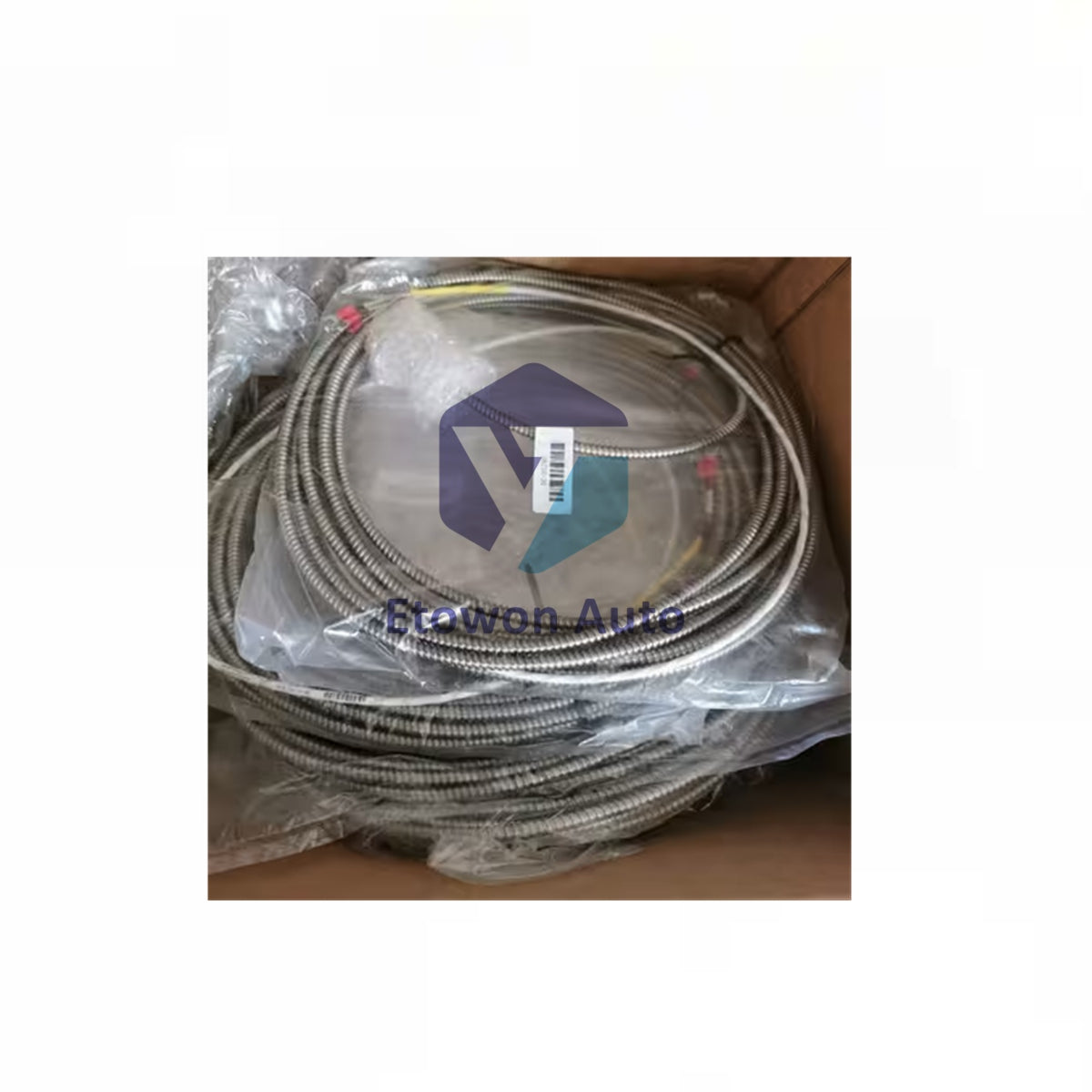

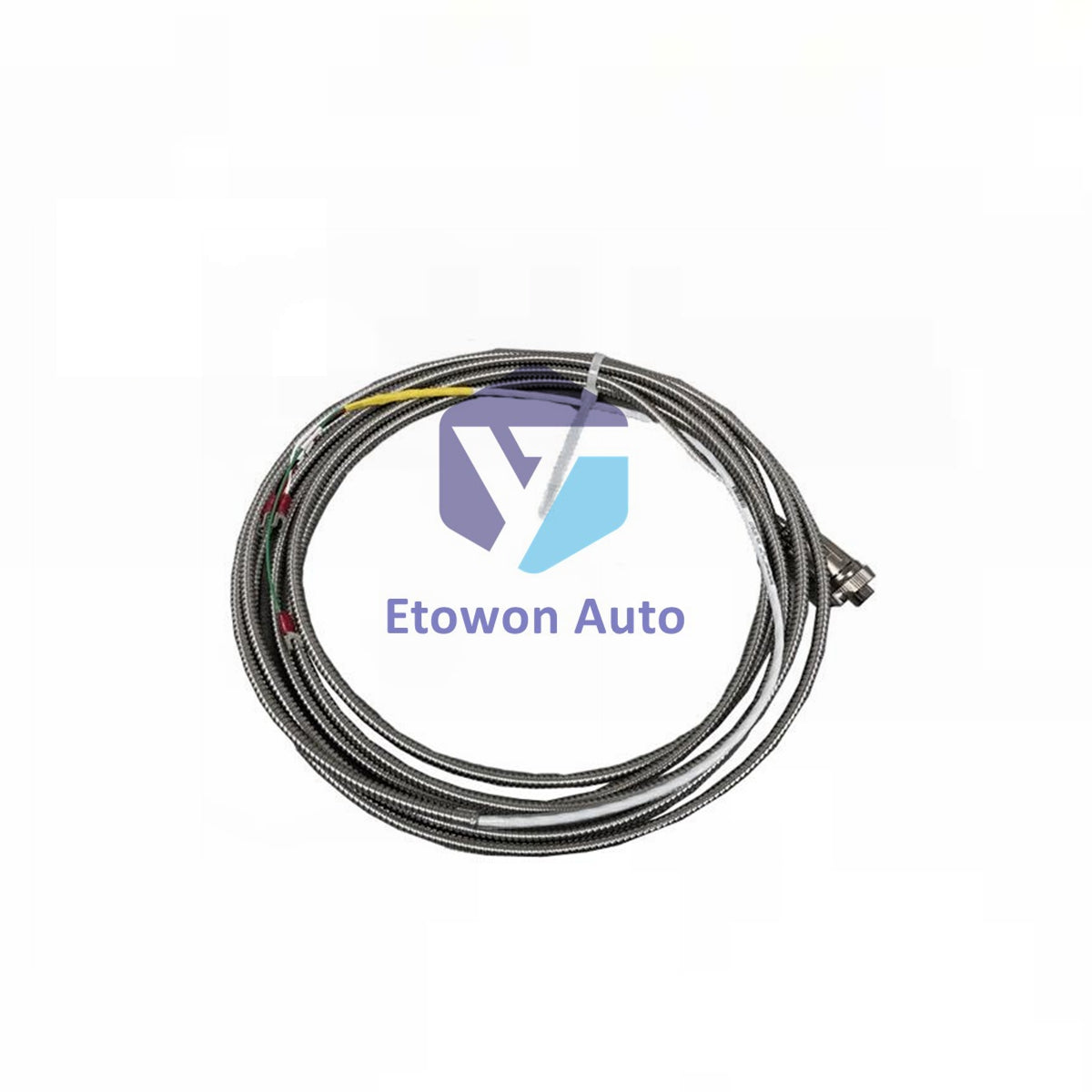

Bently Nevada 16710-12 Interconnect Cable 3 Socket Plug
Manufacturer: Bently Nevada
Product No.: 16710-12
Product Type: Interconnect Cable
Product Origin: USA
Payment:T/T, Western Union
Weight: 260g
Shipping port: Xiamen
Warranty: 12 months
Teilen
- Schnelle Lieferung
- Rund-um-die-Uhr Unterstützung
- Qualitätssicherung
Beschreibung
Product Overview
The Bently Nevada 16710-12 is a 12 ft interconnect cable designed for reliable signal transmission between sensors and monitoring systems. Weighing 0.26 kg, it features 3 conductor shielded 22 AWG (0.5 mm²) construction for robust performance in demanding environments.
Key Features
3 conductor shielded cable with 22 AWG (0.5 mm²) conductors for optimal conductivity. 3 socket plug on one end and terminal lugs on the other for versatile connectivity. Lightweight 0.26 kg design simplifies installation. Available in lengths from 3.0 ft (0.9 m) to 99 ft (30 m). Ideal for connecting sensors and monitoring systems in harsh conditions.
Technical Specifications
| Manufacturer | Bently Nevada |
| Product Number | 16710-12 |
| Product Type | Interconnect Cable |
| Conductor Count | 3 Conductor Shielded |
| Wire Gauge | 22 AWG (0.5 mm²) |
| Connector A | 3 Socket Plug |
| Connector B | Terminal Lugs |
| Cable Length | 12 ft (3.6 m) |
| Length Range Available | 3.0 ft (0.9 m) to 99 ft (30 m) |
| Weight | 0.26 kg |
Installation Guide
Connect the 16710-12 (0.26 kg) between the sensor and monitoring system. Attach the 3 socket plug to the mating connector and secure terminal lugs to the field terminals. Route the cable away from high voltage lines to minimize electromagnetic interference. Observe proper bend radius to protect the shielded jacket. Verify the 12 ft length suits the installation distance.
Engineering Advantages
Shielded 3 conductor design protects sensitive signals from electromagnetic interference. 22 AWG conductors provide reliable transmission over extended runs. Lightweight 0.26 kg construction simplifies routing and reduces strain on connectors. Pre terminated ends with socket plug and lugs reduce installation time. Available in multiple lengths up to 30 m for flexible system layouts.
Frequently Asked Questions
Q1: What is the length of the 16710-12 cable?
A1: The 12 suffix indicates a 12 ft (3.6 m) cable length.
Q2: What connectors are on each end of this cable?
A2: It has a 3 socket plug on one end and terminal lugs on the other end.
Q3: What is the maximum available length for this cable series?
A3: The cable is available in lengths from 3.0 ft (0.9 m) up to 99 ft (30 m).
