Allen-Bradley 22D-B2P3H204 PowerFlex 40P 0.4kW Plate VFD

Allen-Bradley 22D-B2P3H204: PowerFlex 40P 0.5HP Drive

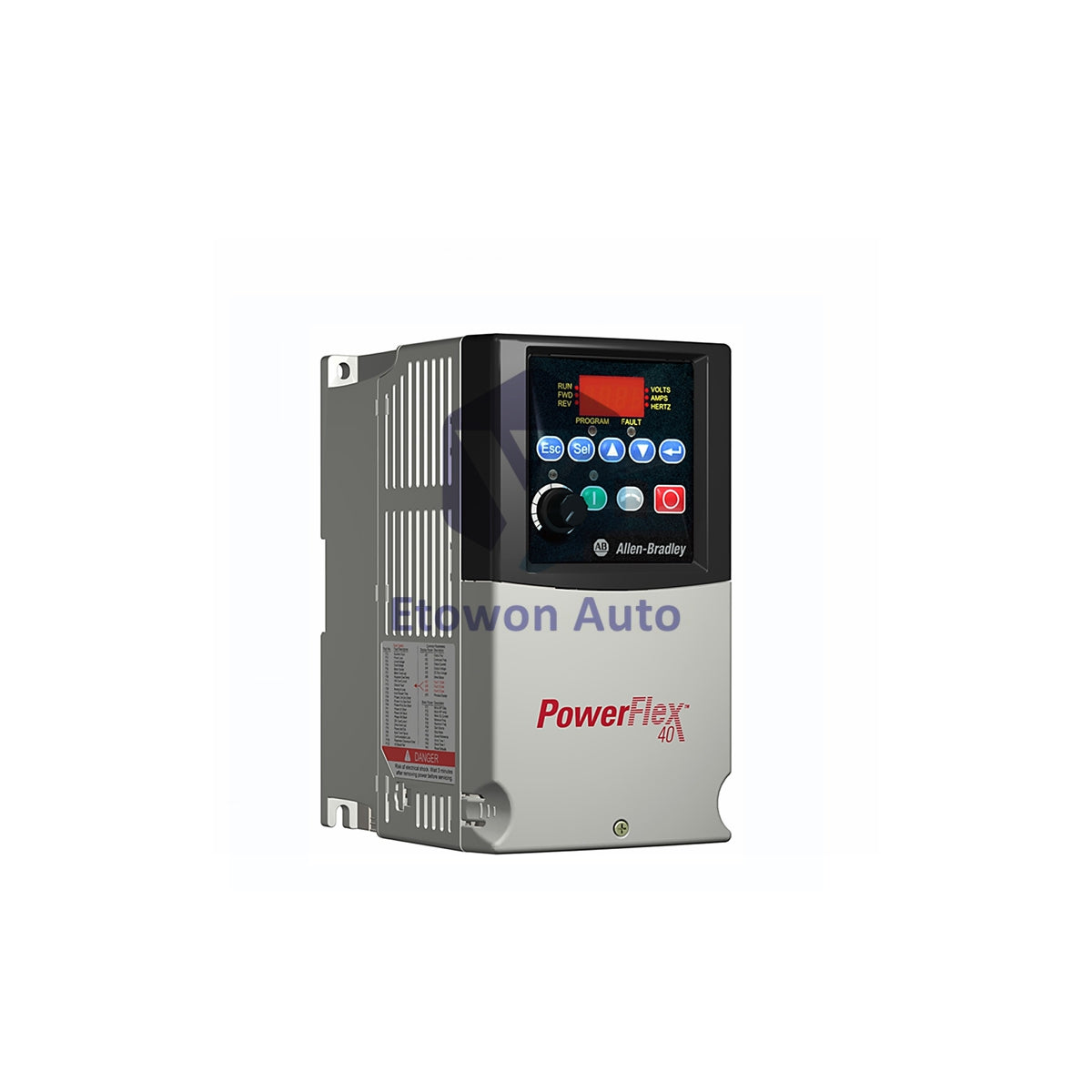

The Allen-Bradley 22D-B2P3H204 is a PowerFlex 40P adjustable frequency drive rated for 0.5HP (0.4kW). This plate mount VFD delivers 2.3A output at 240V AC 3-phase input with IP20/NEMA Open protection. Engineers choose the 22D-B2P3H204 for sensorless vector control and compact plate mounting.

Key Specifications

• Part Number: 22D-B2P3H204
• Amperage: 2.3 A
• Horsepower: 0.5 HP (0.4 kW)
• Input Power: 240V AC, 3-Phase, 50-60 Hz
• Frame Size: B

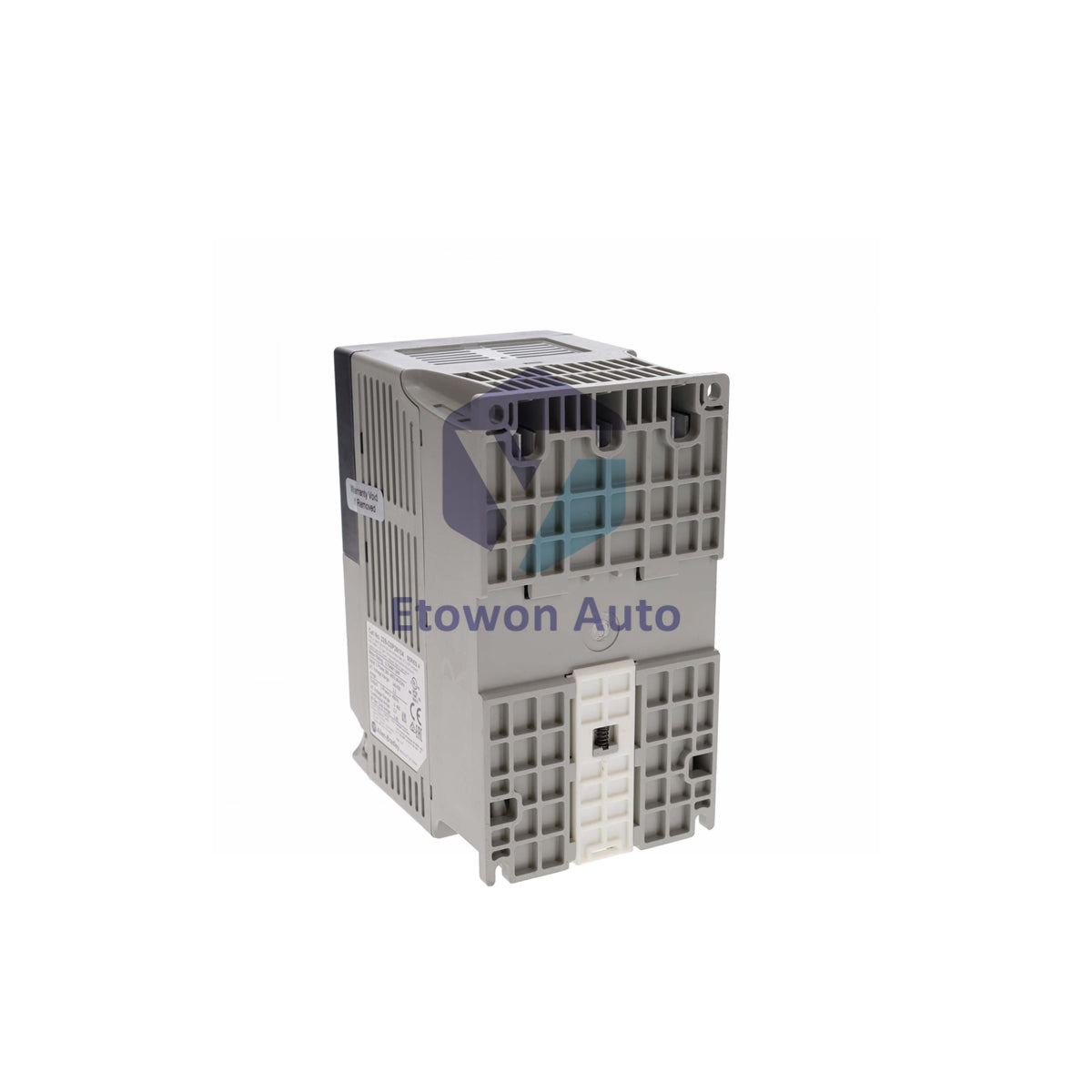

• Enclosure: Open Plate Mount (IP20)
• Filter: No CE Compliant Filter
• Weight: 2.7 kg (6.0 lbs)

Electrical Ratings

• Input Power Rating: 1.15 KVA at 2.5A
• Power Dissipation: 40W estimated
• Voltage Tolerance: -10% to +10%
• Frequency Tolerance: 48 to 63 Hz
• Power Factor: 0.98 across full speed range
• Short-Circuit Rating: 100,000 Amps

Control & Performance

• Sensorless vector control with 100:1 speed range
• Standard V/Hz control with custom capability
• Sinusoidal PWM with 2-16 kHz carrier frequency
• Output frequency: 0-500 Hz programmable
• Drive efficiency: 97.5%
• Accel/Decel: 0-600 seconds (0.1s increments)
• Overload: 150% for 60s, 200% for 3s

Protection Features

• MOV surge protection (phase-to-phase & phase-to-ground)
• BUS overvoltage trip: 405V DC
• BUS undervoltage trip: 210V DC
• Class 10 motor overload (i²t algorithm)
• 200% hardware overcurrent limit
• 300% microprocessor overcurrent trip
• 100ms power loss ride-through
• 2-second Logic control ride-thru

Environmental Ratings

• Operating Temp: -10°C to +40°C (14°F to 104°F)
• Storage Temp: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Max Altitude (no derating): 1000m
• Certifications: cUL-us, CE, AS/NZS

Package Contents

• 1x Allen-Bradley 22D-B2P3H204 drive unit

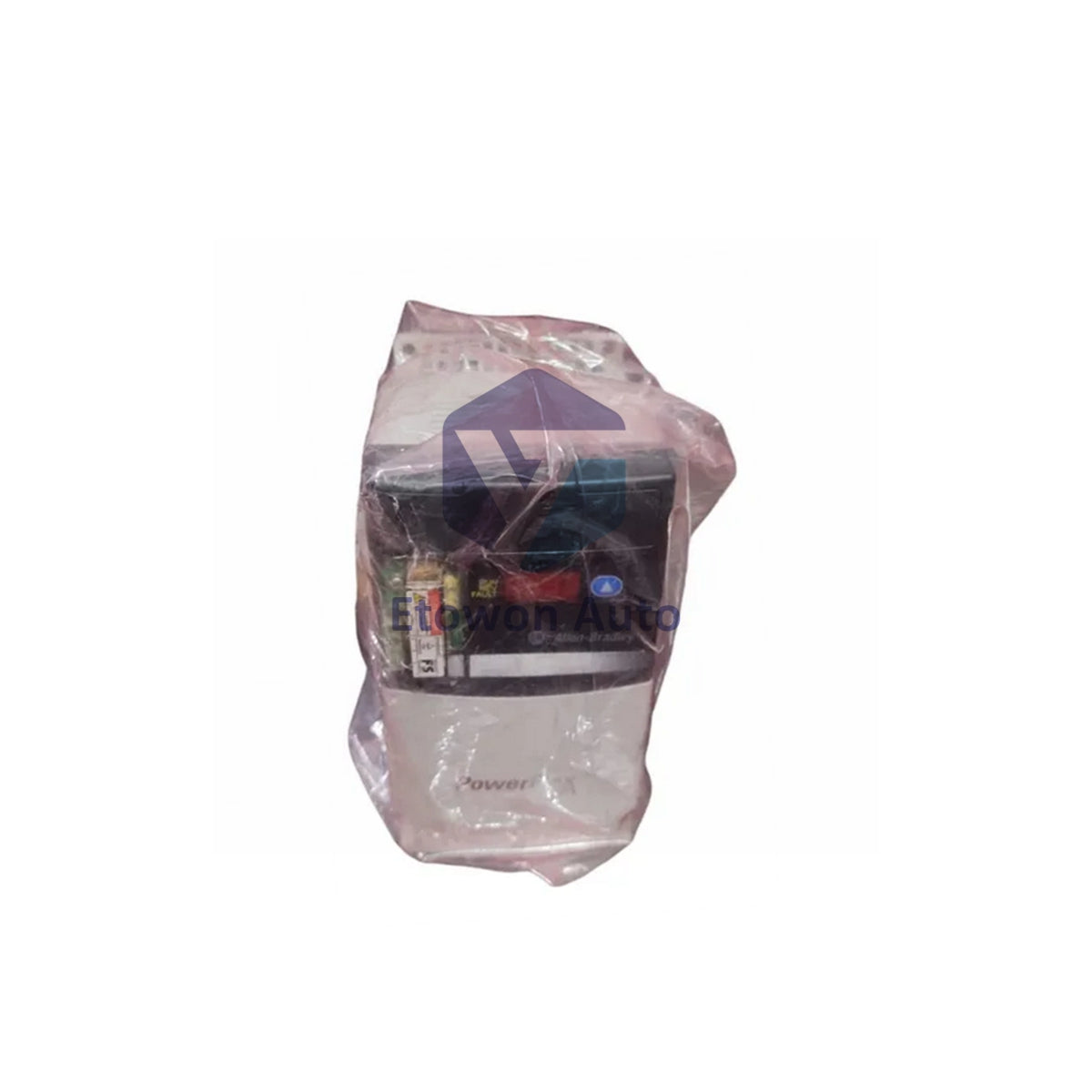

• Factory sealed anti-static packaging
• Original Allen-Bradley box

Shipping Information

• FedEx, UPS, DHL Express worldwide
• Same-day dispatch for in-stock items
• Tracking provided immediately

FAQs

Q: Weight of Allen-Bradley 22D-B2P3H204?

A: 2.7 kg (6.0 lbs).

Q: What control methods does it support?

A: Sensorless vector and standard V/Hz control.

Q: What is the maximum output frequency?

A: 0 to 500 Hz programmable output frequency range.
