5.5kW 600V AC Drive Allen-Bradley 22D-E9P9N104 PowerFlex 40P

Product Overview

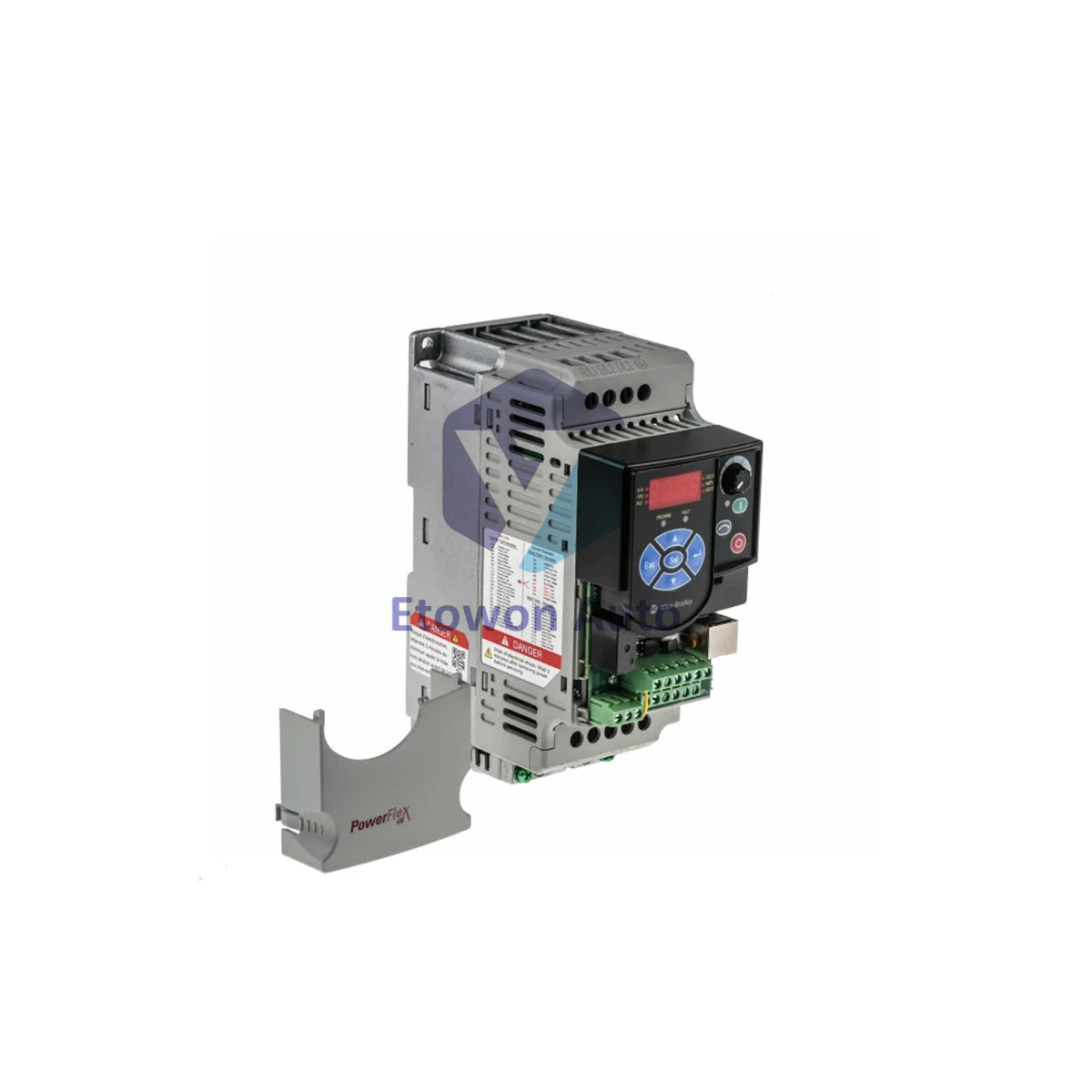

The Allen-Bradley 22D-E9P9N104 is a compact, high-performance PowerFlex 40P Variable Frequency Drive (VFD) designed by Rockwell Automation to provide versatile motor control in industrial environments. Engineered for a 600V AC 3-phase input supply, this drive outputs up to 9.9A to deliver reliable 5.5 kW (7.5 HP) power performance. Housed in a durable IP20 Frame Size C open panel-mount chassis, it weighs approximately 10.08 lbs (4.57 kg). Incorporating both Sensorless Vector and classic Volts-per-Hertz (V/Hz) control algorithms, the drive ensures optimum torque management across demanding automation applications.

Key Advantages

• Flexible Control Modes: Easily toggle between Sensorless Vector control for high torque at low speeds and V/Hz mode for simple fan and pump setups or multi-motor systems.
• Robust Frame Construction: Weighing 4.57 kg (10.08 lbs), its solid Frame C footprint fits neatly into control cabinets via DIN rail or direct panel mounting options.
• Intuitive User Interface: Built-in 4-digit LED display paired with an accessible reset button streamlines parameter setup, status monitoring, and quick fault clearance.
• Cost-Effective Panel Integration: Internal filtering and factory pre-loaded parameter templates allow rapid commissioning without requiring external line filters in standard installations.

Technical Specifications

Industrial Applications

The 22D-E9P9N104 drive is versatile across multiple automated production environments:

• Conveyors & Diverters: Smooth acceleration and deceleration profiles prevent mechanical shock and product tipping.
• Packaging Machines: Precision speed synchronization keeps continuous production lines operating seamlessly.
• Fiber-Spinning & Textiles: Constant torque delivery protects delicate synthetic materials from snapping or sagging during processing.
• Pumps & Industrial Fans: Variable speed adjustments optimize energy consumption during partial load demands.

Frequently Asked Questions

Q1: What clearance is required when mounting the 22D-E9P9N104 inside a control cabinet?

A1: Maintain a minimum clearance of at least 50 mm (2 inches) on the top and bottom of the unit to ensure adequate convective air circulation and avoid thermal tripping during operation.

Q2: Is this drive suitable for outdoor or dusty washdown areas?

A2: No. The unit features an IP20 open-type enclosure and must be installed inside a secondary protective NEMA/IP-rated enclosure if operated in dusty, humid, or chemically aggressive environments.

Q3: How much does the drive weigh for mounting structure considerations?

A3: The drive unit has a net weight of 4.57 kg (10.08 lbs), making it straightforward to mount onto a standard DIN rail or directly to a backpanel without requiring specialized heavy-duty brackets.
