330101-00-10-10-12-CN Bently Nevada 3300 XL FluidLoc Probe

Product Overview

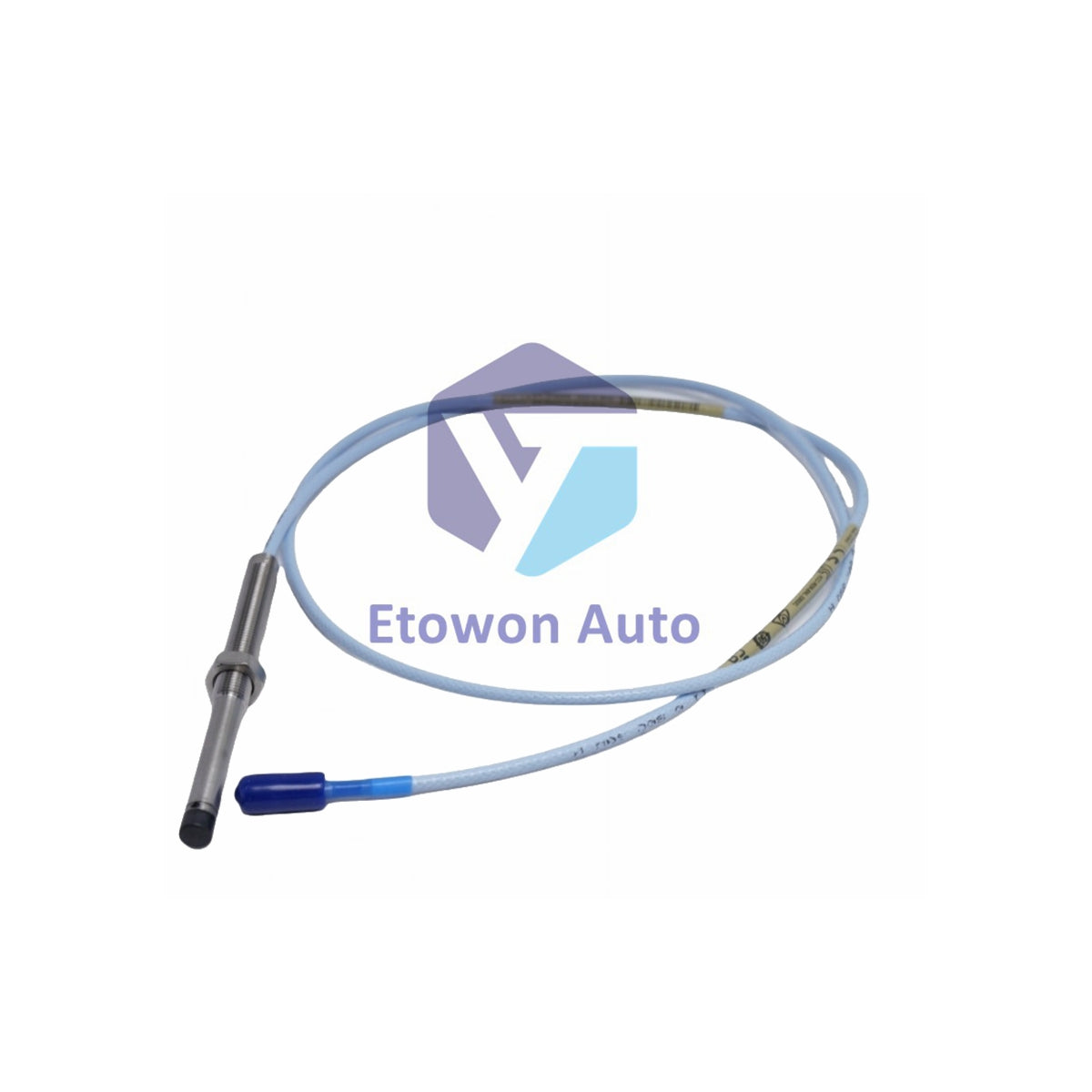

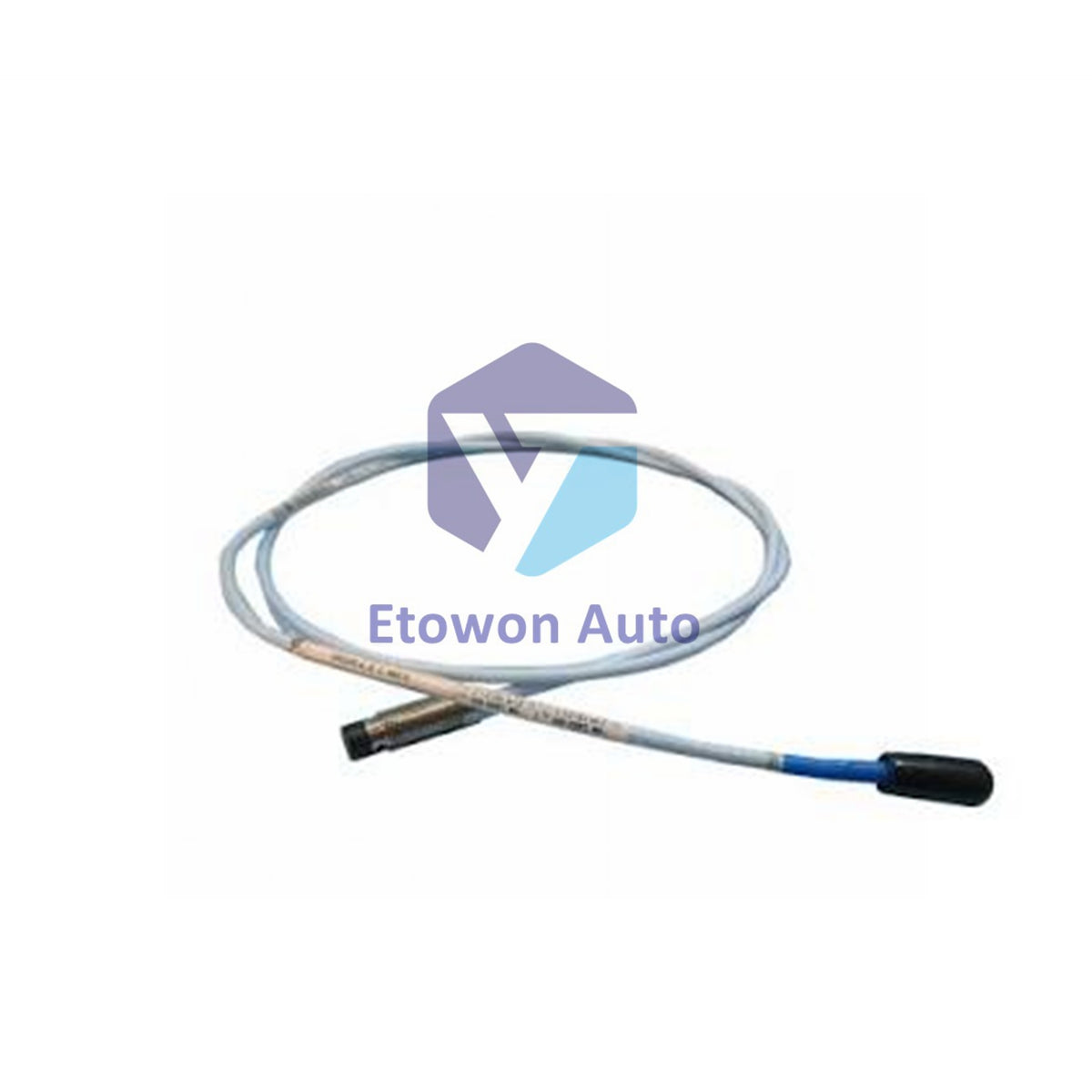

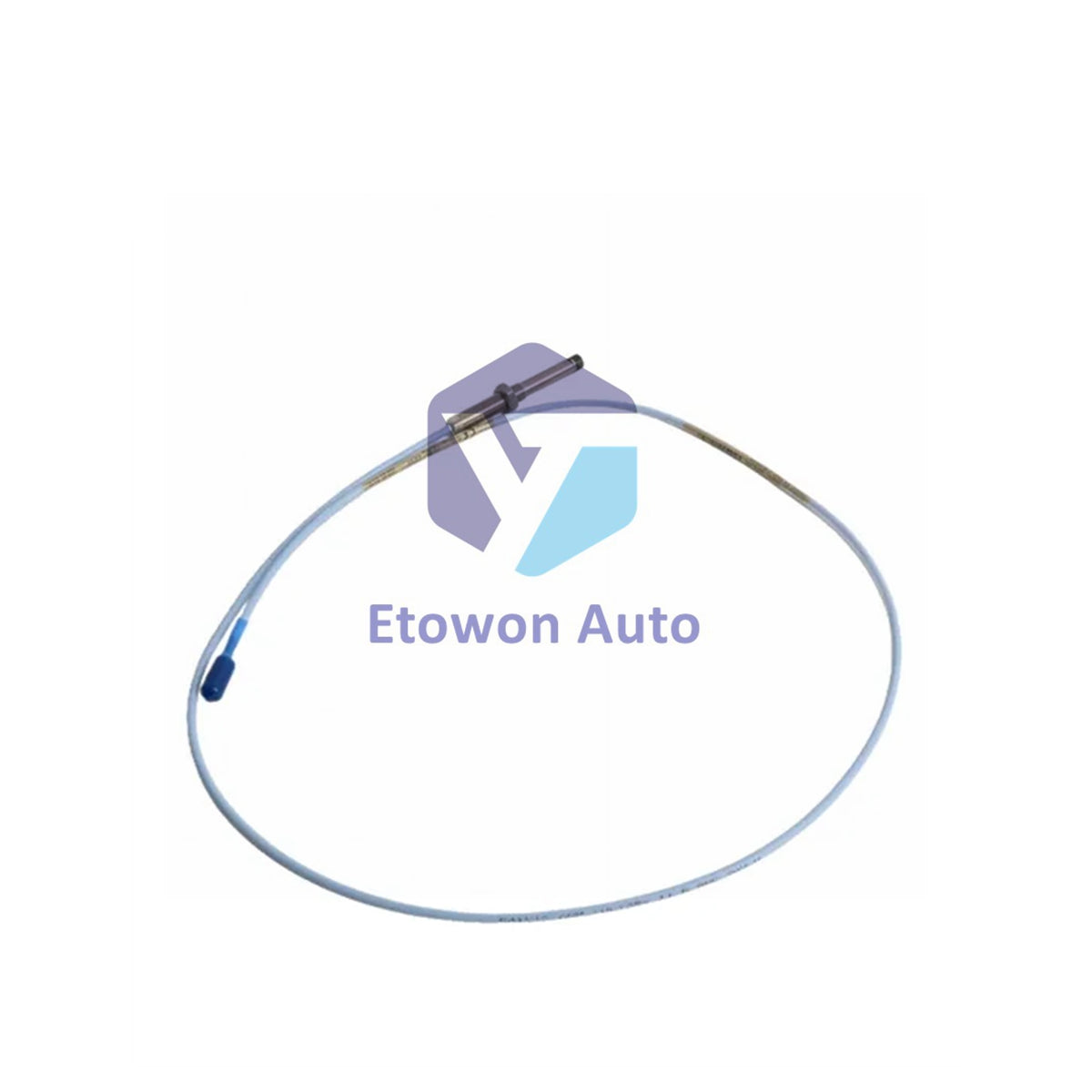

The Bently Nevada 330101-00-10-10-12-CN is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, without armor. Featuring FluidLoc cable and CN agency approval, this probe delivers reliable non-contact vibration and position measurement for turbomachinery in hazardous area applications.

Ordering Code Breakdown

330101 – 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
00 – Unthreaded Length: 0.0 in
10 – Overall Case Length: 1.0 in (25.4 mm)
10 – Total Cable Length: 1.0 metre (3.3 ft)
12 – Connector: Miniature coaxial ClickLoc, FluidLoc cable
CN – Agency Approval: Country Specific (China)

Technical Specifications

Installation Guide

Set initial probe gap to -9 Vdc (approx. 1.27 mm / 50 mils) for radial vibration applications. Torque mounting to 12–15 N·m. The FluidLoc cable option prevents oil and liquid leakage through the cable interior. For CN-approved installations, follow country-specific certification requirements.

Engineering Advantages

Patented TipLoc molding provides robust bond between probe tip and body. CableLoc design delivers 330 N (75 lbf) pull strength. FluidLoc technology prevents oil migration through the cable interior. Thicker PPS encapsulation and larger diameter case offer superior durability against physical abuse.

Technical FAQs

Q1: What does the FluidLoc cable option provide?
A1: FluidLoc prevents oil and other liquids from leaking out of the machine through the cable interior, making it ideal for wet or pressurized bearing housing applications.

Q2: What does the -CN approval indicate?
A2: The -CN suffix indicates country-specific approvals for China. Refer to the certification documents for any voltage or installation restrictions.

Q3: What is the recommended gap voltage?
A3: Set the probe to -9 Vdc output, which corresponds to approximately 1.27 mm (50 mils) gap for standard radial vibration monitoring applications.
