140DIO33000 Schneider Intrinsically Safe Output

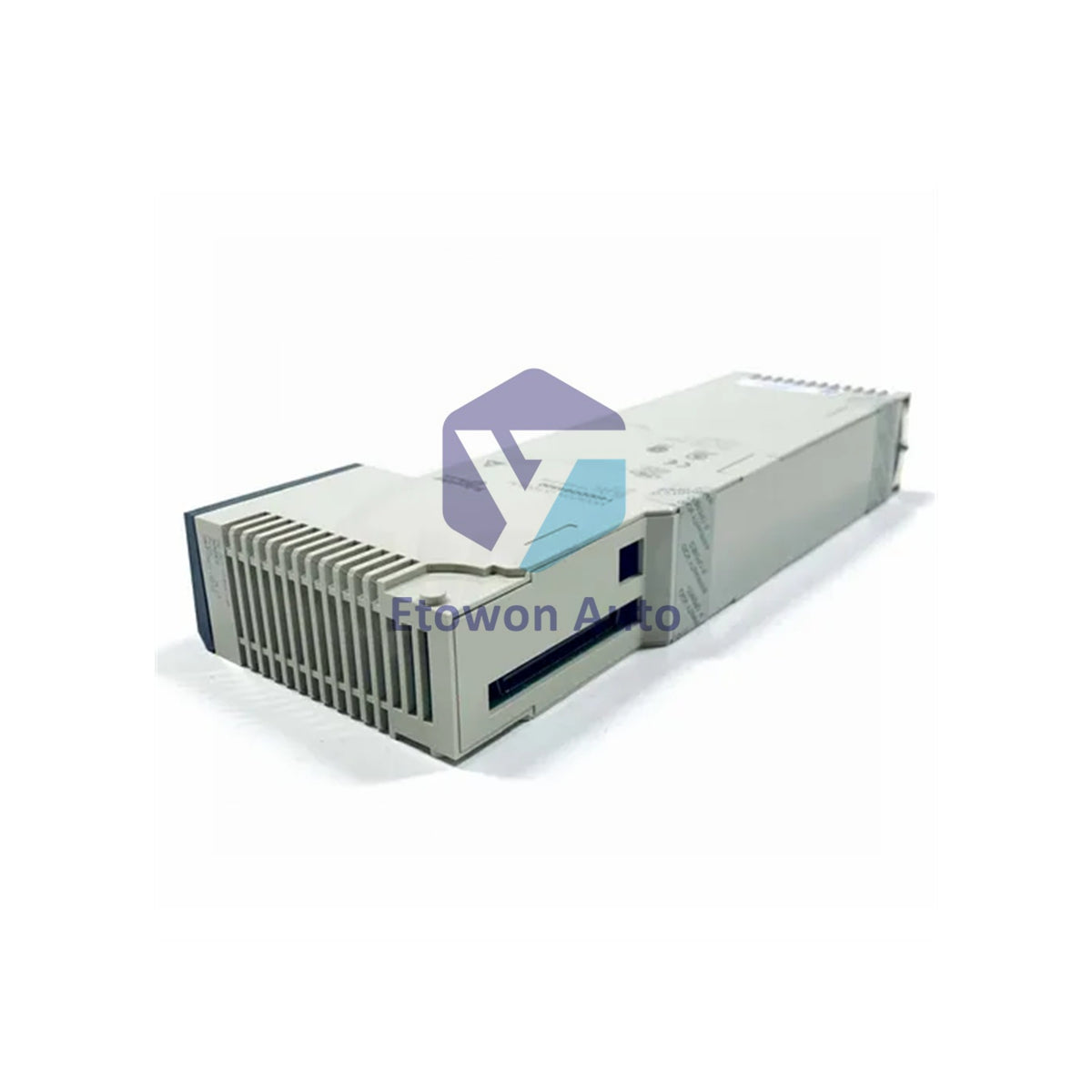

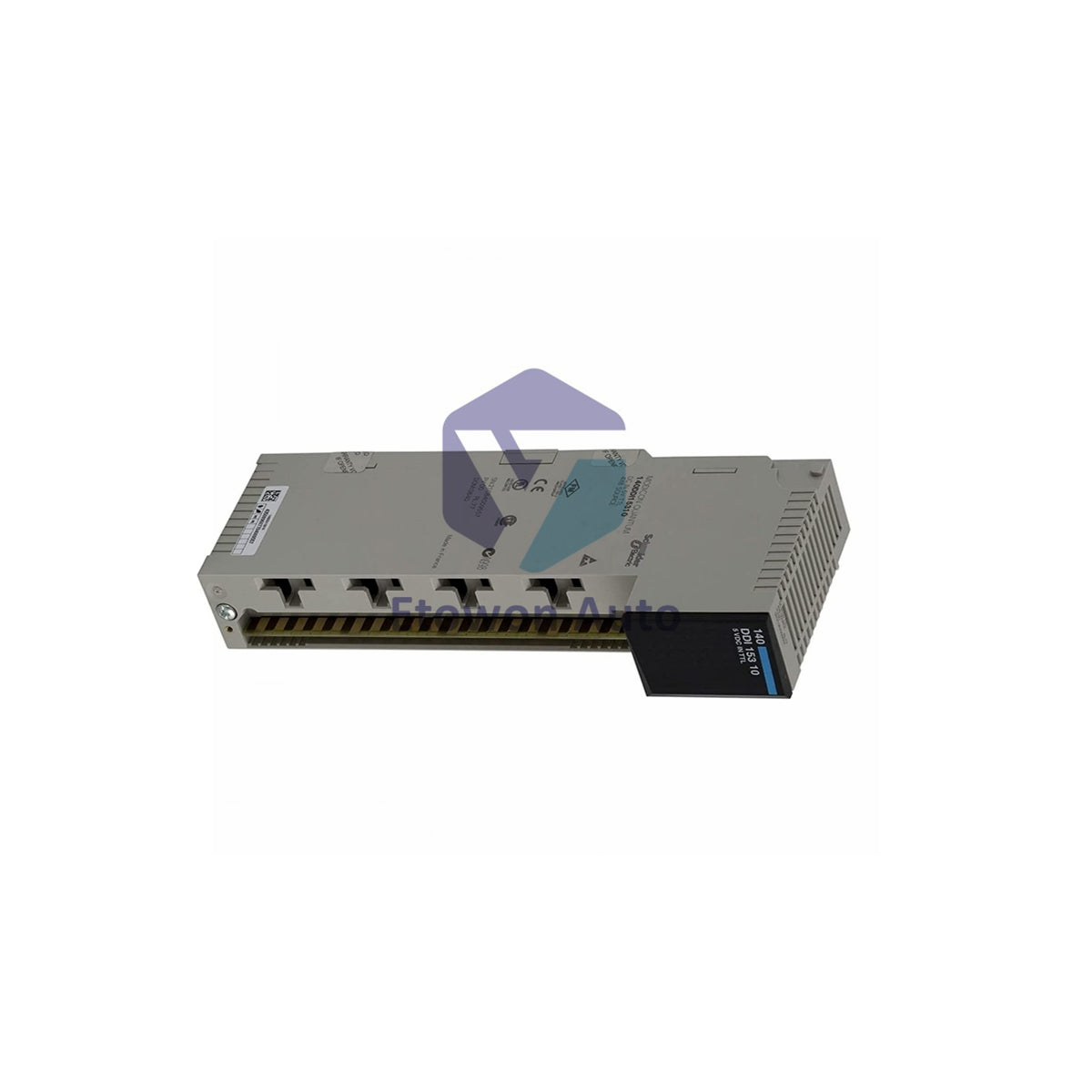

Schneider Electric Modicon Quantum 140DIO33000 Intrinsically Safe Discrete Output Module

The 140DIO33000 is an intrinsically safe discrete output module from the Schneider Electric Modicon Quantum automation platform. This open collector output module operates at 24V and is certified for use in hazardous zones 20, 21, and 22 with Ex ia IIC approval.

Key Features

• Intrinsically safe discrete output module for hazardous areas
• Open collector output type at 24V
• Maximum load: 360 mA per module, 45 mA per point
• Transient voltage suppression and internal fuse protection
• 2500V DC isolation between channels and bus
• Certified for zones 20, 21, and 22 (dust hazardous areas)
• Hot swapping not allowed per intrinsic safety standards

Technical Specifications

• Brand: Schneider Electric
• Series: Modicon Quantum
• Model: 140DIO33000
• Product Type: Intrinsically safe discrete output module
• Output Voltage: 24 V
• Output Type: Open collector
• Maximum Load Current: 360 mA per module, 45 mA per point
• Off State Leakage Current: 0.4 mA per point
• Response Time: 1 ms resistive (0 to 1 and 1 to 0)
• Power Dissipation: 5 W
• Isolation: 2500 V DC for 1 minute between channels and bus
• Bus Current Requirement: 2.2 A
• Module Format: Standard
• Net Weight: 0.45 kg (0.99 lb)

Certifications & Standards

• ATEX: II1 G/D-EEx ia IIC (SIRA 02ATEX2345X)
• FM Class 1 Division 2
• UL 508, CSA C22.2 No 142
• EN 50281-1-1, EN 50284, EN 50039, EN 50014, EN 50020
• C-tick, GOST certified
• CE marked

Environmental Specifications

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 95% without condensation
• Operating Altitude: up to 5000 m (16404 ft)
• Resistance to Electrostatic Discharge: 4 kV contact, 8 kV air (IEC 801-2)
• Resistance to Electromagnetic Fields: 9.1 V/m (10 V/m) 80-2000 MHz (IEC 801-3)

Compatible Software

• Concept V2.2 and above
• ProWORX
• Unity Pro

Package Includes

• 1x Schneider Electric 140DIO33000 intrinsically safe discrete output module
• Installation documentation

Package Dimensions

• Height: 5 cm (1.97 in)
• Width: 31.5 cm (12.40 in)
• Length: 16.5 cm (6.50 in)
• Package Weight: 0.701 kg (1.545 lb)

Shipping

• FedEx, UPS, DHL express worldwide
• Ships within 24 hours from stock
• Ground shipping available

GTIN

3595860026057
