140DDO35301C 24V DC Discrete Output Module Schneider

Overview

The Schneider Electric 140DDO35301C is a discrete output module for Modicon Quantum systems. It provides 32 output channels with 24V DC positive logic.

Key Specifications

• Manufacturer: Schneider Electric – Modicon Quantum series
• Model: 140DDO35301C – Discrete output module
• Channels: 32 outputs, positive logic (source)
• Output Voltage: 24V DC (19.2-30V range)
• Surge Current: 2A per point
• Max Load: 16A per module, 4A per group

Performance

• Fast response: ≤1ms ON to OFF, ≤0.1ms OFF to ON.
• Low leakage current: 1mA max at 24V.
• Power dissipation: 5W, bus current: 330mA.
• Requires 2 output words for addressing.

Environmental Durability

• Conformal coating (Humiseal 1A33) for harsh environments.
• Operating temperature: 0-60°C, humidity up to 95%.
• Altitude rating: up to 5000m.
• Certifications: UL 508, CSA, FM Class 1 Division 2, GOST, RMRS.

Package & Shipping

• Dimensions: 16.3 × 4.5 × 31.2 cm, net weight 0.45 kg.

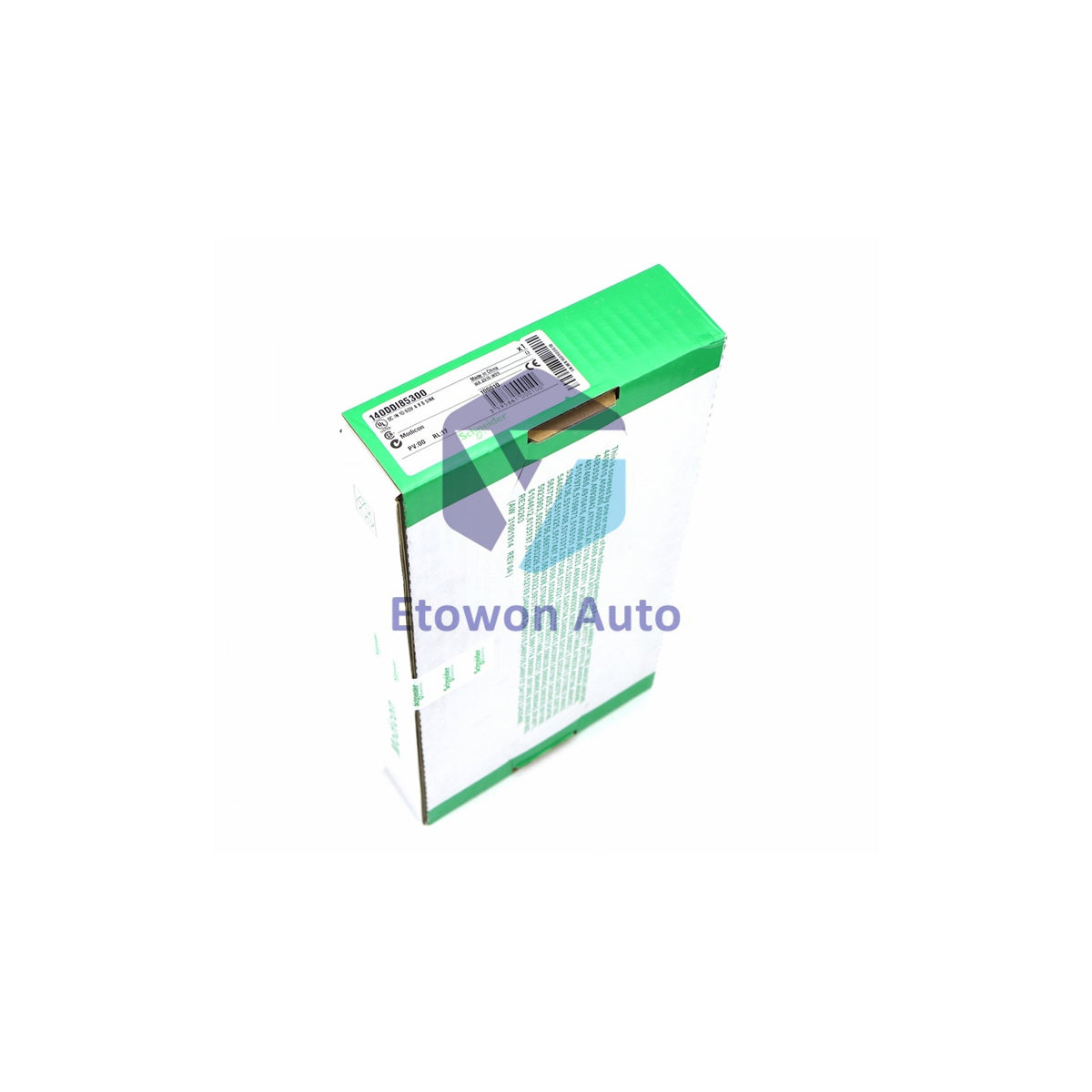

• Includes: One 140DDO35301C module with documentation.
• Shipping: Fast delivery via FedEx, UPS, or DHL.

FAQ

Q: What is positive logic (source) output?

A: The module switches 24V DC to the load. Current flows from output to common when activated.

Q: How are outputs grouped?

A: 32 channels split into 4 groups of 8. Each group has independent 5A fuse protection.

Q: Can I use this with inductive loads?

A: Yes. Calculate max inductance using H = 0.5/((A)² × Hz). Use external snubbers for large loads.
