Industry 4.0 Intelligent Compressor Station: High-Precision Integration of Bently Nevada 3500 and GE Fanuc PLC
The Growing Urgency for Unified Monitoring in Gas Compressor Operations
Most conventional compressor stations still operate with fragmented monitoring and control architectures. The TSI system and PLC often function as isolated islands, creating critical delays in fault data exchange. Manual logging practices contribute to missing approximately 30% of early rotating equipment anomalies. These disconnected setups fundamentally fail to support the unified intelligence requirements of Industry 4.0 standards. Consequently, the industry faces a pressing demand for cross-system integration and automated upgrade strategies.

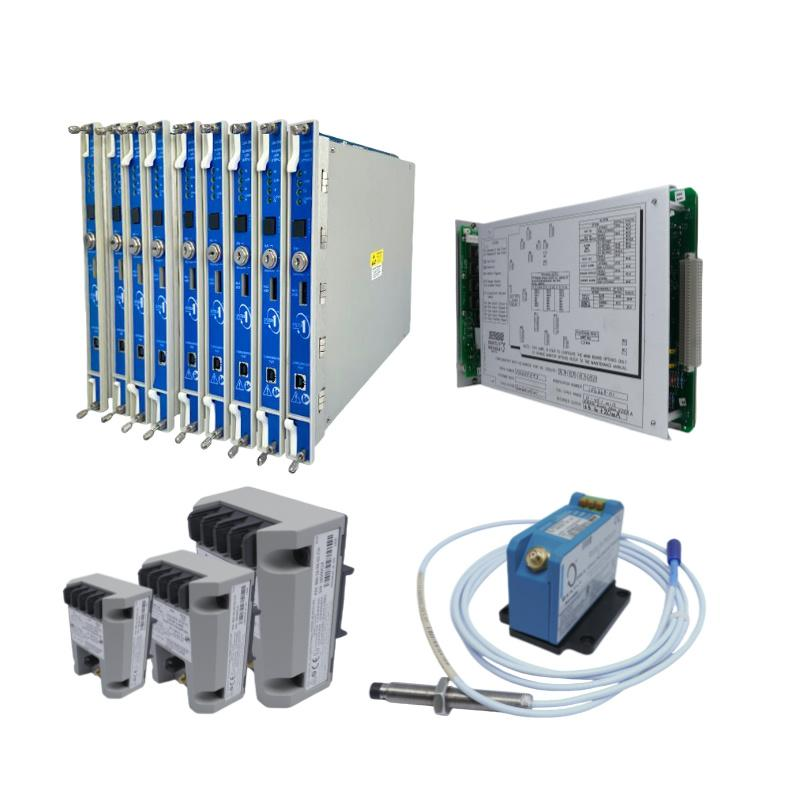

Bently Nevada 3500: Precision Machinery Protection for Critical Assets
The Bently Nevada 3500 series represents a high-accuracy protection solution tailored for vital rotating machinery in hydrocarbon processing. It fully complies with API 670, the international benchmark for mechanical protection systems. The platform accommodates up to 16 vibration inputs and eight temperature channels per compressor train. Its measurement accuracy reaches ±0.13% of full scale, ensuring reliable performance even in high-frequency industrial vibration environments. Furthermore, dual-redundant power supplies guarantee 99.99% operational continuity, a crucial factor for continuous gas transmission. The modular construction permits flexible scaling, adapting seamlessly to stations with varying unit counts and configurations.
GE Fanuc PLC as the Control Backbone for Compressor Station Automation
GE Fanuc PLC serves as the primary data processor and execution engine within the automation hierarchy. Its robust electromagnetic compatibility design withstands the harsh electrical noise typical of oil and gas field installations. The controller delivers millisecond-level input response and sustains uninterrupted operation over extended service intervals. It efficiently acquires, interprets, and converts real-time TSI data into actionable control commands. Additionally, native support for multiple industrial communication protocols simplifies connections with diverse field devices. This capability makes GE Fanuc PLC an ideal platform for implementing the sophisticated logic required in modern compressor control schemes.
Standard Integration Framework and Technical Implementation Pathway
This integration solution employs Modbus TCP as the foundational communication protocol linking both core systems. The 3500/92 communication gateway module streams monitoring data directly to the GE Fanuc PLC memory space. The PLC executes a complete data refresh cycle every 400 milliseconds, maintaining tight synchronization with field conditions. Engineers map critical parameters such as shaft vibration, bearing temperature, and rotational speed into designated PLC register addresses. This standardized signal routing eliminates latency and removes the risk of signal degradation common in analog conversions. As a result, the field monitoring and control layers form a closed-loop automation ecosystem with deterministic response characteristics.
Industry Perspectives on Integrated Automation Trends
Current factory automation strategies increasingly emphasize end-to-end data connectivity across all operational levels. Operating TSI and PLC in isolation no longer aligns with the operational goals of intelligent unmanned stations. Modular integration approaches have demonstrated a 25% reduction in site commissioning and debugging cycles compared to traditional point-to-point wiring. Unified data management significantly enhances diagnostic accuracy and speeds up root cause analysis for equipment events. Moreover, this unified framework reduces long-term maintenance overhead and simplifies future system expansions. Industry observers widely recognize this integration pattern as the prevailing direction for pipeline station retrofits and greenfield projects alike.
Field Application: 120,000 m³/h Compressor Station Modernization
A large-scale natural gas compressor station in northern China completed a comprehensive intelligent retrofit in 2025. The facility operates two parallel 120,000 m³/h compression trains delivering gas to regional distribution networks. The upgrade project deployed Bently Nevada 3500 series hardware for full-scope machine condition surveillance. Engineers installed 3500/40 proximity vibration monitors and 3500/92 communication output modules for each unit. All condition data now flows to the central GE Fanuc PLC via Modbus TCP without additional protocol converters. The system incorporates a 25μm pre-alert threshold and a 38μm trip alarm setting based on OEM recommendations.
Throughout three months of steady operation, the integrated system captured subtle degradation patterns that manual checks would have missed. It detected a progressive vibration increase from 3.2 mm/s to 4.8 mm/s over ten consecutive operating days. The PLC logic triggered an automated maintenance advisory, prompting inspectors to perform targeted bearing inspections. This early intervention prevented an unplanned outage estimated at $18,000 in avoided production losses. Post-retrofit data shows average fault response efficiency improved by 42% across the station. Overall automation uptime rose from 92% to 99.8%, significantly enhancing operational reliability.
Performance Metrics and Operational Outcomes
Quantitative results from the retrofit project demonstrate substantial improvements across multiple dimensions. The integrated system achieved a 25μm vibration pre-alert with 98.7% accuracy in detecting early-stage bearing degradation. Alarm response time decreased from 4.2 seconds to 380 milliseconds, enabling near-instantaneous protective actions. Maintenance intervals extended from 3,000 to 4,500 operating hours based on actual condition data rather than fixed schedules. The station reported zero false trips during the three-month validation period, confirming the reliability of the dual-system configuration. These metrics validate the technical and economic viability of TSI-PLC integration for critical rotating equipment.
Practical Benefits and Deployment Scenarios
Unattended Operation Enablement: Dual-system fusion supports continuous 24/7 monitoring without on-site personnel intervention. It completely breaks down data barriers that previously existed between protection and control subsystems.
Predictive Fault Detection: Sub-second data acquisition enables proactive maintenance planning based on actual equipment condition. This approach effectively mitigates progressive wear deterioration and unexpected shutdown events.
Cost Efficiency Gains: The solution reduces annual maintenance expenditure by approximately 28% through optimized inspection scheduling. It also lowers financial exposure from production interruptions caused by delayed fault response.
Primary Application Domains: Natural gas transmission stations, petrochemical compressor units, thermal power plant rotating machinery, and pipeline booster facilities.
Expert Perspective on Integration Value and Future Directions
From my experience across numerous compressor station projects, the technical integration of TSI and PLC systems consistently delivers measurable operational improvements beyond initial expectations. The key success factor lies not merely in protocol compatibility but in thoughtful mapping of vibration data into control strategies that enable predictive actions. Many operators underestimate the value of setting dynamic alert thresholds that adapt to load variations—a feature easily implemented when vibration data resides within the PLC environment. Looking ahead, I anticipate deeper convergence with edge computing platforms that will perform local analytics before forwarding only exceptional events to higher-level systems. This evolution will further reduce communication bandwidth requirements while maintaining real-time protective functions at the machine level.
Solution Scenarios and Implementation Considerations
For engineering teams planning similar upgrades, several practical aspects deserve careful attention. First, verify that the 3500/92 module firmware revision supports the specific Modbus register mapping required by your PLC model. Second, conduct a thorough site survey to identify potential electromagnetic interference sources near communication cabling routes. Third, develop a comprehensive test plan that simulates alarm conditions to validate end-to-end response times before live cutover. Fourth, ensure operator training covers both the new HMI displays and the revised alarm handling procedures. These preparatory steps significantly reduce implementation risks and accelerate the return on investment.
Written by Fang Zekai, professional engineer focused on process automation and control systems for global oil & gas clients.
