Understanding PLC Architecture for Energy Management
Programmable Logic Controllers serve as the backbone of industrial energy management. Unlike general-purpose computers, PLCs feature deterministic execution cycles, industrial-grade input/output modules, and real-time operating capabilities. Engineers value these systems because they provide predictable scan times—typically between 1 to 50 milliseconds—which ensures that energy control algorithms execute with precise timing. This deterministic behavior is essential when coordinating load shedding or peak demand responses across multiple production assets.
Key Components of PLC-Based Energy Systems
A properly configured PLC energy management system consists of several critical components. The central processing unit executes control logic and manages communication. Analog input modules accept signals from power meters, current transformers, and temperature sensors. Digital output modules control contactors and relays for load switching. Communication processors handle protocols such as Modbus TCP, Profinet, or EtherNet/IP. Engineers must select components based on the specific energy monitoring points and control requirements of each application.
Real-Time Data Acquisition Techniques
PLCs collect energy data through multiple methods. Dedicated power monitoring modules can directly measure three-phase power parameters including voltage, current, active power, reactive power, and power factor. Alternatively, external power meters communicate with the PLC via serial or Ethernet protocols. For existing installations, current transformers can be retrofitted around motor feeders without interrupting production. The PLC then processes this raw data into usable metrics, calculating energy consumption over time and identifying anomalies that indicate inefficiencies.
Advanced Control Strategies for Energy Optimization
PID Control for Variable Frequency Drives
Proportional-Integral-Derivative control algorithms within PLCs optimize variable frequency drive operations. When controlling pumps or fans, engineers can program PID loops that maintain process parameters while minimizing energy consumption. For example, a cooling water system can use PID control to adjust pump speed based on actual demand rather than running at full capacity. This approach typically reduces motor energy consumption by 20-35% compared to fixed-speed operation while maintaining process stability.
Demand Response and Load Shedding Logic
Industrial electricity rate structures often include demand charges based on peak usage over a 15 or 30-minute interval. PLCs can implement sophisticated load shedding algorithms that monitor real-time power consumption and automatically shed non-critical loads when approaching predetermined thresholds. Engineers program these systems with priority levels, ensuring that essential production equipment remains operational while temporarily deferring loads such as batch processes, HVAC systems, or non-essential conveyors. A properly tuned load shedding system can reduce peak demand charges by 15-25% without impacting production throughput.
Sequential Startup and Staggered Operation
Large facilities experience significant inrush currents when multiple motors start simultaneously. PLCs manage sequential startup routines that stagger motor starting, preventing simultaneous high-current draws that trigger demand spikes. Engineers implement timers and interlock logic to ensure motors start in a predetermined sequence with controlled delays. This technique not only reduces peak demand but also minimizes mechanical stress on electrical distribution equipment and extends component lifespan.
Communication Protocols and System Integration
Modbus and Industrial Ethernet Architectures

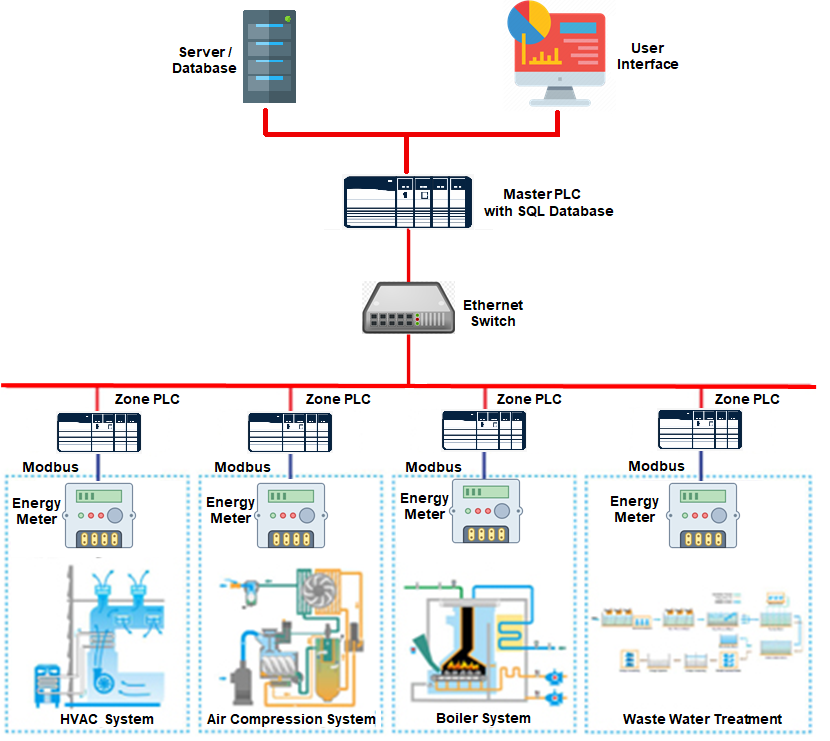

Modern PLC energy management systems rely on robust communication protocols for data exchange. Modbus RTU over RS-485 remains widely used for connecting power meters and sensors due to its simplicity and reliability over long distances. For higher data throughput, EtherNet/IP and Profinet provide deterministic communication suitable for real-time control applications. Engineers designing these systems must consider network topology, baud rates, and scan intervals to ensure that energy data updates frequently enough for effective control decisions.
Integration with SCADA and MES Platforms
PLCs serve as the data acquisition layer for higher-level systems. SCADA platforms aggregate data from multiple PLCs, providing operators with visualization dashboards and historical trending. Manufacturing Execution Systems use this energy data alongside production metrics to calculate energy intensity per unit produced. Engineers can implement OPC Unified Architecture servers to standardize data exchange between PLCs and enterprise systems, enabling comprehensive energy reporting and analytics across the entire organization.
Predictive Maintenance Through Energy Signature Analysis
Motor Current Signature Analysis
Electric motors exhibit characteristic current signatures under normal operation. PLCs can monitor motor current continuously and apply algorithms to detect deviations that indicate developing faults. Increased current during no-load conditions may suggest mechanical binding or bearing wear. Current imbalances between phases can indicate winding insulation degradation or rotor bar defects. Engineers program PLCs to capture and analyze these signatures, generating maintenance alerts before failures occur. This predictive approach typically reduces unplanned downtime by 30-50% while eliminating the energy waste associated with inefficient equipment operation.
Compressed Air System Monitoring
Compressed air systems represent one of the largest energy consumers in industrial facilities, with typical efficiencies below 20%. PLCs can monitor pressure differentials across filters, receiver tank fill and drain cycles, and individual compressor runtime. By analyzing these parameters, engineers can detect leaks, optimize compressor staging, and identify inappropriate uses of compressed air. Advanced PLC programs can automatically stage compressors based on demand, ensuring that only necessary capacity operates at any given time. Facilities implementing these controls typically achieve 15-25% reduction in compressed air energy consumption.
Technical Implementation: Step-by-Step Guidance
System Design and Hardware Selection
Engineers should begin by creating a comprehensive single-line diagram of the electrical distribution system. Identify all major energy consumers and determine which loads require monitoring versus which require active control. Select PLC hardware with sufficient processing capacity for the intended control algorithms. For large facilities, consider distributed I/O architecture with remote racks located near monitored equipment to minimize wiring distances. Choose power monitoring hardware that provides appropriate accuracy—typically 0.5% or better for billing-grade applications.
Programming Energy Control Algorithms
PLC programming for energy management follows structured approaches. Ladder logic remains common for discrete control applications such as load shedding and sequential startups. Structured text provides advantages for complex calculations, PID loops, and data analysis functions. Engineers should organize code into modular routines: one for data acquisition, another for energy calculations, a third for control logic, and a fourth for communication. This modular structure simplifies testing, troubleshooting, and future modifications. Include extensive commenting to document algorithm intent and key parameters.
Commissioning and Validation Procedures
Proper commissioning ensures system accuracy and reliability. Begin by verifying all sensor connections and signal scaling. Use handheld power meters to validate PLC readings at multiple operating points. Test load shedding logic by simulating peak demand conditions and confirming correct sequence of operations. Document baseline energy consumption before and after control implementation to quantify savings. Establish ongoing verification procedures, including periodic comparison of PLC energy data against utility meter readings to ensure continued accuracy.
Technical Case Study: Automotive Assembly Plant
A large automotive assembly facility in the Midwest United States implemented a comprehensive PLC-based energy management system across 12 assembly lines. The system utilized a combination of 18 PLCs networked via Profinet, interfacing with over 200 power meters and 150 variable frequency drives. Engineers programmed the system to execute several strategies: sequential motor starting during shift startups, dynamic HVAC setpoint adjustment based on occupancy and production schedules, and automated load shedding during utility peak events.
Measured Results: Total facility energy consumption decreased by 19% over 18 months. Peak demand charges fell by 24%. The compressed air system alone achieved 28% energy reduction through optimized compressor staging and leak detection. Annual energy cost savings exceeded $1.2 million. The system achieved full payback in 16 months. Additionally, the predictive maintenance capabilities identified three developing motor failures before production impact, preventing an estimated $400,000 in unplanned downtime costs.
Technical Case Study: Chemical Processing Facility
A chemical processing plant faced challenges with variable production schedules causing inefficient energy use. Engineers deployed a PLC-DCS hybrid architecture with 24 PLCs handling discrete control and a DCS managing continuous process optimization. The system incorporated real-time energy pricing data to schedule energy-intensive batch processes during off-peak rate periods. PLCs controlled feed pumps, agitators, and material handling equipment, coordinating operations based on both production requirements and energy costs.
Measured Results: The facility achieved 23% reduction in electricity costs despite stable production volumes. Energy cost per ton of product decreased by 31%. Load shifting strategies reduced peak demand by 18%. The system also improved process consistency, reducing product variability by 12%. Annual savings totaled $875,000 with a system payback period of 21 months. Engineers reported that the visibility provided by the PLC data enabled continuous improvement initiatives that continued generating savings beyond the initial implementation.
Engineer’s Perspective: Trends Shaping Industrial Energy Control
From an engineering standpoint, several trends are reshaping how we approach industrial energy management. Edge computing capabilities are increasingly embedded within PLC platforms, allowing sophisticated analytics to run locally without cloud dependencies. This reduces latency and eliminates concerns about network reliability for critical control functions. Machine learning algorithms are beginning to appear in PLC applications, enabling adaptive optimization that continuously refines energy strategies based on operating patterns. Cybersecurity considerations have also become paramount, with engineers implementing defense-in-depth architectures that segment energy control networks from enterprise IT systems while maintaining necessary data flows.
In my professional experience, the most successful energy management projects share common characteristics: they establish clear baseline data before implementation, they involve operators in system design to ensure practical usability, and they treat energy data as a continuous improvement tool rather than a one-time project. Companies that embed energy performance indicators into daily operations achieve sustained savings that compound over time.
Conclusion
PLC technology provides the deterministic control, robust hardware, and flexible programming capabilities essential for effective industrial energy management. From real-time monitoring and predictive maintenance to automated load control and system integration, PLCs enable engineers to implement sophisticated strategies that deliver measurable financial returns. As energy costs continue to rise and sustainability requirements become more stringent, the role of PLC-based energy management will only grow in importance. For engineering professionals, developing expertise in this area represents both a technical challenge and a significant career opportunity.
