Advanced Vibration Monitoring Solutions for Modern Control Systems

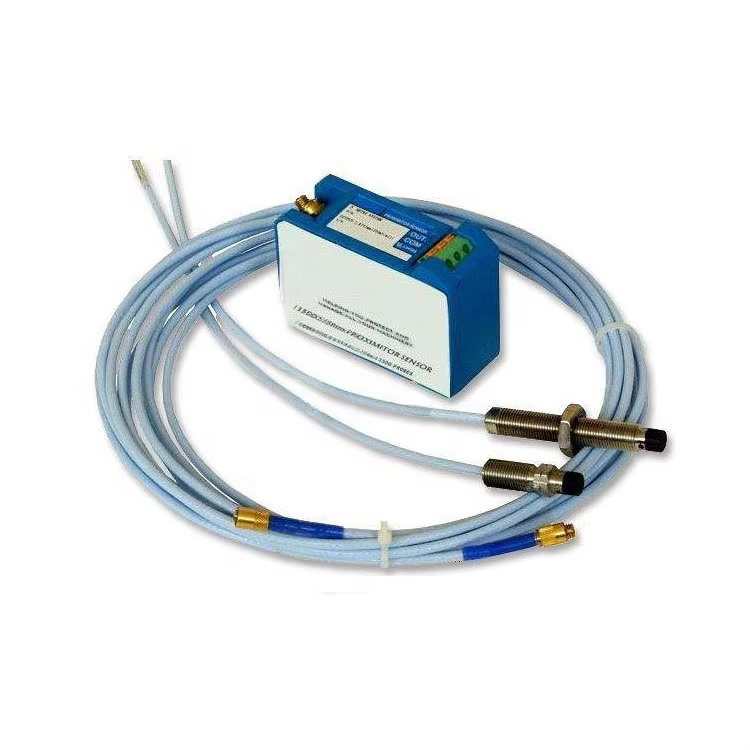

Integrating precise machinery health data into Industrial Automation, PLC, and DCS environments is vital for predictive maintenance. Bently Nevada's eddy current probes provide this critical feedback, enabling smarter control decisions and enhanced factory reliability.
Compact 5mm Probes for Space-Constrained Automation
In automated systems with compact PLC panels and motors, the 5mm probe (330105) is essential. It delivers high-resolution vibration data directly to your control system.
Technical Highlights:
- Size: 5mm diameter for tight fits.
- Temp Range: Operates from -40°C to 150°C.
- Output: 7.87 mV/µm sensitivity.
- Range: ±0.5mm linear measurement.
Integration Insight: This probe connects seamlessly to vibration monitoring modules compatible with major DCS brands like Emerson and ABB. Proper signal conditioning is crucial for accurate PLC input.
Robust 11mm Probes for Heavy Industrial Assets
For large turbines and compressors monitored by plant DCS, the 11mm probe (330130) offers durability. It tracks critical rotor positions to prevent failures.
Technical Highlights:
- Size: 11mm heavy-duty construction.
- Temp Range: Withstands up to 175°C.
- Output: 200 mV/mil standard signal.
- Range: ±2.5mm wide linear range.
Control System Note: The stable 0-10 kHz signal is ideal for integration into Allen-Bradley or GE Fanuc control architectures for real-time analytics.
Low-Frequency 25mm Probes for Slow-Speed Monitoring
In slow-speed applications like hydro plants, the 25mm probe (330800) detects subtle faults. This low-frequency data is key for long-term predictive strategies in automation.
Technical Highlights:
- Size: 25mm sensing surface.
- Temp Range: Stable to 175°C.
- Bandwidth: 0-2 kHz frequency response.
- Output: 100 mV/mil sensitivity.
Expert Comment: This probe is perfect for detecting bearing wear in gearboxes, providing early warnings to SCADA systems long before traditional alarms trigger.
Installation and Signal Integrity Best Practices
Correct installation ensures data accuracy in your PLC/DCS loop. Follow these steps for reliable operation.
Installation Guide:
- Mounting: Secure the probe within its linear range, typically 0.5 to 2.0 mm from the target.
- Cabling: Use 50-ohm, double-shielded cable. Route away from power lines to avoid EMI.
- Grounding: Ground the shield at the monitoring system end only to prevent ground loops.
- Connection: Terminate directly into a compatible vibration transmitter or monitor.
- Commissioning: Calibrate the gap voltage and scale within the control system software.
Using substandard cables can introduce significant noise, leading to false trips in your automation logic.
Real-World Solutions and Application Cases
Case Study 1: Automotive Manufacturing PLC System
A high-speed assembly line motor, controlled by an Allen-Bradley PLC, experienced unexplained stops. Installing a 5mm probe revealed a 0.15mm shaft misalignment. Correcting this reduced downtime by 25 hours per month.
Case Study 2: Oil & Gas Compressor DCS Monitoring
An Emerson DCS monitored a gas compressor. An 11mm probe detected a 3-mil increase in vibration at 2X running speed. This data prompted a bearing inspection, preventing a failure estimated at over $500,000 in lost production.
Case Study 3: Power Generation Slow-Speed Bearing Monitor
In a hydro plant, a 25mm probe connected to a GE Fanuc system identified a 0.8 Hz sub-synchronous vibration. This indicated bearing oil whirl, allowing for scheduled maintenance during a low-demand period.
The Future of Vibration Data in Smart Factories
Industry 4.0 connects vibration data directly to PLCs and DCS for AI-driven decisions. As a result, Bently Nevada probes are becoming standard sensors for the Industrial Internet of Things (IIoT). Moreover, their compatibility with major control brands makes integration straightforward. Therefore, investing in high-quality sensing now builds a foundation for future digital twin and predictive analytics projects.
Frequently Asked Questions (FAQ)
Q1: How do I choose the right probe for my PLC-controlled machine?
A1: Consider the machine speed and space. Use 5mm for high-speed (>10,000 RPM), small motors; 11mm for general turbines; 25mm for low-speed (<600 RPM) gearboxes. Always check compatibility with your system's monitoring modules.
Q2: What support do you offer for integration into existing automation systems?
A2: We provide 7*24 technical support for integration with Allen-Bradley, Bently Nevada, Emerson, ABB, and other major brands. Our team helps with wiring diagrams, configuration, and data scaling within your PLC or DCS logic.
Q3: What are the shipping options for these industrial sensors?
A3: We ensure fast delivery via global partners like DHL, FedEx, and UPS, including air freight for critical spare parts to minimize your plant downtime.
