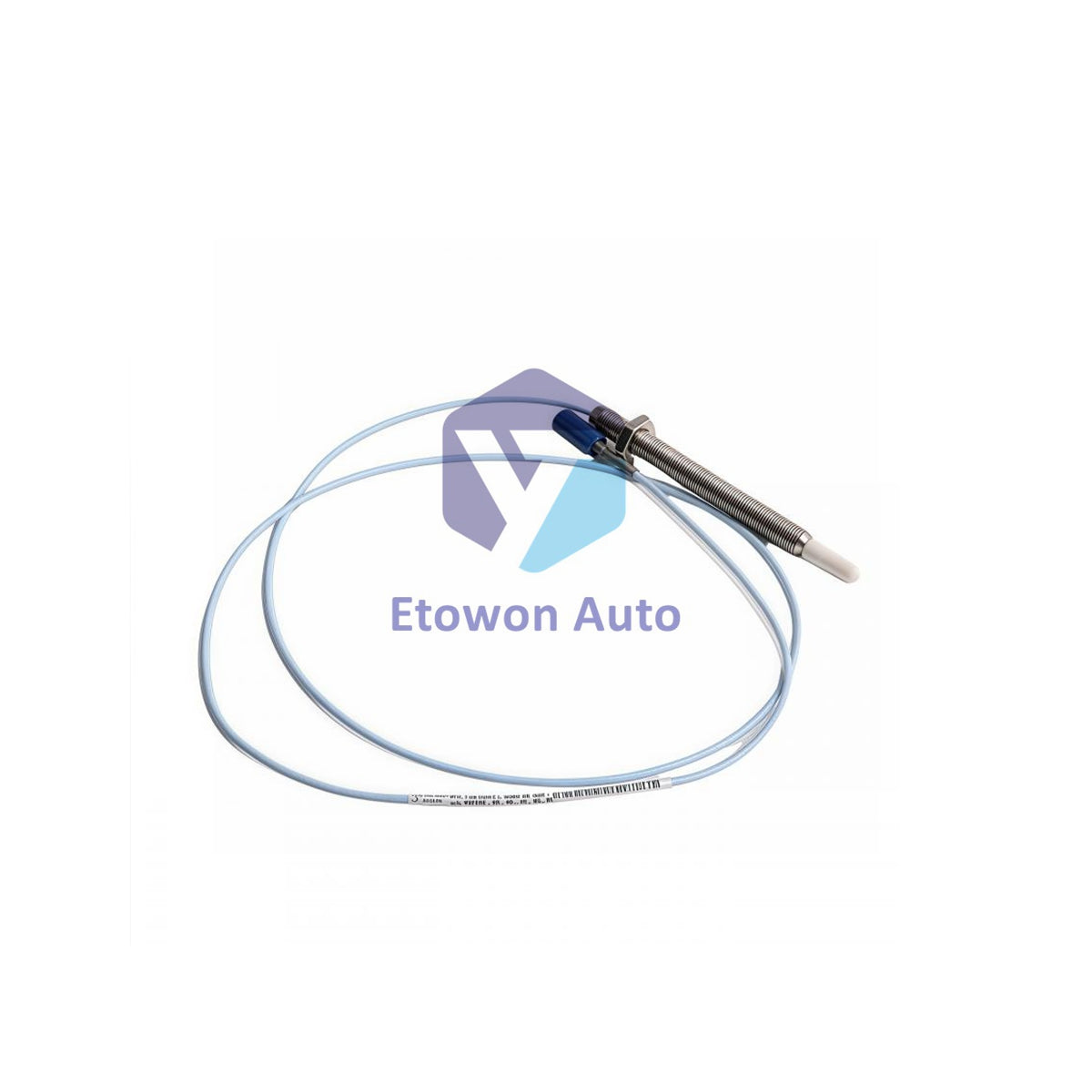

Bently Nevada 5.0m 330103-00-11-50-02-00 Vibration Probe

Product Overview

The Bently Nevada 330103-00-11-50-02-00 is a high-precision proximity probe from the 3300 XL 8mm series, specifically designed for industrial machinery protection. This metric-threaded sensor uses eddy current technology to provide non-contact measurement of shaft vibration and position. With a robust 110mm case length and a 5.0-meter integrated cable, the 330103 is an essential component for monitoring critical rotating assets such as turbines, compressors, and motors in harsh industrial environments.

Technical Configuration

Optimized for metric mounting and long-range system connectivity:

• Model Series: 3300 XL 8 mm Probe (M10 x 1 thread)
• Unthreaded Length (00): 0 mm
• Overall Case Length (11): 110 mm
• Total Length (50): 5.0 Meters (16.4 feet)
• Connector (02): Miniature coaxial ClickLoc™ connector
• Agency Approval (00): Standard (Not required)
• Environmental Rating: IP67 Protection Class

Technical Specifications

Engineering Advantages

The 330103-00-11-50-02-00 is engineered for extreme durability, featuring IP67 protection to ensure resistance against dust and water ingress. Its 100g shock resistance makes it suitable for heavy-duty industrial machinery where mechanical stress is common. The ClickLoc™ connector offers a secure, vibration-proof electrical coupling, while the 110mm case allows for deep engagement in metric-threaded ports, ensuring the sensor remains stable during high-frequency operations up to 10 kHz.

Technical FAQs

Q1: Why is this probe configured without an unthreaded length?
A1: The "00" option means the entire 110mm case is threaded. This allows for maximum flexibility during installation, enabling the technician to adjust the probe's depth precisely within the mounting bracket or housing.

Q2: Can I use this 5-meter probe with a 9-meter extension cable?
A2: No. This probe is part of a 5.0-meter system. It is designed to be connected directly to a 5-meter Proximitor Sensor without an extension cable to maintain proper electrical calibration and signal accuracy.

Q3: Is this probe compatible with standard non-XL 3300 Proximitor sensors?
A3: While physically similar, it is highly recommended to use 3300 XL probes with 3300 XL Proximitor sensors. Mixing XL and non-XL components can lead to deviations in the Average Scale Factor (ASF) and overall system linearity.
