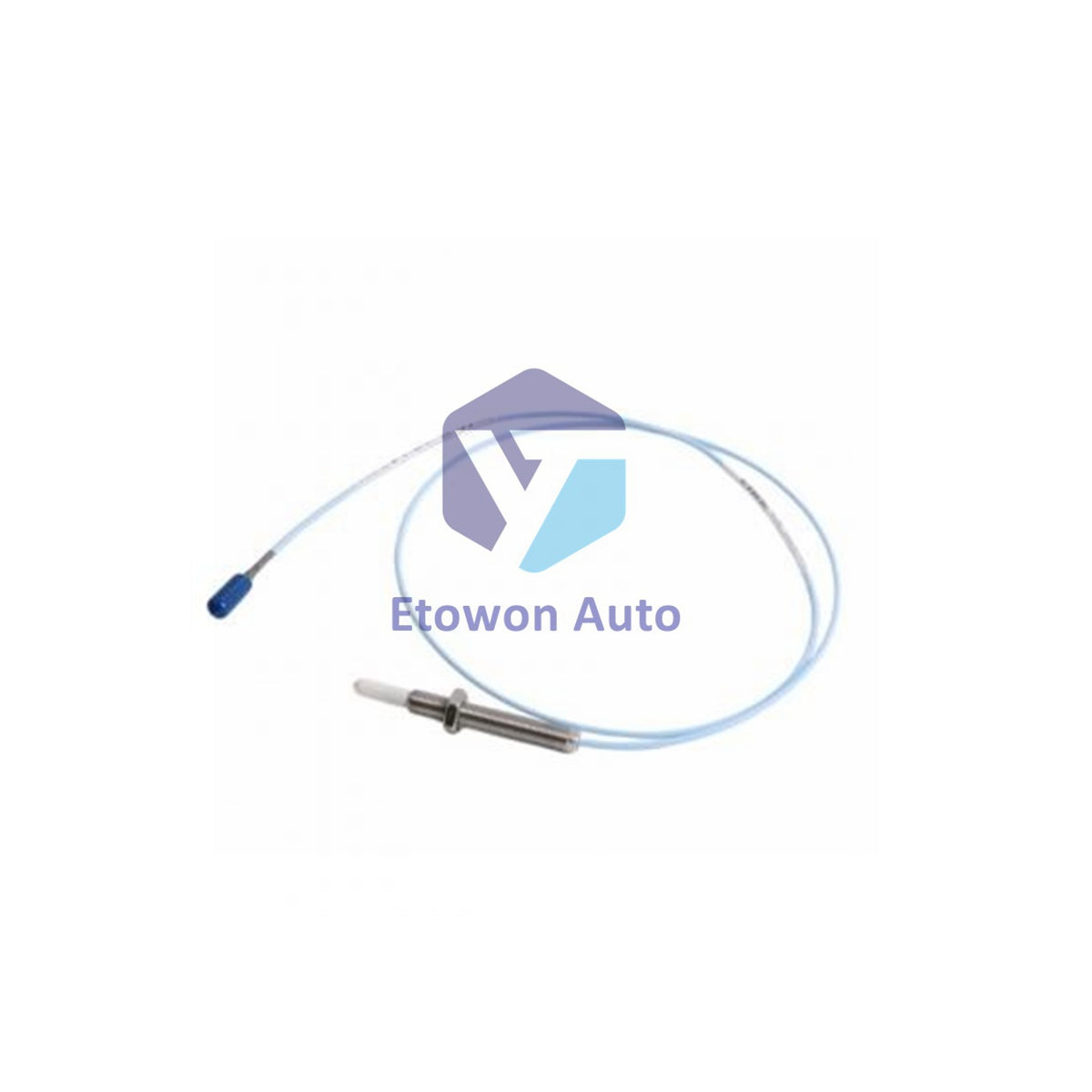

Bently Nevada 330905-00-12-10-02-05 Probes 120mm 1.0m

The Bently Nevada 330905-00-12-10-02-05 is a 3300 NSv Proximity Probe for industrial vibration monitoring. It features M10X1 threads with 1.0m standard cable and Multiple Approvals.

Product Details

• Part Number: 330905-00-12-10-02-05
• Model: 3300 NSv Proximity Probe
• Manufacturer: Bently Nevada
• Condition: New Original, Factory Sealed
• Warranty: 12 Months
• Weight: 14-150 g (0.5-5.3 oz)

Configuration

• Thread Type: M10X1, without armor
• Unthreaded Length: 00 mm
• Case Length: 120 mm
• Cable Length: 1.0 meter (39 in)
• Connector: Miniature coaxial ClickLoc, standard cable
• Approval: Multiple Approvals (05)

Electrical Specifications

• DC Resistance: 4.2 ± 0.5 ohms at 1.0m
• Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
• Recommended Gap: 1.0 mm (40 mils)
• Scale Factor: 7.87 V/mm (200 mV/mil) +12.5%/-20%
• Deviation: Less than ±0.06 mm (±2.3 mils)
• Output: -1 to -13 Vdc
• Frequency Response: 0-10 kHz: +0, -3 dB typical

Torque Specifications

• Recommended Torque: Finger tight
• Maximum Torque: 0.56 N•m (5 in•lb)
• Case Max Rated: 33.9 N•m (300 in•lb)
• Case Recommended: 11.3 N•m (100 in•lb)
• First Threads Max: 22.6 N•m (200 in•lb)
• First Threads Rec: 7.5 N•m (66 in•lb)

Environmental

• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)

Target Requirements

• Minimum Flat Target: 8.9 mm (0.35 in) diameter
• Recommended Target: 13 mm (0.5 in) diameter

Field Wiring

• Wire Size: 0.2-1.5 mm² (16-24 AWG)
• With Ferrules: 0.25-0.75 mm² (18-23 AWG)
• Max Cable Length: 305 m (1000 ft)

FAQs

• What is the cable length of this probe?
  The 330905-00-12-10-02-05 has a 1.0 meter (39 in) standard cable.
• What is the case length?
  This probe features a 120 mm overall case length.
• What approvals does this probe have?
  This probe includes Multiple Approvals (05) for international compliance.
