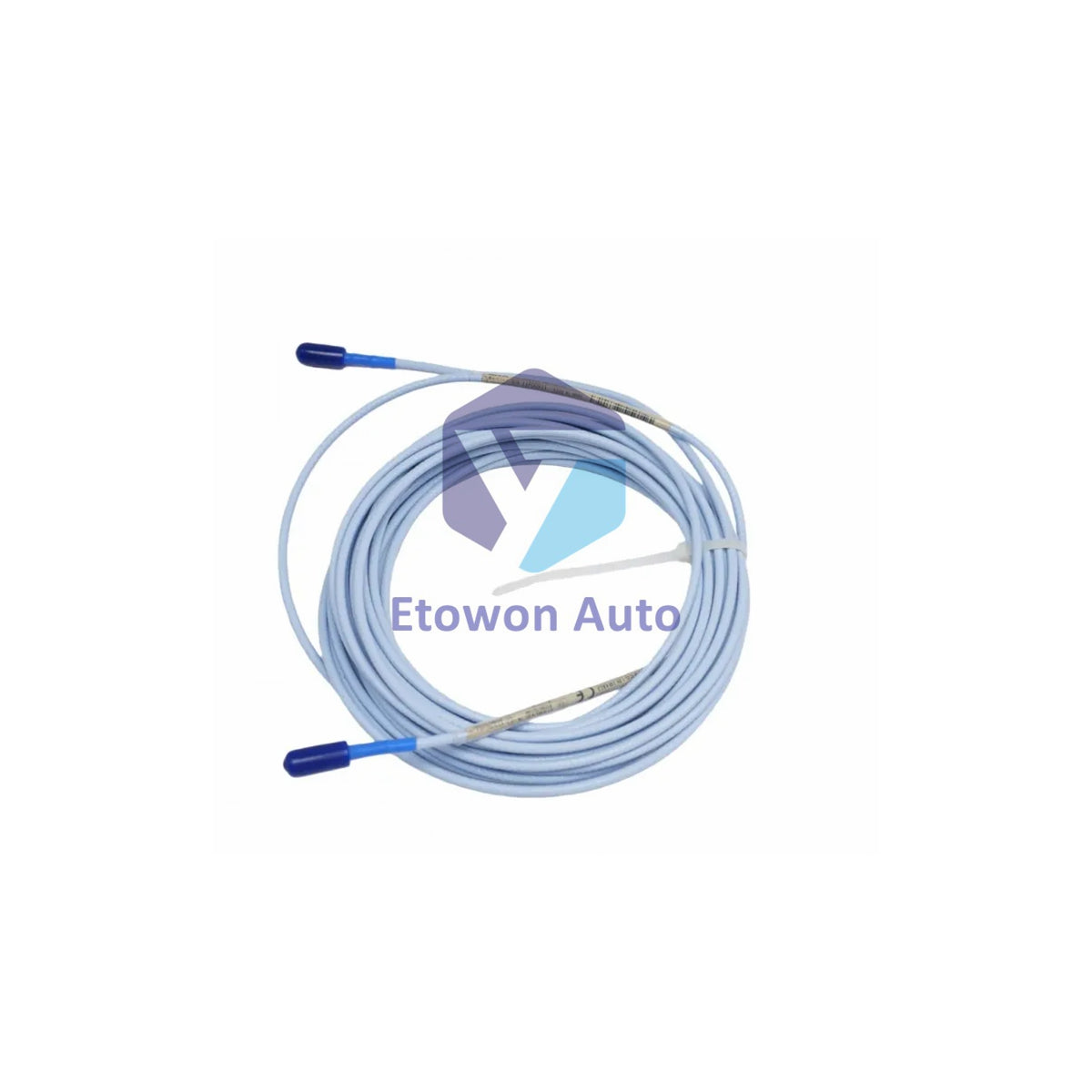

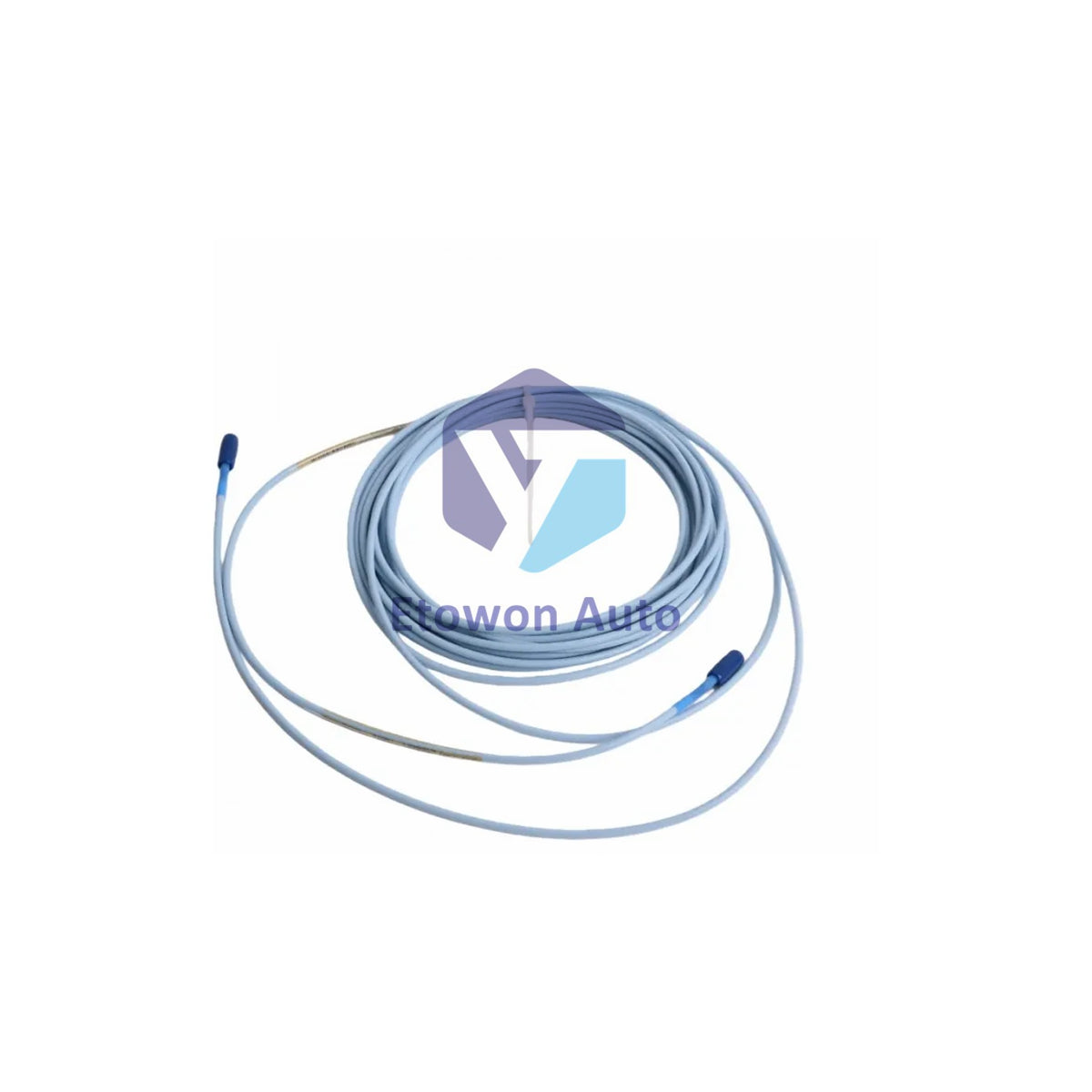

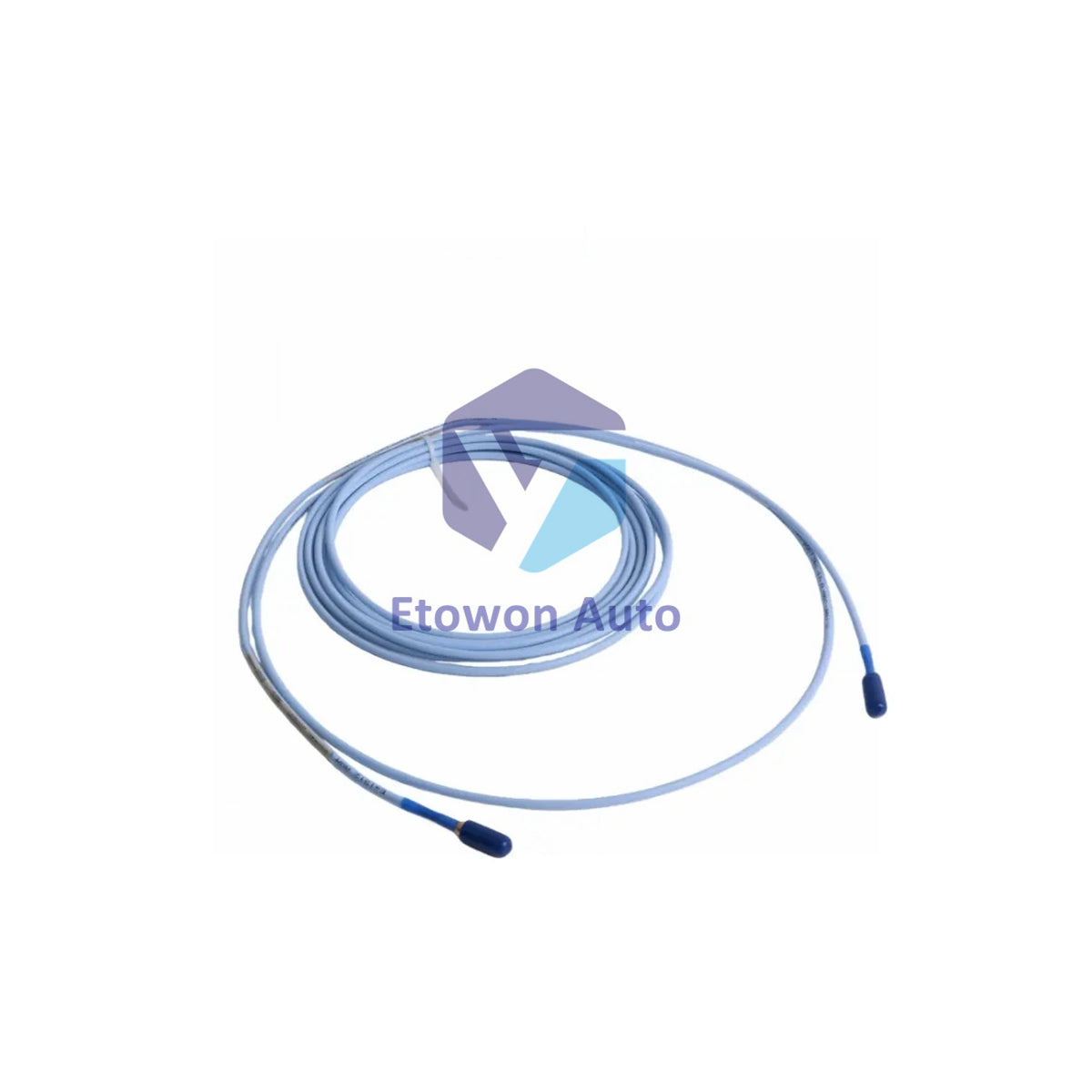

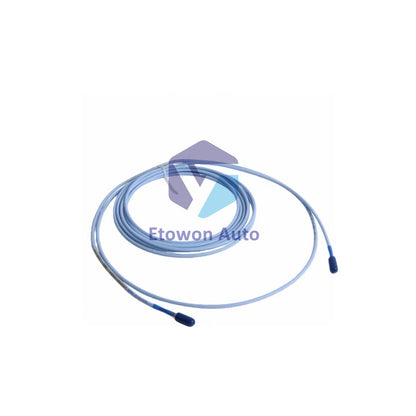

Bently Nevada 330851-02-000-040-50-00-00 25mm Probe

Product Overview

The Bently Nevada 330851-02-000-040-50-00-00 is a high-precision 3300 XL 25 mm Proximity Probe designed for critical machinery protection systems. This non-contact transducer excels in measuring vibration, position, and speed on large rotating assets such as steam turbines, high-pressure compressors, and heavy-duty pumps. Engineered for extreme industrial environments, this probe provides a linear measuring range far exceeding standard 8mm systems, making it the definitive choice for applications requiring high displacement monitoring and thermal stability.

Technical Configuration Details

The configuration of the 330851-02-000-040-50-00-00 follows the specialized Bently Nevada 3300 XL coding logic to ensure exact fitting for industrial housings:

• Unthreaded Length: 000 (0 mm) — Features a fully threaded case for maximum mounting flexibility.
• Overall Case Length: 040 (40 mm) — Compact M30x2 threaded housing for standard bore installations.
• Total Cable Length: 50 (5.0 Meters) — Integrated 5-meter triaxial cable with 75Ω impedance for reliable signal transmission.
• Connector/Armor Option: 00-00 — Standard non-armored cable configuration with high-performance PFA insulation.

Technical Specifications

Installation & Maintenance Guide

Gap Voltage Calibration

To ensure accurate data from the 330851-02-000-040-50-00-00, technicians must set the mechanical gap using the DC output voltage of the Proximitor. Ensure the target material is AISI 4140 steel for standard calibration; other materials will require a scale factor adjustment.

Mounting Torque and Cable Care

Apply a recommended mounting torque of 68 N•m (50 ft•lb) to the M30 housing. When routing the 5-meter cable, maintain a minimum bend radius of 25mm to avoid internal core damage. Always use FluidLoc® technology or conduit where exposure to pressurized oil or moisture is expected.

Connector Integrity

Keep the gold-plated ClickLoc™ connectors clean and dry. Avoid over-tightening the connectors by hand. In high-vibration areas, ensure the cable is secured every 1-2 meters to prevent mechanical fatigue at the probe lead junction.

Engineering Advantages

Advanced Thermal Resilience

The 330851-02-000-040-50-00-00 utilizes a PEEK probe tip and specialized 304 SST housing to maintain a low thermal expansion coefficient (5.4×10^-6/°C). This ensures that measurement drift is minimized even during rapid temperature fluctuations in turbine casings.

Seamless TSI Integration

As part of the 3300 XL series, this probe is fully compatible with Bently Nevada 3500 and 1900/65 Monitoring Systems (TSI). Its robust design offers 200+ hours of salt spray resistance, making it suitable for offshore platforms and coastal power plants.

Technical FAQs

Q1: Can this probe be used with a 9-meter Proximitor?

A1: No, the 330851-02-000-040-50-00-00 has a 5-meter total length and must be matched with a 5-meter 3300 XL Proximitor sensor to maintain the correct system calibration and 3.94 V/mm (100 mV/mil) scale factor.

Q2: What is the significance of the PEEK tip material?

A2: PEEK provides superior chemical resistance and mechanical strength. With a Vickers Hardness of 25 GPa, it protects the internal coil against erosion and debris impact within the machine housing.

Q3: Is this probe suitable for underwater applications?

A3: While the cable is IP68 protected and features FluidLoc® to prevent oil migration, the 330851-02-000-040-50-00-00 is primarily designed for oil-mist environments. For continuous underwater submersion, ensure specialized waterproof conduit is utilized.
