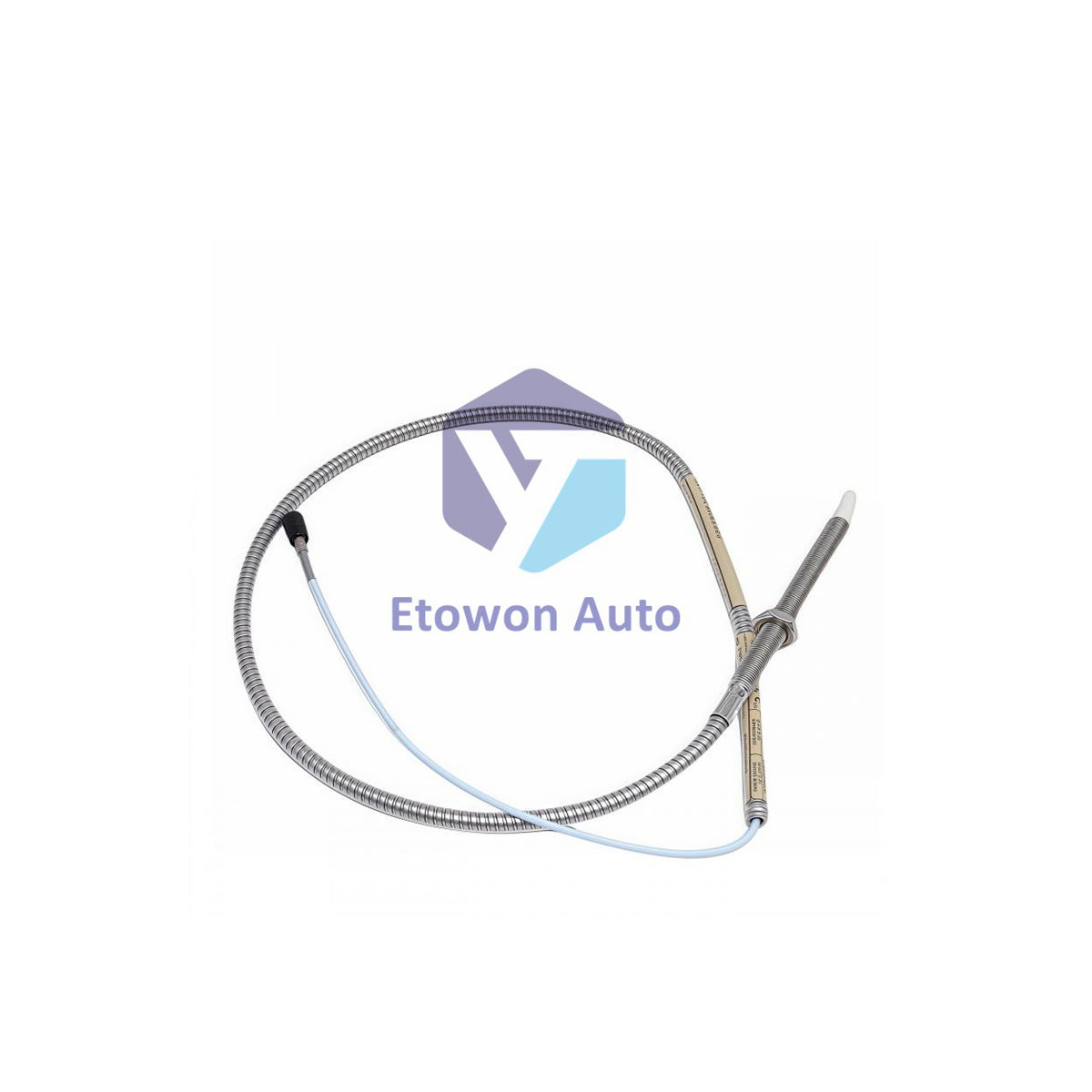

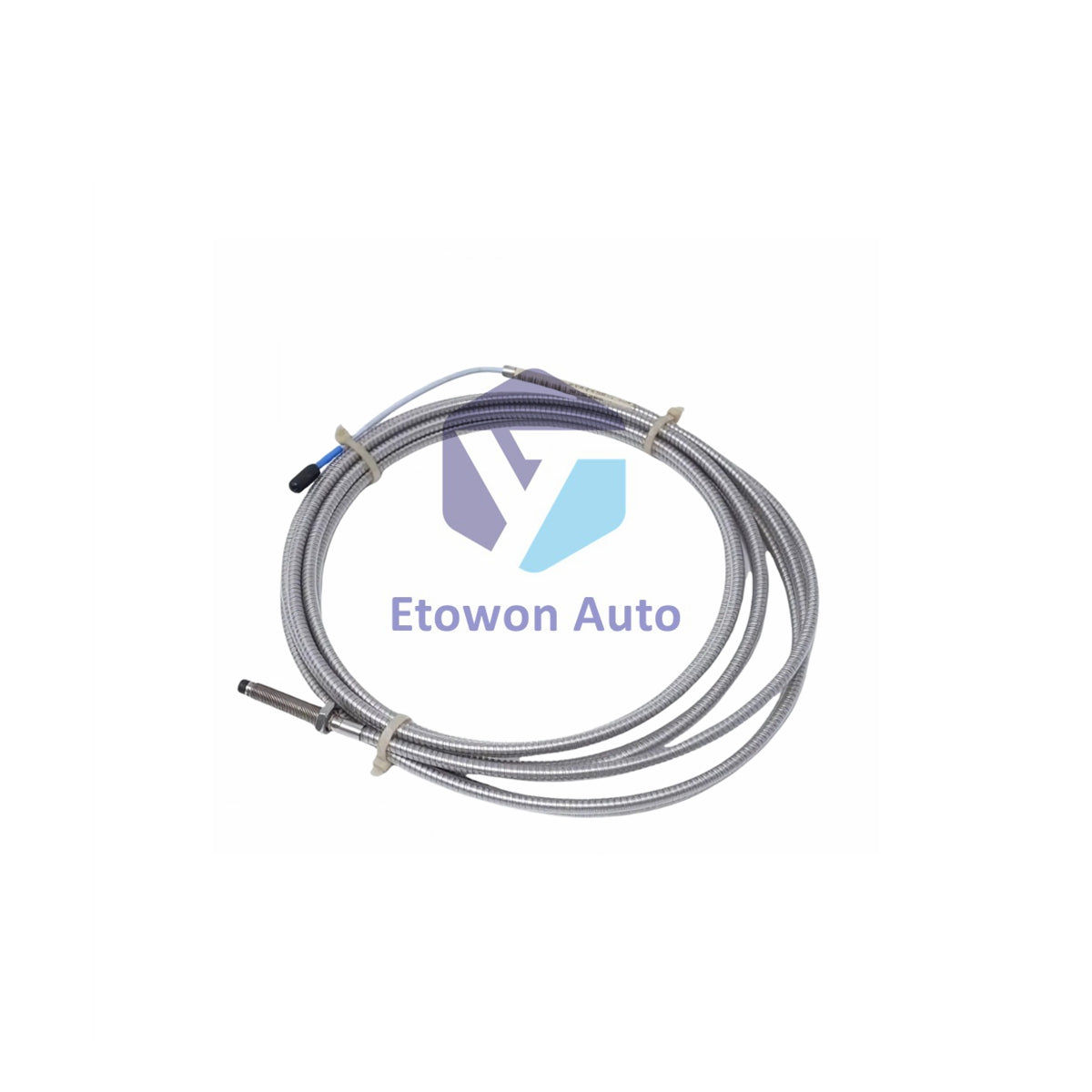

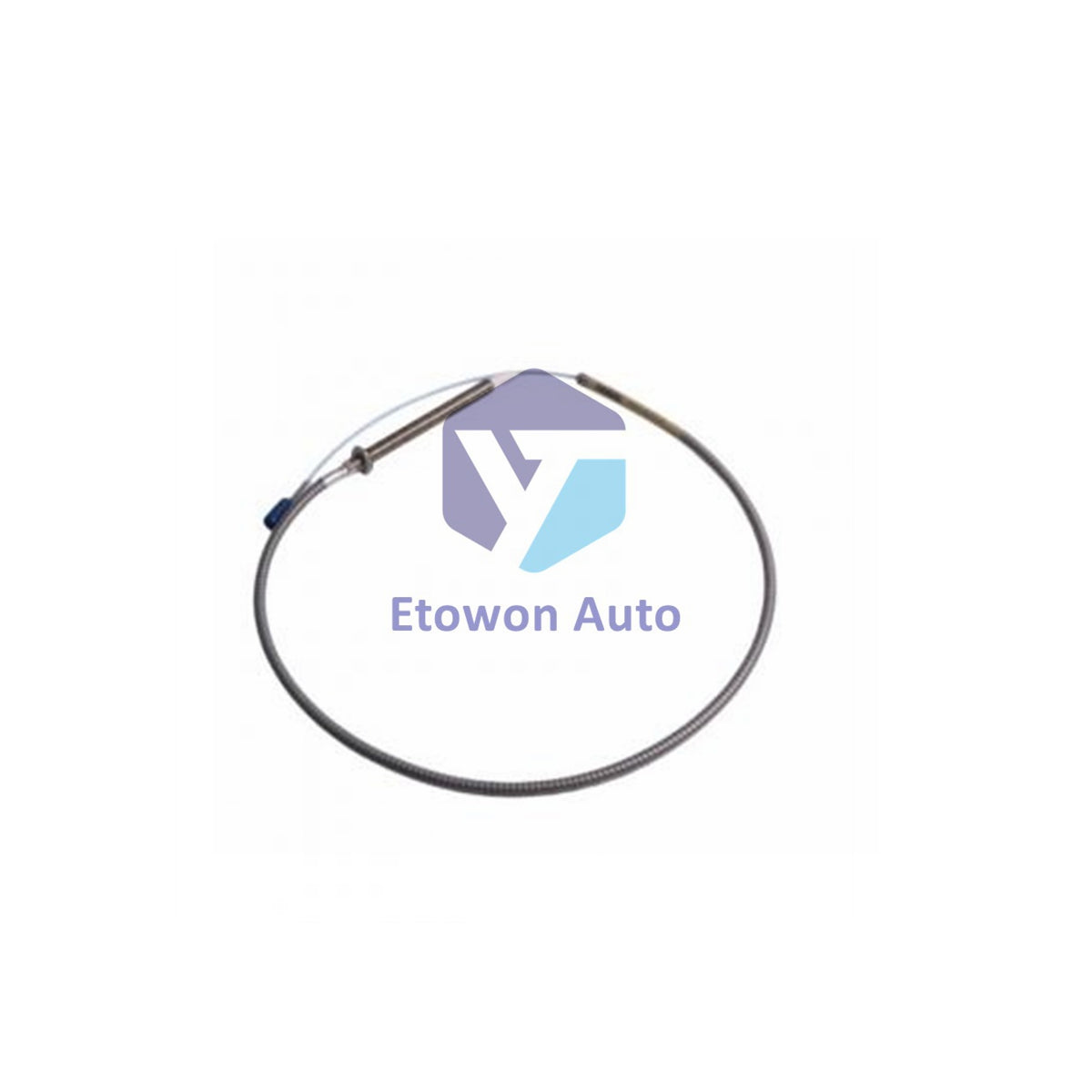

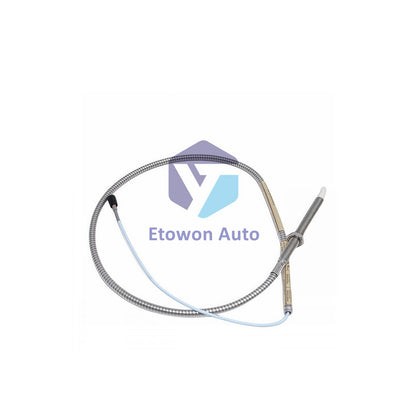

Bently Nevada 330104-00-12-05-02-00 M10 Armored XL Probe

Product Overview

The Bently Nevada 330104-00-12-05-02-00 is a 3300 XL 8 mm proximity probe with M10 x 1 thread and armor protection. Its 0.5-metre cable and compact 12 mm case suit tight installation spaces in turbine and compressor monitoring systems. The probe weighs approximately 0.16 kg (0.35 lb).

Ordering Code Breakdown

330104 – 3300 XL 8 mm Probe, M10 x 1 thread, with armor
00 – Unthreaded Length: 0 mm
12 – Overall Case Length: 12 mm
05 – Total Cable Length: 0.5 metre (1.6 ft)
02 – Connector: Miniature coaxial ClickLoc, standard cable

Technical Specifications

Installation Guide

Set the probe gap to 1.27 mm (50 mils) for standard radial vibration measurement. The armored M10 x 1 body protects the cable in high-vibration or abrasive environments. Power the Proximitor sensor from -17.5 Vdc to -26 Vdc at 12 mA maximum. Note that operation above -23.5 Vdc reduces linear range.

Technical FAQs

Q1: What thread type does this probe use?
A1: M10 x 1 metric thread with armor protection.

Q2: What is the probe DC resistance?
A2: 7.45 ± 0.50 Ω for the 0.5-metre probe length.

Q3: What is the recommended gap setting?
A3: 1.27 mm (50 mils) with a -24 Vdc supply and 10 kΩ load.
