Product Overview

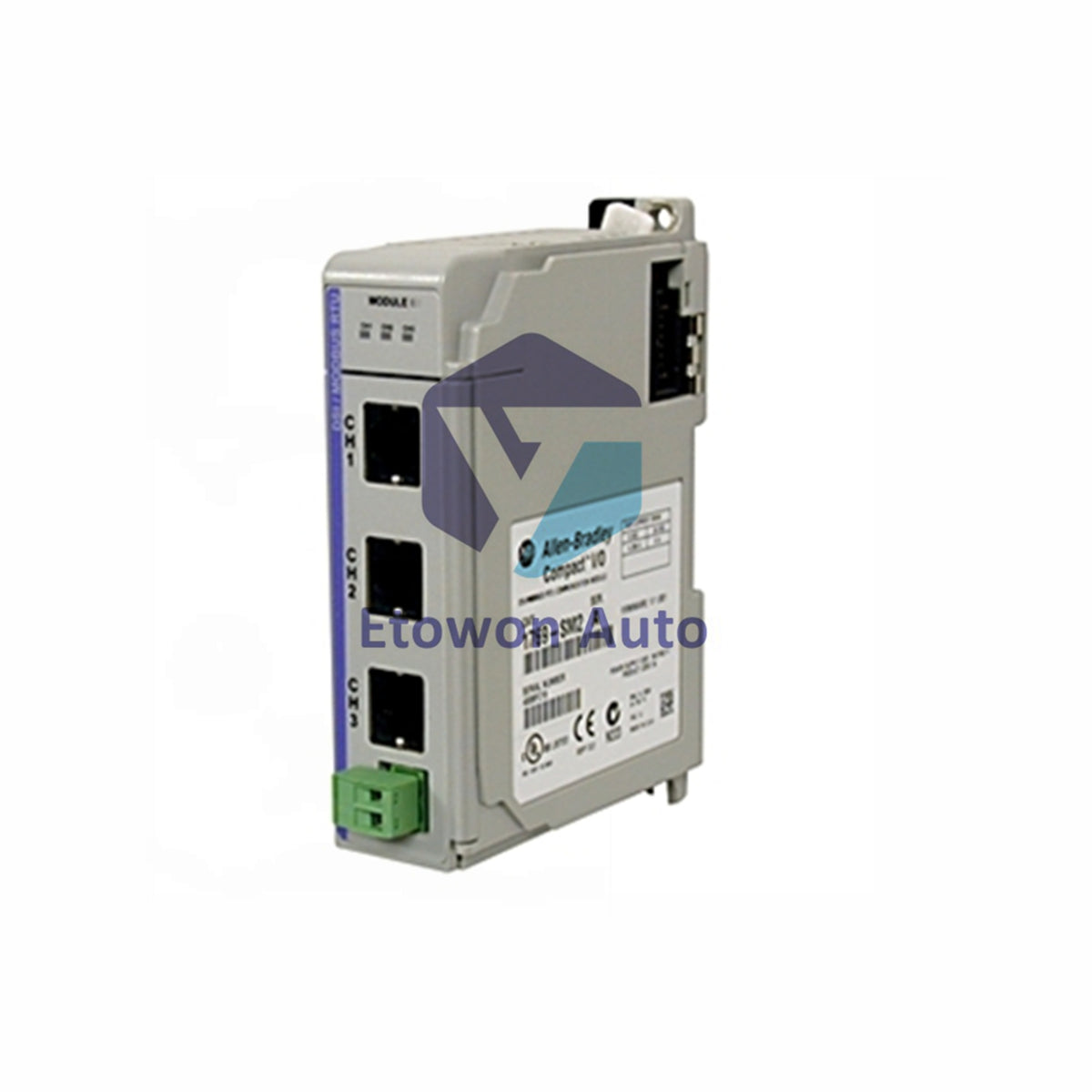

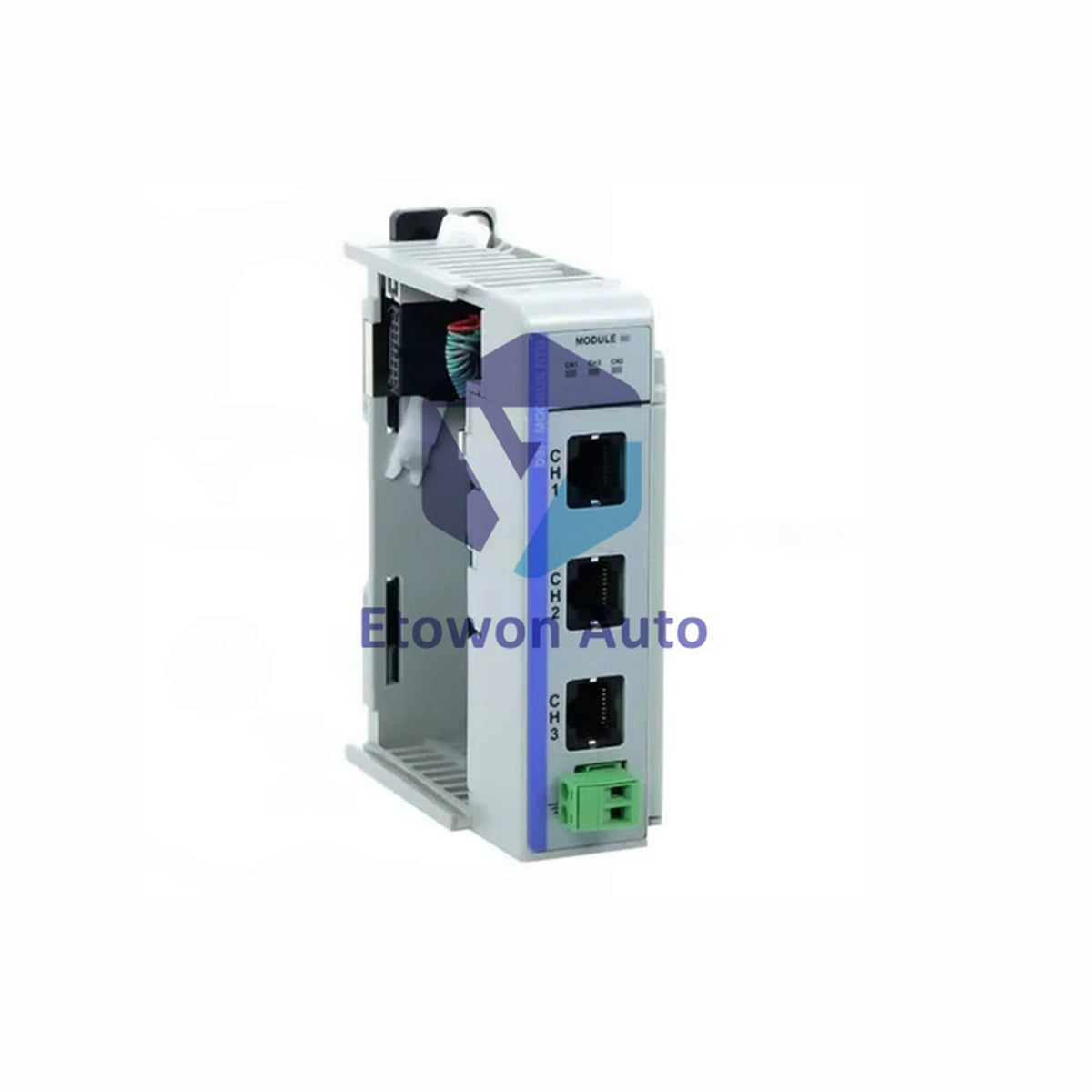

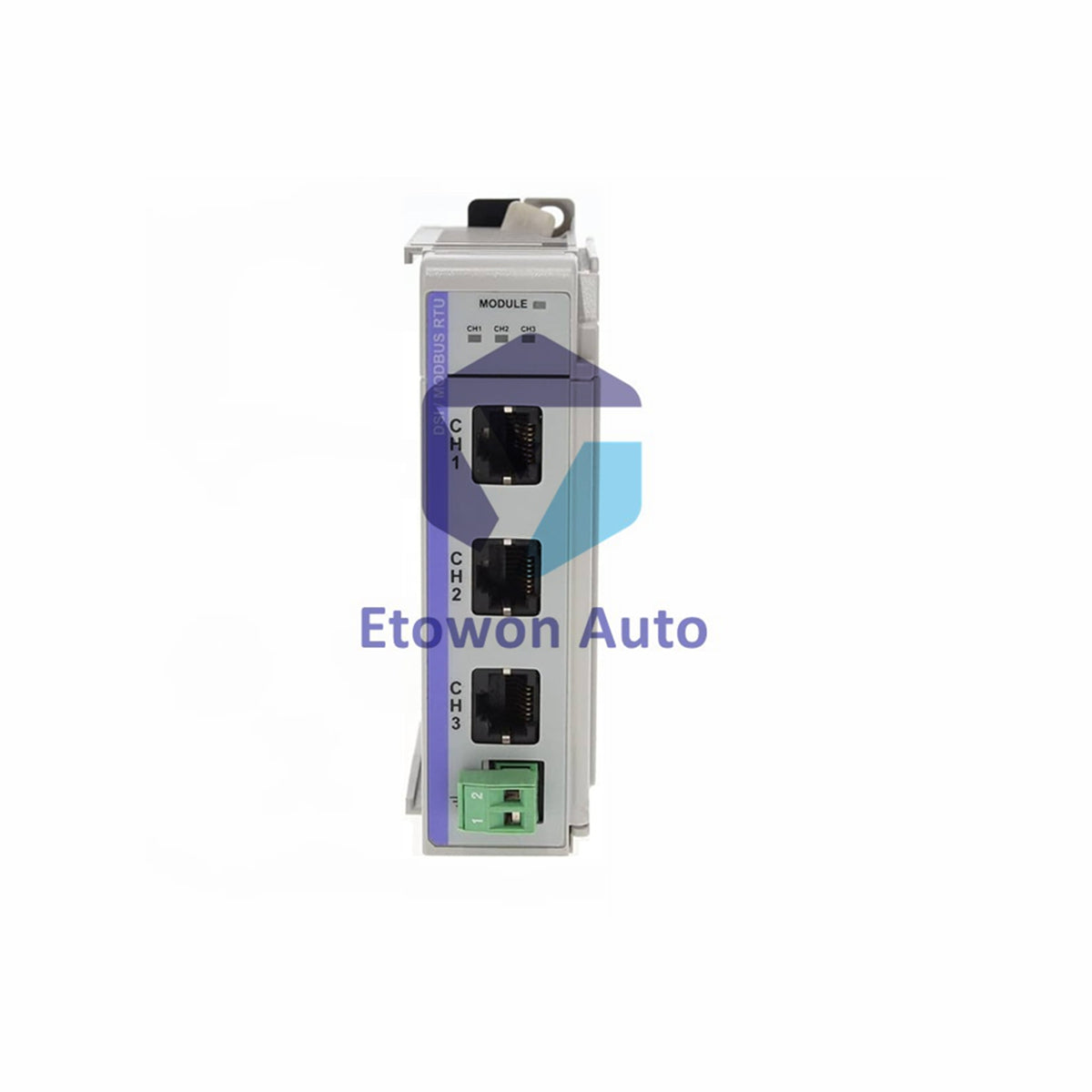

The Allen-Bradley 1769-SM1 is a robust Compact I/O communication module designed to provide a direct interface between controllers and industrial drives. Specifically engineered for the PowerFlex family, the 1769-SM1 supports both DPI and SCANport protocols, allowing for seamless data exchange and high-speed control.

Technical Configuration

Intelligent Auto-Detection

The 1769-SM1 features advanced self-configuration capabilities. Upon power-up, the module automatically detects the connected DPI or SCANport host and adjusts its internal data rate to match the host device. This "plug-and-play" functionality significantly reduces commissioning time and minimizes the risk of manual configuration errors in complex network topologies.

Advanced I/O Messaging

Equipped with multi-channel support, the 1769-SM1 enables sophisticated bi-directional datalinks. It facilitates Logic Command and Reference signaling for each connected channel, ensuring that critical control parameters are transmitted with high precision. This messaging architecture supports comprehensive drive software tools, including DriveExplorer and DriveExecutive, for intuitive remote setup.

Technical Specifications

Installation & Maintenance Guide

• Backplane Placement: The 1769-SM1 has a power supply distance rating of 8. Ensure the module is installed within 8 slots of the system power supply to maintain adequate voltage levels.
• Thermal Management: Maintain an operating environment between 0°C and 60°C. Ensure sufficient cabinet ventilation, especially when multiple 1769-SM1 modules are used in a single rack.
• Cable Integrity: Use high-quality communication cables to connect the 1769-SM1 to the drive host. Improper shielding or excessive cable length can lead to signal interference and communication drops.
• Firmware Synchronization: Regularly check for firmware updates to ensure compatibility between the 1769-SM1 and the latest PowerFlex drive features.

Engineering Advantages

The 1769-SM1 provides a localized, high-speed solution for drive control that bypasses the latency of traditional fieldbus adapters. By integrating directly into the 1769 I/O chassis, it allows for faster Logic Reference updates and more responsive motor control. For engineers utilizing RSNetWorx for DeviceNet or PowerFlex HIM modules, the 1769-SM1 serves as an essential hardware link that unifies configuration and operation into a single, cohesive industrial network.

Technical FAQs

Q1: Can the 1769-SM1 be used with older SCANport drives?
A1: Yes, the 1769-SM1 is backwards compatible and can automatically detect and configure itself for SCANport hosts as well as modern DPI interfaces.

Q2: Does this module support bi-directional data exchange?
A2: Absolutely. The 1769-SM1 facilitates bi-directional I/O messaging, allowing for both the sending of control commands and the retrieval of real-time drive diagnostics.

Q3: What software is required to configure the 1769-SM1?
A3: The 1769-SM1 is compatible with standard Rockwell Automation tools, including DriveExplorer, DriveExecutive, and RSNetWorx for DeviceNet.
