22D-D1P4N104 Allen-Bradley IP20 Compact VFD Drive

Product Overview

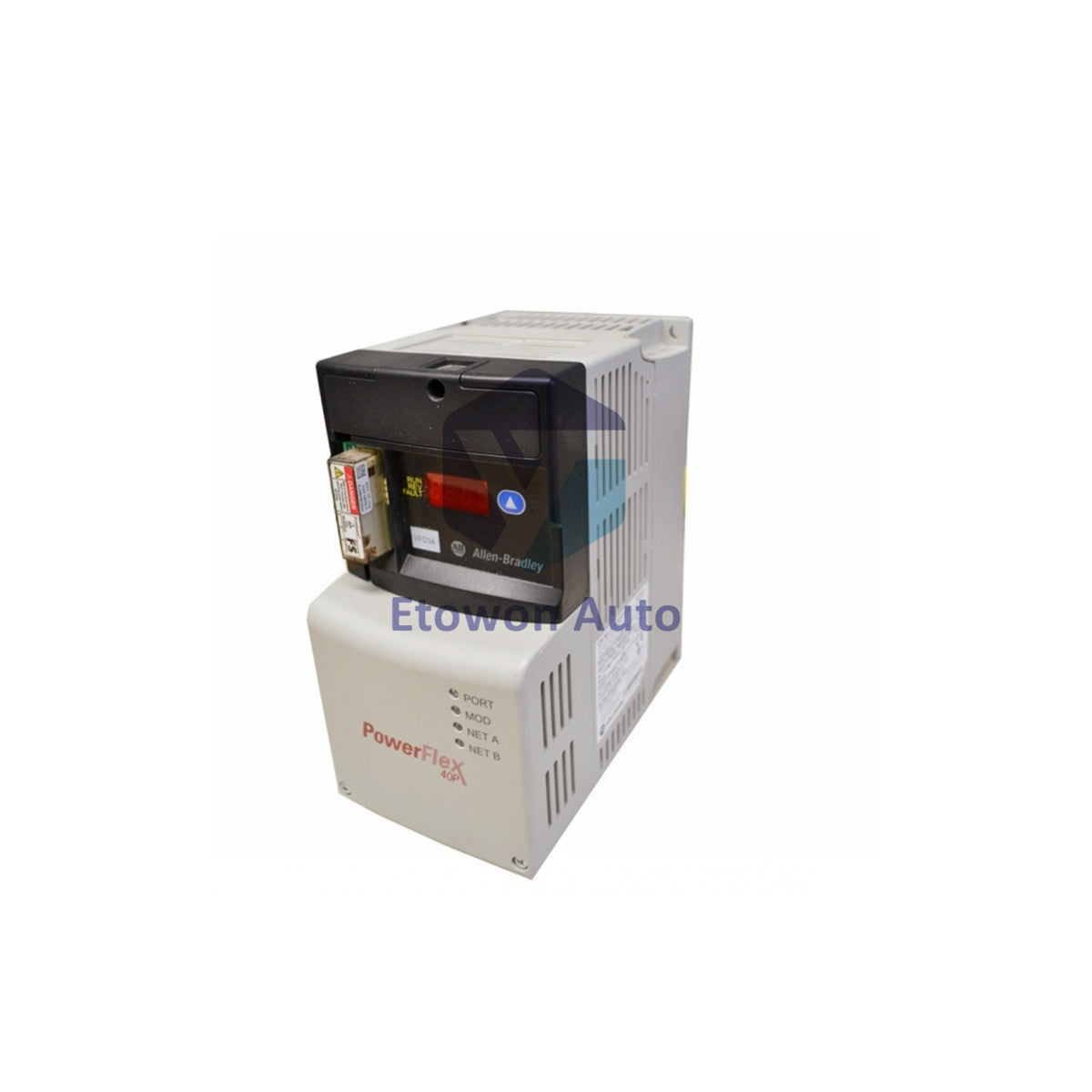

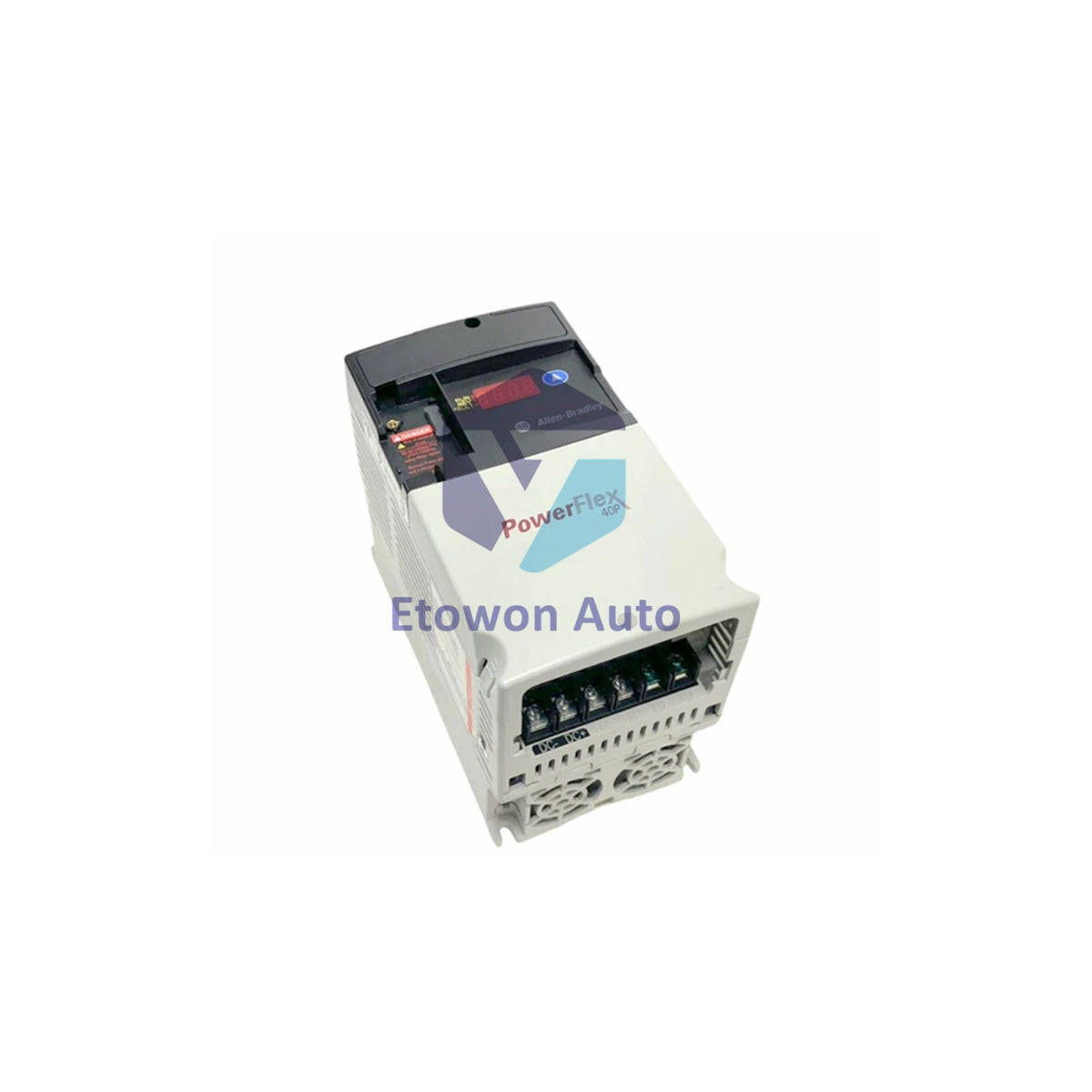

The 22D-D1P4N104 is a highly precise, compact Adjustable Frequency AC Drive from the Allen-Bradley PowerFlex 40P product family by Rockwell Automation. Specially engineered for space-saving yet demanding industrial applications, this Frame Size B motor controller accepts a 3-phase input voltage range of 342 to 528V AC and delivers a reliable 0 to 460V AC three-phase output. Rated at 0.4 kW (0.5 Horsepower) with a continuous output current of 1.4 Amperes, this robust 1.2 kg (2.65 lbs) unit provides flexible speed and torque regulation for low-power automated production systems.

Core Technical Advantages

• Detailed Suffix Logic Breakdown:
  • 22D-: Specifies the high-performance PowerFlex 40P series, featuring advanced Sensorless Vector capabilities and closed-loop encoder feedback support.
  • -D-: Indicates a 3-phase input voltage rating of 480V AC (with a broad nominal operating tolerance from 342V to 528V AC).
  • -1P4-: Denotes an operational continuous output current rating of 1.4 Amperes, optimized for 0.4 kW (0.5 HP) heavy-duty industrial motor loads.
  • -N-: Configures an open-type panel mount protective housing matching an IP20/NEMA Open safety barrier without an integrated EMC filter.
  • -1-: Reflects a standard integrated LED human-interface module (HIM) keypad interface built directly onto the front faceplate.
  • -04-: Designates the default standard production hardware platform, equipped with an internal braking transistor and StepLogic position parameters.
• Dual-Control Versatility: Supports both traditional Volts-per-Hertz (V/Hz) regulation and Sensorless Vector Control (SVC) paired with process PID loops, yielding excellent static torque and high dynamic speed accuracy.
• Built-in Position and Encoder Options: Integrates StepLogic execution pathways and direct encoder feedback support, enabling basic positioning tracking and accurate closed-loop velocity performance.
• Highly Efficient Power Path: Operates at an impressive 97% typical efficiency and a 0.98 power factor, significantly lowering harmonic reflections and overall energy overhead within industrial networks.

Technical Specifications

Industrial Solutions

• Localized Sorting Conveyors: Eliminates continuous motor strain and mechanical component shock during stop/start routines, keeping product transit belts smoothly coordinated.
• Dosing & Fluid Circulation: Controls low-power liquid chemical pumps by utilizing integrated PID algorithms to track and self-correct flow volumes automatically.
• Automated Packaging Infeeds: Synchronizes indexing tracks, small bagging line feeds, and precise tension applications through accurate sensorless velocity metrics.
• High-Availability Processing Lines: Built with robust overload thresholds (150% for 60 seconds) to mitigate structural motor faults and drastically lower facility downtime.

Wiring & Installation

Line Termination Parameters

Isolate all primary line power sources before mounting or servicing. Connect the 3-phase incoming utility power leads explicitly to the main input terminals (R, S, T / L1, L2, L3). Terminate the motor lead wires securely to the output terminals (U, V, W / T1, T2, T3). Never apply incoming line voltage to the drive output path, as this results in catastrophic inverter hardware damage.

Mechanical Mounting and Hardware Torque

Secure the compact 1.2 kg Frame Size B housing vertically onto a rigid sub-panel using standard M4 (#8-32) mounting screws. Tighten the screws to a verified specification torque of 14 to 17 lb-in (1.6 to 1.9 Nm). Maintain proper clear ventilation space above and below the fan-cooled frame to support natural heat rejection.

Control Separation and I/O Routing

Route the low-voltage control lines (comprising 7 programmable digital inputs and 2 analog input channels) away from high-voltage motor and mains wires to protect signals from induced cross-talk. Run all analog wiring through shielded twisted-pair cabling, grounding the shield drain braid solely at the drive's chassis grounding point.

Capacitor Discharge Safety Protocols

Internal bus capacitors store highly dangerous residual high-voltage energy after line input power is removed. Always wait a minimum of 3 minutes for total internal capacitor discharge before opening any protective panel shields or checking wire terminations. Follow strict ESD handling regulations to protect integrated electronics.

Engineering Advantages

• Advanced Communication Extensions: Includes an onboard RS485 communication port running CIP protocols, with convenient support for optional Ethernet/IP or DeviceNet internal gateway cards.
• Integrated Protection Logic: Outfitted with built-in Class 10 motor overload detection, over/under DC bus voltage monitoring, and ESD-protected components to ensure a long operational lifespan.
• 4-Digit LED Diagnostic Interface: Provides quick on-screen parameter verification and rapid fault code troubleshooting through the bright front-panel display matrix.

Technical FAQs

Q1: What are the main benefits of using the 22D-D1P4N104 drive's StepLogic control feature?
A1: StepLogic turns the VFD into a basic independent position controller. It lets you program a sequence of up to 8 distinct steps with unique speeds, acceleration rates, and directions, allowing for automated motion profiles without a standalone PLC.

Q2: Why is the 1.2 kg weight profile and Frame B sizing advantageous for crowded control panel design?
A2: The light 1.2 kg weight profile and compact Frame B dimensions allow the drive to fit into thin, high-density enclosures. This lets panel designers place multiple drives close together, maximizing backplate efficiency.

Q3: Does this PowerFlex 40P drive require an external encoder card for closed-loop control?
A3: The drive comes equipped with basic encoder feedback support on the core circuit board. This lets you connect a compatible digital encoder directly for high-precision speed regulation and closed-loop monitoring without purchasing extra internal communication modules.
