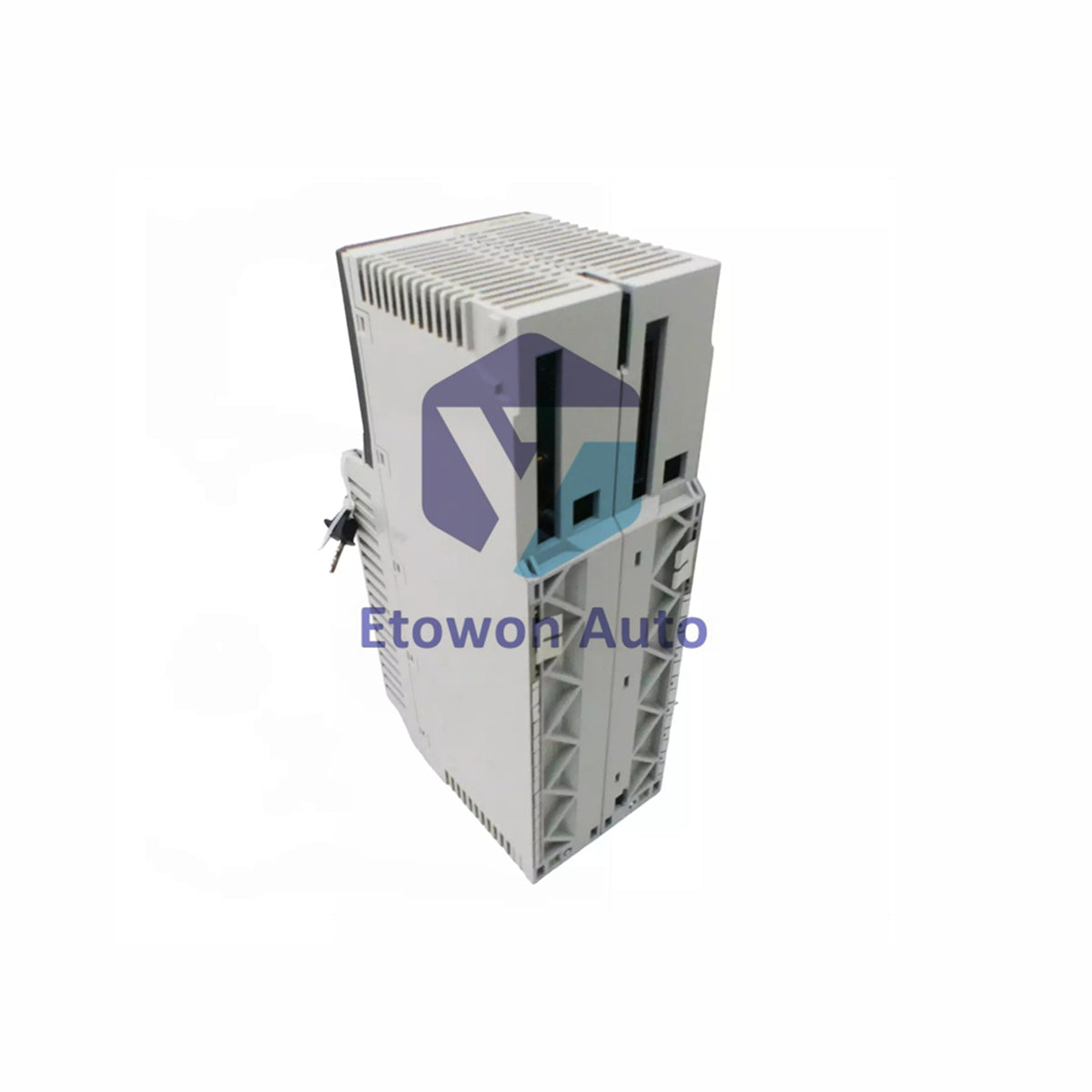

140CPU67261 Schneider Electric Modicon Quantum Unity Processor

Product Overview

The 140CPU67261 by Schneider Electric is a flagship Unity Processor within the Modicon Quantum automation platform. Operating at a high-speed clock frequency of 266 MHz, this processor is specifically optimized for high-demand industrial applications requiring rapid logic execution and extensive data handling. With a robust weight of 0.91 kg (2.00 lbs), it integrates seamlessly into Quantum backplanes, providing a powerful foundation for complex control strategies and system-wide synchronization.

Technical Specifications

Engineering Advantages

The hardware architecture of the 140CPU67261 is built for maximum system availability through its native Hot Standby capability, allowing for instantaneous processor switchover in the event of a fault. It offers expansive connectivity with built-in Ethernet, Modbus, and Modbus Plus ports, enabling flexible integration across multi-tier network architectures. Furthermore, the processor supports advanced I/O functionalities such as high-speed interrupts and accurate time stamping, which are essential for precise event logging and diagnostic analysis in large-scale setups spanning up to two local racks.

Technical FAQs

Q1: What is the benefit of the Hot Standby feature?
A1: Hot Standby allows a secondary 140CPU67261 to take over control tasks immediately if the primary unit fails, ensuring zero-downtime operation for critical industrial processes.

Q2: Does this processor support high-speed data events?
A2: Yes, it is fully equipped with high-speed interrupt inputs and accurate time-stamping capabilities for I/O, allowing for millisecond-level precision in event handling.

Q3: What are the power requirements for this module?
A3: The unit has a bus current requirement of 2760 mA. Ensure your Quantum power supply module is correctly sized to accommodate this demand along with other rack modules.
