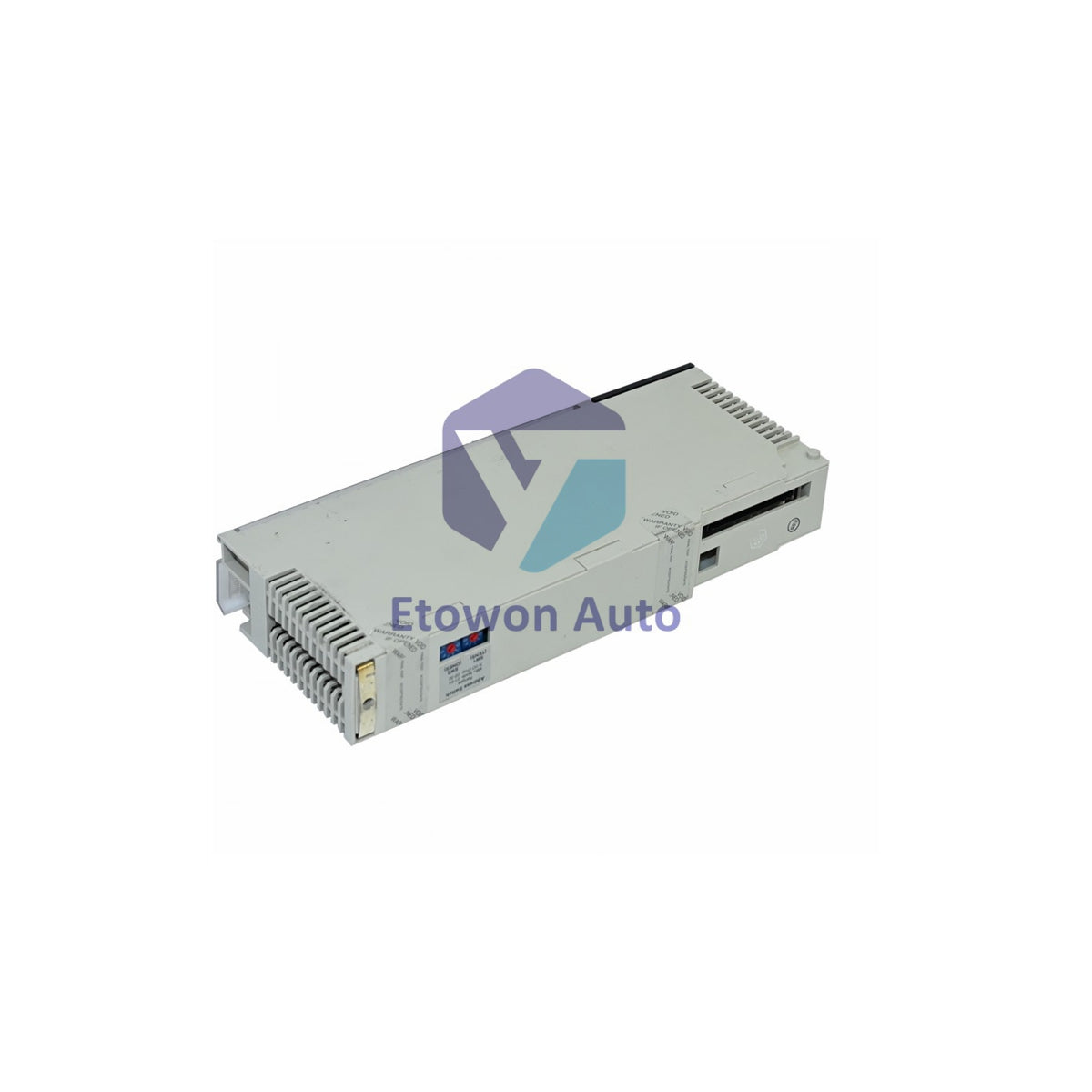

Schneider Electric 140ESI06210 RS232 Module

Schneider Electric Modicon Quantum 140ESI06210 ASCII Serial Link Module

The 140ESI06210 is an ASCII serial link module from the Schneider Electric Modicon Quantum automation platform. This module features two non-isolated RS232C ports (DIN 66020 compatible) with SUB-D 9 connectors. It supports up to 255 messages and operates at 19.2 kbit/s transmission rate.

Key Features

• 2 RS232C non-isolated ports (DIN 66020 standard)
• 2 x SUB-D 9 electrical connectors
• Supports 255 messages with 8-level nesting
• Message length: 127 characters + 1 checksum maximum
• Buffer size: 255 I/O bytes
• Memory: 128 kB flash + 32 kB RAM
• Built-in calendar clock
• 19.2 kbit/s transmission rate
• Maximum cable distance: 20 meters (65.6 ft)
• Compatible with all Quantum CPUs

Technical Specifications

• Brand: Schneider Electric
• Series: Modicon Quantum
• Model: 140ESI06210
• Product Type: ASCII serial link module
• Mode of Transmission: ASCII
• Number of Ports: 2 RS232C non-isolated (DIN 66020)
• Connectors: 2 x SUB-D 9
• Transmission Rate: 19.2 kbit/s
• Maximum Cable Distance: <65.6 ft (20 m)
• Message Nesting: 8 levels
• Buffer Size: 255 I bytes / 255 O bytes
• Number of Messages: 255
• Message Length: 127 characters + 1 checksum max
• Clock: With calendar clock
• Memory: 128 kB flash + 32 kB RAM
• Addressing Requirement: 12 output words / 12 input words
• Maximum Power Dissipation: 2 W
• Bus Current Requirement: 300 mA
• Module Format: Standard
• Product Weight: 0.3 kg (0.7 lb)

Environmental Specifications

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 95% without condensation
• Operating Altitude: up to 5000 m (16404 ft)
• Resistance to Electromagnetic Fields: 9.1 V/m (10 V/m) 80-1000 MHz (IEC 801-3)

Package Dimensions

• Height: 5.0 cm (1.97 in)
• Width: 16.5 cm (6.50 in)
• Length: 31.5 cm (12.40 in)
• Package Weight: 423 g (14.9 oz)

GTIN

3595861000155

FAQ

1. What is the part number for this ASCII serial module?

The part number is 140ESI06210.

2. How many RS232C ports does the 140ESI06210 have?

It features two non-isolated RS232C ports with SUB-D 9 connectors, compliant with DIN 66020.

3. What is the maximum message capacity and length?

The module supports 255 messages with up to 127 characters + 1 checksum per message.
