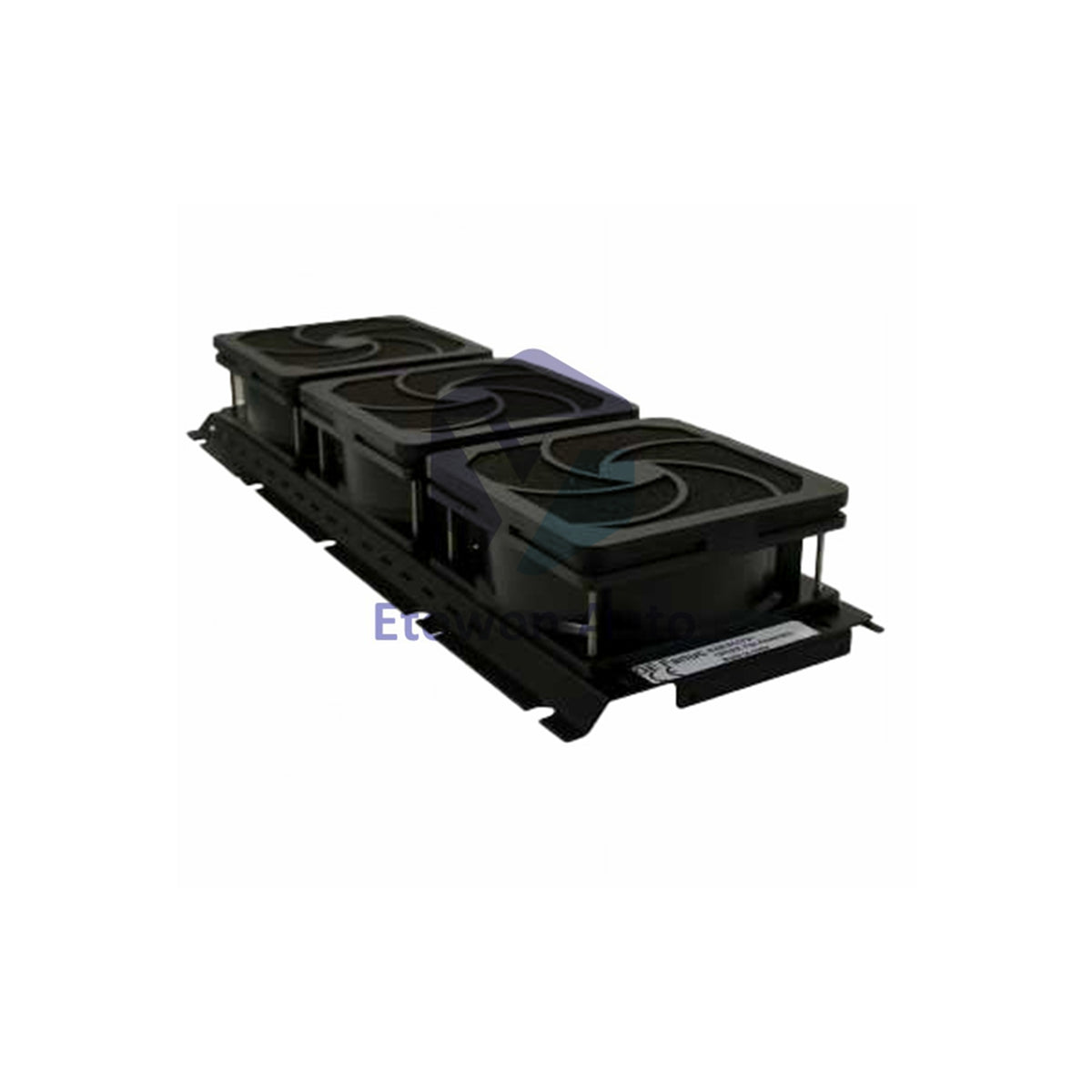

GE Fanuc IC697ACC724 Rack Cooling Fan 30 PPI Filter

Product Overview

The GE Fanuc IC697ACC724 is a professional-grade rack fan assembly designed for the Series 90-70 PLC systems. Engineered to provide consistent thermal management, this unit features three high-quality ball-bearing cooling fans that ensure the safe operation of your industrial electronics by maintaining a nominal airflow of 71 CFM.

This 240V AC assembly is built for durability, featuring rugged side-mount plates and a removable 30 PPI air filter to protect against dust and debris. With a weight of approximately 1.2 kg, the unit is easy to install and includes a 3-foot stripped lead on the leftmost fan for direct AC power integration.

Technical Specifications

Key Performance Features

• Efficient Dust Filtration: Includes a removable 30 PPI (pores per inch) filter that effectively traps industrial dust while maintaining optimal airflow resistance.
• Low Power Consumption: Consumes only 16–17 Watts during operation, providing an energy-efficient cooling solution for densely packed racks.
• Industrial Ball-Bearing Design: The triple-fan configuration utilizes ball bearings for extended service life and reduced vibration compared to standard sleeve-bearing alternatives.
• Secure Mounting: Equipped with robust side-mount plates designed to withstand the rigors of high-vibration industrial environments.

Installation & Electrical Safety

The IC697ACC724 is designed for high-voltage AC environments. The power connection is simplified via 3-foot leads located on the leftmost fan unit. Its operating temperature range of -28°C to +70°C makes it suitable for both cold-start conditions and high-heat factory floors. Regular inspection of the removable filter is recommended to ensure the nominal 71 CFM airflow is maintained.

Technical FAQs

Q1: What is the benefit of the ball-bearing fans in this model?
A1: Ball bearings allow for a wider operating temperature range and longer MTBF, particularly in vertical mounting orientations common in PLC racks.

Q2: Can I use this with 120V AC power?
A2: No, the IC697ACC724 is specifically rated for 240V AC. Applying 120V will result in insufficient cooling and potential fan failure.

Q3: How often should the air filter be cleaned?
A3: This depends on your environment, but in standard industrial settings, we recommend checking the 30 PPI filter every 3 to 6 months to prevent airflow restriction.

Condition: New & Original in Factory Packing

Warranty: 12 Months Factory Warranty
