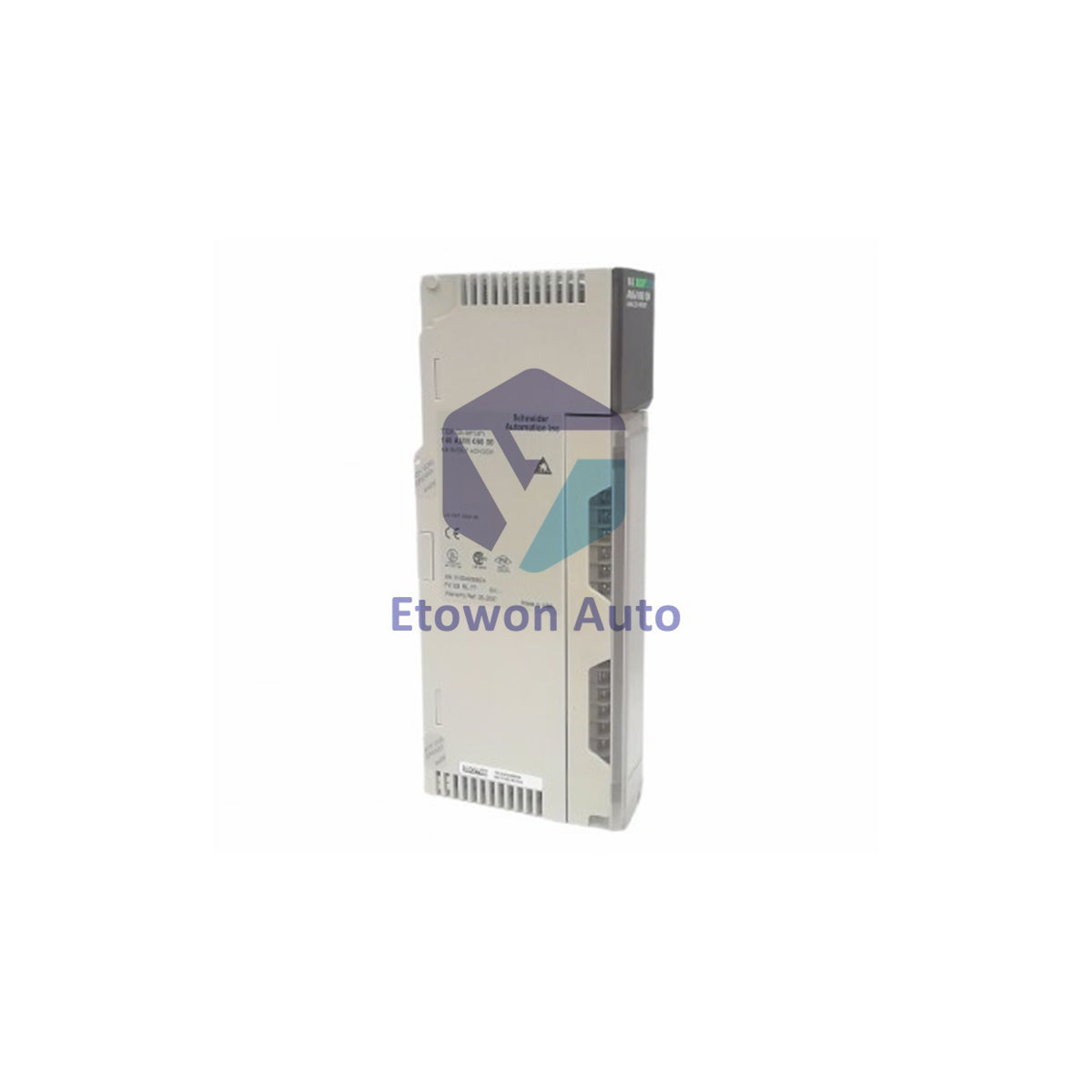

Schneider 140AVI03000C | Modicon Quantum 8 Input Analog Module

Schneider Electric 140AVI03000C Modicon Quantum Analog Input Module

The Schneider Electric 140AVI03000C is an analog input module for Modicon Quantum series. Features 8 differential analog inputs with 16-bit resolution.

Key specifications

• Manufacturer: Schneider Electric
• Product line: Modicon Quantum
• Part number: 140AVI03000C
• Analog inputs: 8 differential
• Resolution: 16 bits
• Addressing requirement: 9 input words
• Absolute max input: 50 V DC / 25 mA
• Input impedance: >20 MΩ (voltage), 250 Ω (current)
• Update time: 10 ms
• Bus current: 280 mA
• Power dissipation: 2.2 W
• Weight: 0.3 kg (0.7 lb)

Input ranges supported

• Voltage: ±10V, ±5V, 0-10V, 0-5V
• Current: 0-20mA, 4-20mA
• Linear measuring range: (input range) x 1.024

Accuracy and drift

• Absolute accuracy error: ±0.03% (0.05% max of full scale)
• Linearity error: ±0.008%
• Accuracy drift: ±0.0015% of full scale/°C (0.004% max)
• Common mode rejection: >-80 dB at 60 Hz
• Filter type: Single pole low pass -3 dB at 847 Hz ±20%

Isolation ratings

• Between channels and bus: 500 Vrms AC for 60 s (750 V DC)
• Between channels: 135 Vrms AC (200 V DC)

Environmental and certifications

• Protective treatment: Conformal coating (Humiseal 1A33)
• Operating temperature: 0°C to 60°C
• Storage temperature: -40°C to 85°C
• Relative humidity: 95% without condensation
• Operating altitude: Up to 5000 m
• Standards: UL 508, CSA C22.2 No 142
• Certifications: FM Class 1 Division 2, cUL, CE

Shipping

• FedEx, UPS, DHL
• Tracking provided
• Package weight: 474 g (16.7 oz)
• Package dimensions: 5.0 x 16.5 x 31.0 cm

FAQ

How many analog inputs?

8 differential analog inputs with 16-bit resolution.

What input ranges are supported?

Voltage: ±10V, ±5V, 0-10V, 0-5V. Current: 0-20mA, 4-20mA.

What is the update time?

10 ms for all channels.
