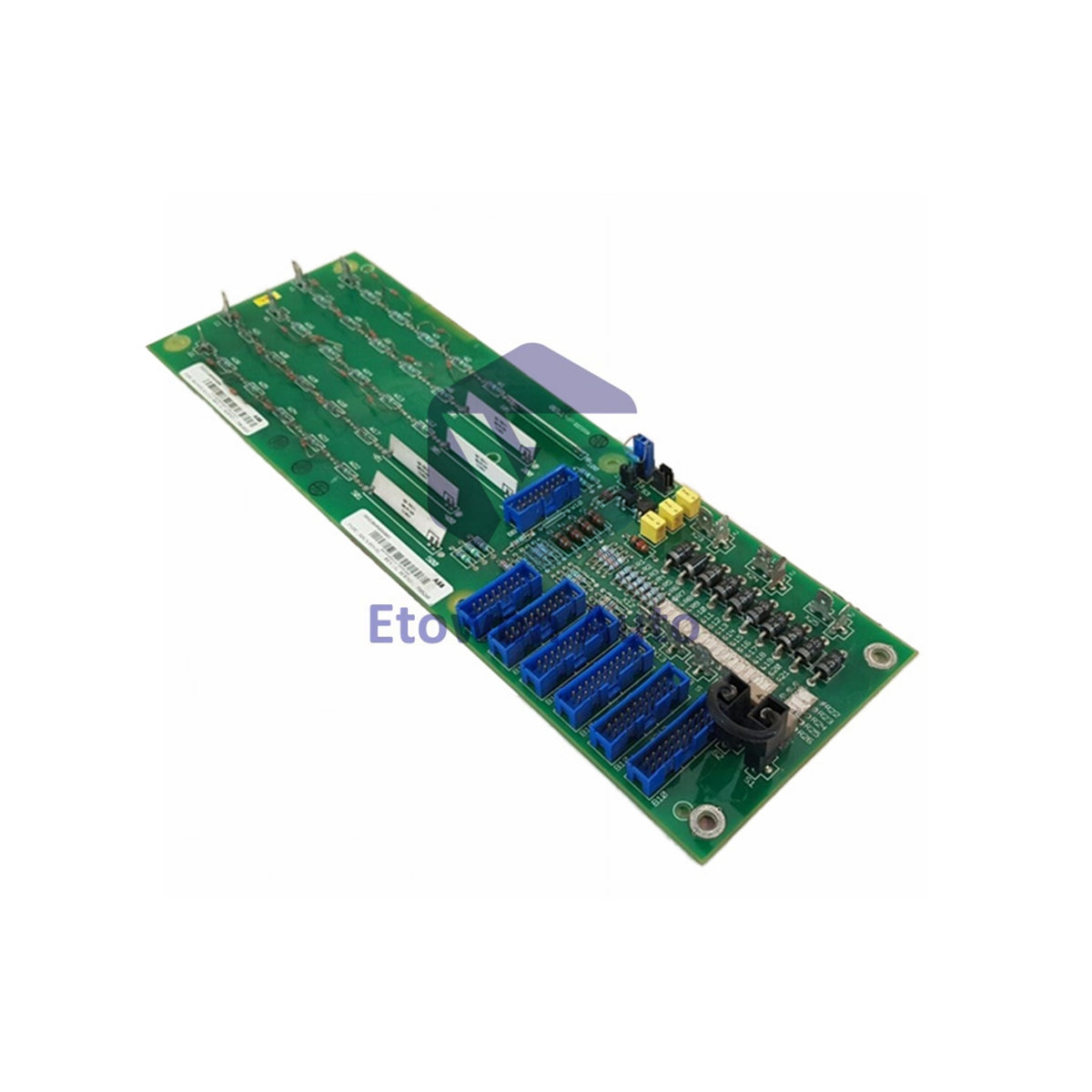

ABB YXI115B YT204001-AL Speed Input Board 24V DC

Product Overview

The YXI115B (YT204001-AL) is a precision speed input board manufactured by ABB for industrial automation and turbine monitoring systems. Engineered to process pulse and analog speed signals, this compact unit measures 22 cm x 17 cm x 3 cm and weighs 1.76 lbs (0.8 kg). Designed for standard DIN rail mounting in IP20-rated enclosures, it integrates Modbus RTU communication to deliver reliable speed feedback in demanding industrial environments.

Core Technical Advantages

• Dual-Signal Processing: Seamlessly acquires and processes both pulse trains and analog speed inputs from machinery sensors.
• Modbus RTU Connectivity: Built-in industrial communication interface ensures smooth data integration with PLCs and control systems.
• Wide Thermal Tolerance: Operates reliably across an extended ambient temperature range from -20 °C to +70 °C.
• Robust DIN Rail Design: Compact 22x17x3 cm frame securely snaps onto standard control cabinet rails for space-saving installations.

Technical Specifications

Industrial Solutions

• Turbine Speed Monitoring: Tracks rotational velocity and frequency pulses on industrial power generation turbines.
• Heavy-Duty Motor Drives: Interfaces speed feedback loops in large-scale manufacturing and processing plants.
• Conveyor & Rolling Mills: Provides accurate velocity tracking for synchronized multi-motor drive systems.
• Distributed Control Systems: Communicates real-time speed parameters over Modbus RTU networks to main automation controllers.

Wiring & Installation

Power Supply Preparation

Ensure cabinet power is turned off. Connect a stable 24 V DC power source to the designated supply terminals, verifying proper polarity before energizing.

DIN Rail Mounting

Snap the 0.8 kg board securely onto a standard industrial DIN rail inside an IP20 or better protective control enclosure, allowing adequate clearance for heat dissipation.

Signal & Communication Wiring

Connect pulse or analog speed sensors to the input channels. Wire the Modbus RTU communication interface using shielded twisted-pair cable to prevent electrical noise interference.

System Verification

Power on the unit and check status LEDs to confirm normal operation, proper 24V supply voltage, and active Modbus communication polling.

Engineering Advantages

• High Precision Acquisition: Accurate conversion of high-frequency pulses and analog inputs for critical speed regulation.
• Standardized Industrial Protocol: Modbus RTU integration allows straightforward connection to third-party PLCs and HMIs.
• Rugged Environmental Build: Withstands harsh cabinet environments ranging from -20 °C up to +70 °C.

Technical FAQs

Q1: What power supply does the YXI115B board require?
A1: Operates on a 24 V DC supply drawing approximately 0.1 A of input current.

Q2: What communication protocol does this speed input board use?
A2: It utilizes the Modbus RTU protocol for serial communication and data exchange.

Q3: What are the physical dimensions and weight of the module?
A3: Measures 22 x 17 x 3 cm and weighs 1.76 lbs (0.8 kg).
