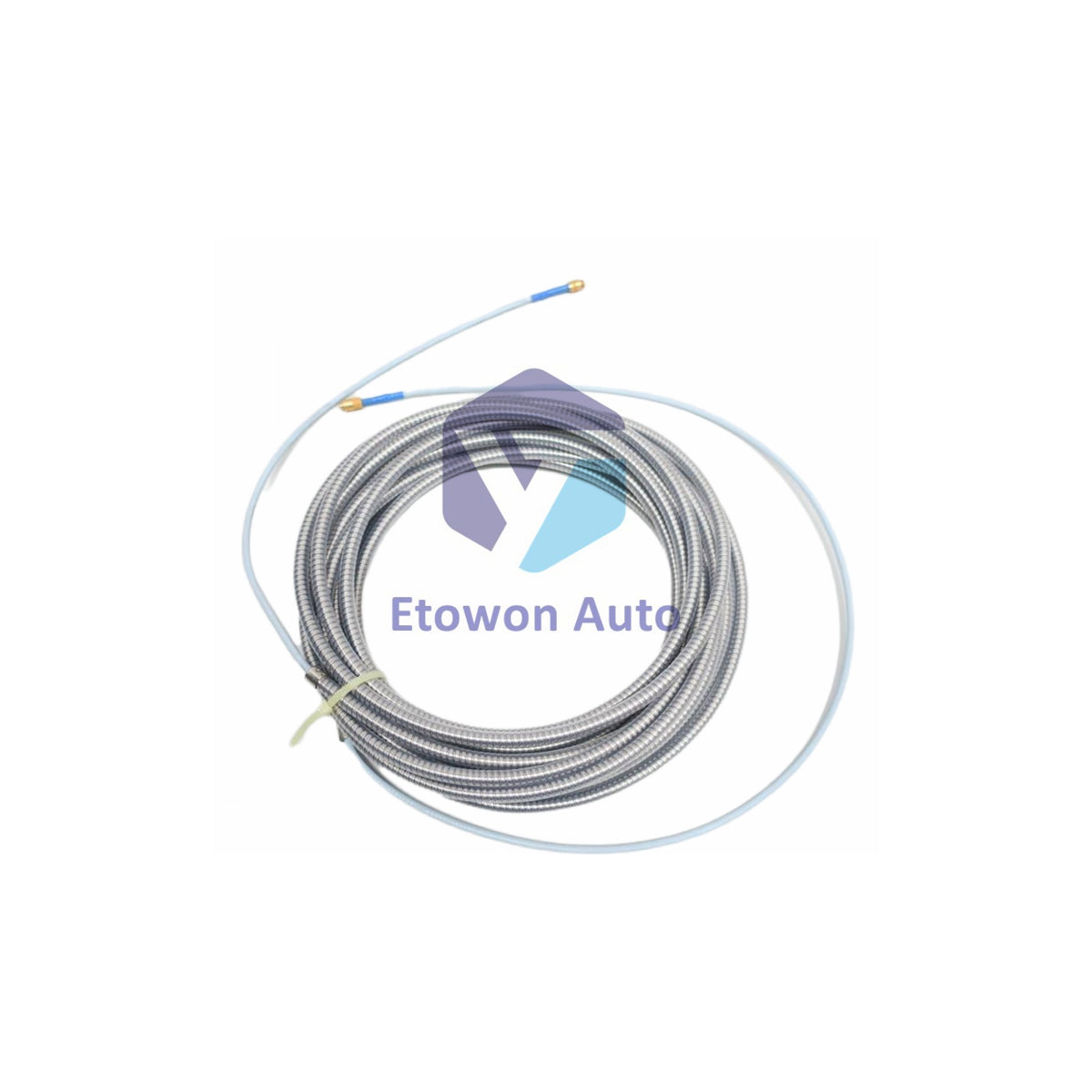

330130-045-01-05 Bently Nevada 3300 XL Armored Extension Cable

Product Overview

The Bently Nevada 330130-045-01-05 is a premium 3300 XL standard extension cable engineered for critical machinery protection. This 4.5-meter (14.8 feet) cable features high-durability stainless steel armor and is fully certified for use in hazardous areas with CSA, ATEX, and IECEx approvals. Designed to maintain the linear signal integrity of the 3300 XL 8mm proximity system, it provides a robust link between the probe and Proximitor® sensor, even in high-humidity or volatile industrial environments.

Technical Configuration

This 330130 configuration is built for maximum safety and mechanical protection:

• Full Model: 330130-045-01-05
• Cable Length (045): 4.5 meters (14.8 feet).
• Connector Protection (01): Integrated flexible stainless steel armor jacket.
• Approvals (05): Multi-agency certified (CSA, ATEX, IECEx) for hazardous locations.
• Cable Tech: 75 Ω coaxial with low-capacitance design for signal stability.

Technical Specifications

Installation & Maintenance

Proper installation of the 330130-045-01-05 is essential for hazardous area compliance. Each cable includes silicone tape for additional connector protection; however, note that silicone tape is not recommended for applications where the connection is directly exposed to turbine oil. For high-reliability gapping, the system should be powered between -23 Vdc and -26 Vdc. Ensure the armored jacket is properly grounded to prevent EMI interference from affecting the 2 mm linear range.

Engineering Advantages

The 330130-045-01-05 stands out due to its multi-agency hazardous area certifications, making it a universal choice for global infrastructure. The patented construction improvements ensure a 330 N (75 lbf) pull strength, significantly reducing cable failure during conduit installation. Furthermore, the cable’s design is optimized to maintain a sensitivity of less than 2 mV change in output per volt of input change, ensuring that power supply fluctuations do not compromise your vibration monitoring accuracy.

Technical FAQs

Q1: Why is the weight higher on this model compared to standard cables?
A1: This model (Option 01) includes full stainless steel armor, which increases the weight to 0.618 kg but provides essential protection against mechanical wear, cutting, and crushing.

Q2: Can this cable be used in offshore maritime applications?
A2: Yes. Its 56-day humidity resistance rating (per IEC 68-2-3) and multi-agency approvals (ATEX/IECEx) make it suitable for harsh marine and offshore platforms.

Q3: What target material is required for the stated accuracy?
A3: System accuracy and interchangeability specifications are based on calibration to an AISI 4140 steel target. Use with other materials may require recalibration.
