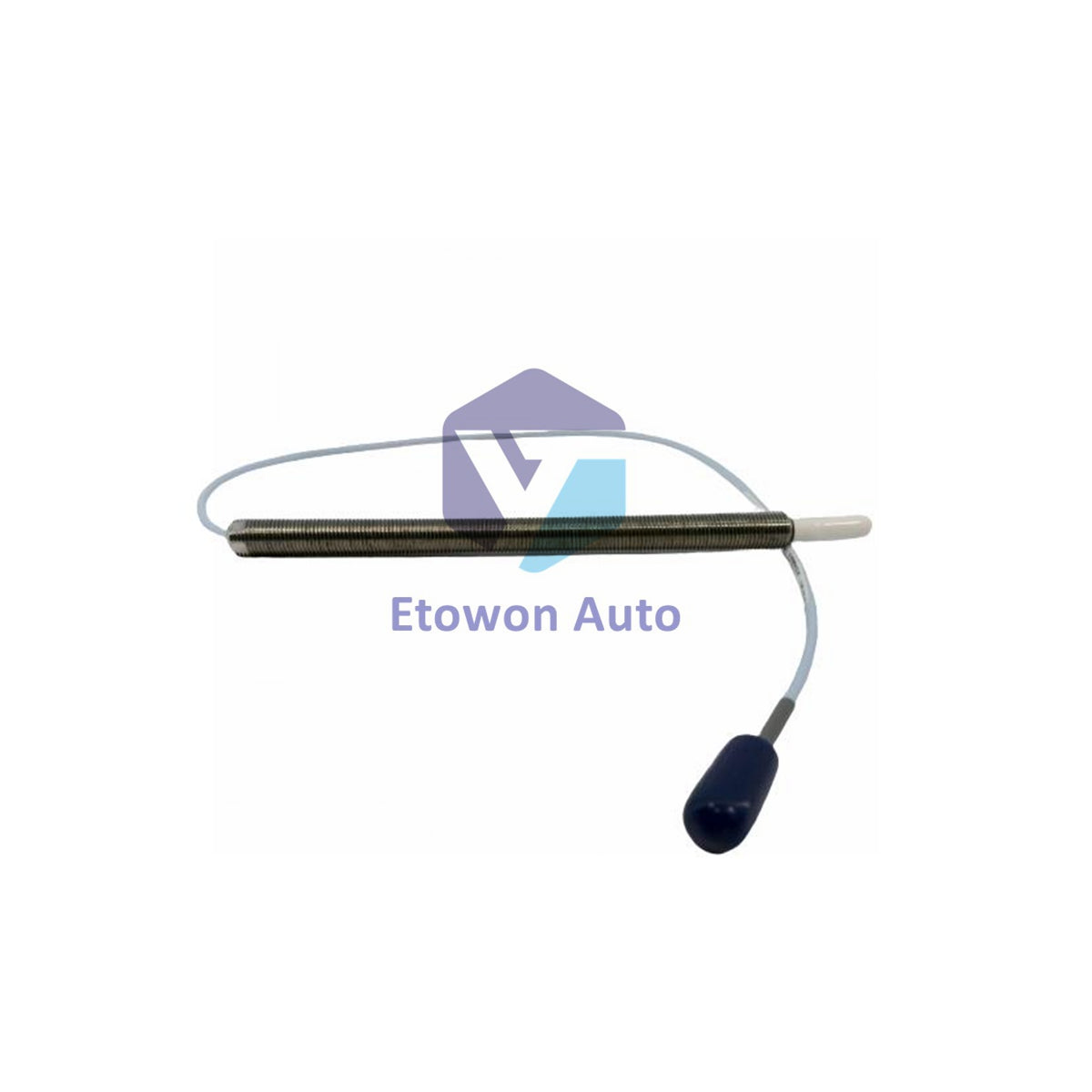

330905-00-15-05-02-05 Bently Nevada 3300 NSv Proximity Probe

The Bently Nevada 330905-00-15-05-02-05 is a 3300 NSv Proximity Probe for industrial vibration monitoring. It features M10X1 threads with 0.5m standard cable and Multiple Approvals. This probe weighs 14-150g and delivers accurate measurements for critical machinery protection.

Product Details

• Part Number: 330905-00-15-05-02-05
• Model: 3300 NSv Proximity Probe
• Manufacturer: Bently Nevada
• Condition: New Original, Factory Sealed
• Warranty: 12 Months
• Weight: 14-150 g (0.5-5.3 oz)

Configuration

• Thread Type: M10X1, without armor
• Unthreaded Length: 00 mm
• Case Length: 150 mm
• Cable Length: 0.5 meter (20 in)
• Connector: Miniature coaxial ClickLoc, standard cable
• Approval: Multiple Approvals (05)

Electrical Specifications

• DC Resistance: 4.0 ± 0.5 ohms at 0.5m
• Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
• Recommended Gap: 1.0 mm (40 mils)
• Scale Factor: 7.87 V/mm (200 mV/mil) +12.5%/-20%
• Deviation: Less than ±0.06 mm (±2.3 mils)
• Output: -1 to -13 Vdc
• Frequency Response: 0-10 kHz: +0, -3 dB typical

Extension Cable

• DC Resistance: Center 0.220 Ω/m, Shield 0.066 Ω/m
• Capacitance: 69.9 pF/m typical

Mechanical Specifications

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Cable: 75 Ω coaxial, FEP insulated
• Min Bend Radius: 25.4 mm (1.0 in)
• Seal: Viton O-ring

Torque Specifications

• Recommended Torque: Finger tight
• Maximum Torque: 0.56 N•m (5 in•lb)
• Case Max Rated: 33.9 N•m (300 in•lb)
• Case Recommended: 11.3 N•m (100 in•lb)
• First Threads Max: 22.6 N•m (200 in•lb)
• First Threads Rec: 7.5 N•m (66 in•lb)

Environmental

• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)

Target Requirements

• Minimum Flat Target: 8.9 mm (0.35 in) diameter
• Recommended Target: 13 mm (0.5 in) diameter

Field Wiring

• Wire Size: 0.2-1.5 mm² (16-24 AWG)
• With Ferrules: 0.25-0.75 mm² (18-23 AWG)
• Max Cable Length: 305 m (1000 ft)

FAQs

• What is the linear range of this probe?
  The 330905-00-15-05-02-05 provides 1.5 mm linear range from 0.25 to 1.75 mm from target.
• What is the recommended gap setting?
  Bently Nevada recommends a 1.0 mm (40 mils) gap setting for optimal performance.
• What approvals does this probe have?
  This probe includes Multiple Approvals (05) for international compliance.
