VFD750V43C-2

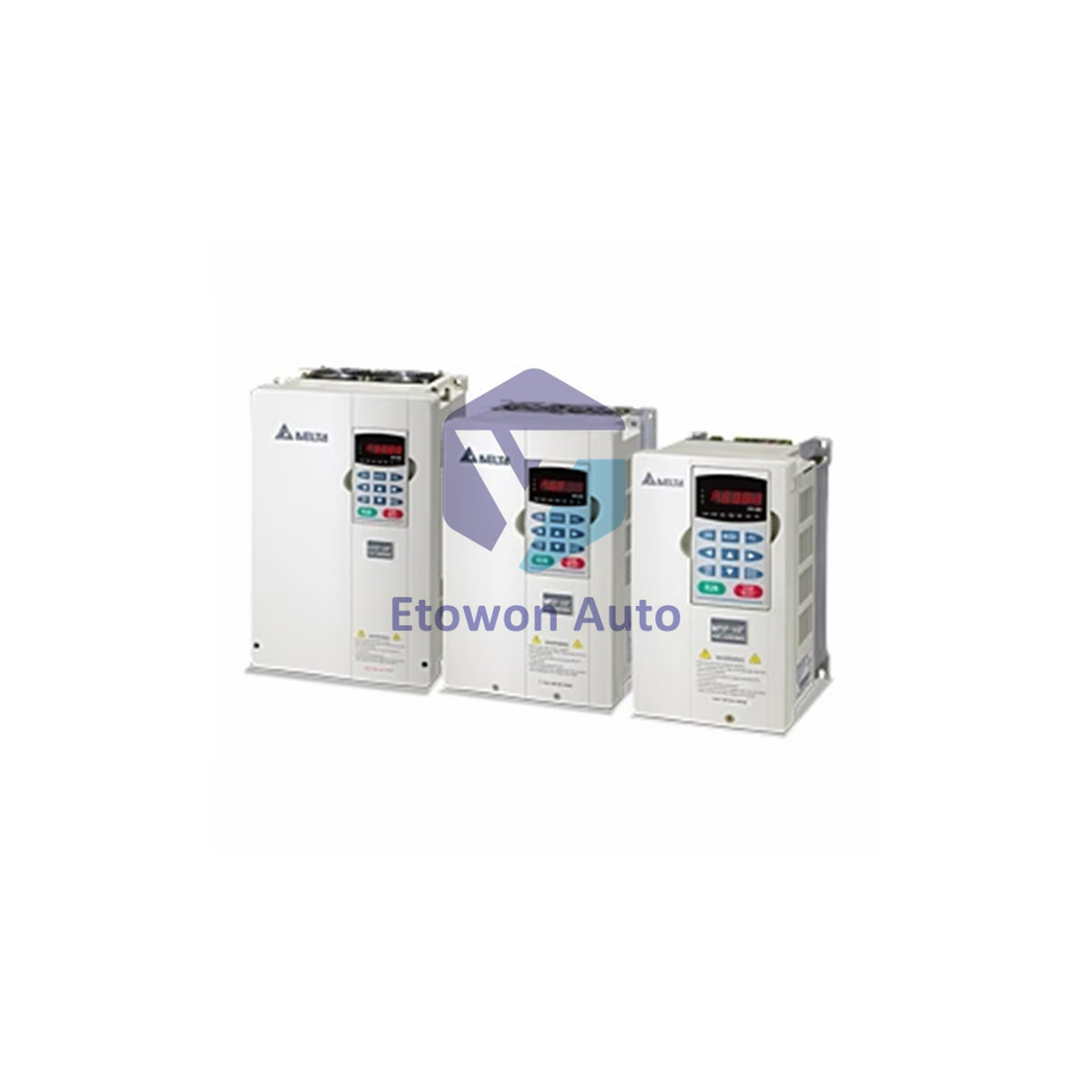

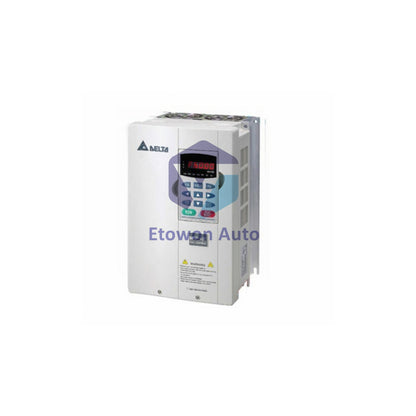

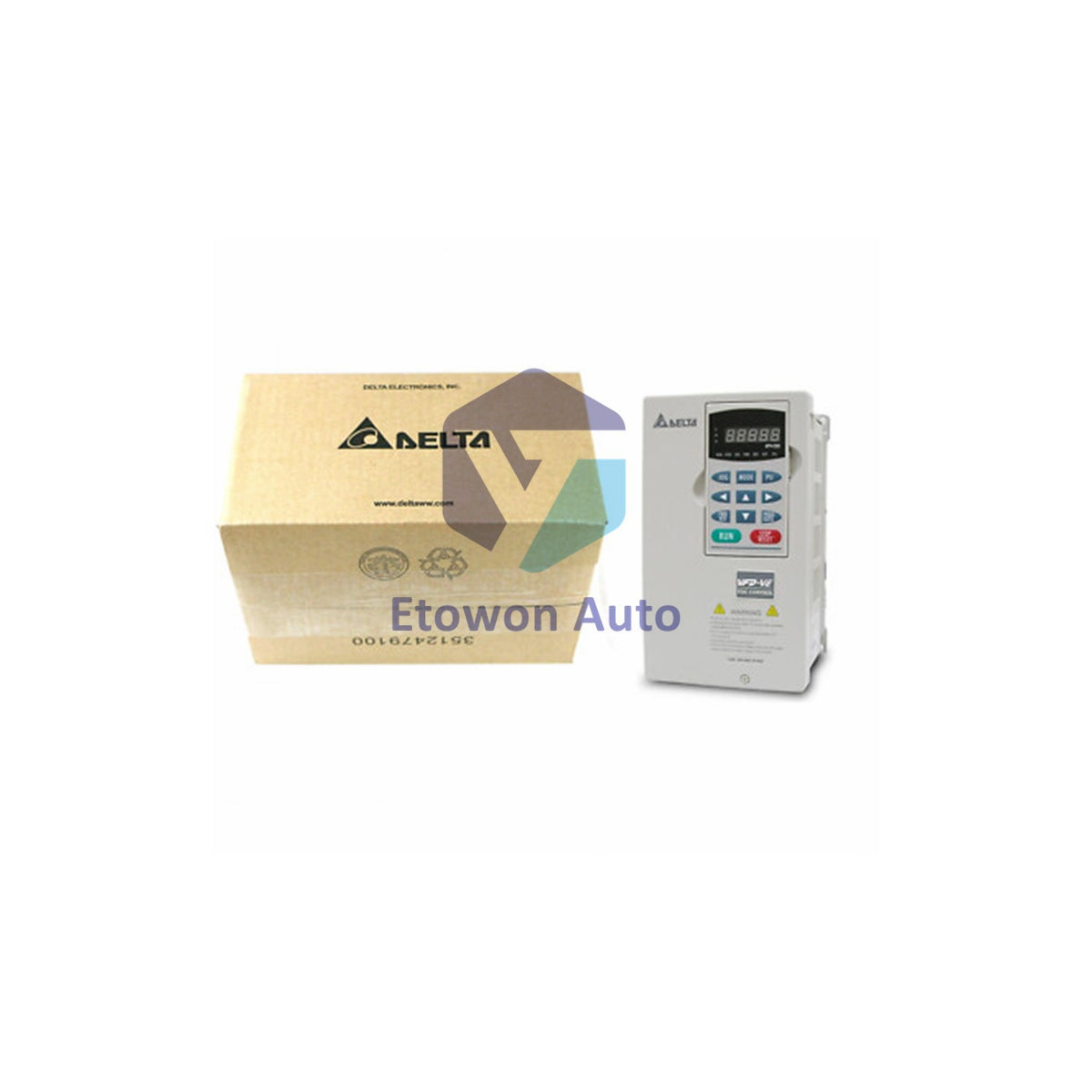

VFD750V43C-2 Delta 100 Horsepower Variable Frequency Drive

In stock (32 units), ready to be shipped

  • Manufacturer: Delta

  • Product No.: VFD750V43C-2

  • Product Type: AC Drive

  • Product Origin: CN

  • Payment:T/T, Western Union

  • Weight: 50000g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Delta VFD750V43C-2 VFD-VE Series AC Drive

The VFD750V43C-2 is a Delta VFD-VE series high-power variable frequency drive. Utilizing advanced Field Oriented Control (FOC) technology, this drive provides precision comparable to servo drives for both speed and position control. It is engineered for demanding industrial applications requiring robust torque and control capabilities.

Core Technical Specifications

  • Brand & Model: Delta VFD750V43C-2 (VFD-VE Series)
  • Input Power: 3-Phase, 380-480V AC (480V nominal)
  • Output Power (CT): 100 HP (75 kW) at 150 Amps
  • Output Power (VT): 125 HP (93 kW) at 188 Amps (Variable Torque)
  • Control Method: Closed Loop Vector Control (FOC - Field Oriented Control)
  • Max. Output Frequency: 600 Hz
  • Torque Performance: 150% rated torque at 0 Hz (zero speed).
  • Key Features: Position control (point-to-point, relative distance), expanded multi-function I/O, PC configuration software.

Physical Data & Features

  • Weight: 50 kg
  • Enclosure Rating: NEMA 1 / IP20 (for indoor, protected environments).
  • Braking: DC Injection braking standard; Dynamic Braking requires optional external resistor.
  • Included: Operator keypad for local control and programming.
  • Regenerative Capability: No; not for regenerating power to the line.
  • Application: Ideal for high-power pumps, fans, conveyors, and complex machinery requiring precise speed/position regulation.

Frequently Asked Questions

  • Q: What is the advantage of FOC (Field Oriented Control)?
    A> FOC provides superior low-speed torque, precise speed control, and better dynamic response compared to standard V/Hz control, making the VFD750V43C-2 suitable for applications traditionally requiring a servo drive.
  • Q: What does "position control" mean for this VFD?
    A> It can perform basic positioning tasks (like moving a motor a set number of encoder pulses) without an external motion controller, simplifying system architecture for indexing or repetitive positioning.
  • Q: Is a dynamic braking resistor included?
    A> No. Dynamic braking capability is built-in, but the external braking resistor (DBR) is an optional accessory required for effective motor braking.
