IC660BBA106

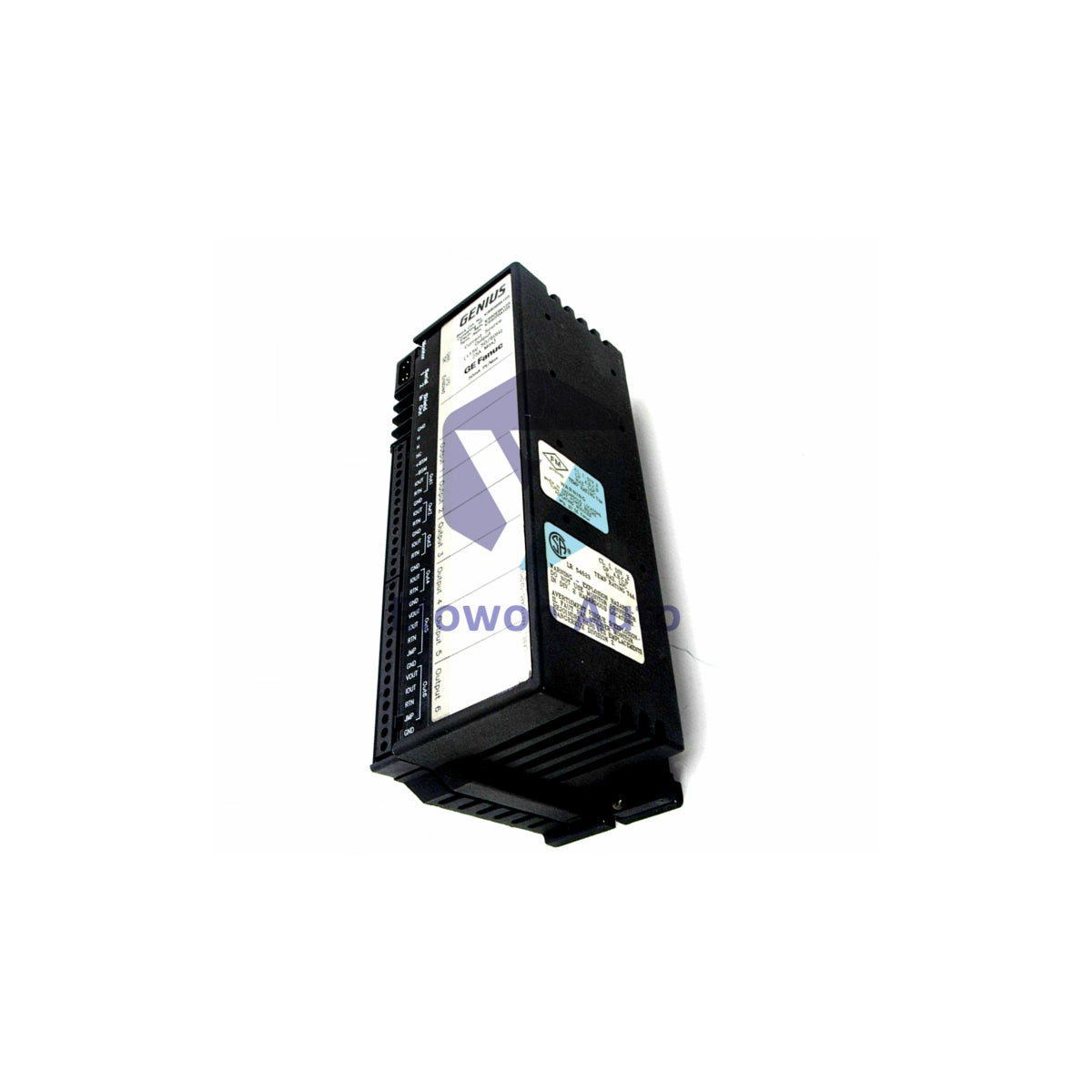

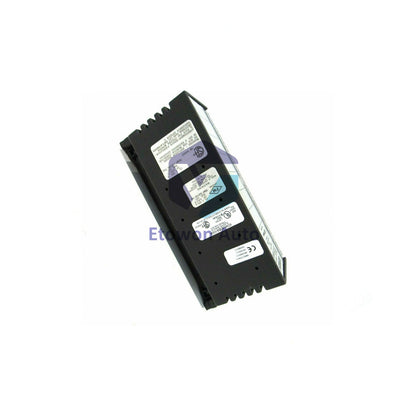

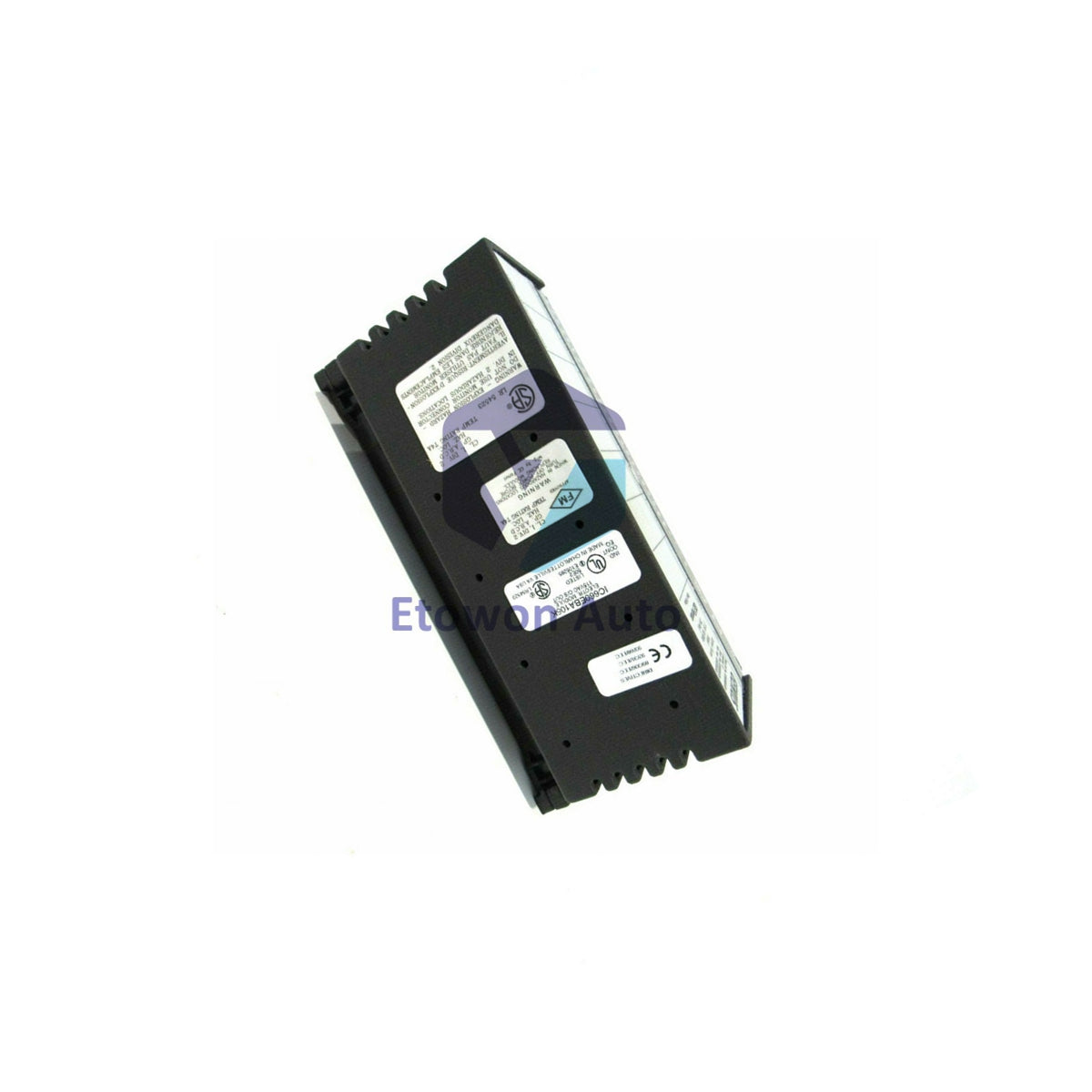

IC660BBA106 Current-Source Input Module | 4-20mA GE

In stock (24 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC660BBA106

  • Product Type: Combination I/O Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1810g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The GE Fanuc IC660BBA106 is a Genius I/O analog input block. This IC660BBA106 module provides six isolated 4-20mA current inputs for process monitoring.

Technical Specifications

  • Brand & Model: GE Fanuc IC660BBA106
  • I/O Type: Analog Input Block (Current Source)
  • Channels: 6 isolated inputs
  • Input Range: 4-20 mA / 0-20 mA
  • Power Supply: 115 VAC / 125 VDC (93-132VAC / 105-145VDC)
  • Accuracy: 0.1% of full scale
  • Input Resolution: 1 µA (at 200ms conversion)
  • Conversion Time: Selectable 16.6ms to 400ms

Electrical & Isolation

  • Isolation (Channel-Channel): 1500V RMS
  • Loop Power: Provides 24VDC loop supply per channel
  • Input Impedance: 100 Ω
  • Heat Dissipation: 12 Watts
  • Normal Mode Rejection: -45dB @ 50/60 Hz
  • Terminals: 32 points

Features & Diagnostics

  • Diagnostics: Under-range, Over-range, Open Wire, High/Low Alarms
  • LED Indicators: Unit OK, I/O Enabled
  • Alarms: Programmable high and low limits per channel
  • Scaling: Converts to engineering units
  • Flexibility: Adjustable conversion time balances speed and noise rejection
  • Enclosure: Open-style (requires protective panel)

Physical & Environmental

  • Dimensions (HxWxD): 8.83" x 3.56" x 4.42"
  • Weight: 4 lbs (1.81 kg)
  • Operating Temp: 0°C to 60°C (32°F to 140°F)
  • Storage Temp: -40°C to 100°C (-40°F to 212°F)
  • Humidity: 5% to 95% non-condensing
  • Thermal Drift: 70 ppm/°C typical

FAQ

  • How many inputs does it have?
  • Six (6) isolated analog current inputs.
  • Does it provide loop power?
  • Yes, each input channel supplies 24VDC for the connected transmitter.
  • What is the configurable conversion time for?
  • To trade off between faster updates and higher resolution/noise rejection.
