IC755CSS12CDA

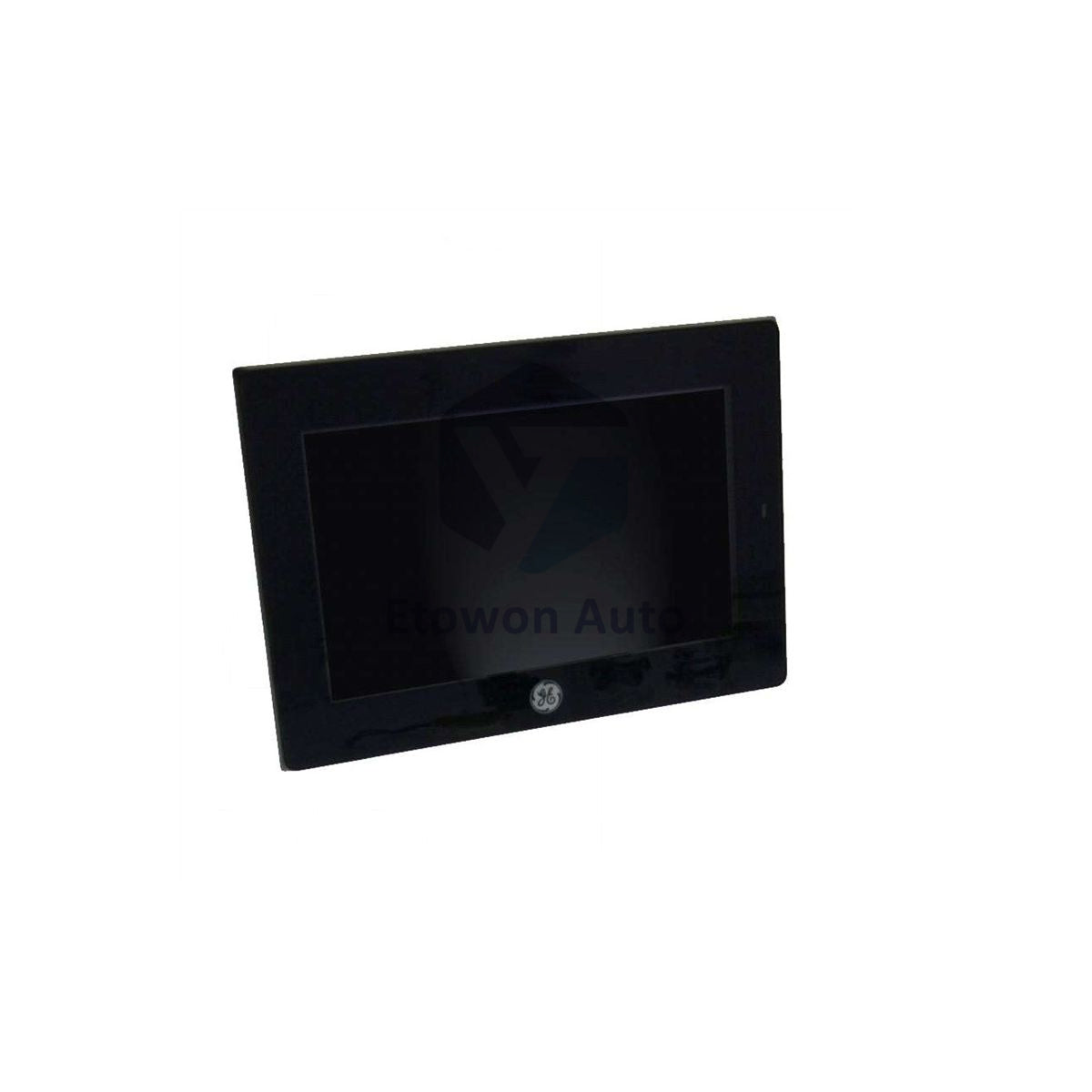

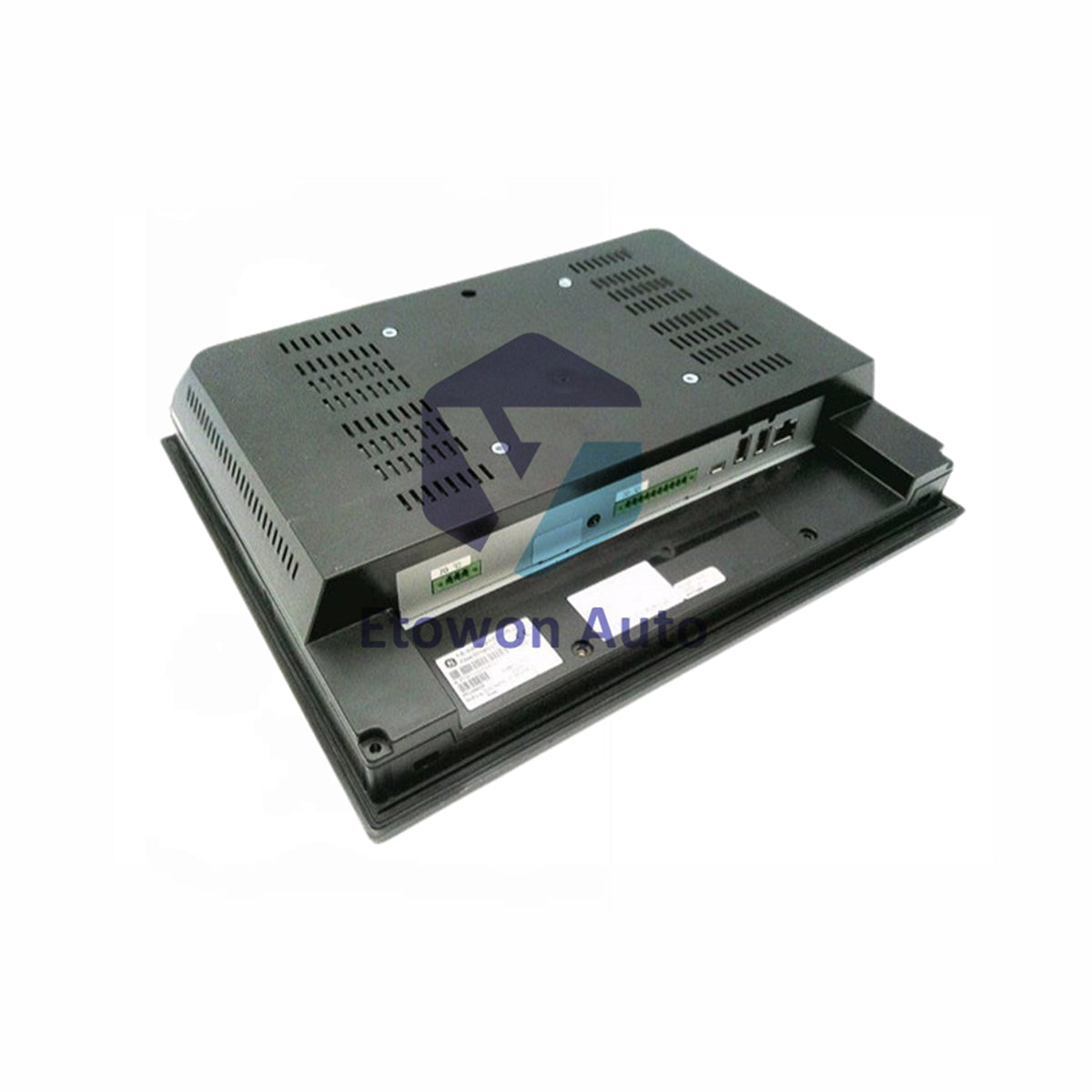

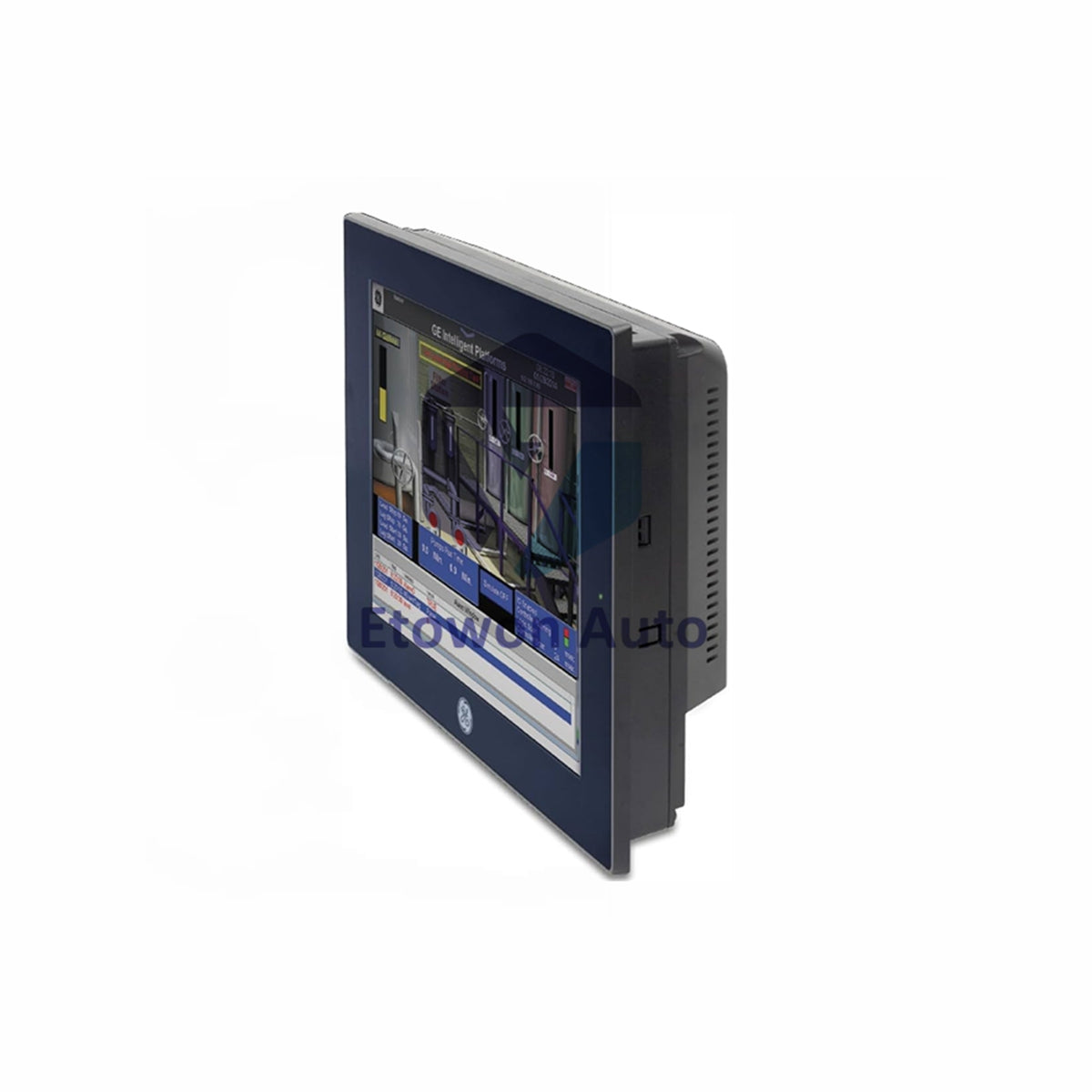

GE QuickPanel IC755CSS12CDA HMI | Touch Panel Display

In stock (22 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC755CSS12CDA

  • Product Type: Operator Interface

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 3000g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE QuickPanel+ Industrial HMI IC755CSS12CDA

The GE QuickPanel+ IC755CSS12CDA is a 12.1-inch industrial touchscreen panel. It features a high-brightness WVGA display, projective capacitive touch, and robust connectivity for demanding automation environments.

Technical Specifications

  • Brand & Model: GE QuickPanel+ IC755CSS12CDA
  • Display Size: 12.1-inch TFT
  • Resolution: 800 × 600 WVGA
  • Colors: 65,536 (16-bit)
  • Brightness: 450 cd/m²
  • Contrast Ratio: 800:1
  • Touch Technology: Projective Capacitive (dual-point)
  • Touch Response: <10 ms
  • Processor: Freescale i.MX535 1 GHz ARM Cortex-A8
  • Memory: 1 GB DDR3 RAM, 512 MB Flash
  • Backup Memory: 512 KB battery-backed SRAM
  • Storage Expansion: SD/SDHC slot (up to 32 GB)
  • Ethernet Ports: 2 × 10/100Base-T
  • Serial Ports: 1 × RS-232, 1 × RS-232/485
  • USB Ports: 2 × Type-A Host, 1 × Mini-B
  • Power Input: 12/24 VDC, 30 W max
  • Ingress Protection: IP65 front panel
  • Operating Temperature: 0°C to 55°C
  • Storage Temperature: -20°C to 70°C
  • Dimensions: 314 × 248 × 65 mm
  • Panel Cutout: 295 × 226 mm
  • Product Weight: 3.0 kg

Key Features

  • 12.1-inch high-brightness WVGA color display
  • Dual-point projective capacitive touchscreen
  • Powerful 1 GHz ARM Cortex-A8 processor
  • Generous 1 GB RAM for complex applications
  • Dual Ethernet ports for network redundancy
  • Front panel IP65 rating for dust and water protection
  • Wide operating temperature range

Installation & Connectivity

  • Panel-mount installation with standard cutout
  • Power via 12/24 VDC using Molex Mini-Fit Jr. connector
  • Ethernet, serial, and USB connectivity for peripherals
  • SD card slot for project storage and transfer

Shipping Information

  • 1x IC755CSS12CDA HMI unit
  • Approximate shipping weight: 4.0 kg (including packaging)
  • Secure protective packaging
  • Shipped via FedEx, UPS, or DHL

FAQ

  • What is the display type?
    12.1-inch TFT LCD with WVGA (800×600) resolution and 65,536 colors.
  • What touch technology is used?
    Projective capacitive touch supporting dual-point operation with <10 ms response.
  • What is the front panel protection rating?
    IP65, providing dust-tight and water-jet protection.
