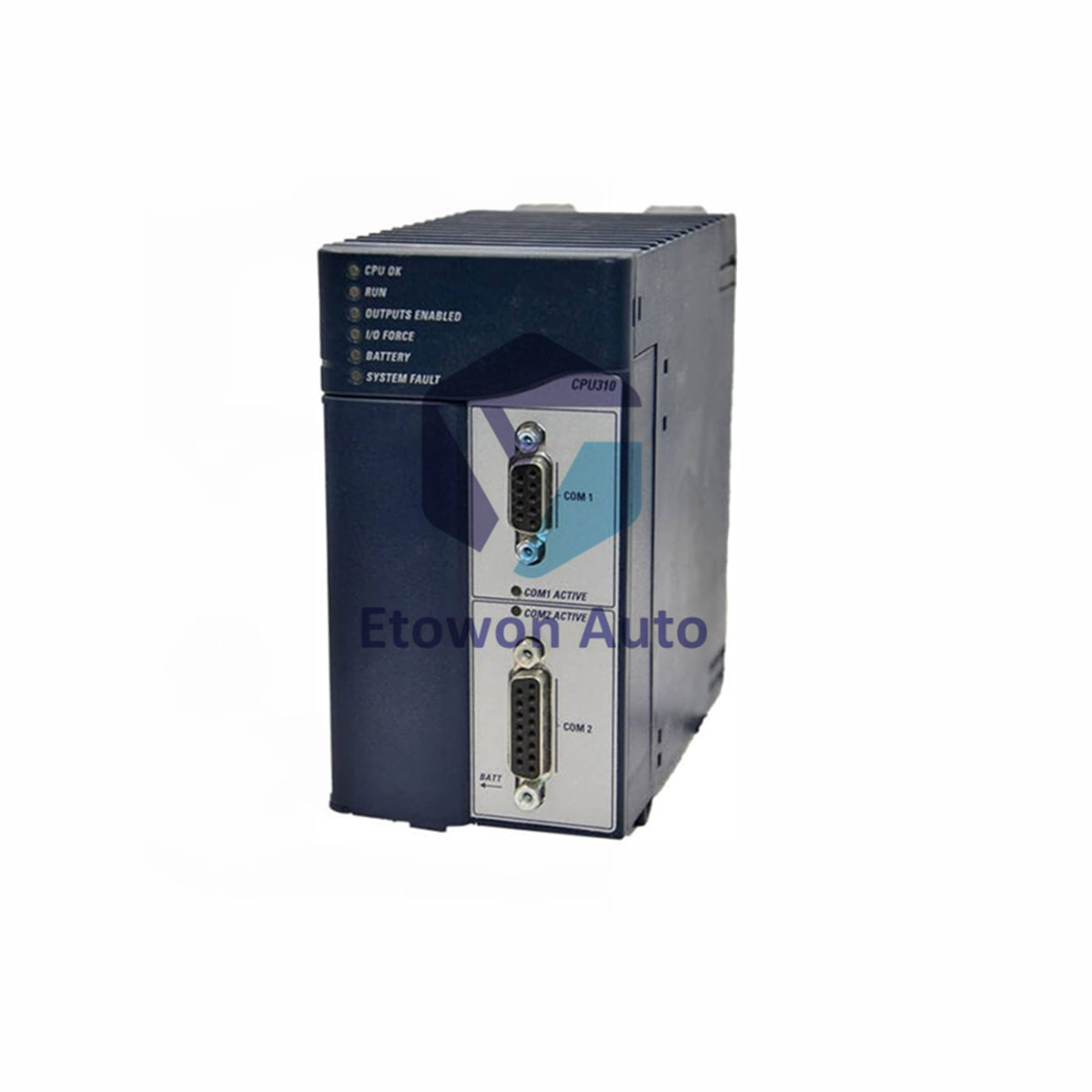

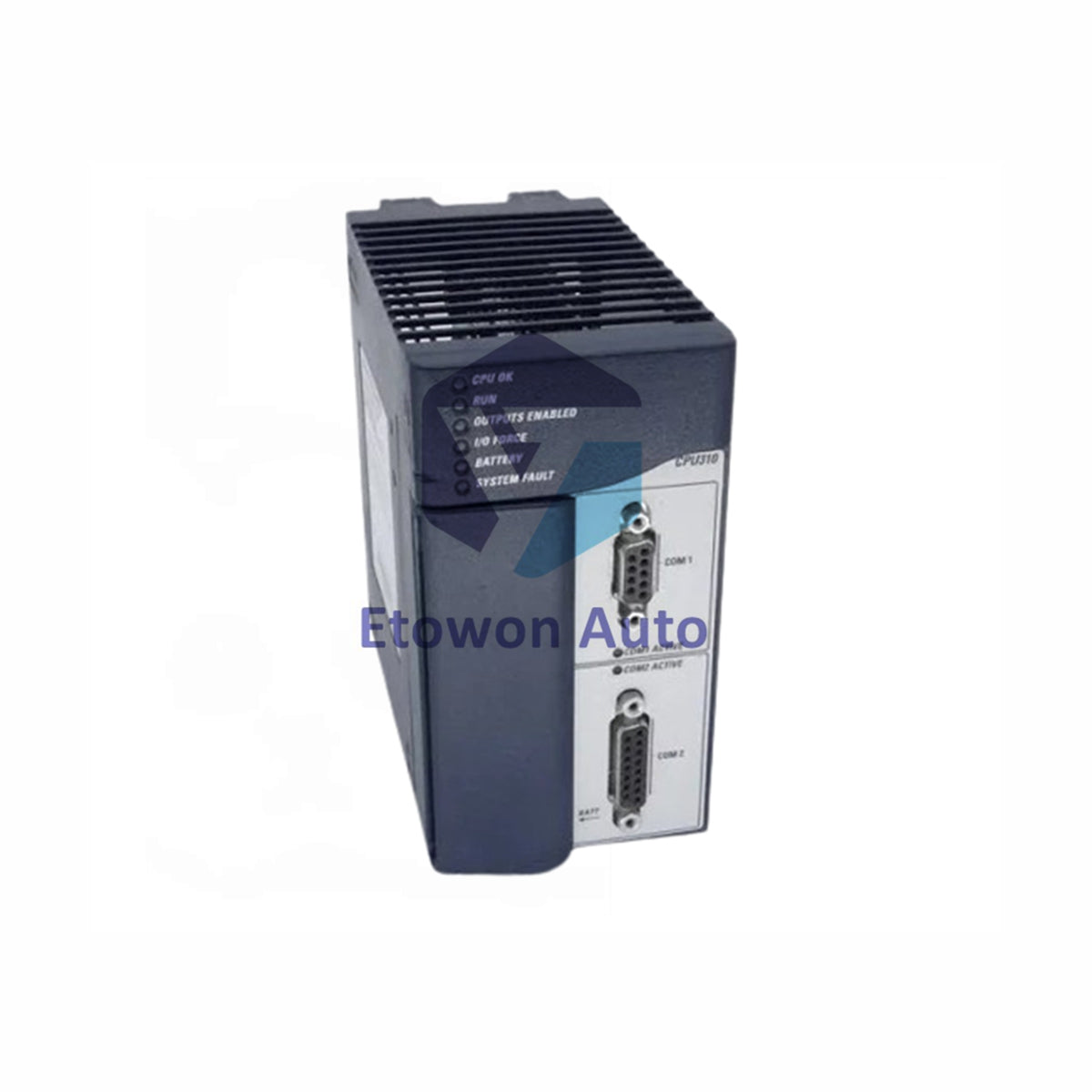

GE Fanuc IC695CPU315 1GHz Celeron M PACSystems CPU Module

GE Fanuc IC695CPU315 PACSystems RX3i CPU Module

The GE Fanuc IC695CPU315 is a high-performance CPU module for RX3i PACSystem platforms. Featuring a 1.0 GHz Celeron M processor, this module delivers 20MB of user memory with dual serial communication ports for industrial control applications.

Key Features

• 1.0 GHz Celeron M microprocessor for high-speed processing
• 20MB user RAM and 20MB non-volatile memory (NVRAM)
• Two integrated serial ports (RS-232 and RS-485)
• Supports up to 512 program blocks (128KB each)
• Compatible with most GE Fanuc Series 90-30 modules and racks

Technical Specifications

• Brand & Model: GE Fanuc IC695CPU315
• System Series: PACSystems RX3i
• Processor Type: CPU module with Celeron M
• Clock Speed: 1.0 Gigahertz
• User Memory: 20 Megabytes RAM
• Non-volatile Memory: 20 Megabytes NVRAM
• Serial Ports: 2 integrated ports
• Program Blocks: 512 maximum supported

Memory Allocation

• Discrete I/O Memory: 32 kilobits reserved
• Analog I/O Memory: 32 kilowords reserved
• Program Block Size: 128 kilobytes maximum per block
• Auto-located Variables: Use any available user memory
• Battery-backed RAM: Maintained by auxiliary batteries

Power & Environmental

• Current Consumption: 1.2A at 5VDC, 1A at 3.3VDC
• Operating Temperature: 32 to 140°F (0 to 60°C)
• Internal Clock: Peak drift 2 seconds per day maximum
• Timing Accuracy: 0.01% maximum internal accuracy
• Environmental Compliance: EU RoHS directive 2002/95/EC

FAQ

What is the processor speed of the IC695CPU315?

• The GE Fanuc IC695CPU315 features a 1.0 GHz Celeron M microprocessor for high-speed industrial control processing.

How much memory does this CPU module provide?

• This GE Fanuc module provides 20MB of user RAM and an additional 20MB of non-volatile memory (NVRAM) for program and data storage.

What serial communication ports are included?

• The GE Fanuc module includes two serial ports: one RS-232 port and one RS-485 port, supporting Serial I/O, Modbus RTU slave, and SNP protocols.
