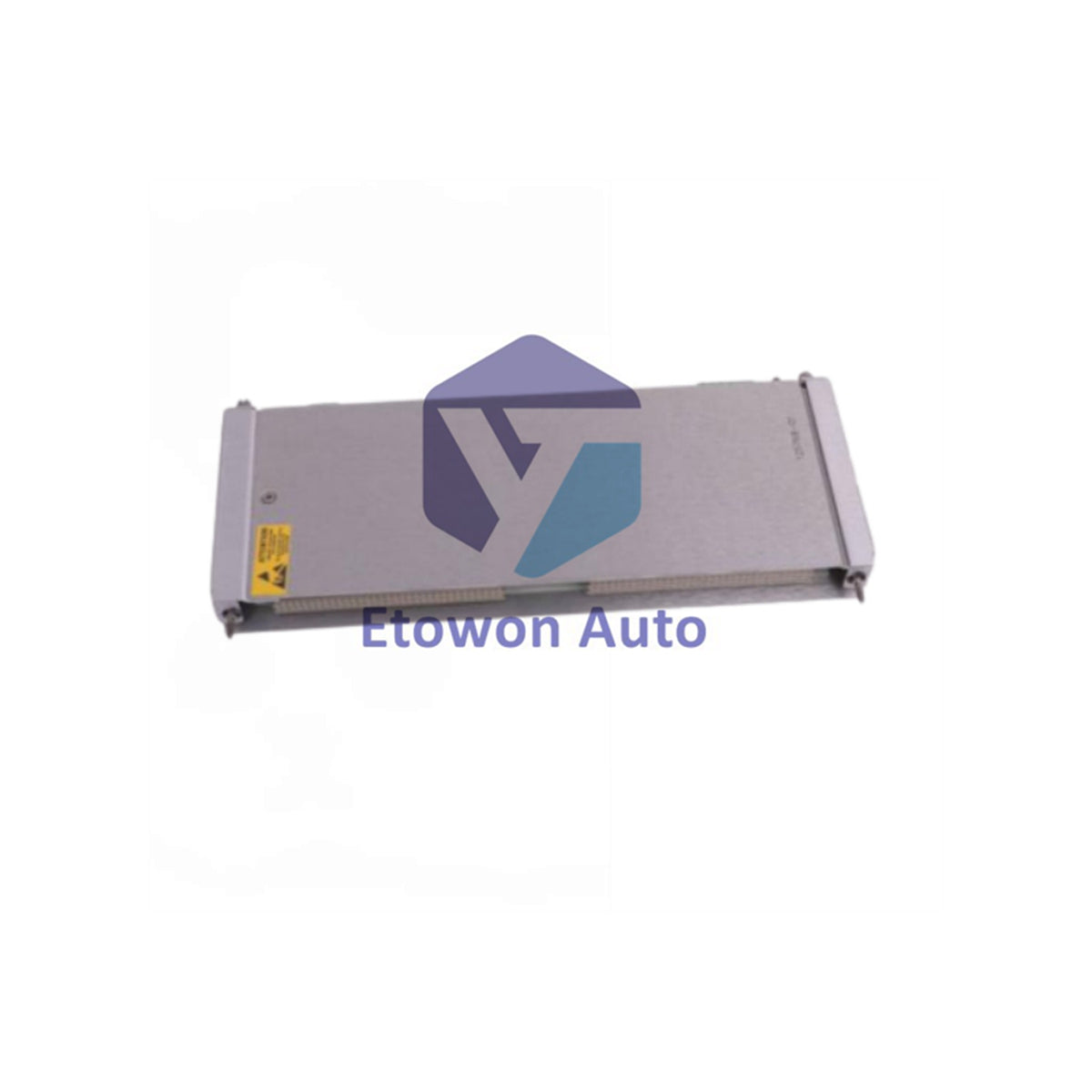

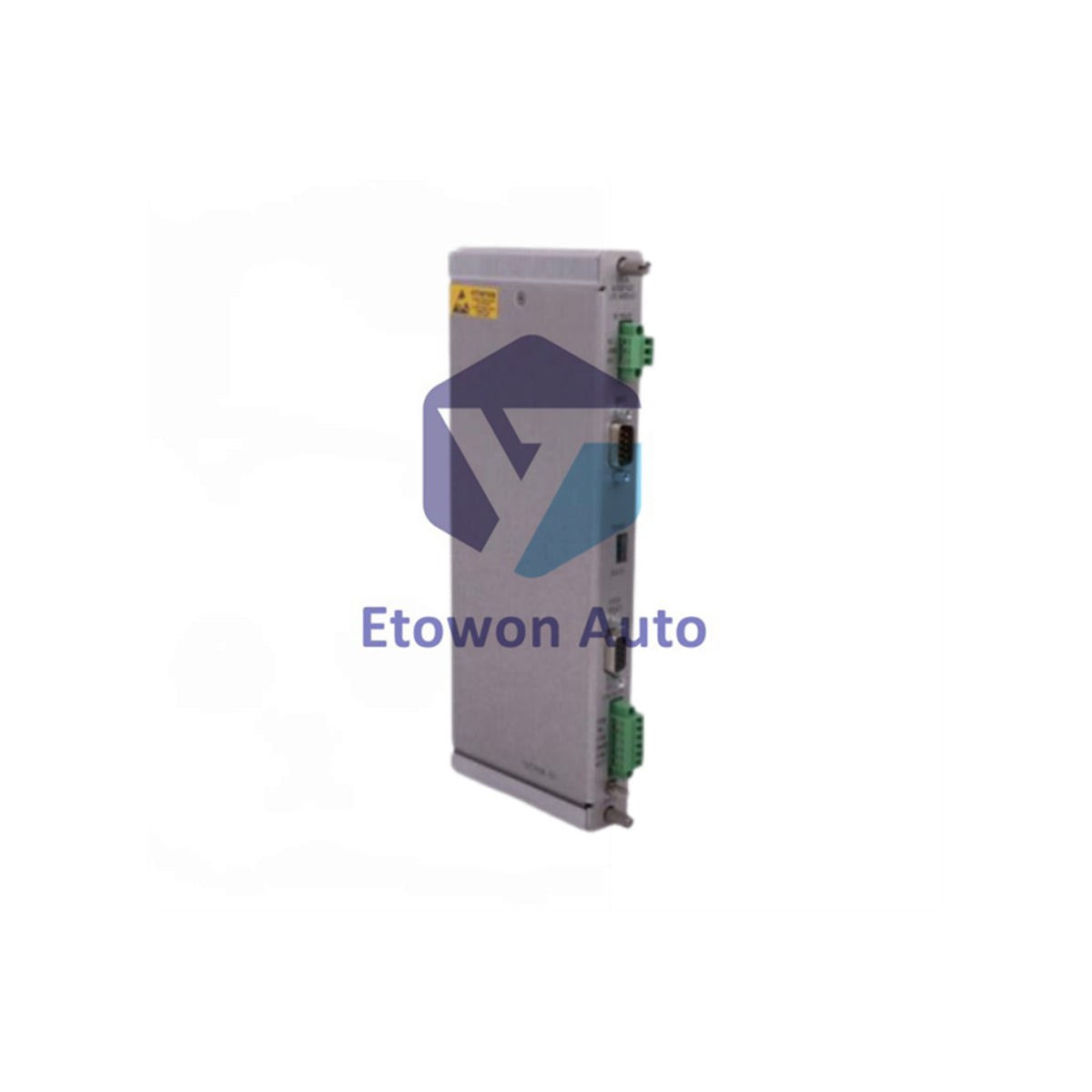

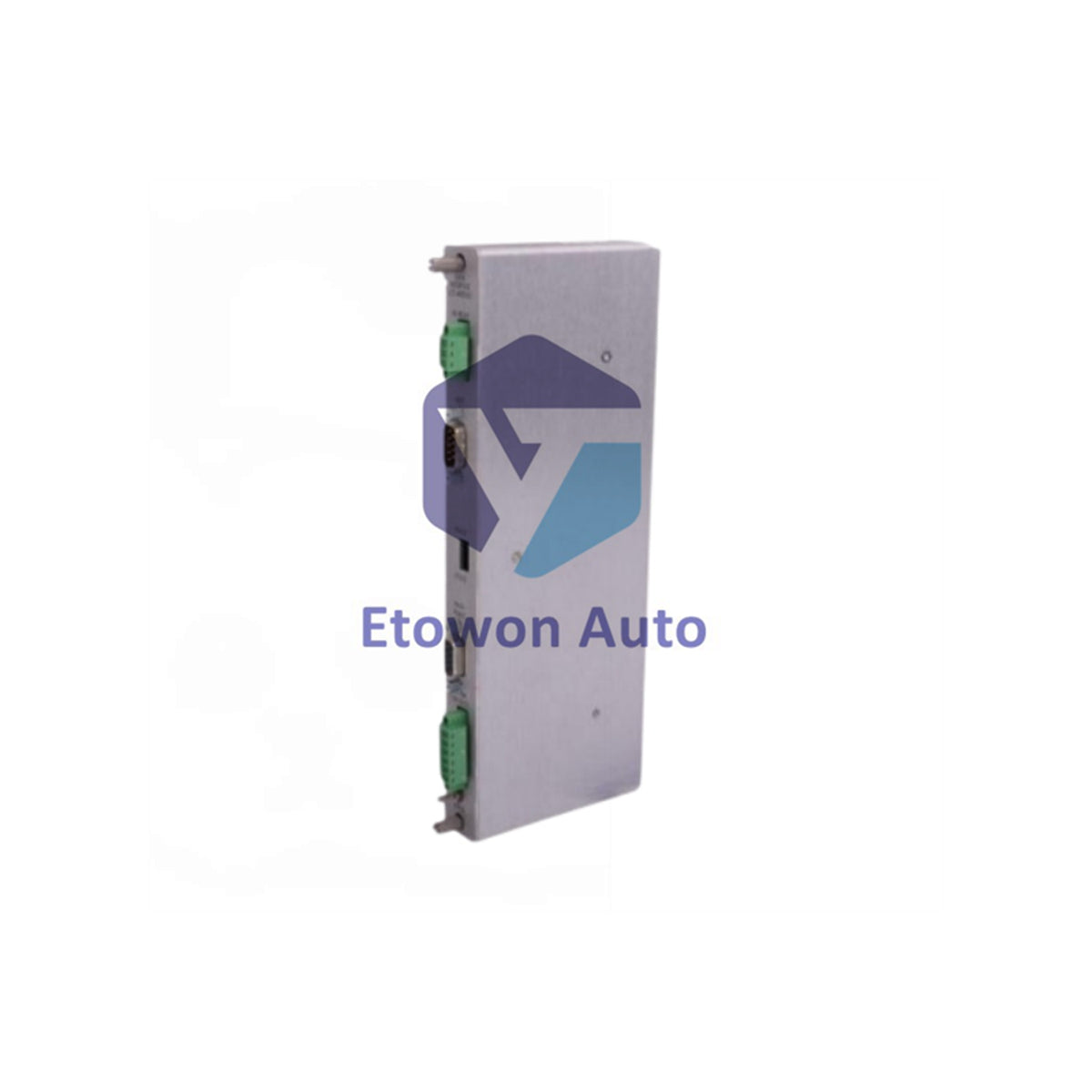

Bently Nevada 125768-01 Rack Interface Module | 3500/20 Series I/O

Bently Nevada 125768-01 Rack Interface I/O Module

The Bently Nevada 125768-01 is a rack interface module for industrial monitoring systems. This module provides flexible interface solutions with configurable communication options.

Product Identification

• Brand & Manufacturer: Bently Nevada
• Part Number: 125768-01
• System Model: 3500/20-01-02-00
• Product Type: Rack Interface I/O Module (RIM)
• Module Series: 3500/20 Series

Model Configuration Breakdown

• Position A (01): Standard Rack Interface Module (RIM)
• Position B (02): RS232/RS422 Interface (no built-in modem)
• Position C (00): No specific agency approval selected
• Configuration Note: This configuration is for standard monitoring needs

Interface & Communication Specifications

• Primary Interface: RS232/RS422 serial communication
• Modem Option: No built-in modem in this configuration
• Redundancy Support: Standard RIM (non-TMR) configuration
• Integration: Designed for 3500 series monitoring systems
• Communication Protocol: Standard industrial serial protocols

Physical Specifications

• Weight: Approximately 0.32 kg (0.71 lbs)
• Dimensions: Standard 3500 series module footprint
• Mounting: Rack-mounted installation in system chassis
• Construction: Industrial-grade electronic assembly
• Connectors: Standard industrial communication connectors

Optional Configurations Available

• RIM Type: TMR (Triple Modular Redundancy) available as option 02
• I/O Type: Built-in modem available as option 01
• Agency Approval: CSA/NRTL/C compliance available as option 01
• Customization: Various configurations to meet specific requirements

Shipping Information

• Lightweight electronic component packaging
• Worldwide delivery via FedEx, UPS, or DHL
• ESD-safe packaging for electronic protection
• Tracking provided for all shipments

Frequently Asked Questions (FAQ)

What communication interfaces does this module provide?

• The 125768-01 module (3500/20-01-02-00) provides RS232 and RS422 serial interfaces for connecting the monitoring system to external computers or control systems.

What is the difference between standard RIM and TMR RIM?

• Standard RIM (option 01) provides single-path interface functionality. TMR RIM (option 02) offers Triple Modular Redundancy with three independent channels for critical applications requiring maximum reliability.

How much does this rack interface module weigh?

• The 125768-01 rack interface module weighs approximately 0.32 kg (0.71 lbs). This lightweight design minimizes impact on overall system weight while providing full functionality.
