22B-E4P2H204

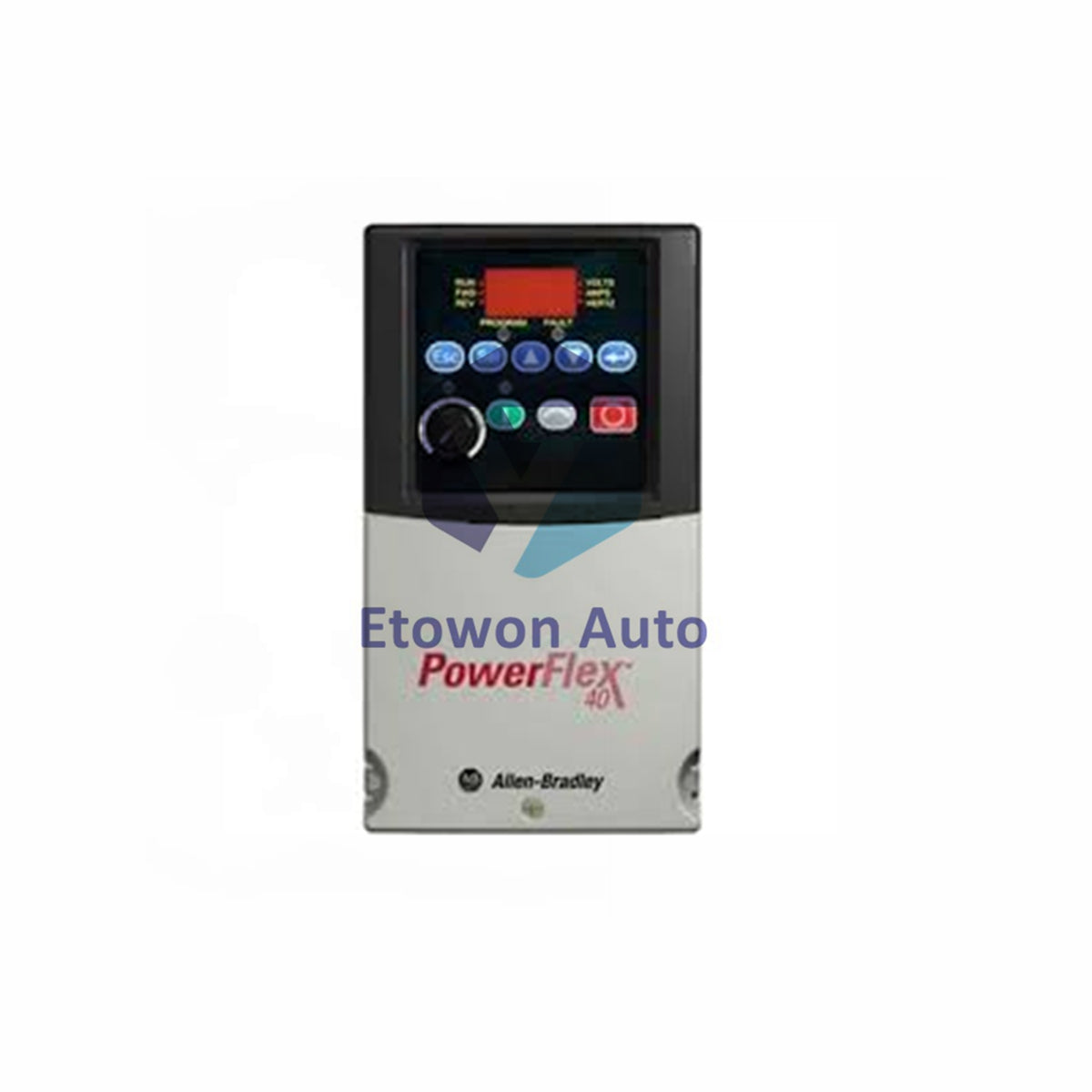

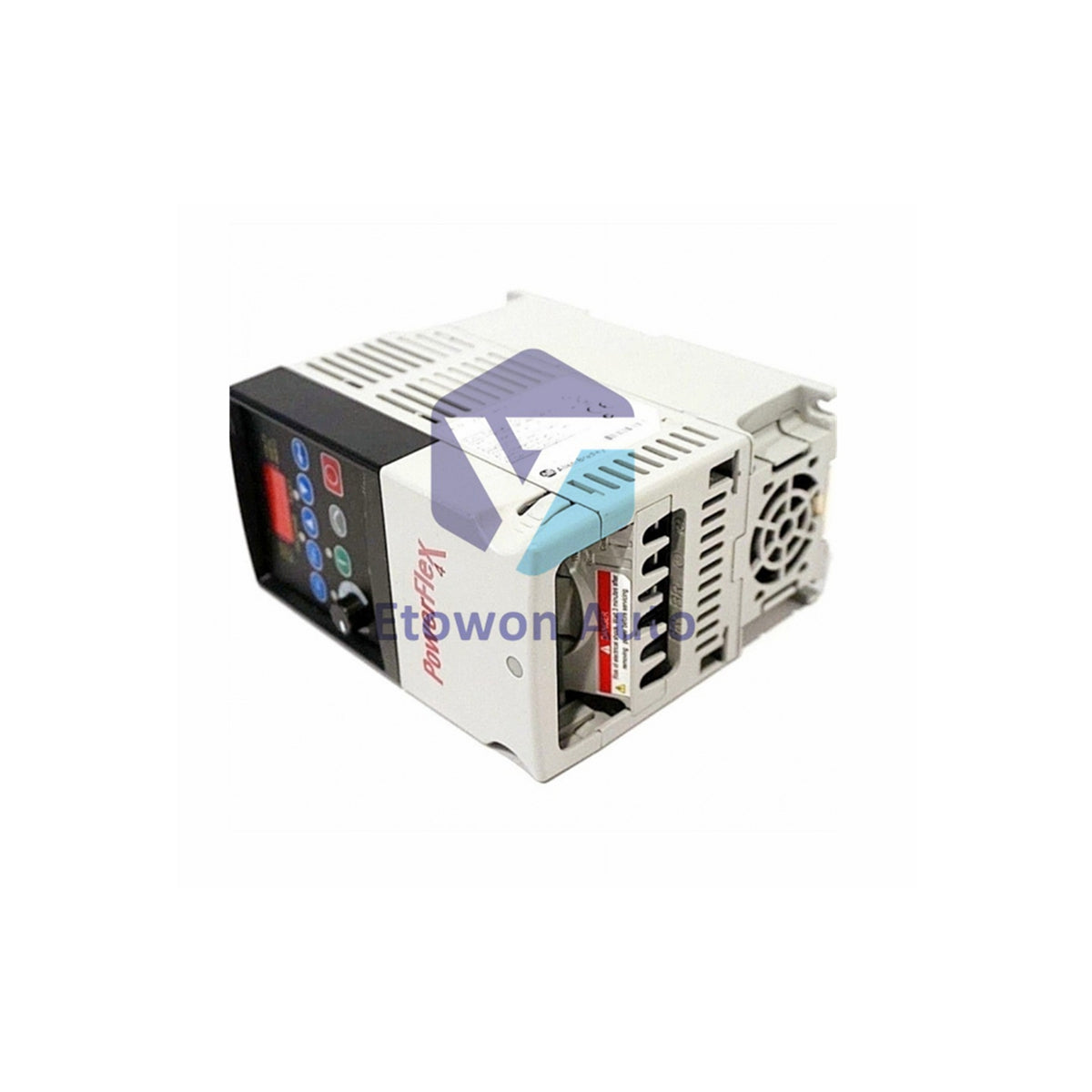

Allen-Bradley 22B-E4P2H204 | PowerFlex 40 Drive 3HP 600V

In stock (23 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-E4P2H204

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1680g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 22B-E4P2H204 PowerFlex 40 Adjustable Frequency Drive

The Allen-Bradley 22B-E4P2H204 is a PowerFlex 40 series drive. It controls speed and torque for 3-phase motors up to 3 HP (2.2 kW).

Technical Specifications

  • Brand & Model: Allen-Bradley 22B-E4P2H204
  • Product Line: PowerFlex 40 Adjustable Frequency Drive
  • Input Voltage: 600 Volts AC, 3-Phase
  • Output Current: 4.2 Amps
  • Power Rating: 3 Horsepower (2.2 kW)
  • Control Methods: Volt per Hertz & Sensorless Vector Control
  • Frequency: 50/60 Hz operation
  • Communication: Built-in RS-485 interface
  • Control Voltage: 24V DC sink/source

Features & Protection

  • Enclosure: Plate Drive - IP20, NEMA/UL Type Open (no heatsink)
  • Brake IGBT: Integrated for braking control
  • Diagnostics: Real-time data for simplified application troubleshooting
  • Operating Shock: 30G (3 pulses, 11 ms)
  • Non-operating Shock: 50G (3 pulses, 11 ms)
  • ESD Protection: Contains sensitive components; follow static control procedures

Physical Dimensions & Installation

  • Dimensions: 125.0 x 204.0 x 97.5 mm (4.92 x 8.03 x 3.84 in)
  • Weight: 1.68 kg (3.7 lbs)
  • Input Type: Includes keypad for local control and configuration
  • Filter: No CE compliant filter (standard model)
  • Shipping: Available via FedEx, UPS, DHL

FAQ

  • Q: What is the 22B-E4P2H204 used for?
    A: It controls speed and torque of 3-phase AC motors up to 3HP in variable speed applications.
  • Q: What control features does it have?
    A: It offers both Volt/Hertz and sensorless vector control for improved low-speed torque.
  • Q: What communication is built-in?
    A: It features an RS-485 communication port for network integration.
