TU812V1

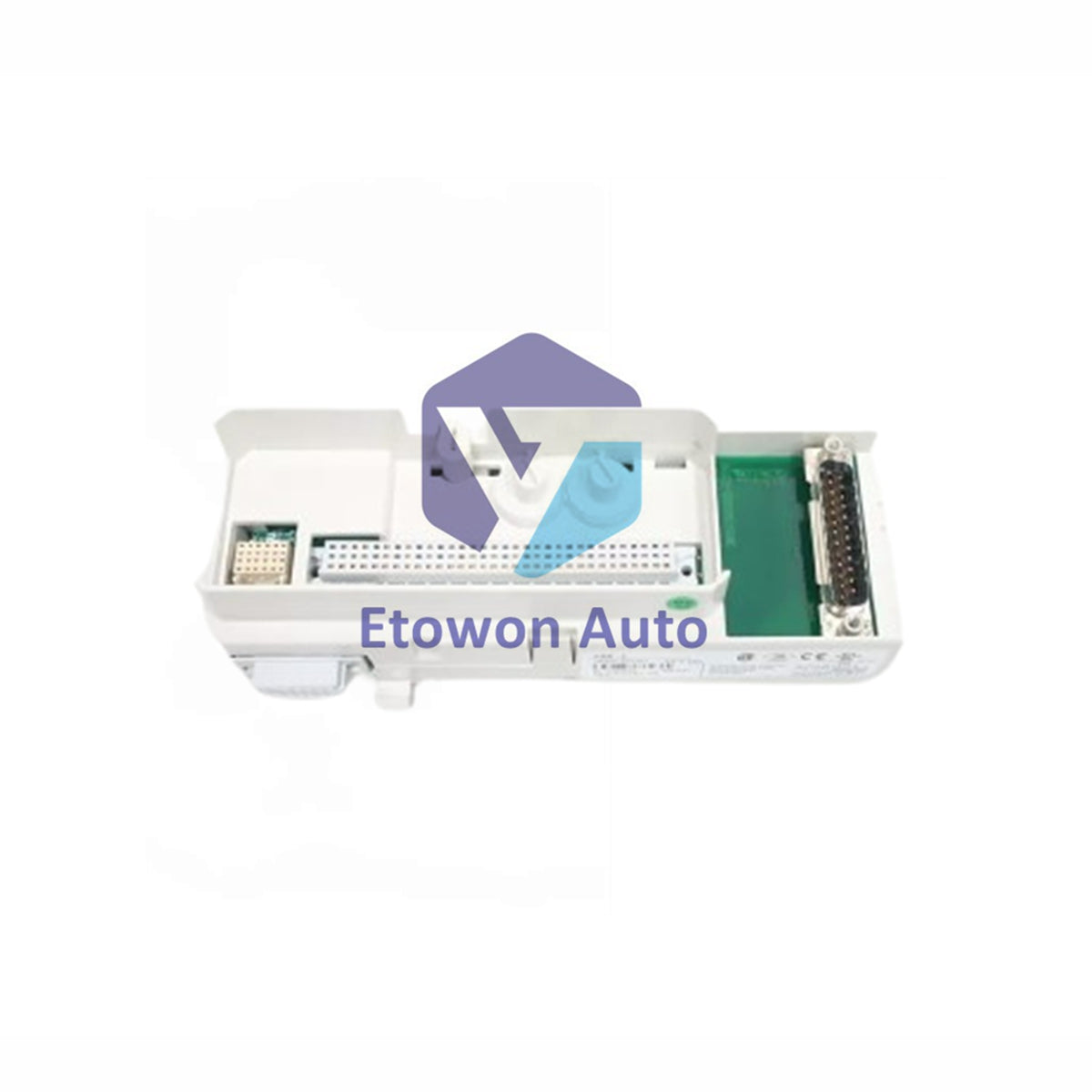

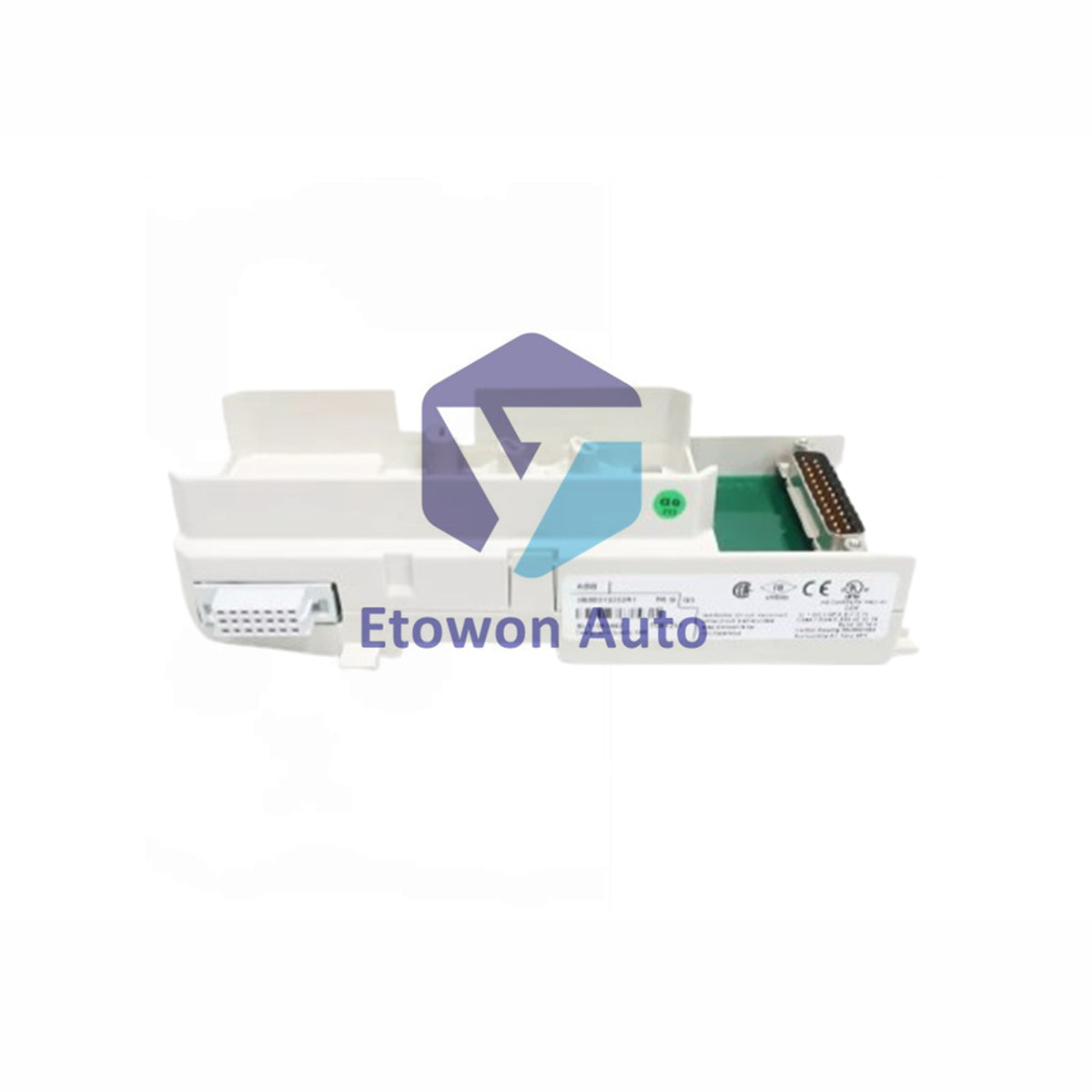

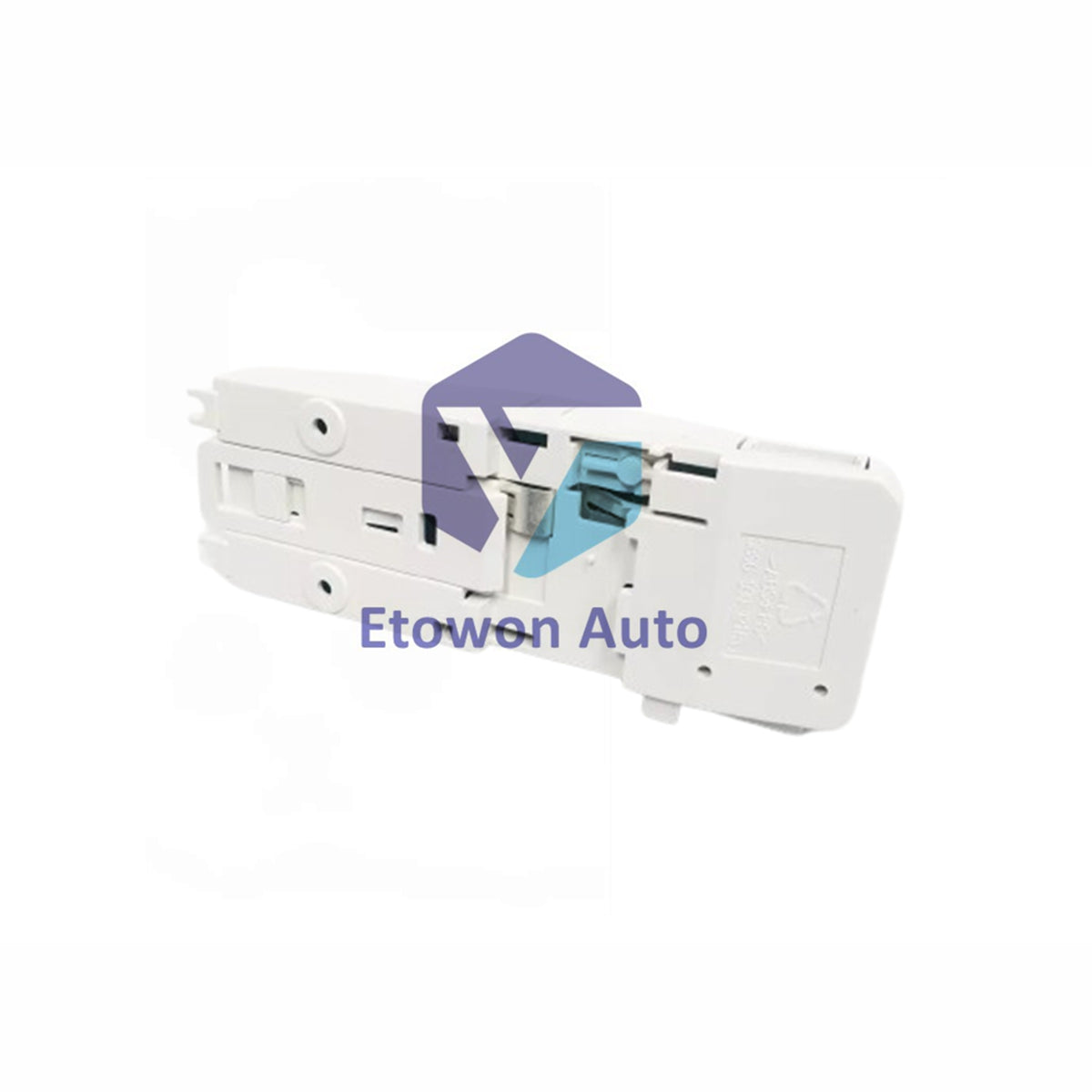

ABB TU812V1 Compact Module S800 I/O

In stock (32 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: TU812V1

  • Product Type: Termination Unit

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 170g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB TU812V1 Compact MTU for S800 I/O

The ABB TU812V1 is a 50V compact module termination unit. This MTU serves the S800 I/O system with 16 signal connections. It provides field wiring termination and ModuleBus distribution in industrial automation systems.

Product Overview

  • Brand: ABB
  • Model: TU812V1 (3BSE013232R1)
  • Type: Compact Module Termination Unit (MTU)
  • System: S800 I/O system compatible
  • Channels: 16 signal connections total

Technical Specifications

  • Voltage: 50V maximum rating
  • Current: 2A per I/O channel maximum
  • Connection: 25-pin D-sub connector interface
  • Dielectric: 500V AC test voltage
  • Process Current: 5A maximum per connection

Module Compatibility

  • AI Modules: AI810, AI815, AI820, AI830, AI835, AI845
  • AO Modules: AO810, AO815, AO820, AO845
  • DI Modules: DI810, DI814, DI830, DI840, DI880
  • DO Modules: DO810, DO814, DO840, DO880
  • DP Modules: DP820, DP840

Environmental Ratings

  • Temperature: 0 to +55°C operating range
  • Storage: -40 to +70°C temperature range
  • Humidity: 5-95% RH non-condensing
  • Protection: IP20 rating per IEC 60529
  • Contaminants: ISA-S71.04 G3 corrosion protection

Mounting & Installation

  • Mounting: DIN rail installation both directions
  • Orientation: Horizontal: 55°C max, Vertical: 40°C max
  • Keys: Two mechanical keys, 36 configurations
  • Grounding: Latching device for DIN rail grounding
  • Safety: Prevents wrong I/O module insertion

Certifications

  • Safety: EN 61010-1, UL 61010-1 compliant
  • Hazardous: C1 Div 2, ATEX Zone 2 certified
  • Marine: ABS, BV, DNV-GL, LR approved
  • EMC: EN 61000-6-2/6-4 compliant
  • Environmental: RoHS, WEEE compliant

Physical Specifications

  • Dimensions: 64×64×170 mm (2.52×2.52×6.7 in)
  • Weight: 0.17 kg (0.37 lbs)
  • Pollution: Degree 2 per IEC 60664-1
  • Class: Class I equipment (earth protected)

FAQ

  • Q: What is TU812V1?
    A: ABB compact MTU for S800 I/O system field termination.
  • Q: How many configurations?
    A: 36 configurations via two mechanical keys.
  • Q: Temperature rating?
    A: 0-55°C horizontal, 0-40°C vertical operation.
