3BSE088381R1

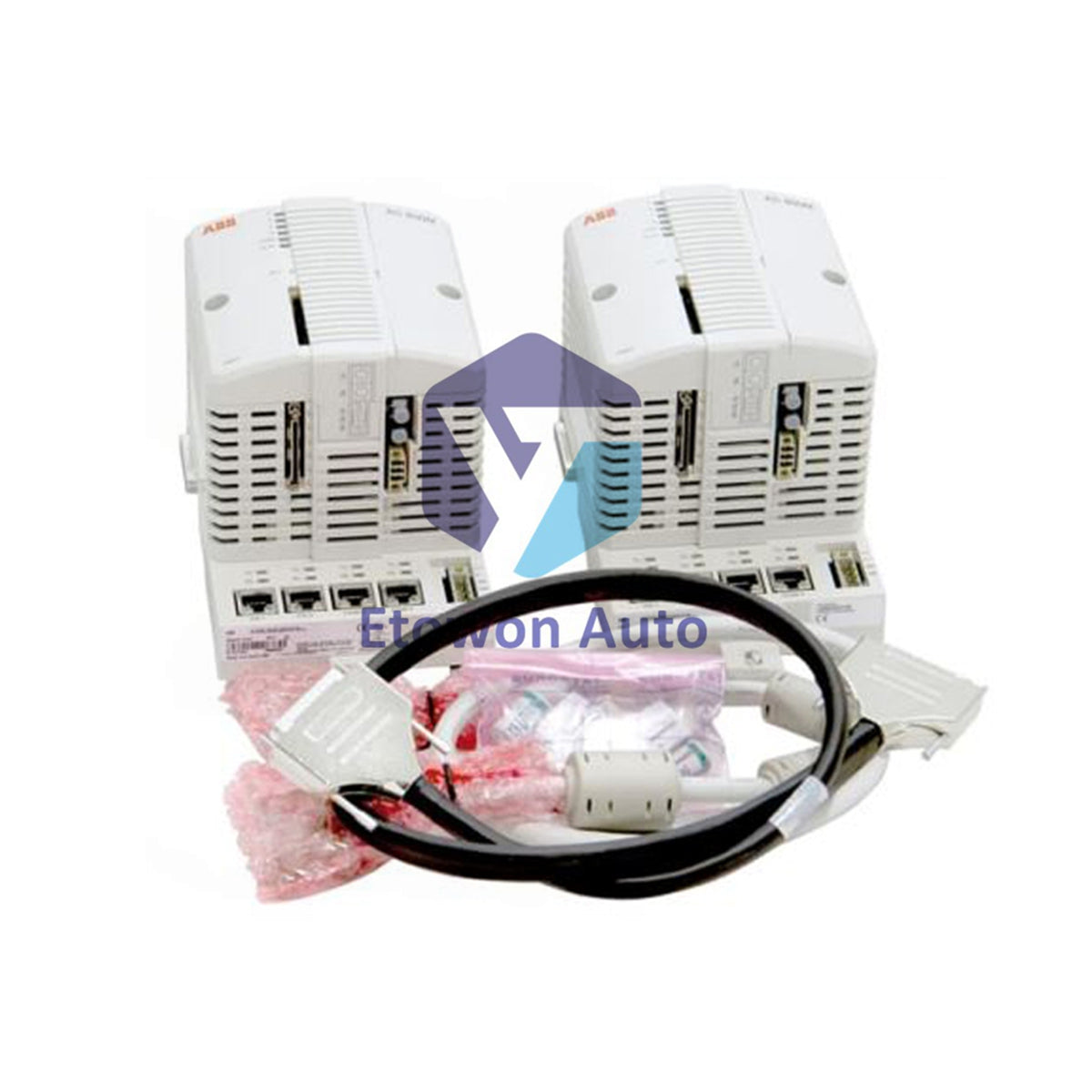

ABB PM863K01 AC 800M High Integrity Controller

In stock (29 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: 3BSE088381R1

  • Product Type: Processor Unit

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB PM863K01 AC 800M High Integrity Controller

The ABB PM863K01 (3BSE088381R1) is a high-integrity controller for AC 800M systems. This controller supports SIL 3 safety certification. It provides reliable process control with redundant communication capabilities.

Product Overview

  • Brand: ABB
  • Model: PM863K01 (PM863)
  • Type: AC 800M High Integrity Controller
  • Certification: SIL 2/SIL 3 TÜV certified
  • System: AC 800M control platform

Core Specifications

  • Processor: MPC866, 96 MHz clock
  • Memory: 32 MB RAM total capacity
  • Application RAM: 22.184 MB available
  • Flash: 18 MB firmware storage
  • Performance: 0.17 ms for 1000 boolean ops

High Integrity Features

  • SIL Level: Up to SIL 3 with SM812
  • Certification: TÜV certified SIL 2/SIL 3
  • Safety: IEC 61508 compliant
  • Integration: Safety and process control
  • Modules: Requires SM812 module

Communication Interfaces

  • Ethernet: 2× RJ45 ports, 10 Mbit/s
  • Serial: 2× RS-232C ports (COM3, COM4)
  • Protocol: MMS and IAC protocols
  • Network: 100 Mbit/s recommended
  • Redundancy: CPU redundancy supported

I/O & System Capacity

  • I/O Modules: 96 max (single), 84 (redundant)
  • CEX Bus: 12 communication modules
  • ModuleBus: 0-100 ms scan rate
  • Applications: 32 per controller
  • Tasks: 32 tasks maximum

Power & Environmental

  • Power Supply: 24V DC (19.2-30V DC)
  • Consumption: 210 mA typical, 360 mA max
  • Temperature: +5 to +55°C operating
  • Storage: -40 to +70°C range
  • Protection: IP20, ISA 71.04 G3

Certifications

  • Safety: SIL 2/SIL 3 TÜV certified
  • Hazardous: Class 1 Zone 2, AEx nA IIC T4
  • Marine: ABS, BV, DNV-GL approved
  • Standards: EN 61000-6-2/6-4, ISA Secure

Physical Specifications

  • Dimensions: 119×186×135 mm
  • Weight: 1200 g (2.6 lbs)
  • Cooling: <55 dB(A) noise
  • Vibration: 0.5g acceleration

FAQ

  • Q: What is PM863K01?
    A: ABB AC 800M high integrity controller.
  • Q: SIL certification level?
    A: Up to SIL 3 with SM812 module.
  • Q: I/O capacity?
    A: 96 I/O modules maximum.
