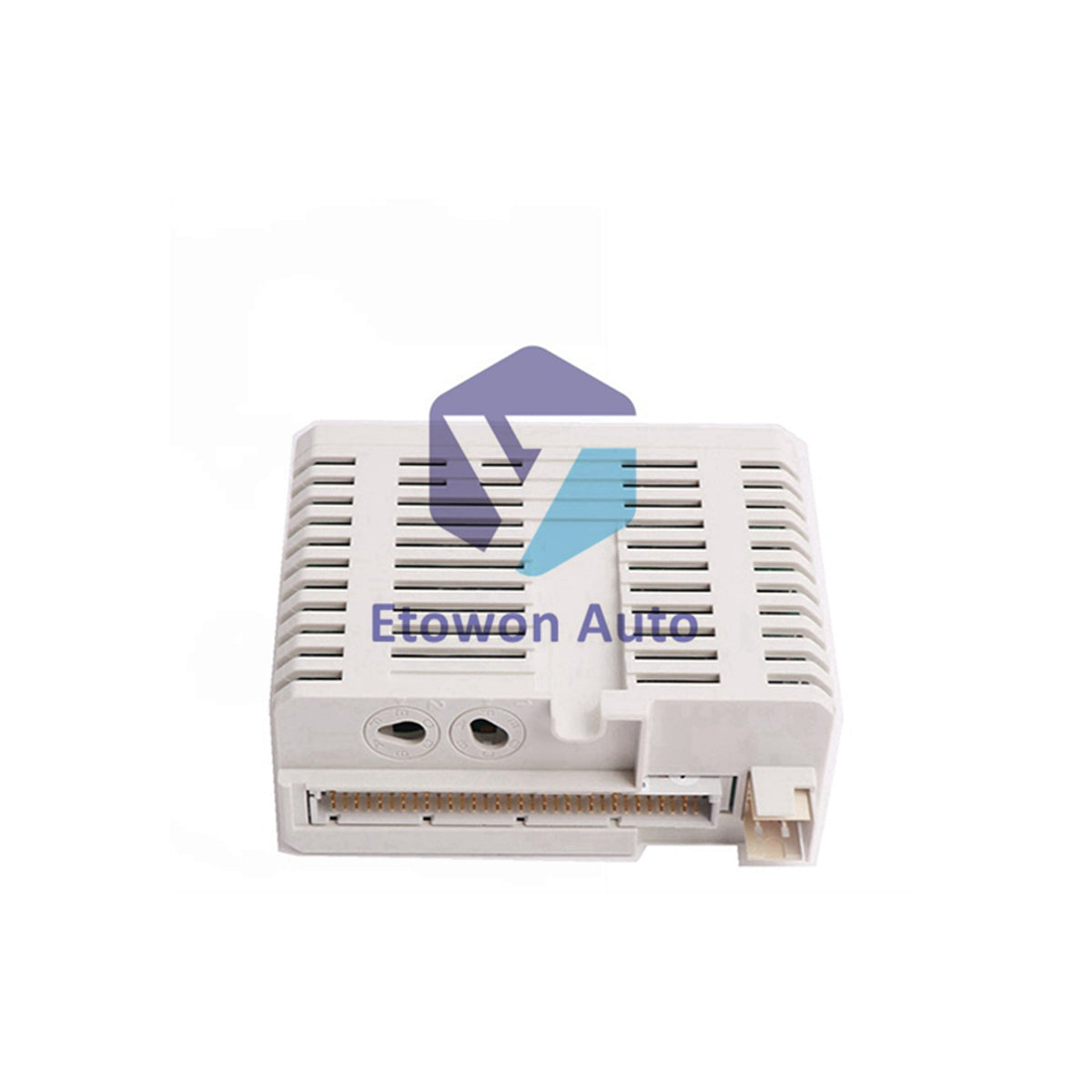

  • AI880A -1
  • AI880A -2
1 3

3BSE039293R1

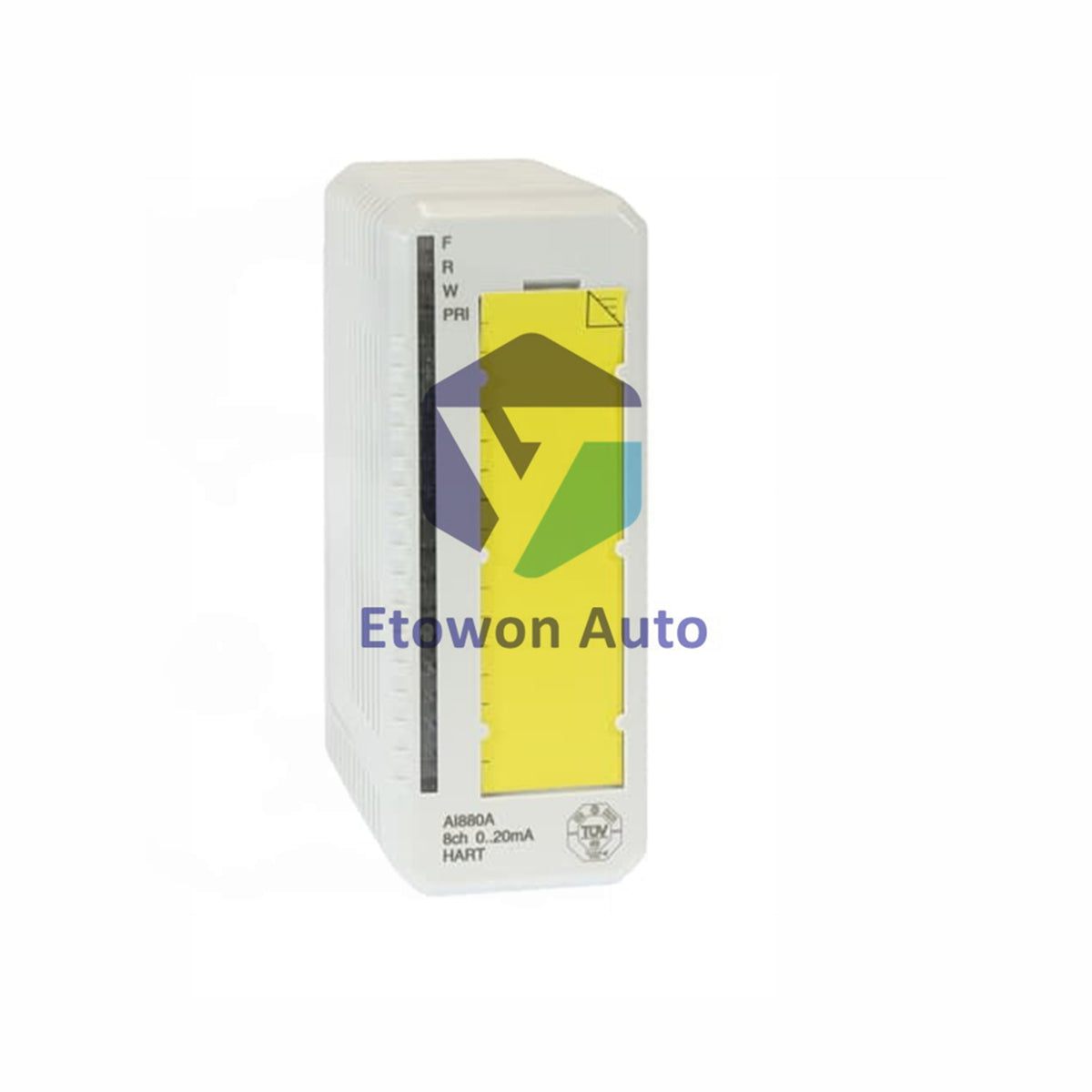

ABB AI880A Analog Input Module | 8-Channel HART

In stock (45 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: 3BSE039293R1

  • Product Type: Analog Input Module

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 250g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB AI880A Analog Input Module

High-performance 8-channel current input module with HART protocol support for industrial process control applications.

Product Identification

  • Brand: ABB
  • Model: AI880A
  • Product ID: 3BSE039293R1
  • Product Type: Analog Input Module
  • System Series: S800 I/O

Electrical Specifications

  • Input Channels: 8 current inputs
  • Input Range: 0-20mA, 4-20mA
  • Signal Type: Unipolar single-ended
  • Resolution: 12-bit digital conversion
  • Input Impedance: 250Ω with TY801 shunt stick
  • Maximum Input Voltage: 11V DC (non-destructive)
  • Accuracy: Maximum 0.1% error

Power Specifications

  • Power Dissipation: 2.4W
  • Current Consumption (+5V Modulebus): 45mA
  • Current Consumption (+24V Modulebus): 50mA maximum
  • Current Consumption (External +24V): 4mA + transmitter current, 260mA maximum
  • Rated Insulation Voltage: 50V
  • Dielectric Test Voltage: 500V AC

Performance Features

  • Update Cycle Time: 10ms fast response
  • Input Filter: 190ms rise time (0-90%)
  • Noise Rejection: >40dB NMRR (50/60 Hz)
  • Field Cable Length: Up to 600 meters
  • HART protocol communication support
  • Built-in current limiting
  • Groupwise isolation from ground

Physical Specifications

  • Dimensions: 119mm × 45mm × 102mm (H×W×D)
  • Weight: 0.25kg (0.55lb)
  • Mounting Type: DIN Rail mountable
  • Protection Rating: IP20 for indoor use
  • Connection Type: Screw terminals

Environmental Specifications

  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 5% to 95% non-condensing
  • Altitude Rating: Up to 2000 meters
  • Vibration Resistance: 2.5g (10-150Hz)

Installation Requirements

  • 35mm standard DIN rail mounting
  • Proper grounding connection required
  • Adequate ventilation space needed
  • Wire size: 0.5-2.5mm² recommended
  • Terminal torque: 0.5-0.6Nm
  • Shielded cables for noise immunity

Warranty & Support

  • 12-Month Manufacturer Warranty
  • Technical support available
  • Online documentation access
  • Global service network
  • Application engineering support

Frequently Asked Questions

  • What input signals does this module support?
    0-20mA and 4-20mA current input signals.
  • Does it support HART communication?
    Yes, HART protocol is fully supported.
  • What is the warranty period?
    12-month manufacturer warranty included.
