3BSE013230R1

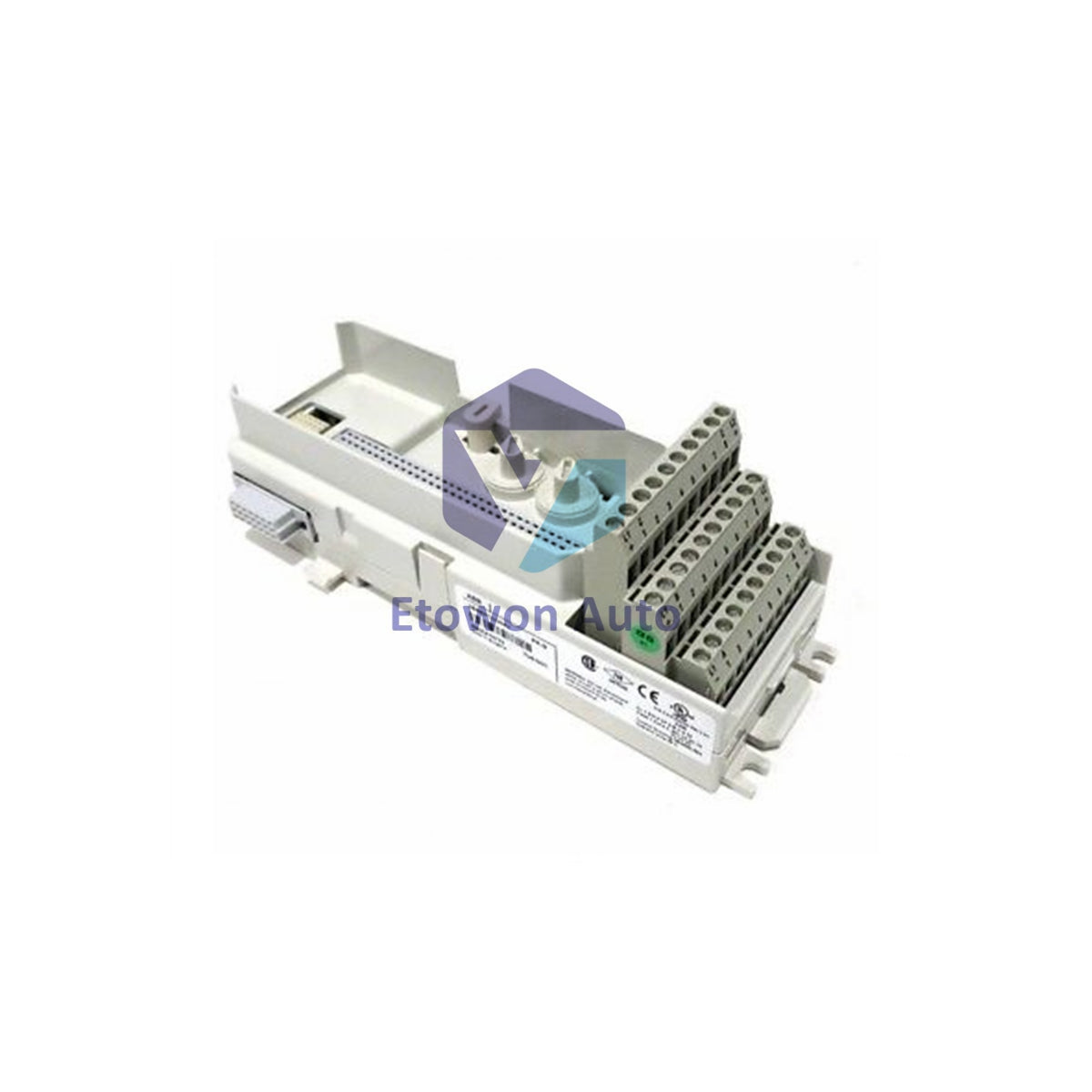

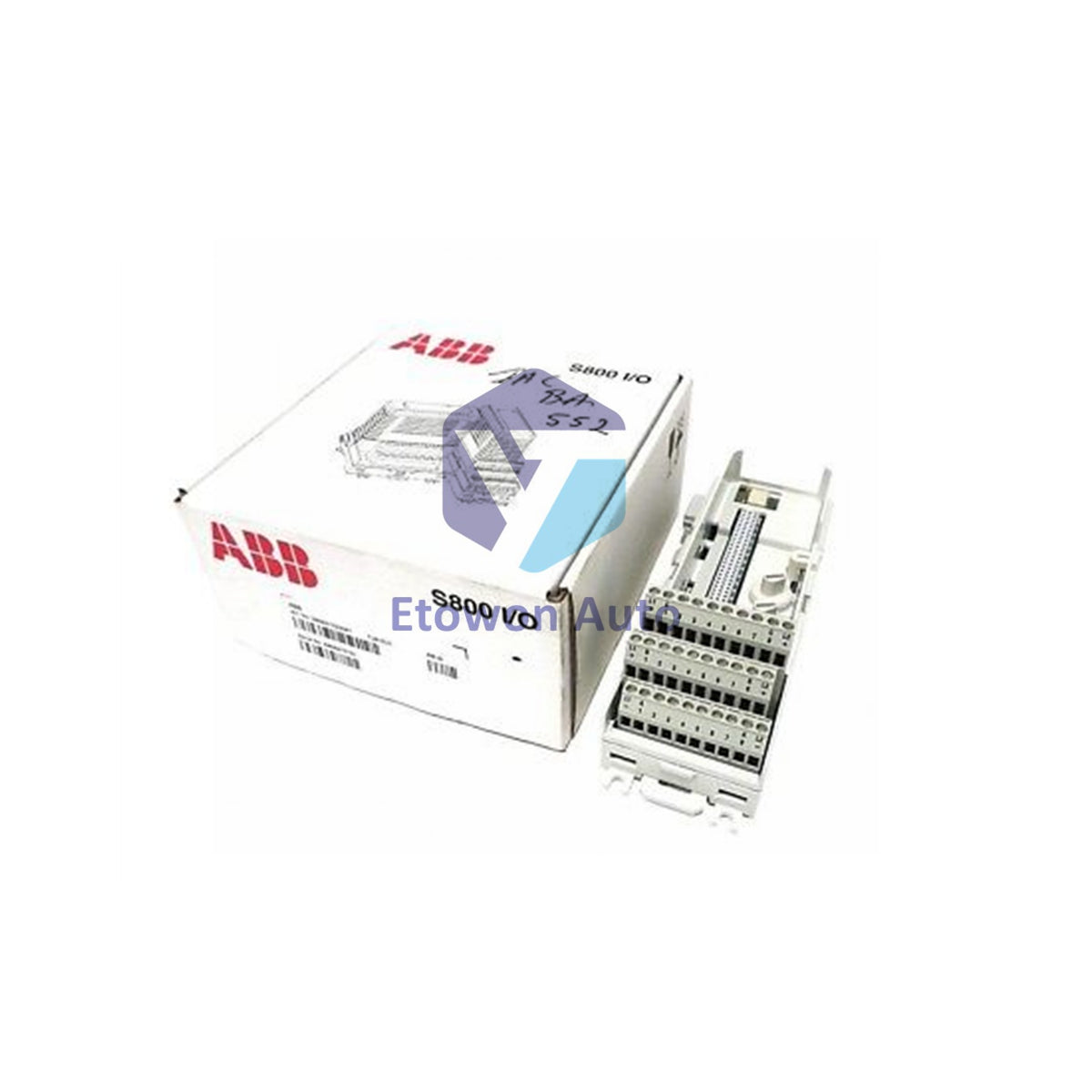

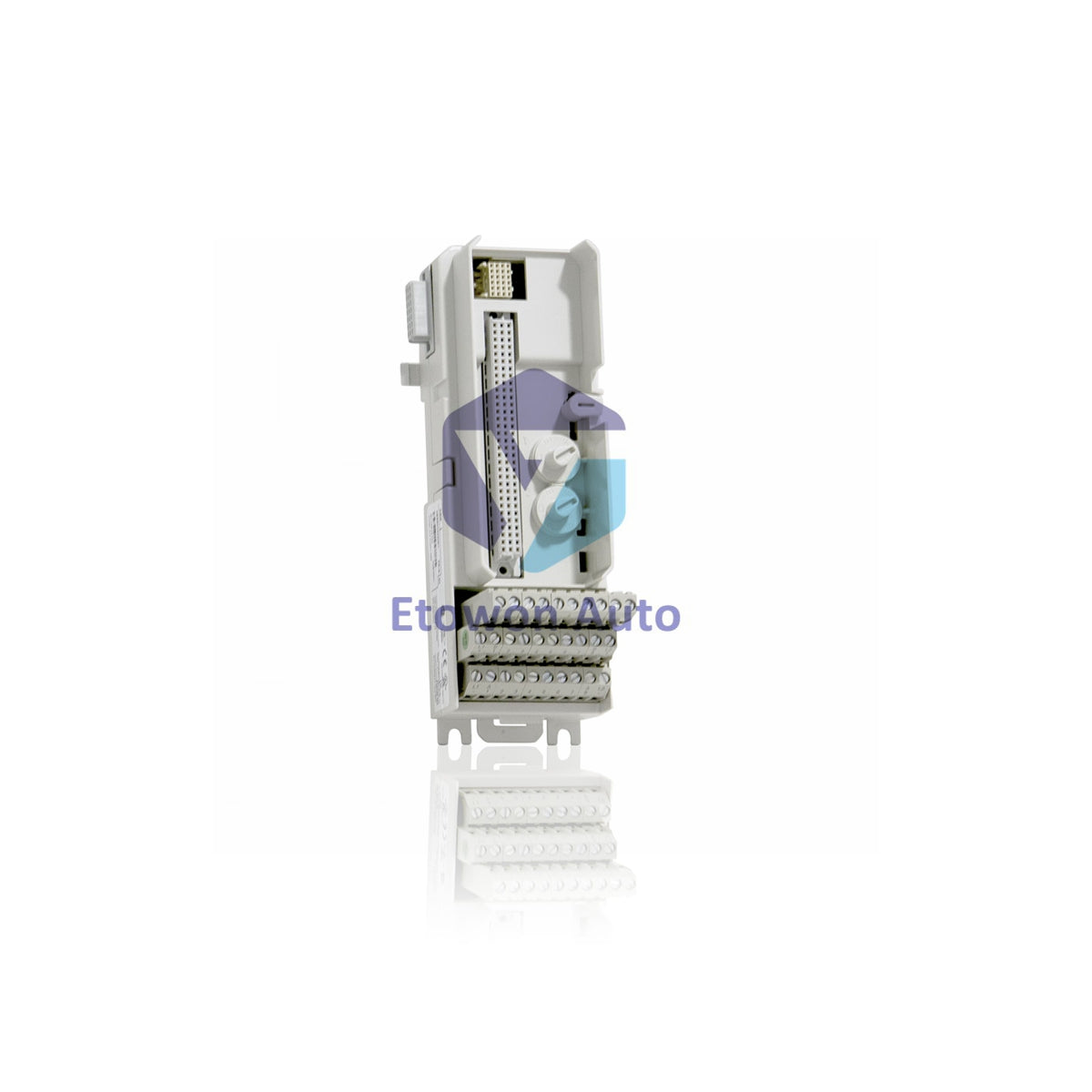

3BSE013230R1 Compact Module Termination Unit | ABB

In stock (100 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: 3BSE013230R1

  • Product Type: ABB

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 170g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB TU810/TU810V1 Compact Module Termination Unit Overview

The TU810/TU810V1 serves as a 16-channel compact module termination unit for ABB's S800 I/O system. This passive MTU provides field wiring connections while distributing ModuleBus signals to I/O modules. The innovative mechanical keying system prevents incorrect module insertion with 36 possible configurations.

Technical Specifications

  • Article Number: 3BSE013230R1 / TU810V1
  • Type: Compact Module Termination Unit
  • Connection Method: Terminal block
  • Channel Capacity: 16 channels
  • Rated Voltage: 50 V DC
  • Current Rating: 2A per channel, 5A process current
  • Mounting Options: Bidirectional DIN rail mounting
  • Wire Compatibility: 0.2-4.0 mm² solid, 0.2-2.5 mm² stranded
  • Protection Rating: IP20

Compatible I/O Modules

  • Analog Input: AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845
  • Analog Output: AO810, AO810V2, AO815, AO820, AO845, AO845A
  • Digital Input: DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885
  • Digital Output: DO810, DO814, DO815, DO840, DO880, DP820, DP840

Key Functional Features

  • ModuleBus distribution to I/O modules and downstream MTU units
  • Automatic address generation through position signal shifting
  • Dual mechanical keying with 36 configuration combinations
  • DIN rail mounting with secure latching mechanism
  • Bidirectional mounting capability for flexible installation

Environmental Specifications

  • Operating Temperature: 0°C to +55°C (horizontal), 0°C to +40°C (vertical)
  • Safety Certifications: CE, UL, cULus, ATEX Zone 2
  • Marine Approvals: ABS, BV, DNV-GL, LR
  • Environmental Compliance: RoHS, WEEE
  • Corrosion Protection: ISA-S71.04 G3 level

Physical Dimensions

  • Width: 64 mm including connector
  • Depth: 64 mm including terminals
  • Height: 170 mm including latch
  • Weight: 0.17 kg

Installation Benefits

  • Compact one-wire connection system for space efficiency
  • Process power distribution through multiple terminal blocks
  • Support for both horizontal and vertical mounting orientations
  • Wide wire range acceptance for installation flexibility
  • Integrated grounding through DIN rail latching device

Frequently Asked Questions

  • What is the purpose of mechanical keying? Prevents insertion of incompatible I/O modules into the MTU
  • How many I/O modules does this support? Compatible with 28 different S800 I/O module types
  • What mounting orientations are possible? Both horizontal and vertical DIN rail mounting
