2097-V33PR6-LM

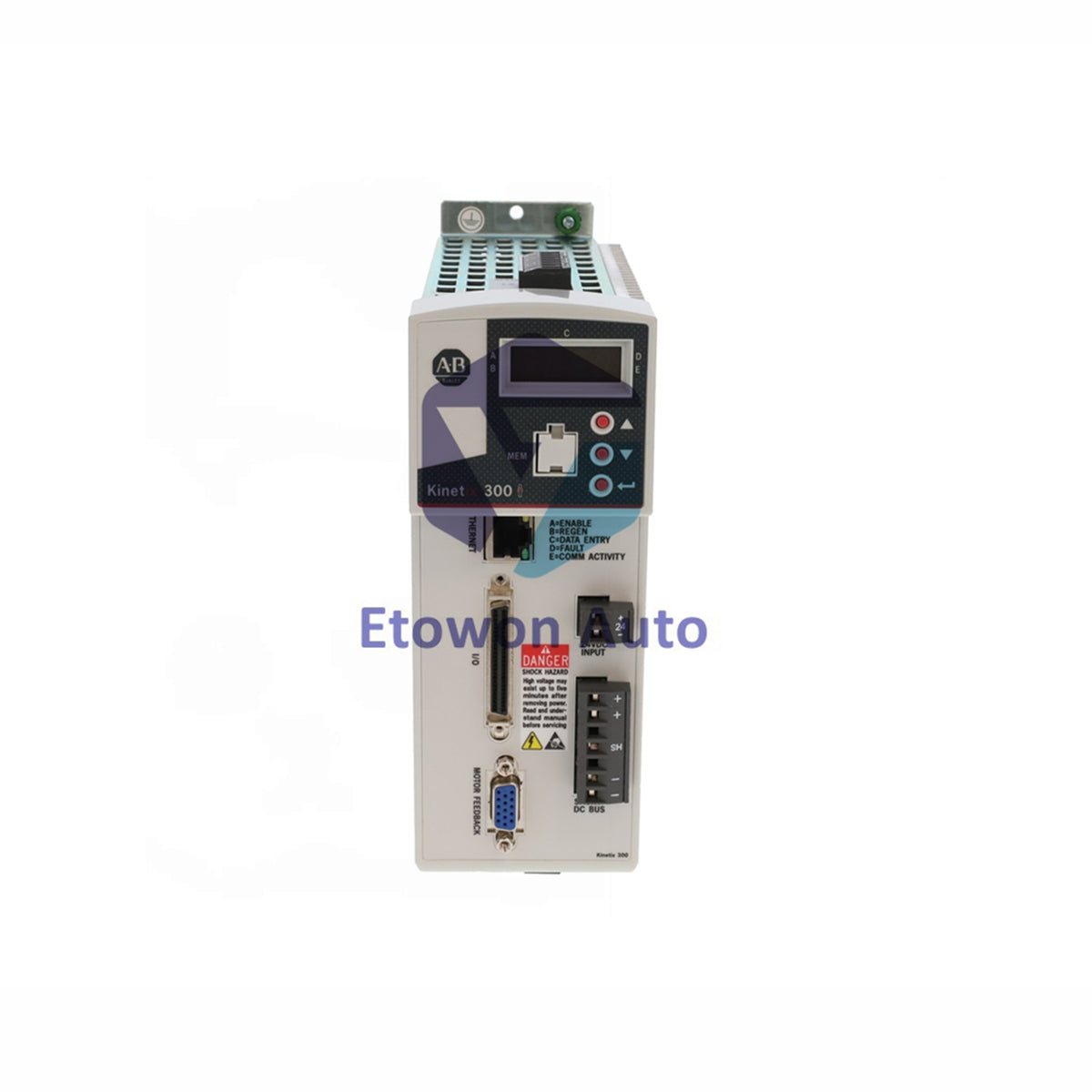

2097-V33PR6-LM Servo Drive | Allen-Bradley Kinetix 350 12A

In stock (31 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 2097-V33PR6-LM

  • Product Type: Servo Drives

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1900g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley Kinetix 350 Single Axis Ethernet/IP Servo Drive 2097-V33PR6-LM

The Allen-Bradley 2097-V33PR6-LM is a high-power single-axis servo drive from the Kinetix 350 series. It delivers robust 3.0 kW motion control via EtherNet/IP for demanding applications. This drive supports wide-range AC input and integrates critical safety and protection features like Safe Torque-Off.

Core Specifications

  • Brand & Model: Allen-Bradley 2097-V33PR6-LM
  • Series: Kinetix 350 Single Axis Ethernet/IP Drive
  • Input Voltage: 80-132V AC (1-Phase), 80-264V AC (1/3-Phase)
  • Input Frequency: 48–62 Hz
  • Continuous Output: 12.0 A RMS / 17.0 A (0-Pk)
  • Peak Output: 36.0 A RMS / 50.9 A (0-Pk)
  • Output Power: 3.0 kW Continuous
  • Control Power Backup: 20–26V DC
  • Safety: Safe Torque-Off (STO), Overvoltage & Short-Circuit Protection

Electrical & Physical Details

  • Nominal AC Input Current: 24.0 A RMS (120/240V 1-Phase), 13.9 A RMS (240V 3-Phase)
  • Inrush Current (Peak): 5.65 A (120/240V), 11.3 A (240V)
  • Dimensions: 9.37" x 7.29" x 3.06" (238 x 185.1 x 77.7 mm approx.)
  • Weight: 4.2 lbs (1.9 kg)
  • Integrated EMC Filter: No

Installation Guidelines

  • Clearance: Minimum 3 mm (0.12") on sides, 25 mm (1") top/bottom for airflow.
  • Mounting: Install in a bonded, paint-free steel subpanel to minimize EMI.
  • Electrical Protection: Use appropriately rated branch circuit breakers/fuses per local codes.
  • Important: Do not remove connector pin covers during installation to prevent debris and shorts.
  • Warning: Do not use sine-wave rated disconnect devices on the drive's PWM output.

FAQ

  • What is the main benefit of the Safe Torque-Off feature?
    It safely disables motor torque, allowing personnel to perform maintenance without fully disconnecting power, enhancing safety and compliance.
  • Does this drive require an external EMC filter?
    Yes, since it lacks an integrated AC line filter, an external filter is often necessary to meet electromagnetic compatibility (EMC) standards.
  • Can it be connected directly to a PanelView HMI?
    Yes, it is designed to integrate seamlessly with Allen-Bradley PanelView terminals and other control system components over EtherNet/IP.
