SKU:IC693MDL753

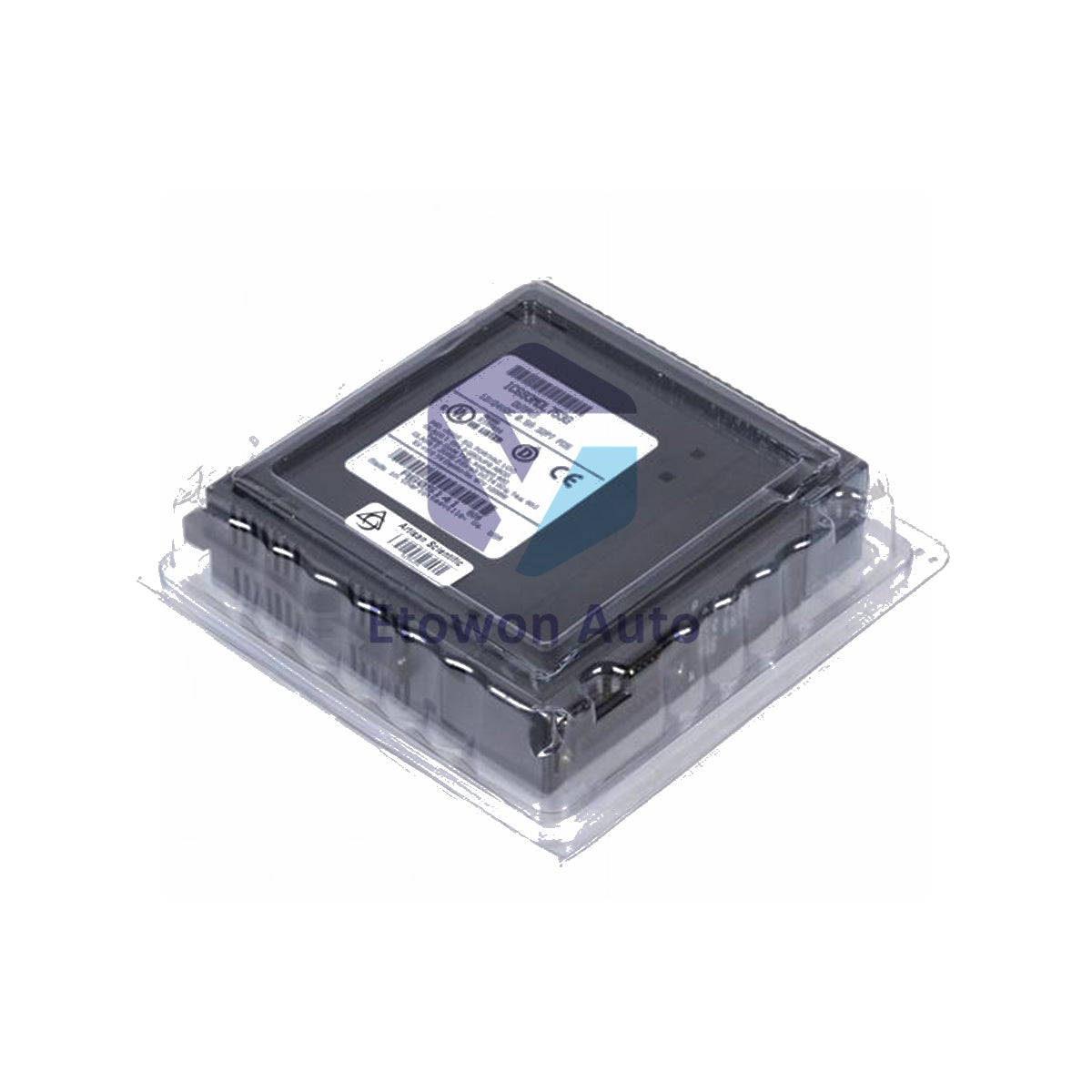

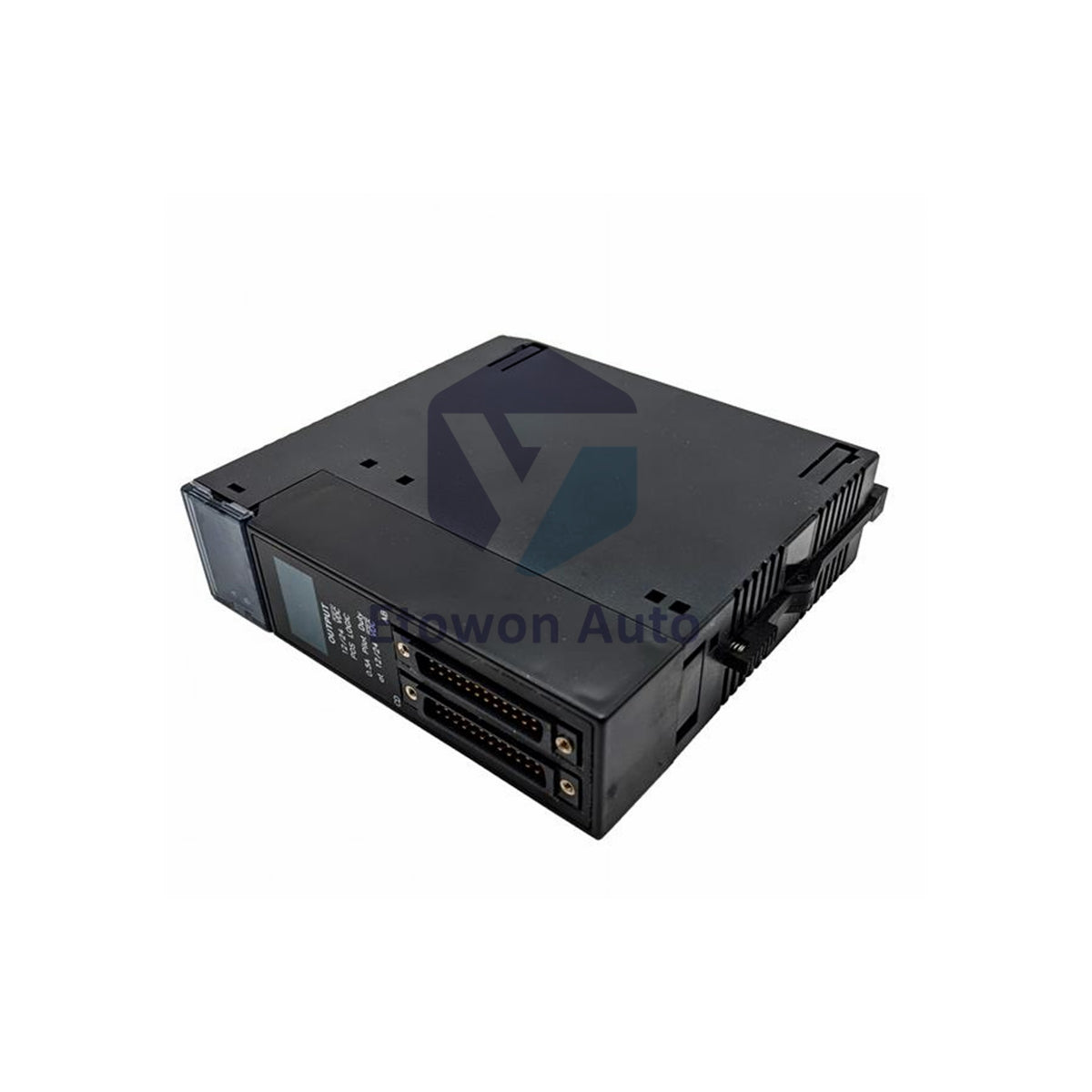

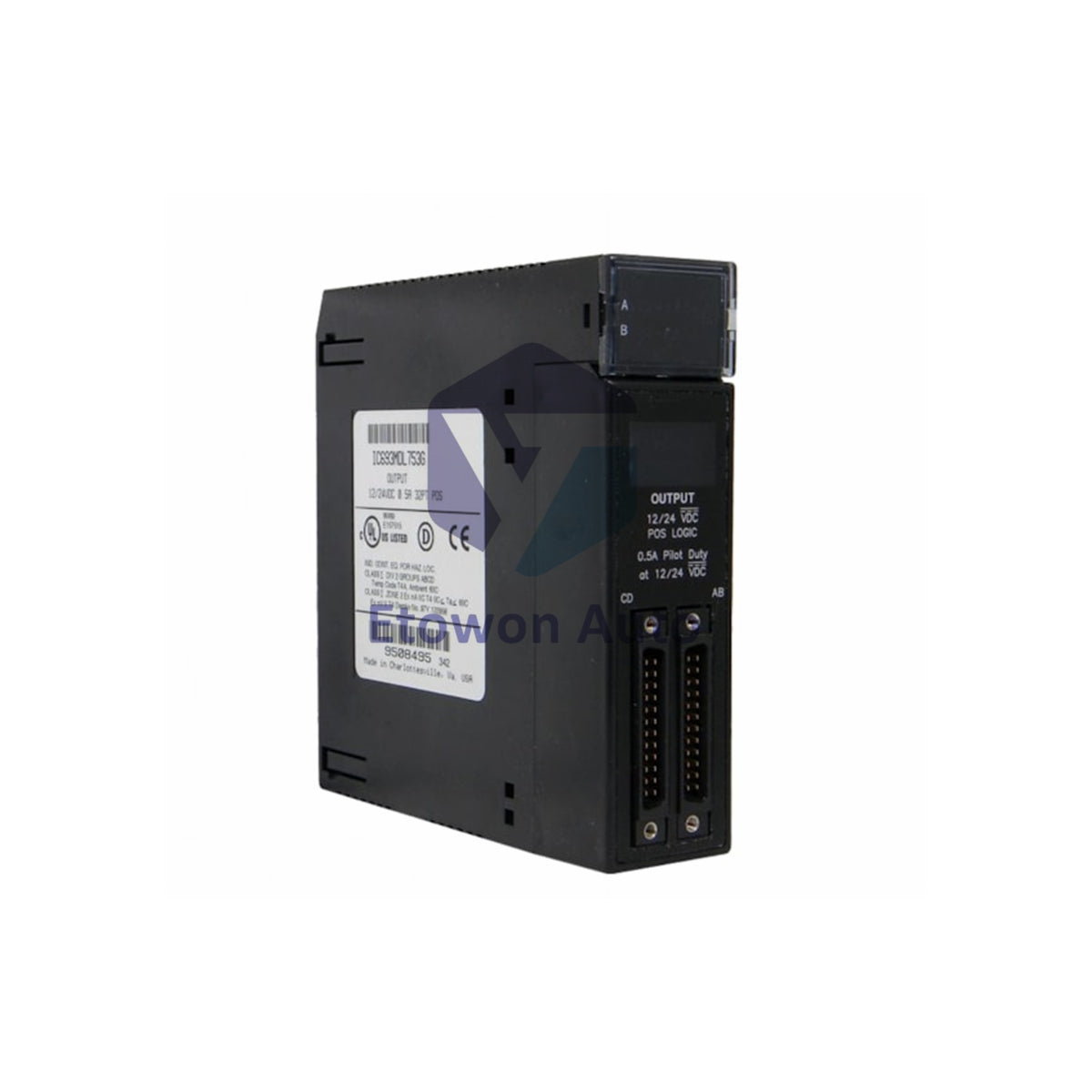

GE Fanuc IC693MDL753 32 Point Output Module 0.5A 12-24VDC
Manufacturer: General Electric
Product No.: IC693MDL753
Product Type: Discrete Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months
Kongsi
- Penghantaran Pantas
- Sokongan 24/7
- Jaminan Kualiti
Penerangan
GE Fanuc IC693MDL753 32 Point Digital Output Module
Product Overview
GE Fanuc IC693MDL753 is a 32 point positive logic discrete output module for Series 90-30. Output voltage range 10.2 to 28.8 V DC (12-24 V DC nominal). 0.5 A per point, 4 A per group. 4 groups with 8 outputs each. 1500 V isolation between field and logic. Module current draw 260 mA at 5 V DC. Weight 0.45 kg.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE Fanuc |
| Part Number | IC693MDL753 |
| Series | Series 90-30 |
| Output Points | 32 |
| Groups | 4 groups with 8 outputs each |
| Output Voltage Range | 10.2 to 28.8 V DC (12-24 V DC nominal) |
| Output Current per Point | 0.5 A |
| Output Current per Group | 4 A maximum |
| Output Current per Group Common Pin | 3 A maximum |
| Inrush Current | 5.4 A for 10 ms |
| Output Voltage Drop | 0.3 V maximum |
| Off-state Leakage Current | 1 mA maximum |
| On Response Time | 0.5 ms maximum |
| Off Response Time | 0.5 ms maximum |
| Module Current Draw | 260 mA at 5 V DC |
| Isolation (Field to Logic) | 1500 V |
| Isolation Between Groups | 250 V |
| Connector Type | 2 male 24 pin connectors |
| Recommended Cable Assembly | IC693CBL315 |
| Weight | 0.45 kg |
Output Current per Group (All 8 Outputs ON)
| Voltage | Current Consumption |
|---|---|
| 24 V DC | 16.5 mA per group |
| 12 V DC | 9.6 mA per group |
Key Features
- 32 positive logic discrete output channels
- 4 groups with 8 outputs each
- 0.5 A per point, 4 A per group
- 1500 V isolation field to logic, 250 V between groups
- 0.5 ms on and off response time
- Opto-coupler isolation
- Single slot module
- Compatible as local or distributed I/O
- Outputs forced OFF when CPU stops
- Recommended cable assembly IC693CBL315
FAQs
Q1: What is the output current rating and response time?
A1: 0.5 A per point, 4 A per group. On and off response time 0.5 ms maximum.
Q2: What is the isolation and current draw?
A2: 1500 V field to logic, 250 V between groups. Module draws 260 mA at 5 V DC.
Q3: What is the output voltage range and inrush current?
A3: 10.2 to 28.8 V DC (12-24 V DC nominal). Inrush current 5.4 A for 10 ms.
