330101-12-40-10-02-00

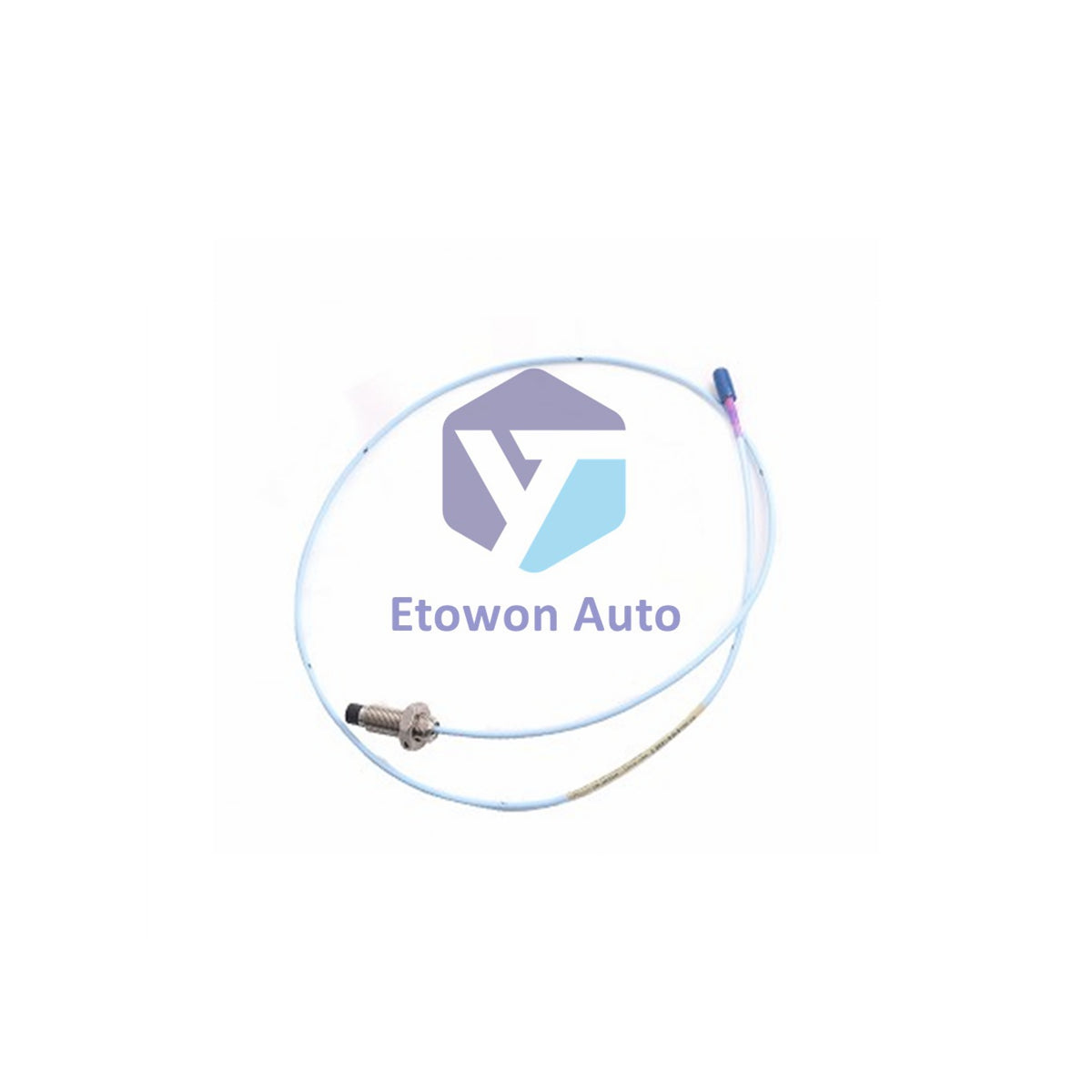

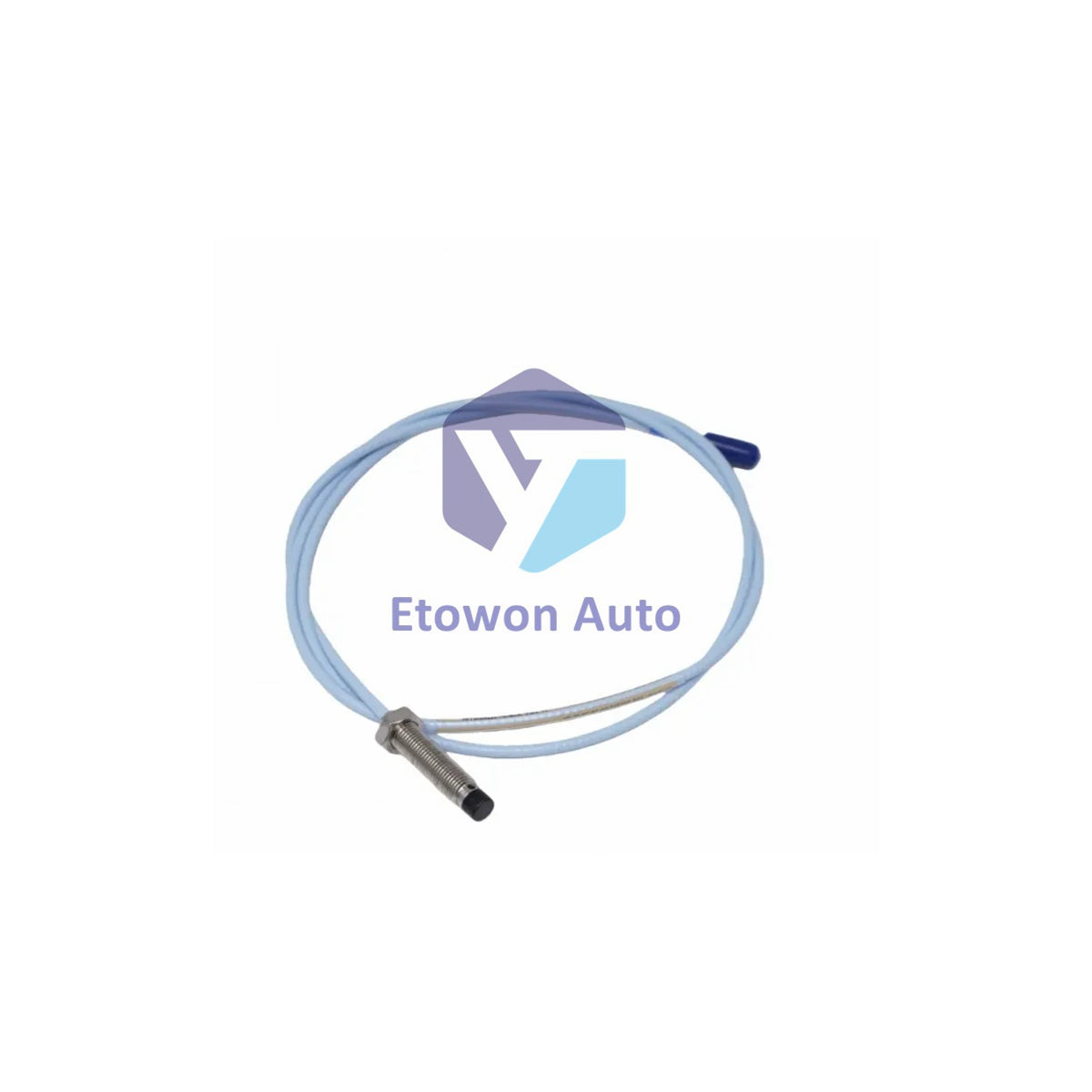

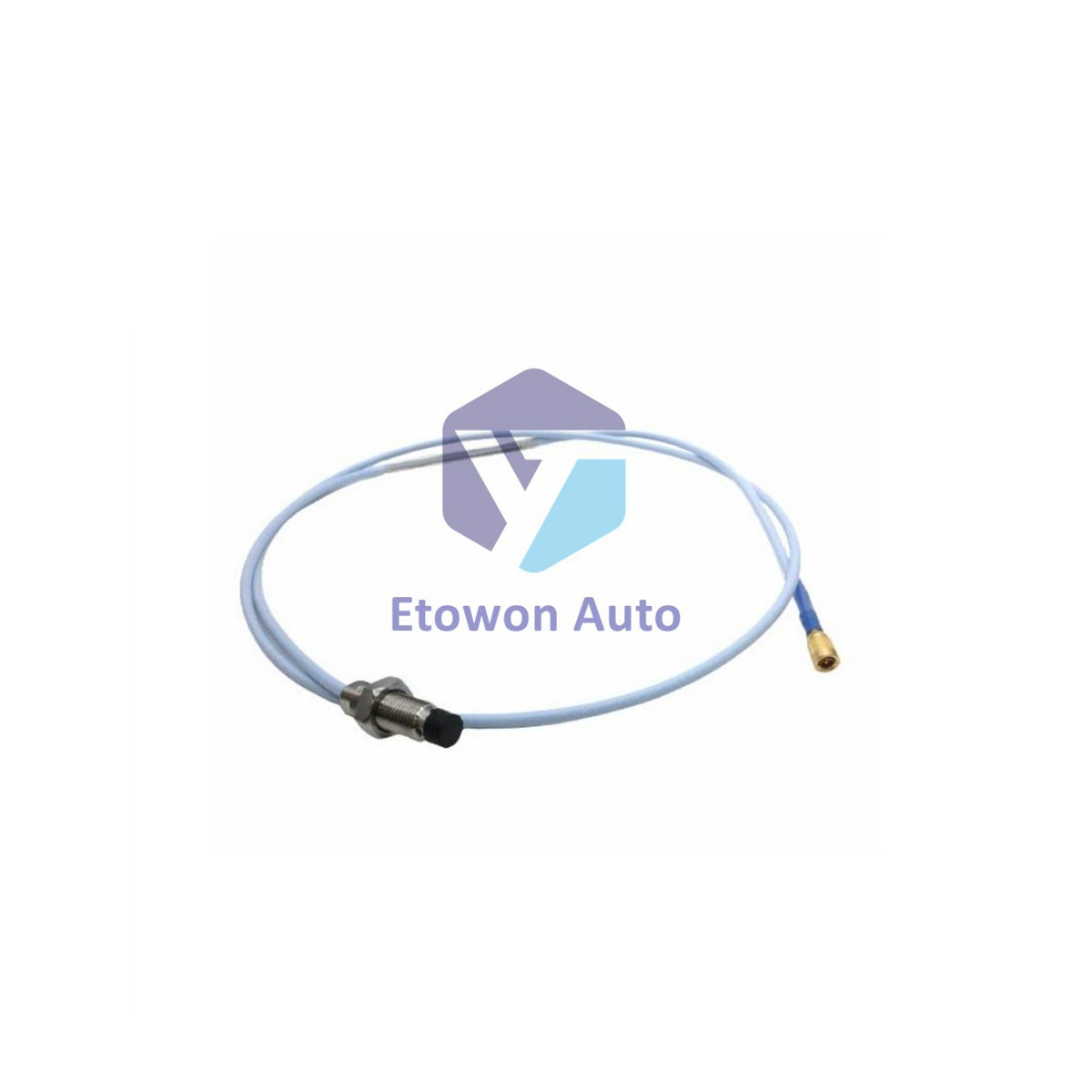

Bently Nevada 330101-12-40-10-02-00 3/8-24 UNF Probe

Hanya tinggal 9 unit sahaja

  • Manufacturer: Bently Nevada

  • Product No.: 330101-12-40-10-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

Polisi Pemulangan 30 Hari · Jaminan 12 Bulan
  • Penghantaran Pantas
  • Sokongan 24/7
  • Jaminan Kualiti

Penerangan

Bently Nevada 330101-12-40-10-02-00 3300 XL 8 mm Proximity Transducer Probe

The Bently Nevada 330101-12-40-10-02-00 is an 8 mm proximity transducer probe engineered for critical machinery vibration, axial position, and speed monitoring applications. Manufactured in the U.S.A., this unarmored probe features a 3/8-24 UNF thread, 1.2-inch unthreaded length, 4.0-inch overall case length, and a 1.0-meter (3.3 ft) standard coaxial cable with a miniature ClickLoc connector. Built with AISI 303/304 stainless steel and polyphenylene sulfide (PPS) plastic encapsulation, it incorporates patented TipLoc and CableLoc technologies for 330 N (75 lbf) pull strength. Featuring a cable mass density weight of 323 g/m (11.4 oz/ft) to resist mechanical vibration, it delivers precise non-contact displacement measurements across an 80 mil (2.0 mm) linear range.

Technical Specifications

Brand / Country of Origin Bently Nevada / Made in U.S.A. (COO Certificate Available)
Complete Part Number 330101-12-40-10-02-00
Product Line & Thread Type 3300 XL 8 mm Transducer Probe | 3/8-24 UNF Thread (Without Armor)
Unthreaded & Case Length Unthreaded Length: 1.2 in [Option -12] | Overall Case Length: 4.0 in [Option -40]
Cable Length & Mass Density 1.0 meter (3.3 feet) [Option -10] | Cable Density Weight: 323 g/m (11.4 oz/ft)
Connector & Approval Option Miniature Coaxial ClickLoc Connector [Option -02] | Agency Approval: None [Option -00]
Construction Materials Case: AISI 303/304 Stainless Steel | Tip: Molded Polyphenylene Sulfide (PPS)
DC Resistance & Capacitance Probe DC Resistance: 7.59 ± 0.50 Ω | Cable Capacitance: 69.9 pF/m typical
Linear Range & Scale Factor 0.25 to 2.3 mm (10 to 90 mils) | Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±5%
Linearity Deviation (DSL) Less than ±0.025 mm (±1 mil) at 0°C to +45°C (+32°F to +113°F)
Operating Temperature Range Standard Probe: -52°C to +177°C (-62°F to +350°F) | Differential Pressure Seal: Viton® O-Ring
Mechanical Pull & Humidity Ratings Cable Pull Strength: 330 N (75 lbf) | Humidity Resistance: IEC 68-2-3 (<3% ASF variation / 56 days)

Quick Installation Guide

  • Mount the probe into the threaded machine port (3/8-24 UNF) and confirm the 1.2-inch unthreaded and 4.0-inch overall case dimensions match clearance requirements.
  • Set the radial vibration gap setting to approximately -9 Vdc (around 1.27 mm / 50 mils) using a Proximitor sensor output reading.
  • Securely lock the probe thread in place and route the 1.0 m coaxial cable using recommended 3-conductor shielded triad field wiring (up to 305 m max to monitor).
  • Connect to the matching 3300 XL extension cable via the ClickLoc miniature coaxial connector.

Technical FAQs

Q1: What is the option code configuration for 330101-12-40-10-02-00?
A1: 330101 (3/8-24 UNF thread probe, unarmored), -12 (1.2 in unthreaded length), -40 (4.0 in case length), -10 (1.0 m cable length), -02 (ClickLoc coaxial connector, standard cable), -00 (No agency approvals).

Q2: How do TipLoc and CableLoc technologies enhance mechanical strength?
A2: TipLoc provides a robust bond between the probe tip and casing, while CableLoc secures the cable to withstand up to 330 N (75 lbf) of pull force.

Q3: What is the recommended gap setting for radial vibration measurements?
A3: The recommended initial gap setting for radial vibration monitoring is -9 Vdc, which corresponds to approximately 1.27 mm (50 mils) from the shaft target.
