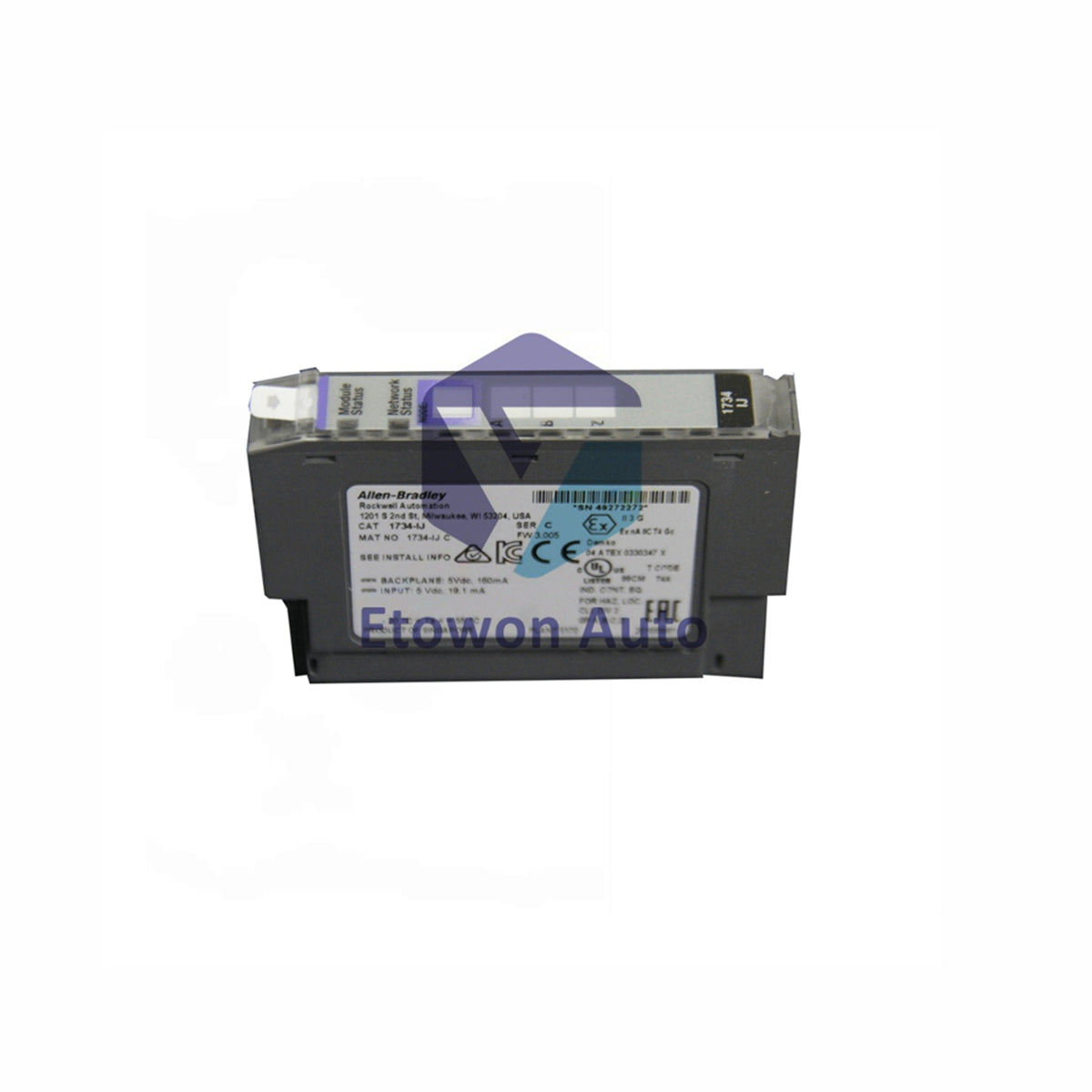

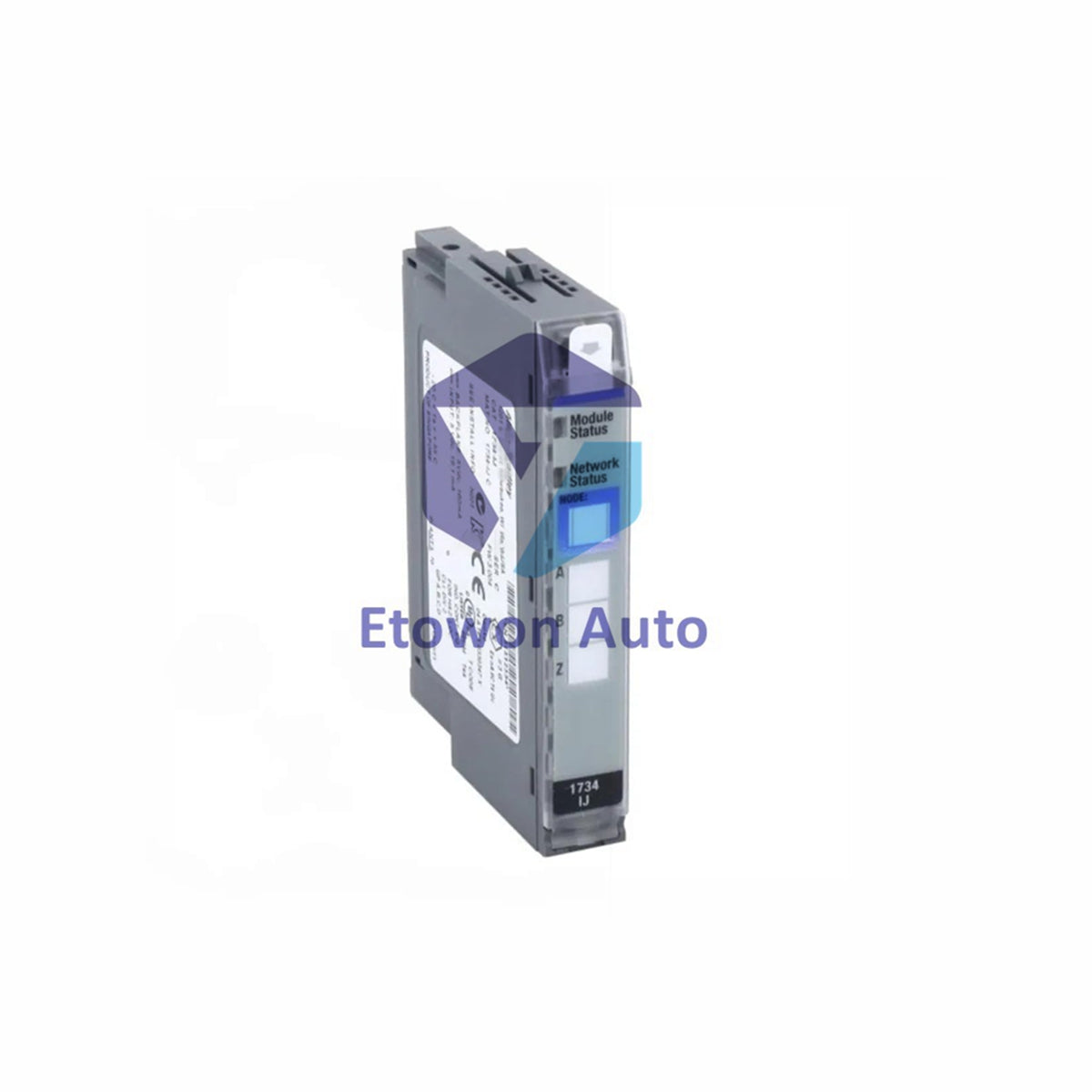

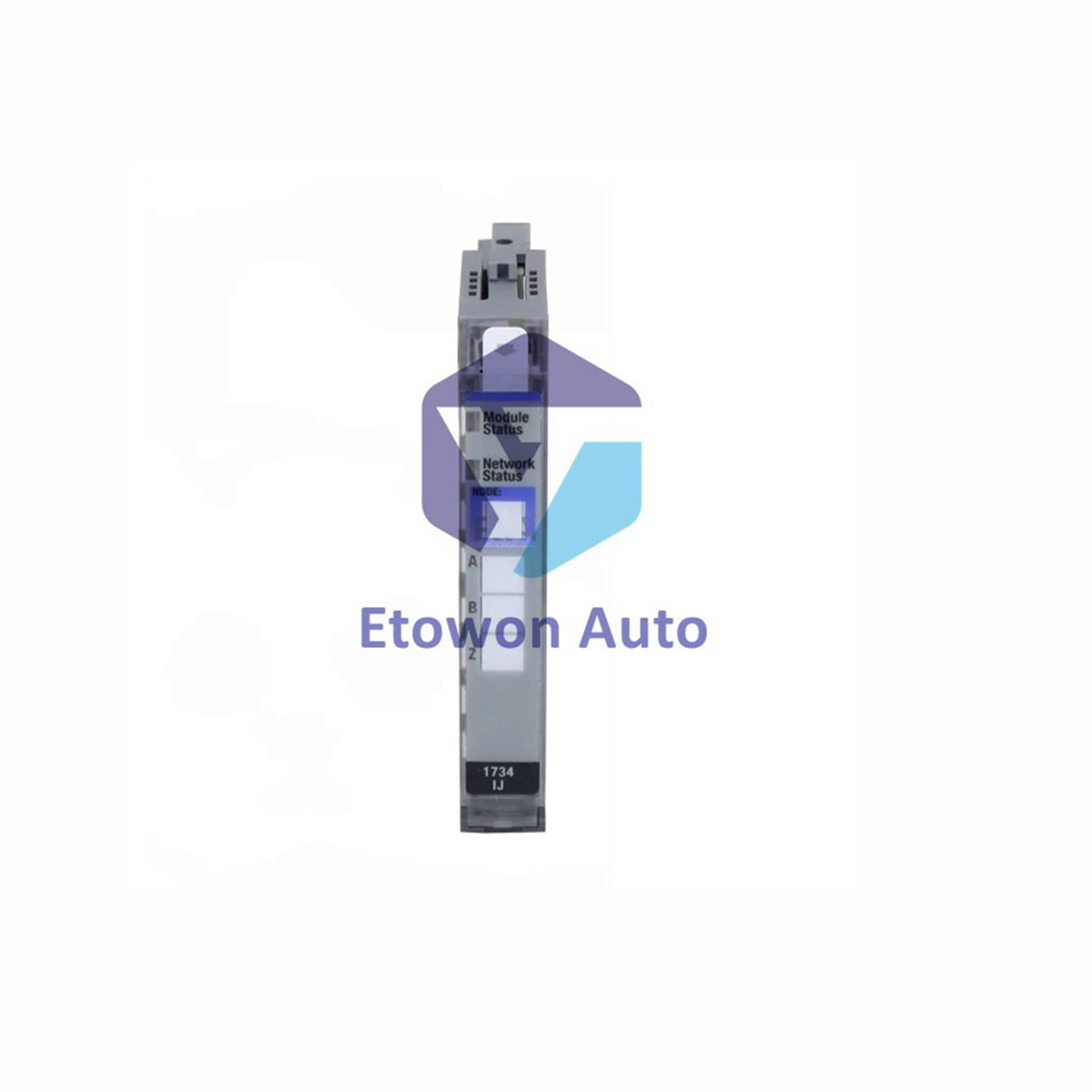

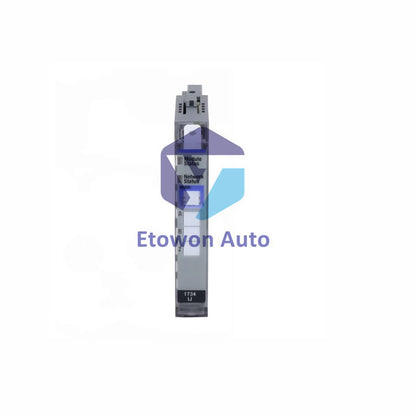

1 MHz Encoder Module Allen-Bradley POINT I/O 1734-IJ

Product Overview

The 1734-IJ is a high-speed incremental encoder module from Allen-Bradley's POINT I/O series. Engineered for precise motion and position feedback, this module features 1 counter channel, an input frequency up to 1 MHz, and a 5 V DC nominal voltage rating. Weighing just 0.08 lbs (approx. 36 g) with compact dimensions of 2.21 x 0.47 x 2.97 inches, it mounts easily on standard DIN rails or panels and pairs with 1734-TB, -TBS, -TB3, or -TB3S wiring bases.

Core Technical Advantages

• High-Frequency Input Capability: Supports selectable input frequencies up to 1 megahertz, 500 kHz, or 250 kHz for fast encoder tracking.
• Comprehensive Data Exchange: Produces 6 or 10 bytes of input data (scanner Rx) and consumes 1 byte of I/O data (scanner Tx) with a 24-bit binary frequency range up to 16,777,215.
• Unique Status Indicators: Features 5 diagnostic LEDs, including flashing yellow status indicators for A, B, and Z inputs when toggling on and off.
• Self-Powered POINTbus Operation: Draws a maximum POINTbus current of 160 mA without requiring any additional external DC power supply.

Technical Specifications

Industrial Solutions

• Conveyor & Material Handling: Tracks incremental encoder pulses for precise speed and distance positioning on automated lines.
• CNC & Machine Tool Feedbacks: Connects directly to rotary encoders to monitor spindle rotation and axis travel.
• Packaging Machinery: Delivers high-speed pulse counting for registration and web tension control applications.
• Distributed I/O Architecture: Integrates seamlessly into modular POINT I/O drops across complex automation cells.

Wiring & Installation

Terminal Base Preparation

Mount the appropriate 1734 wiring base (1734-TB, -TBS, -TB3, or -TB3S) onto a standard DIN rail or panel. Ensure the keyswitch is set to position 2 to match the 1734-IJ module mechanical keying.

Conductor Termination

Connect encoder signal lines (A return, B return, Z return) using solid or stranded copper wire sized between 22 and 14 AWG. No external DC power supply is required for module operation.

Module Insertion

Align the 1734-IJ module with the wired terminal base and push firmly until it locks securely into place, engaging the POINTbus backplane connectors.

Status LED Verification

Apply system power and verify that the module and network status indicators glow green. Confirm encoder operation by observing the flashing yellow status lights on inputs A, B, and Z.

Engineering Advantages

• Ultra-Compact Footprint: Space-saving 0.47-inch width minimizes panel estate usage in high-density I/O enclosures.
• Robust Shock & Vibration Rating: Built to withstand 30 g operating shock and 5 g vibration at 10 to 500 Hz in demanding industrial plants.
• Real-Time Pulse Visibility: Toggling yellow LED indicators provide instant visual verification of active encoder signals during troubleshooting.

Technical FAQs

Q1: What wiring bases are compatible with the 1734-IJ module?
A1: Compatible with 1734-TB, 1734-TBS, 1734-TB3, and 1734-TB3S wiring bases.

Q2: Does the 1734-IJ require an external power supply?
A2: No. It is powered directly via the POINTbus backplane (max current 160 mA).

Q3: What is the physical weight and maximum input frequency?
A3: The module weighs 0.08 lbs and supports input frequencies up to 1 MHz.
