GE Fanuc IC693PWR332 Series 90-30 12V DC Power Supply

Product Overview

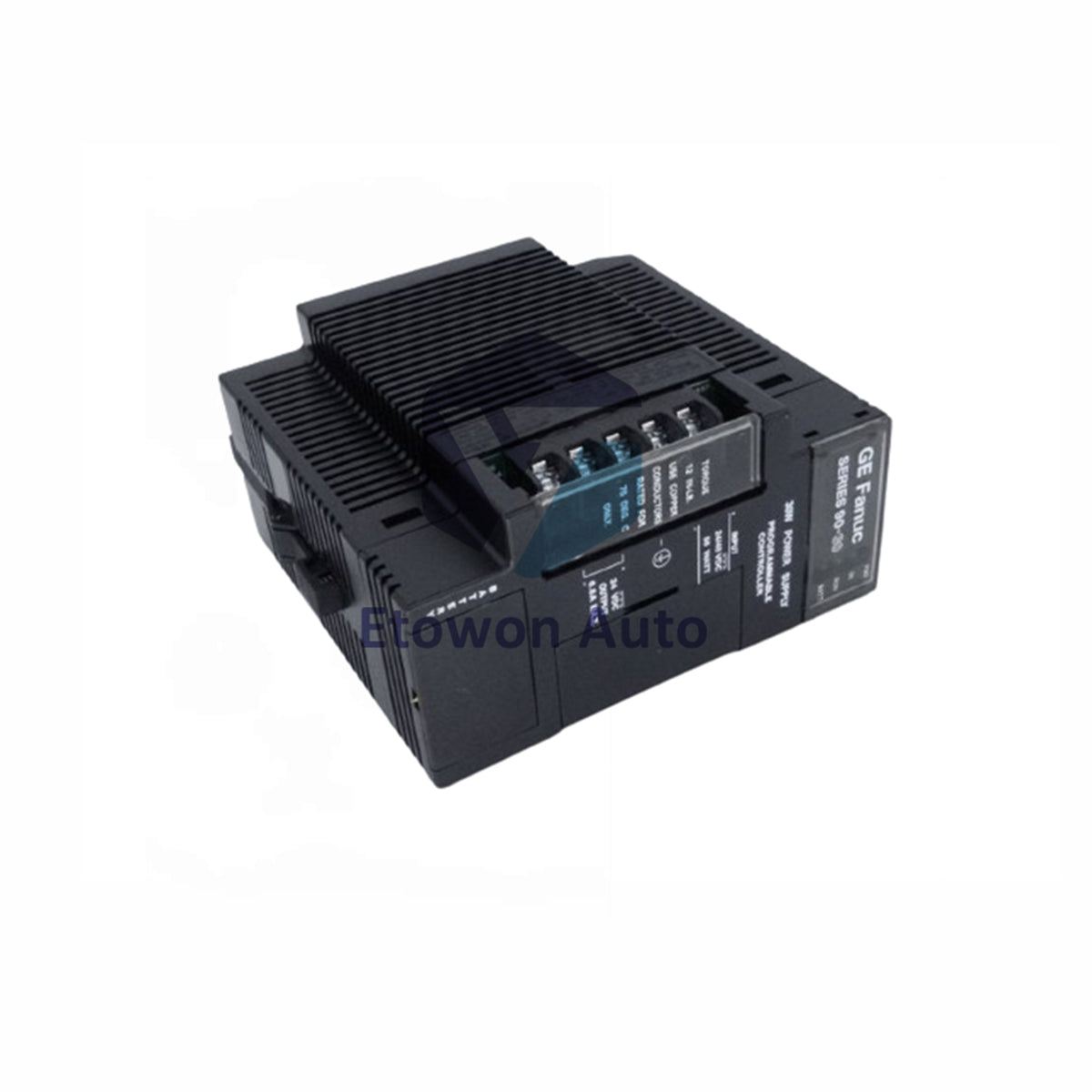

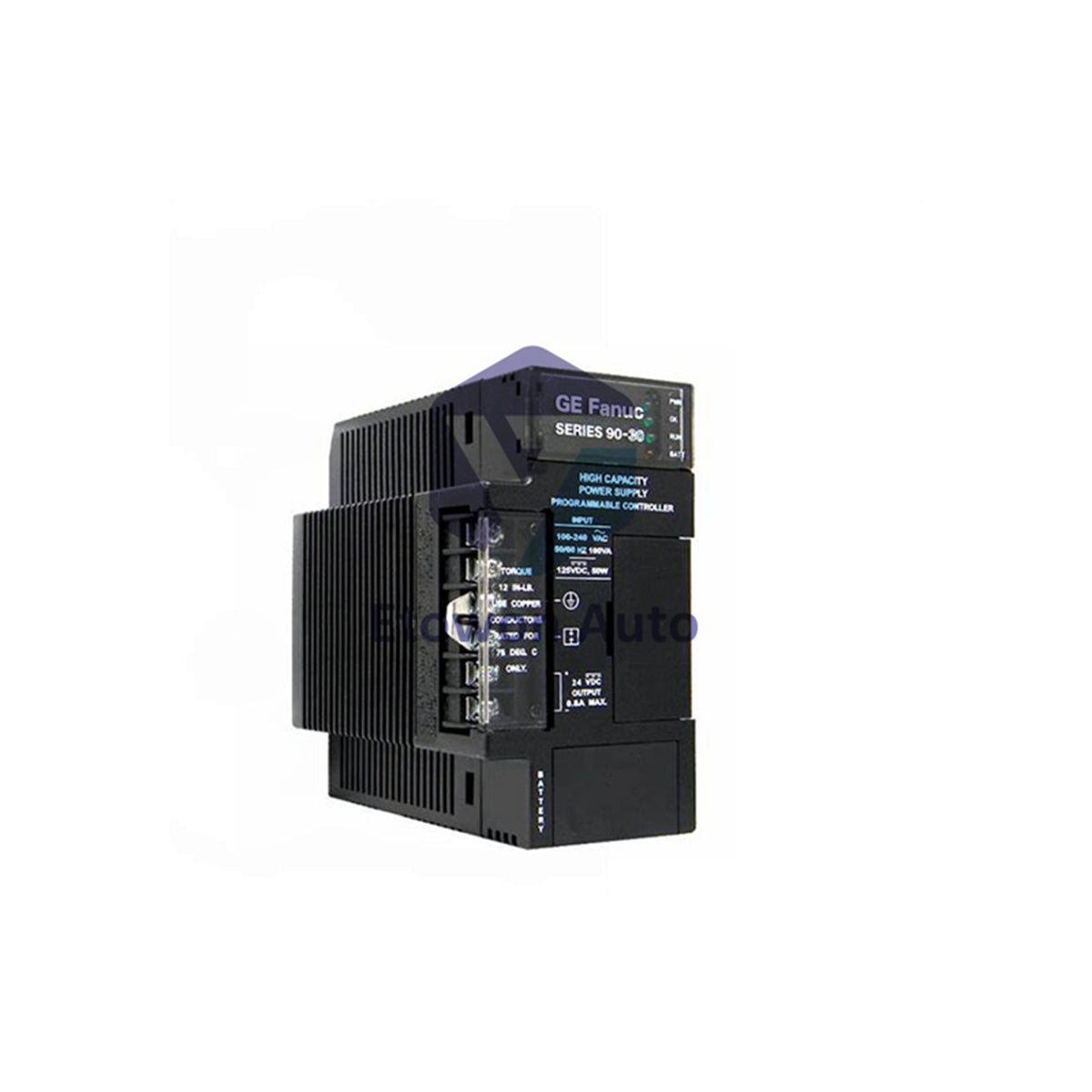

The IC693PWR332 is a specialized 12V DC input power supply module designed for the GE Fanuc Series 90-30 PLC system. This 30-watt capacity module is engineered to provide stable, isolated power to the backplane, making it ideal for mobile equipment, remote stations, or any industrial environment where 12V DC power is the primary source. Beyond providing core logic power, it features an integrated RS-485 communication port, allowing for seamless connection to HMIs and other serial devices within a centralized control architecture.

Core Technical Advantages

This power supply handles a wide input range from 9.6V to 15V DC, ensuring consistent operation even during voltage fluctuations common in battery-powered systems. It provides three distinct DC outputs to support various module requirements: a high-capacity +5V rail for logic circuits, an isolated +24V rail for sensitive I/O, and a dedicated +24V relay power output. With a 10ms ride-through time and robust overvoltage protection, the hardware is built to maintain system uptime during transient power dips and electrical noise in heavy industrial settings.

Technical Specifications

Installation & Engineering Guide

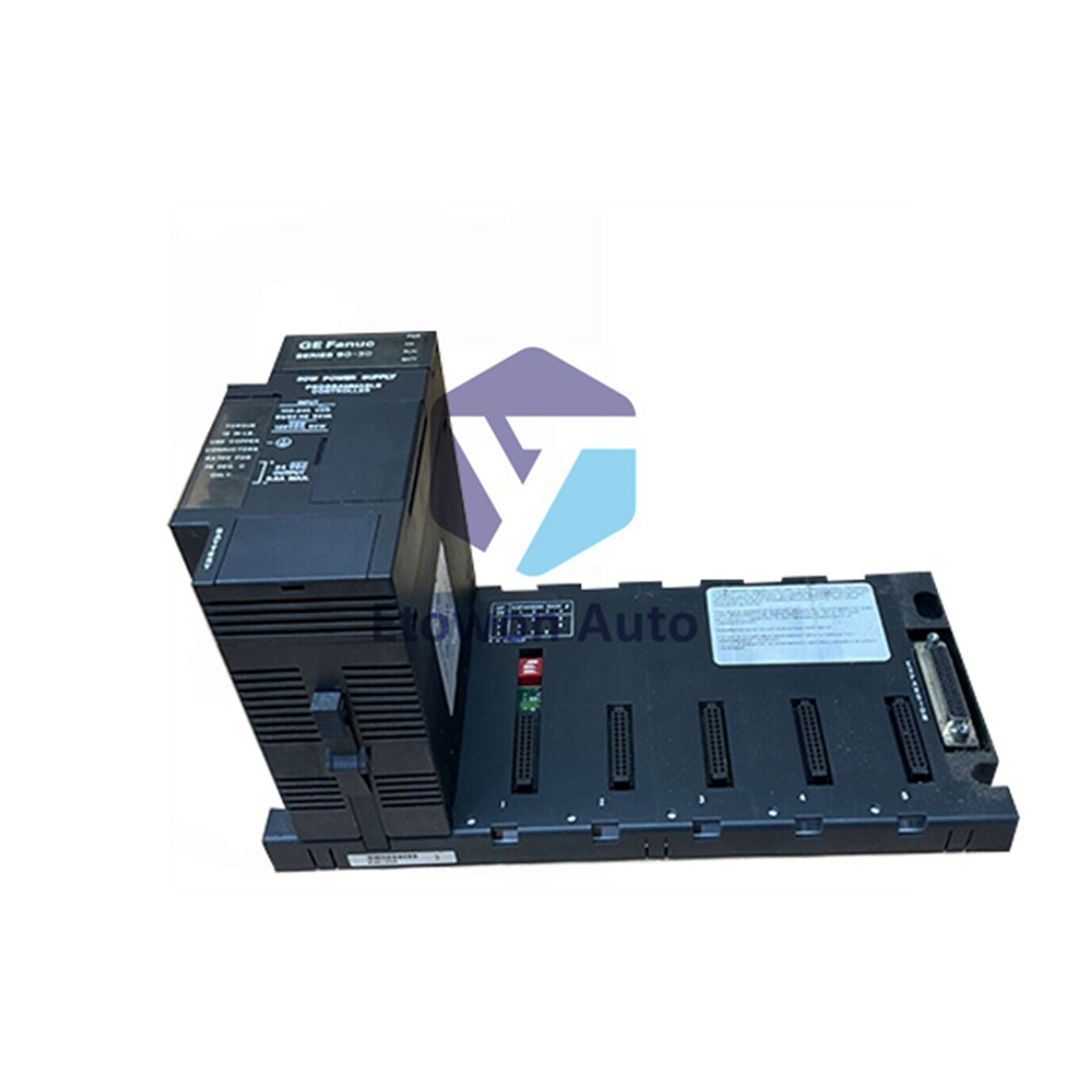

The module must be installed in the leftmost slot of a Series 90-30 baseplate. When wiring the 12V DC input, use appropriately sized conductors to minimize voltage drop, and ensure that the inrush current limit (4 Amps peak) is considered when selecting upstream fuse protection. If utilizing the RS-485 port for communication, ensure shielded twisted-pair cabling is used to prevent interference with the power rails. The unit is rated for an operating temperature range of 0°C to 50°C; for higher temperature environments, ensure sufficient convection cooling is maintained within the enclosure.

Engineering Advantages

The GE Fanuc 90-30 power architecture provides exceptional isolation between input power and system logic, which is critical for protecting expensive CPU and I/O modules from field-side surges. The multi-rail output capability simplifies system design by eliminating the need for external converters for 24V DC relay or sensor power. Additionally, the compact footprint allows for high-density I/O configurations in small control cabinets, making it a preferred choice for industrial robotics, material handling, and remote oil and gas monitoring equipment.

Technical FAQs

Q1: Can I use this power supply on a 24V DC system?
A1: No. This specific model is strictly rated for 12V DC nominal input (maximum 15V DC). For 24V DC systems, a different power supply module must be used.

Q2: What is the purpose of the isolated 24V DC output?
A2: It provides clean, isolated power specifically for driving output modules and sensors, ensuring that electrical noise from field devices does not feed back into the PLC backplane.

Q3: Does this module support hot-swapping?
A3: No. Power must be removed from the system before removing or installing the power supply module to prevent damage to the backplane or other installed components.
