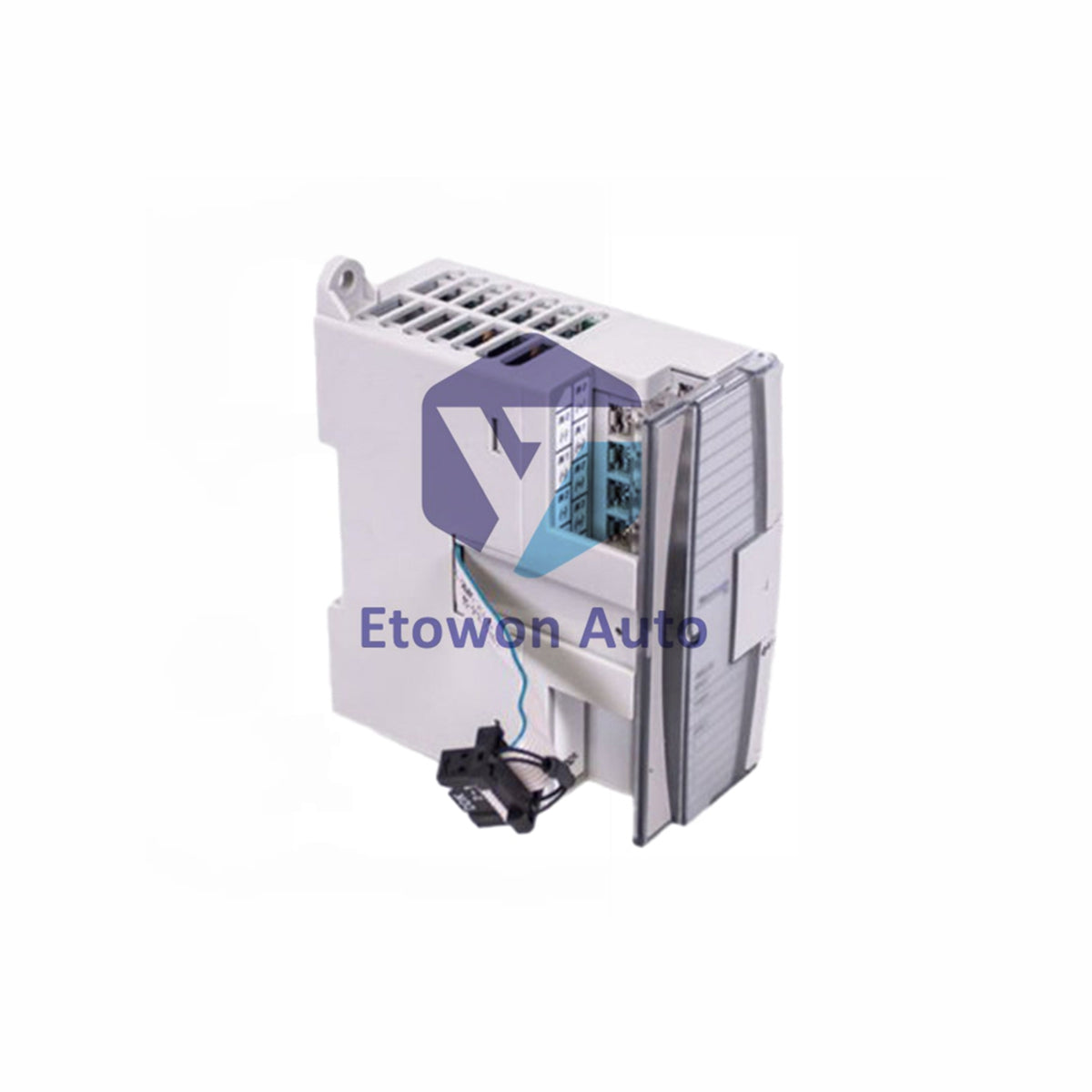

Allen-Bradley 1762-IF4 MicroLogix 4-Channel Analog Input Module

Product Overview

The 1762-IF4 expands the capabilities of MicroLogix controllers by providing four high-precision differential analog input channels. This module is designed to interface with a wide variety of industrial sensors, converting voltage or current signals into digital data for the controller.

Core Technical Advantages

This module features four bipolar differential channels that effectively reject common-mode noise, ensuring signal integrity in electrically noisy industrial environments. The hardware supports versatile input ranges, including standard ±10V DC and 4-20mA signals, providing the flexibility to integrate both legacy and modern instrumentation. With a repeatability of ±0.12%, the unit guarantees consistent performance over time. Its low power consumption design (typically 1.2W) minimizes the thermal load on the 1762 bus, enhancing the overall reliability and lifespan of the entire PLC rack.

Technical Specifications

Installation & Engineering Guide

Mount the module to the right of the MicroLogix controller or adjacent expansion modules using the integrated 1762 bus interface. For optimal signal stability, always use high-quality shielded twisted-pair cabling, such as Belden 8761. Ensure the shield is grounded at only one end (typically at the PLC side) to prevent ground loops. To maintain the ±0.12% repeatability, avoid routing analog signal cables parallel to high-voltage power lines and ensure the module operates within the recommended temperature range of -20°C to +60°C.

Engineering Advantages

The unit offers a sophisticated balance of high-density analog processing and industrial-grade durability. Its ability to handle bipolar signals allows for advanced applications like bidirectional flow monitoring or center-zero pressure sensing. Furthermore, the 1762 bus architecture enables rapid installation and configuration via standard RSLogix software, significantly reducing commissioning time. The IP20 enclosure and robust environmental ratings ensure that this module performs reliably in diverse industrial sectors, from waste-water treatment to food and beverage processing.

Technical FAQs

Q1: Can I mix voltage and current signals on the same module?
A1: Yes. Each of the four channels can be individually configured to receive either voltage or current signals, providing maximum field flexibility.

Q2: What is the maximum recommended cable length for analog inputs?
A2: For stable signal transmission and accuracy, it is recommended to keep cable runs under 100 meters using properly shielded cables.

Q3: Does the module require an external 24V DC power supply?
A3: The module draws its primary power from the MicroLogix 1762 bus, although field-side sensors may require their own dedicated power source depending on their type.
