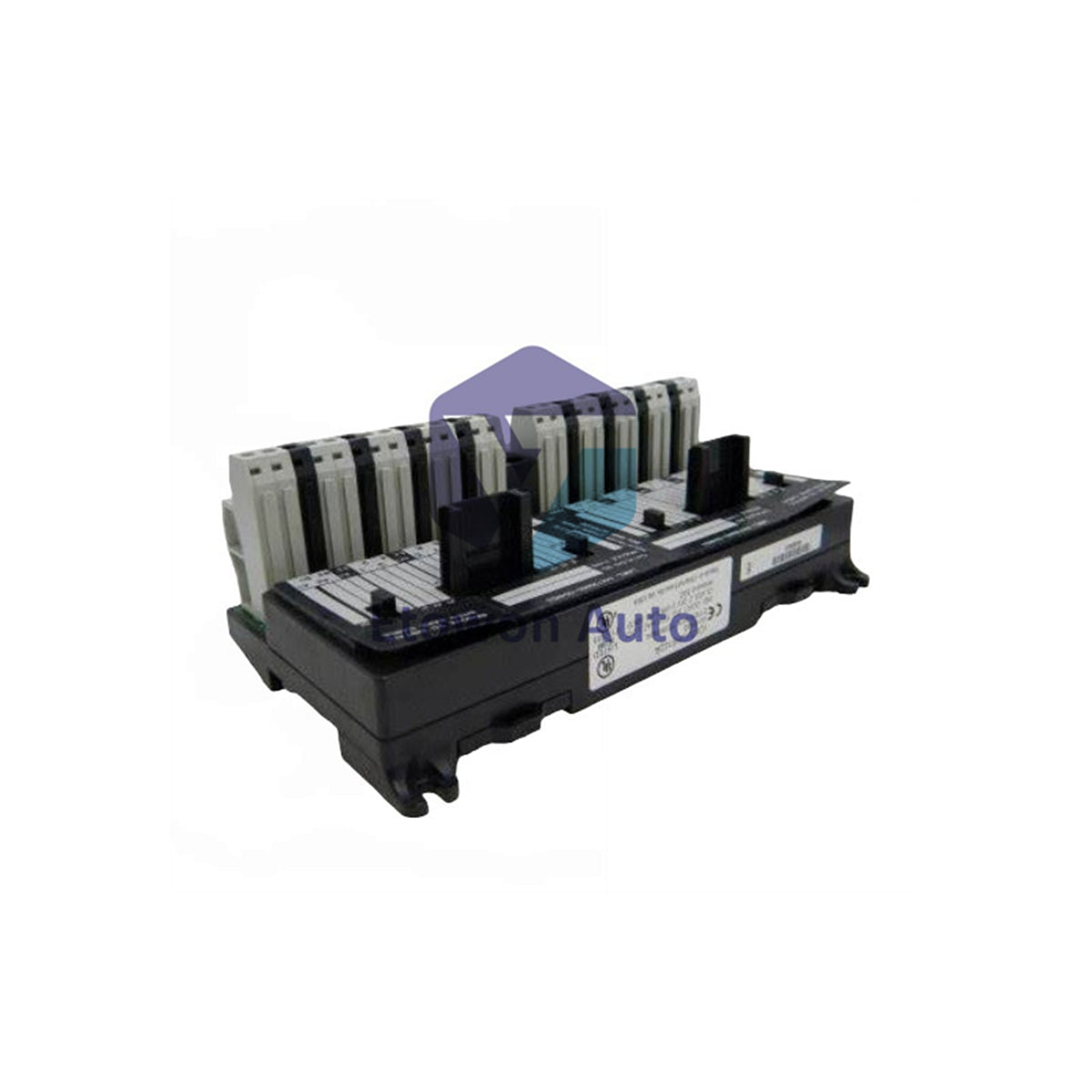

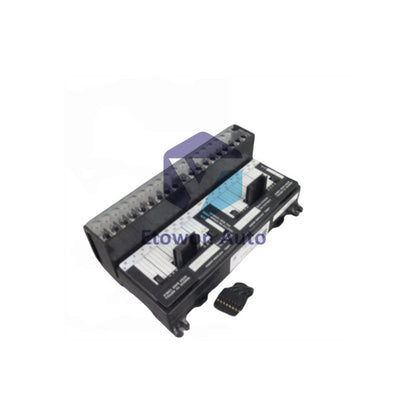

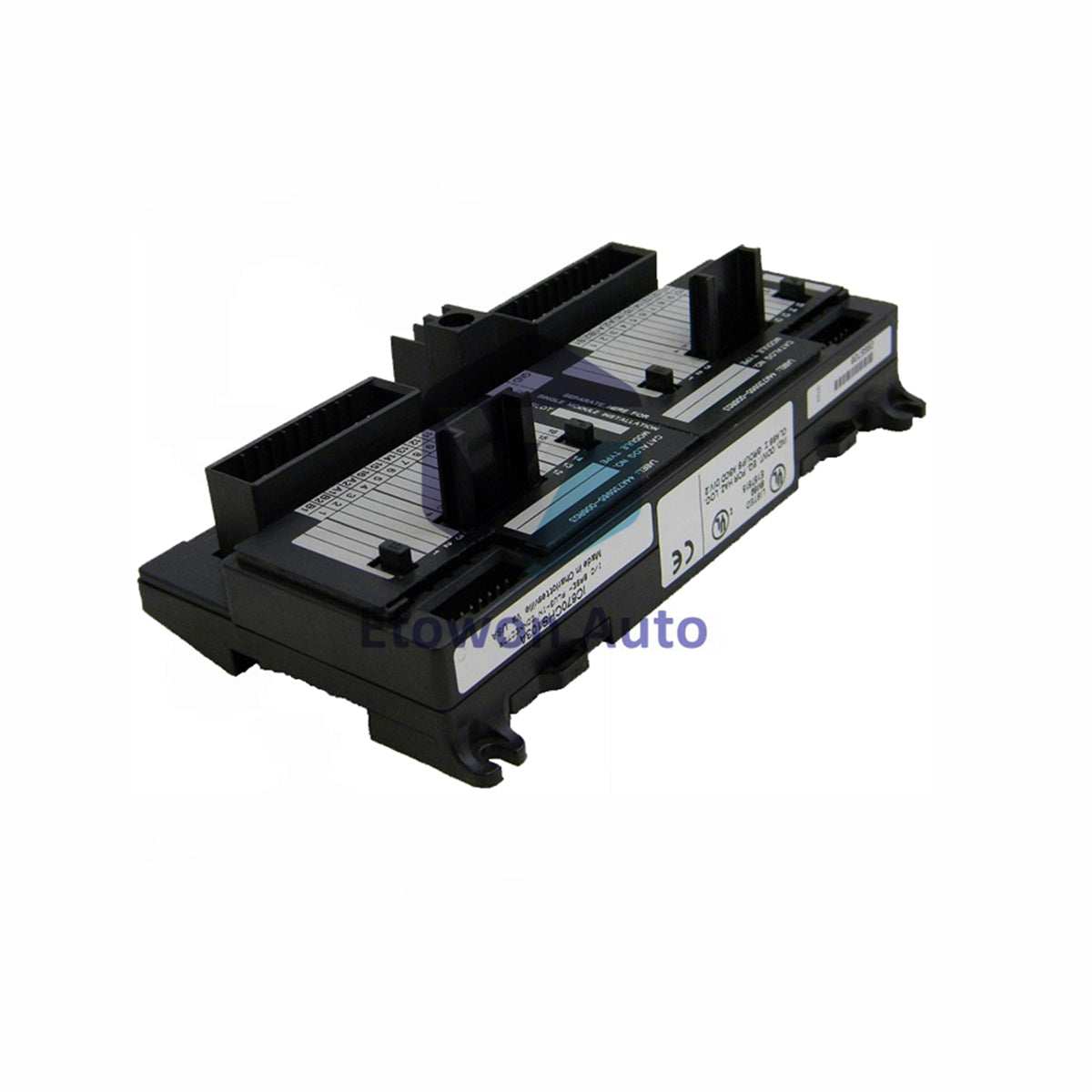

IC670CHS002 Field Control Terminal Base Block - GE Fanuc

GE Fanuc IC670CHS002: I/O Base Terminal Block

Author: Etowon Auto

The GE Fanuc IC670CHS002 is a base unit for Field Control I/O modules. This terminal block provides 37 connection points for field wiring. It supports two I/O modules with hot-swap capability. The base enables easy module installation and replacement without system shutdown.

Core Specifications

• Model: IC670CHS002 I/O Base Terminal Block
• Terminals: 37 screw terminals for field wiring
• Modules Supported: 2 Field Control I/O modules
• Hot Swap: Yes - insert/remove modules with power on
• Mounting: Horizontal, DIN rail or panel mount

Electrical & Connection Details

• Current per Terminal: Maximum 10 Amperes
• Terminal Torque: 4.5 in-lb (recommended)
• Wire Size: One AWG #14 (2.1 mm²) or two AWG #18-#22 (0.35-0.86 mm²)
• Compatible Modules: GE Fanuc Field Control modules (suffix J or higher)

Physical & Mounting

• Orientation: Horizontal mounting required
• Mounting Options: DIN rail or direct panel surface
• Key Slots: Factory-installed for correct module alignment
• Multi-block Setup: Connect blocks in correct data flow order

Package Contents

• One (1) IC670CHS002 I/O Base Terminal Block
• Mounting hardware for DIN rail or panel
• Interconnection cables for multi-block setups
• Installation and wiring guide

Installation Guide

• Mount base horizontally on DIN rail or panel
• Secure with recommended 4.5 in-lb terminal torque
• Align modules with factory key slots to prevent incorrect fitting
• Utilize hot swap feature for live module insertion/removal
• For multiple bases, connect with supplied cables in proper sequence
• Follow all local electrical codes for wiring

Shipping Information

• Shipping weight: Approximately 0.7 kg (with packaging)
• FedEx, UPS, DHL shipping available worldwide
• Secure packaging protects terminals during transit

Frequently Asked Questions

What is the main function of this base unit?

• The IC670CHS002 serves as a wiring base and mechanical mount for two GE Fanuc Field Control I/O modules, providing 37 field connection points.

What does "hot swap support" mean?

• Hot swap allows you to insert or remove I/O modules while the system power remains on, minimizing downtime during maintenance or expansion.

What wire sizes can be used?

• You can use one AWG #14 (2.1 mm²) wire or two smaller wires between AWG #18 and #22 (0.35-0.86 mm²) per terminal.
