Analog Input Module Foxboro FBM201 RH914SQ 7W

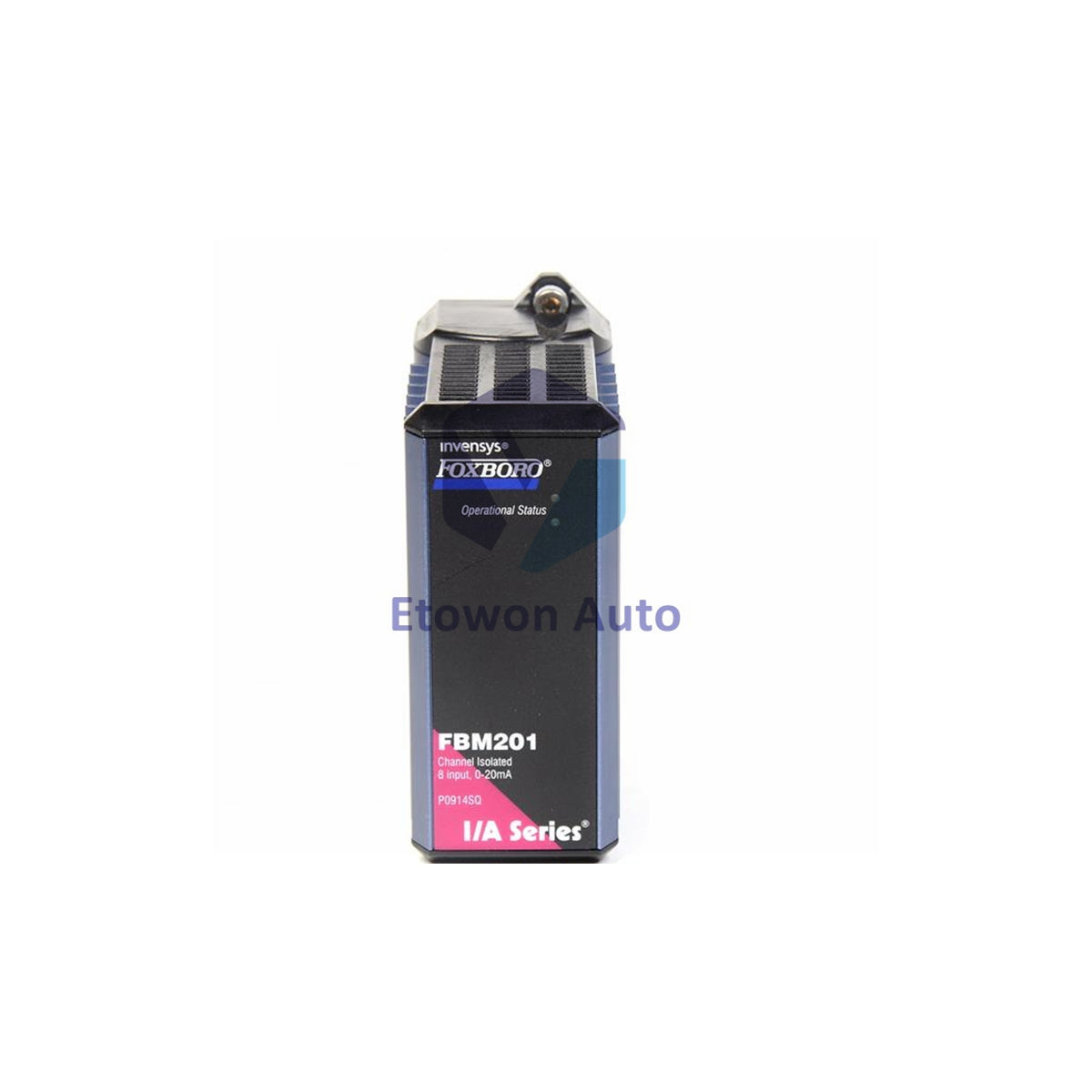

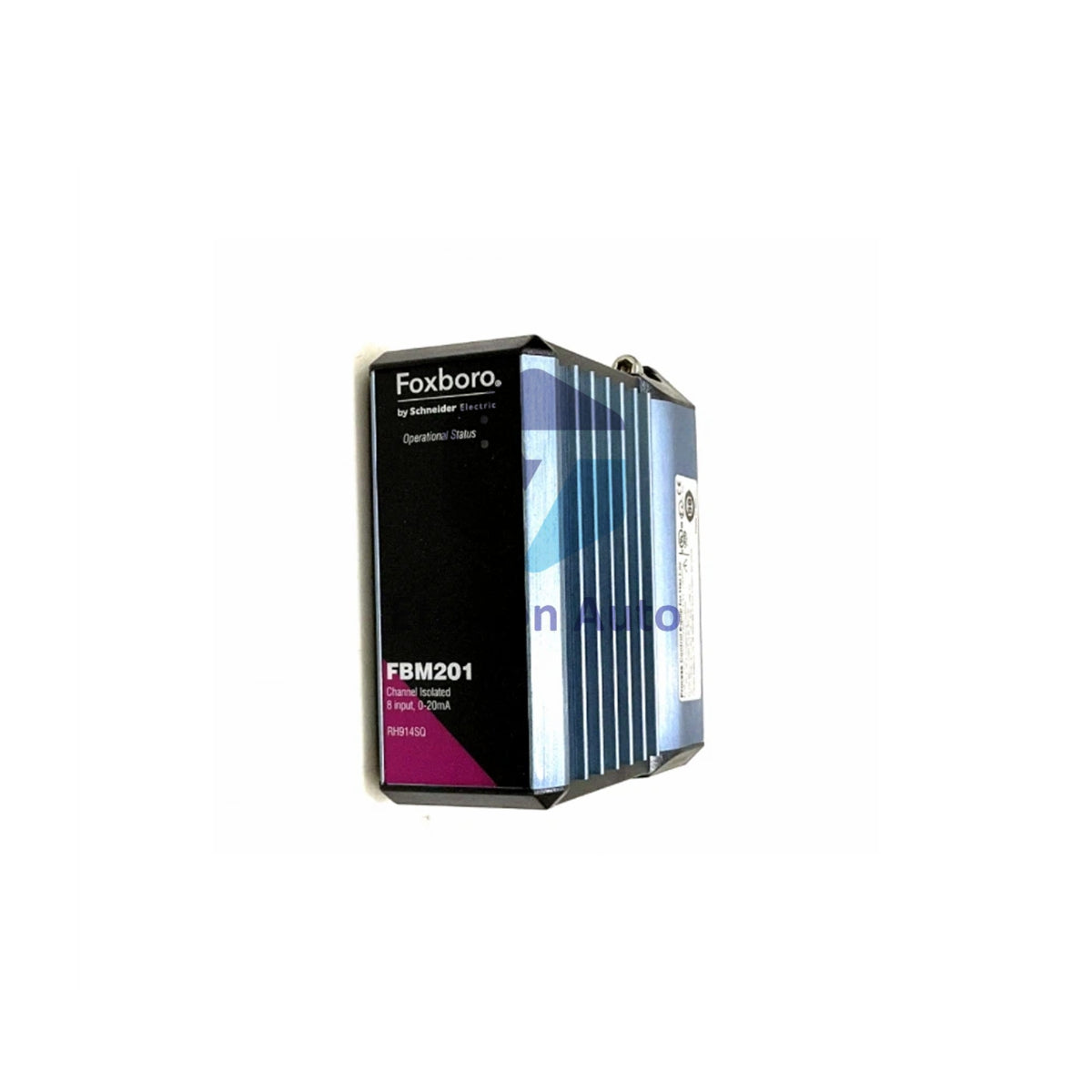

Foxboro FBM201 RH914SQ Analog Input Interface Module

Model: FBM201 RH914SQ from Foxboro by Schneider Electric. This analog input interface module features eight galvanically isolated channels for sensor signals. Available in multiple input ranges: 0-20 mA dc (FBM201), 0-100 mV dc (FBM201b), 0-5 V dc (FBM201c), and 0-10 V dc (FBM201d).

Input specifications

• Input channels: 8 isolated and independent channels.
• Galvanic isolation: Each channel isolated from others and ground.
• Input range options:
  • FBM201: 0 to 20 mA dc
  • FBM201b: 0 to 100 mV dc
  • FBM201c: 0 to 5 V dc
  • FBM201d: 0 to 10 V dc

Performance features

• High accuracy: Sigma-delta data conversions per channel.
• Configurable options: Integration time and Rate of Change Limits.
• Conversion time: Executes analog input application program.
• Calibration: Not required for module or termination assembly.

Communication

• Process I/O communications: Redundant 2 Mbps module Fieldbus to FCM or FCP.

Power specifications

• Consumption: 7 W maximum.
• Heat dissipation: 3 W maximum.

Environmental specifications

• Temperature: -40°C to +70°C (-40°F to +158°F).
• Relative humidity: 5% to 95% non-condensing.
• Altitude: -300 m to +12,000 m (-1,000 ft to +40,000 ft).
• Environment rating: Class G3 harsh environments suitable.

Physical specifications

• Dimensions (L x W x H): 10.4 cm x 4.5 cm x 11.4 cm.
• Weight: 0.284 kg (0.626 lb).

Package contents & shipping

• One Foxboro FBM201 RH914SQ analog input interface module.
• Factory packaging with documentation included.
• Ships via FedEx, UPS, or DHL with tracking.
• Anti-static protection during transit.

FAQ

1. What input ranges are available?
0-20 mA (FBM201), 0-100 mV (FBM201b), 0-5 V (FBM201c), or 0-10 V (FBM201d).

2. How many input channels does it have?
8 isolated and independent channels with galvanic isolation.

3. Does it require calibration?
No, calibration is not required for module or termination assembly.
