Why the Micro800 Series Stands Out in Entry-Level Factory Automation

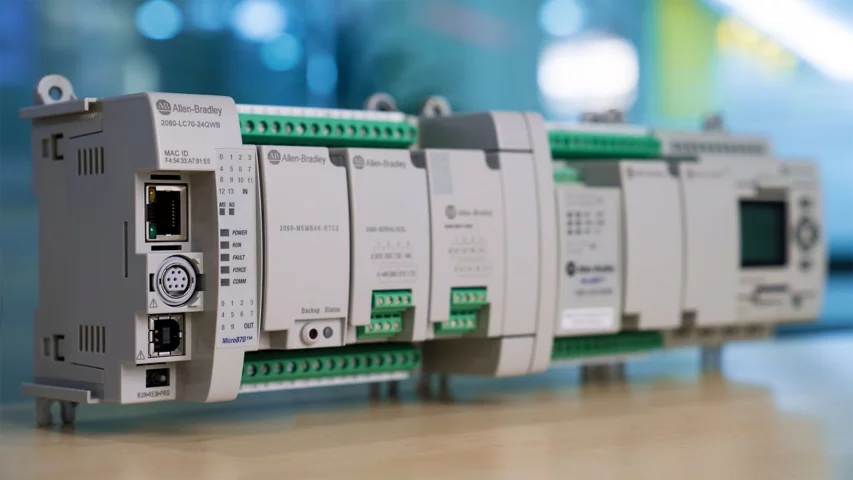

The demand for compact, cost-efficient control systems continues to rise in discrete manufacturing and machine building. Rockwell Automation’s Micro800 programmable logic controllers (PLCs) offer a practical entry point for small to mid-scale automation tasks without compromising essential connectivity. This article examines their architecture, performance metrics, and typical use cases, while sharing practical integration advice from field experience.
Core Hardware: 2080-LCxx Controllers and I/O Expansion
The 2080-LCxx family delivers scalable I/O counts to match diverse machine footprints. For example, the 2080-LC10-12QWB provides 6 digital inputs and 4 relay outputs – ideal for simple pick-and-place units. The mid-range 2080-LC20-20QWB doubles the I/O (12 in / 8 out) and supports both relay and transistor versions. At the top, the 2080-LC30-24QWB includes 16 digital inputs, 8 mixed outputs, plus 2 analog inputs, making it suitable for applications requiring basic process variable monitoring.
To extend functionality, engineers often add 2080-IOxx modules. The 2080-IF2 adds two analog inputs (±10V / 0-20mA), while the 2080-OF2 provides two analog outputs. For smart sensor integration, the 2080-IO-LINK module enables seamless IO-Link communication, simplifying parameter setting and diagnostics for modern proximity or pressure sensors.
Performance Metrics and Real-Time Capabilities
Powered by a 32-bit processor, the Micro800 series handles logic at speeds down to 0.37 µs per Boolean instruction. This ensures fast response even for high-speed counting or cam operations. User memory ranges from 6 KB on basic models up to 30 KB on enhanced variants – sufficient for several hundred rungs of ladder logic plus data storage. An integrated real-time clock (RTC) allows accurate event time-stamping, which is essential for troubleshooting and production audits. Moreover, the built-in EtherNet/IP port allows direct data exchange with PanelView HMIs or FactoryTalk SCADA, eliminating the need for additional communication modules.
Application Example: Conveyor Sorting with Analog Feedback
In a recent parcel sorting line upgrade, a system integrator used a 2080-LC30 controller with a 2080-IF2 analog input module. Two laser sensors (0–10V output) measure package dimensions, while the PLC’s high-speed counters track belt position. Based on length and height, the Micro800 activates eight pneumatic diverters via relay outputs. Cycle time per package stays under 200 ms, meeting the client’s throughput target of 3,600 parcels per hour. The compact size (90 mm x 100 mm x 75 mm) allowed mounting inside a shallow control cabinet, saving valuable floor space.
Another typical scenario involves a blow-moulding machine where a Micro800 monitors temperature via two thermocouples (using an add-on 2080‑RTD module) and controls heaters with PWM outputs. The ladder logic includes PID blocks tuned for plastic processing, maintaining ±1 °C stability. Operators appreciate the USB programming port for quick on-site adjustments without opening the enclosure.
Programming Flexibility with Connected Components Workbench (CCW)
Rockwell’s Connected Components Workbench (CCW) provides a unified environment supporting Ladder Diagram, Function Block Diagram, and Structured Text. This multi-language capability allows programmers to choose the most efficient representation for each task – for instance, using structured text for complex calculations and ladder for interlocking. The built‑in simulation mode helps validate code before deployment, reducing commissioning time. Additionally, automatic device discovery over EtherNet/IP speeds up network configuration, a feature frequently praised by machine builders.
Networking, Communication, and Remote Support
Beyond EtherNet/IP, the Micro800 series retains legacy connectivity via serial RS‑232/485 ports, enabling integration with older drives or weigh scales. The USB programming port remains the preferred method for local uploads/downloads. As more plants adopt IIoT, the controller can send production counts to cloud dashboards using message instructions, though a gateway is recommended for complex MQTT implementations. In practice, we’ve seen customers use the Micro800 as a remote I/O drop for larger ControlLogix systems over EtherNet/IP, leveraging its low cost and small footprint.
Installation Guidance and Environmental Robustness
Mounting the Micro800 is straightforward with DIN rail clip – standard 35 mm rail. We recommend leaving at least 50 mm clearance above and below for airflow. The unit operates reliably from -20 °C to 60 °C, making it suitable for unheated warehouses or outdoor enclosures with a heater. When wiring, always use ferrule-terminated conductors for the removable terminal blocks to ensure vibration resistance. For the 24 V DC power supply, a Class 2 power source (e.g., 2080-PS120-240VAC) is advised to meet safety standards and reduce electrical noise.
Author’s Perspective: Trends and Practical Recommendations
In my experience supporting dozens of small automation projects, the Micro800 series hits a sweet spot for OEMs building 10–50 machines per year. Its integration with CCW means one software tool for drives, HMIs, and PLC – reducing training costs. However, for applications requiring extensive motion control or >30 KB of logic, stepping up to the CompactLogix family may be wiser. I also advise first‑time users to purchase the 2080‑MEMBAK memory backup module to retain programs during maintenance, as the internal memory is RAM‑based.
From a technology standpoint, the growing support for IO‑Link on the Micro800 reflects the industry’s move toward smarter, more communicative sensors. This trend will continue, and Rockwell’s inclusion of an IO‑Link master module in the 2080 series keeps the platform future‑ready for IIoT edge applications.
Real‑World Solution: Packaging Line Retrofit with Data Logging
A packaging company replaced an ageing proprietary controller with a 2080‑LC30‑24QWB. They added a 2080‑TRIMPOT2 simulator module for on‑the‑fly speed adjustments. The PLC now controls three servo axes (via pulse trains) and logs 20 production parameters to an on‑board array. Every 60 seconds, the data is pushed to a local MySQL database through an Ethernet‑to‑serial converter. This retrofit cost 40% less than a full system upgrade and reduced unplanned downtime by 25% in the first six months.
Step‑by‑Step Installation & Commissioning Tips
1. Mechanical mounting: Snap the controller onto a 35 mm DIN rail. Ensure at least 50 mm free space top/bottom for ventilation. For high‑vibration environments, use end brackets (2080‑ENDPLATE).
2. Wiring power: Connect 24V DC (or 120/240V AC for -QWB models) to the removable terminal block. Use 14‑22 AWG wire with ferrules. Torque to 0.5 Nm.
3. I/O wiring: Digital inputs typically sink/source 3 mA at 24V DC. Analog modules like 2080‑IF2 need shielded twisted‑pair cable; keep length below 30 m to avoid noise.
4. Network setup: Assign a static IP via CCW or BOOTP server. The default Ethernet/IP address is 192.168.1.1. Test communication using Ping.
5. Program download: Use USB mini‑B cable (included) for first program load. After commissioning, enable write‑protection via DIP switch to prevent accidental changes.
6. Backup: Insert 2080‑MEMBAK memory module and perform “save project” from CCW – this stores source code and data logs.
Frequently Asked Questions (FAQ)
- Can the Micro800 handle simple motion control? Yes, the 2080-LC30 and above support up to three high‑speed outputs (PTO/PWM) for stepper or servo control at frequencies up to 100 kHz. For more complex coordinated motion, consider a dedicated motion controller.
