How PLC and DCS Integration Enhances Industrial Automation Performance
Industrial Automation Enters a New Era of Integration
The industrial automation sector is undergoing a significant shift. Manufacturers are now connecting programmable logic controllers (PLCs) with distributed control systems (DCS) to gain unprecedented operational visibility. This convergence allows facilities to synchronize discrete manufacturing with process control. Moreover, it lays the groundwork for comprehensive digital transformation across entire production networks.
Defining the Roles: PLC, DCS, and Control Systems
A PLC excels at high-speed discrete control. It manages individual machines, assembly lines, and robotic cells with scan cycles typically ranging from 1 to 10 milliseconds. Conversely, a DCS oversees continuous processes. It regulates variables like temperature, pressure, and flow across chemical plants or refineries using loop execution rates of 100 to 500 milliseconds. Therefore, integrating these two control systems bridges the gap between batch production and continuous operations, creating a unified control architecture that leverages the strengths of each platform.
Why Unifying PLC and DCS Matters for Modern Factories
Unified control systems eliminate data silos. Engineers gain a single source of truth for both discrete and process data. This integration significantly reduces manual data aggregation. As a result, facilities report a 20% to 30% improvement in overall equipment effectiveness (OEE) by enabling faster response to production anomalies. From a technical perspective, unified systems also simplify alarm management, reducing nuisance alarms by up to 40% through coordinated alarm prioritization across previously isolated control domains.
Key Technologies Enabling Seamless System Integration
Modern integration relies on open standards. OPC UA (Open Platform Communications Unified Architecture) provides secure, vendor-neutral data exchange with built-in encryption and authentication. Industrial Ethernet protocols, such as PROFINET and EtherNet/IP, ensure real-time communication with deterministic performance. Leading automation suppliers like Siemens, Emerson, and ABB now offer pre-configured integration packages that simplify connecting PLC-based cells with DCS-managed process units. Additionally, MQTT Sparkplug B has emerged as a lightweight, efficient protocol for IIoT architectures, enabling scalable data distribution across enterprise networks.
Technical Guidance: Communication Protocol Architecture
Selecting the right communication architecture is critical. Engineers should consider three primary approaches. First, direct controller-to-controller communication uses native protocols like Siemens S7 communication or ControlLogix Produced/Consumed tags. This method offers the lowest latency but requires compatible hardware. Second, OPC UA server aggregation deploys a centralized OPC UA server that consolidates data from multiple PLCs and DCS nodes, providing a standardized interface for MES and analytics platforms. Third, MQTT with Unified Namespace (UNS) creates a decoupled architecture where all control systems publish data to a central broker. This approach scales efficiently for large facilities and simplifies future expansions.
Technical Guidance: Data Modeling and Tag Structuring
Proper data modeling prevents integration failures. Engineers should establish a consistent naming convention before mapping tags. A recommended structure follows ISA-95 standards: Area_Line_Equipment_TagType_Parameter. For example, "Blending_Line2_ReactorA_Temp_PV" clearly identifies the data source and purpose. Additionally, define data quality indicators. Include status bits for each tag that indicate whether the data is valid, in manual mode, or under maintenance. This practice enables the receiving system to properly handle abnormal conditions rather than acting on potentially erroneous values.
Technical Guidance: Steps for Successful Integration
Step 1: Audit Existing Assets – Begin by documenting all PLCs, DCS controllers, and network infrastructure. Identify legacy systems that may require protocol converters. Catalog communication capabilities including supported protocols, available memory, and processing overhead.
Step 2: Define Data Mapping – Clearly map critical process variables from the DCS to discrete operations managed by PLCs. Focus on points that impact quality and throughput. Create a signal exchange matrix that documents direction, data type, scan rate, and exception handling rules for each tag.
Step 3: Select a Unified Namespace – Implement a middleware solution or unified namespace (UNS) using MQTT or OPC UA. This architecture decouples data sources from applications. Ensure the chosen solution supports store-and-forward functionality to prevent data loss during network interruptions.
Step 4: Deploy Industrial Gateways – Install industrial-grade gateways to securely route data between PLC networks and DCS servers. Ensure these devices support edge computing for local data processing. Configure firewalls with strict rules allowing only necessary traffic between security zones.
Step 5: Validate Data Integrity – Run parallel operations to verify that data accuracy meets tolerance requirements. Perform latency tests to confirm real-time control loops remain intact. Validate that time synchronization across all controllers uses NTP or PTP with accuracy within 10 milliseconds for time-stamped events.
Step 6: Conduct Operator Training – Provide cross-training for teams accustomed to either PLC or DCS environments. Unified human-machine interface (HMI) strategies help ease the transition. Develop troubleshooting guides that address common integration-related failure modes.
Installation Considerations for Hybrid Environments
Network reliability forms the backbone of integration. Use managed industrial switches to segment traffic and prioritize control data using Quality of Service (QoS) protocols. Secure all communication channels with firewalls and role-based access controls. Implement defense-in-depth security with separate zones for control networks, supervisory networks, and enterprise networks. Furthermore, plan for redundancy at the controller and network levels to avoid single points of failure. During commissioning, validate each data flow with both engineering and operations teams to ensure alignment with production goals. Perform failover testing by simulating network disruptions to verify automatic recovery mechanisms.
Technical Deep Dive: Scan Cycle Synchronization
One often overlooked challenge is scan cycle synchronization. PLCs execute logic deterministically at fixed intervals, while DCS loop execution may vary based on loop priority. When exchanging data between systems, mismatched update rates can cause timing issues. Engineers should implement data handshaking mechanisms for critical interlocks. For non-critical data, use deadband filtering to prevent unnecessary network traffic. A best practice is to map DCS loop execution rates to match the PLC scan cycle of the equipment they interact with, typically aligning at 100-millisecond intervals for mixed applications.
Application Case: Automotive Powertrain Facility
A major automotive manufacturer integrated PLC-controlled assembly robots with a plant-wide DCS for engine production. The system monitored 3,200 data points across 14 stations. By linking robotic cycle times with thermal process data from the DCS, the plant reduced rework by 28%. Engineers implemented OPC UA aggregation with redundant servers achieving 99.99% data availability. Annual savings exceeded $2.1 million, with a return on investment achieved in just eight months.
Application Case: Pharmaceutical Active Ingredient Plant
A pharmaceutical company faced challenges in batch tracking across discrete material handling and continuous chemical synthesis. They connected PLCs managing raw material dosing to a DCS overseeing reactor vessels using PROFINET communication with fiber optic backbone. The integrated solution improved batch record accuracy by 40% and cut deviation investigation time from 12 hours to under 90 minutes. Production yield increased by 9.5% within the first year. The integration also enabled electronic batch records compliant with FDA 21 CFR Part 11 requirements.
Application Case: Food and Beverage Production
A global beverage producer unified its PLC-based filling lines with a central DCS managing utilities and CIP (clean-in-place) systems. The integration utilized EtherNet/IP with device-level ring (DLR) topology for network redundancy. Real-time adjustments to filling speeds based on upstream temperature data reduced product waste by 18%, and energy consumption for cleaning cycles fell by 15%. The plant achieved a 22% faster changeover between product variants. Additionally, the integration enabled predictive maintenance alerts that reduced unexpected downtime by 31%.
Application Case: Oil and Gas Midstream Facility
A natural gas processing facility integrated 23 PLC-controlled compressor stations with a central DCS managing fractionation towers. Engineers deployed redundant fiber optic ring networks with OPC UA tunneling through firewalls. The integrated system provided unified alarm management across 12,000 tags, reducing operator response time by 42%. Through coordinated control, the facility reduced fuel gas consumption by 8.3%, achieving annual savings of $1.7 million. The integration also enabled remote diagnostics that reduced field service dispatches by 35%.

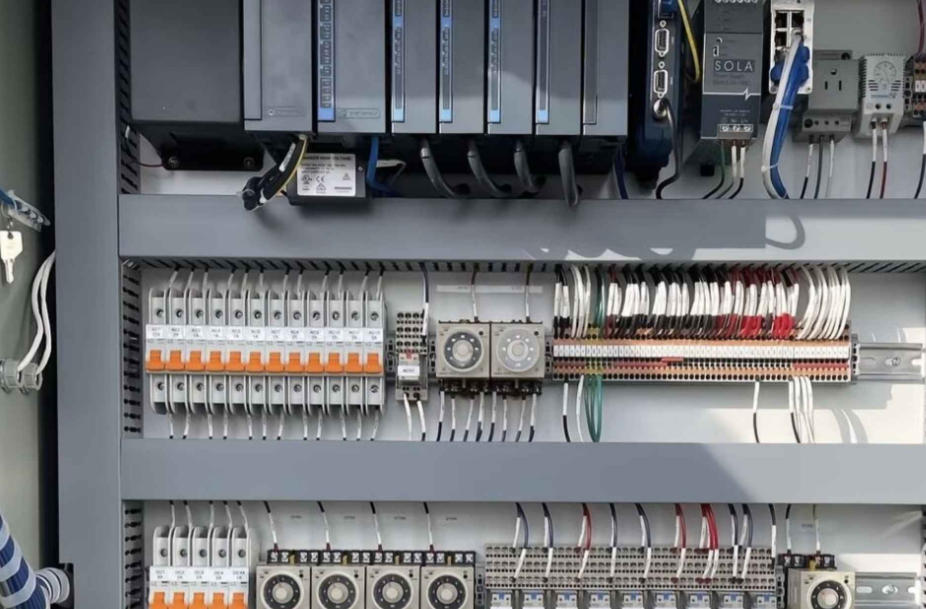

Integration Challenges and Practical Countermeasures
Compatibility issues often arise when connecting legacy PLCs to modern DCS platforms. However, protocol converters and edge gateways effectively bridge this gap. For legacy PLCs using proprietary protocols like Modbus RTU or Allen-Bradley DH+, industrial protocol gateways from vendors like ProSoft or Moxa provide reliable conversion. Cybersecurity remains another critical concern. Implementing a defense-in-depth strategy, including network segmentation, industrial firewalls, and continuous monitoring with intrusion detection systems (IDS), mitigates risks. From an engineering perspective, investing in standardized communication layers yields long-term flexibility and reduces vendor lock-in. Additionally, maintain detailed as-built documentation including network topology diagrams, IP addressing schemes, and tag mapping tables.
Industry Trends and Engineering Commentary
The industrial automation market is rapidly adopting IIoT and cloud-accessible control architectures. Edge computing now allows critical control decisions to occur locally while sending aggregated data to enterprise systems. From my engineering experience, companies that embrace open standards like OPC UA and MQTT gain a competitive advantage. They achieve faster scaling of smart manufacturing initiatives and can more easily incorporate artificial intelligence for predictive maintenance. However, engineers must carefully evaluate cybersecurity implications before connecting control systems to cloud platforms. A pragmatic approach is to deploy edge gateways that buffer data and implement outbound-only connections to minimize attack surfaces.
Technical Insight: Alarm Management in Integrated Environments
Alarm management becomes more complex when merging PLC and DCS environments. Engineers should implement a unified alarm philosophy that standardizes prioritization, annunciation, and response procedures. Follow ISA-18.2 and IEC 62682 standards for alarm system design. A common pitfall is alarm flooding where multiple systems generate cascading alerts. Use alarm shelving and suppression logic to prevent nuisance alarms during maintenance or startups. Modern integration platforms support alarm aggregation with context enrichment, providing operators with root cause information rather than individual alarm points.
Solution Scenario: Smart Chemical Plant Deployment
A mid-sized chemical plant integrated 45 PLC-controlled packaging lines with its existing DCS for reactor management. The project cost $380,000 and took seven months to complete. Engineers deployed a redundant OPC UA server architecture with 100-millisecond data refresh rates. After integration, overall production throughput rose by 19%. The plant reduced unplanned downtime by 34% through unified alarm management that reduced operator alarm load from 1,200 to 180 alerts per shift. With labor efficiency gains of 12%, the payback period was under 14 months. The integration also enabled real-time material tracking that reduced inventory carrying costs by $210,000 annually.
Conclusion
Integrating PLC and DCS systems is no longer optional for competitive industrial operations. This unification enhances real-time visibility, improves asset utilization, and supports data-driven decision making. Companies should adopt a phased approach, leveraging modern communication protocols and investing in workforce training to maximize the value of their control systems. For engineers, success depends on thorough planning, proper data modeling, and rigorous validation. The technical complexity is justified by the operational benefits: reduced downtime, improved quality, and lower total cost of ownership across the control infrastructure.
