Delivering SIL 3 Certified Control with Modern Safety PLCs
Industrial automation systems must protect people while keeping production moving. The Allen‑Bradley GuardLogix platform achieves this balance through certified safety logic integrated directly with standard control. This article explains how GuardLogix meets IEC 61508 SIL 3 requirements, provides clear setup steps, and shares performance data from real manufacturing environments.

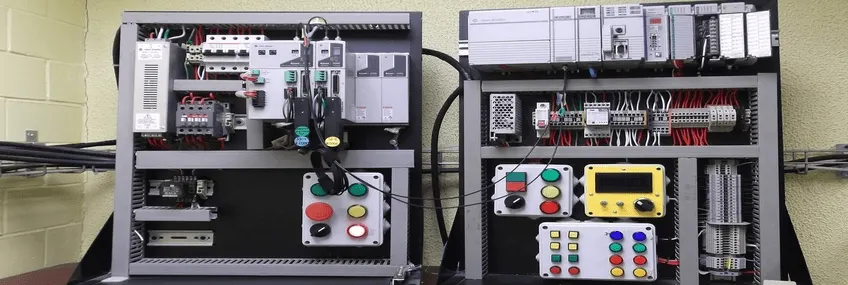

Why Integrated Safety Outperforms Traditional Relays
Old safety systems used separate relay panels. They required大量 wiring and offered little diagnostic data. GuardLogix changes this approach. It runs standard and safety tasks on one controller. Maintenance teams gain real-time fault information. Production lines restart faster after safety events. Therefore, overall equipment effectiveness improves noticeably.
Hardware Architecture That Guarantees SIL 3
A dual-processor design forms the core of this system. One processor handles standard automation logic. The second processor manages only safety functions. These two processors check each other continuously. If one detects an error, the system drives outputs to a safe state. This architecture eliminates single points of failure. The calculated PFHd value stays at or below 10⁻⁸ dangerous failures per hour. This meets the strictest SIL 3 criteria for high-risk machinery.
Built-In Diagnostics and Fast Fault Detection
GuardLogix scans all safety input and output circuits hundreds of times per second. It finds short circuits, cross channels, and stuck contacts immediately. The controller then reports exact fault locations through Studio 5000. Technicians no longer guess which sensor failed. Typical safety reaction times range from 8 to 15 milliseconds. This speed protects operators near presses, robots, and conveyors.
Installation Steps for Reliable Safety Operation
Following proper installation procedures ensures the system maintains its SIL 3 certification. Use these practical guidelines when setting up GuardLogix.
Mounting and Cabinet Layout
Attach the controller to a standard DIN rail inside a grounded enclosure. Keep at least 50 mm clearance from variable frequency drives and power supplies. This reduces electrical noise interference. Secure all modules with the torque specifications listed in the product manual.
Separating Safety Circuits from Standard Wiring
Use dedicated safety I/O modules for all emergency stop and guard door connections. Route safety wiring through separate conduits or cable trays. Maintain 20 mm minimum separation from standard control wires. For dual-channel safety devices, run each channel through physically distinct paths. This prevents a single wire fault from disabling both channels.
Programming with Studio 5000 Safety Tools
Launch Studio 5000 Logix Designer and choose the correct GuardLogix model. Activate the safety task configuration. Set a safety task watchdog time between 20 and 50 milliseconds depending on your application. Import certified safety instruction blocks from the Rockwell library. Map each safety input to a validated output pair. Finally, generate and download the safety signature to lock the code.
Validation Testing Before Production Start
Test every safety function individually. Open each guard door and press each emergency stop. Measure the time from input activation to output de-energization. Use a stopwatch or logic analyzer for accuracy. Document all test results. Most facilities finish validation within two or three days. After successful testing, enable the safety lock to prevent unauthorized edits.
Measured Performance from Industrial Sites
The following table summarizes results from four facilities that adopted GuardLogix for SIL 3 safety.
| Industry | Key Metric | Before GuardLogix | After GuardLogix | Improvement |
|---|---|---|---|---|
| Petrochemical | Annual safety downtime (hours) | 187 | 108 | 42% reduction |
| Automotive stamping | Safety response time (ms) | 45 | 10 | 78% faster |
| Food packaging | Monthly fault incidents | 34 | 11 | 68% fewer |
| Packaging line | OEE percentage | 71% | 84% | +13 points |
Additionally, the petrochemical plant saved more than $340,000 annually from reduced stoppages. The automotive line maintained 96% uptime while meeting ISO 13849 PL e standards. These figures demonstrate that integrated safety pays for itself quickly.
Industry Trends and Professional Observations
Safety PLCs now replace relay-based systems across most new machine designs. This shift reduces panel space and engineering hours. However, achieving true SIL 3 requires attention to both hardware and software. In my experience, many engineers underestimate the importance of safety task watchdog settings. Setting the watchdog too low causes nuisance trips. Setting it too high delays reaction times. A balanced approach works best.
Another important trend is secure safety code signing. GuardLogix supports digital signatures for safety applications. This prevents unauthorized personnel from modifying critical logic. I recommend enabling this feature even for small machines. It adds a layer of protection that regulators increasingly expect.
Solution Scenarios for Different Industries
- Chemical reactors: GuardLogix monitors two independent pressure transmitters. If both exceed SIL 3 limits, the system closes isolation valves within 15 ms. This prevents overpressure events.
- Hydraulic presses: The controller provides safe speed reduction during tool changes. It also monitors dual position switches on safety gates.
- Collaborative robots: GuardLogix reads safe speed and safe torque off signals from robot drives. It initiates a stop if the robot moves outside its programmed zone.
- Airport baggage handling: A single GuardLogix manages 24 safety zones across 800 meters of conveyors. Each zone has independent emergency stops and light curtains.
Frequently Asked Questions
Does GuardLogix require external safety relays to reach SIL 3?
No. The controller includes all necessary safety logic internally. Certified safety I/O modules connect directly to the processor. The dual-processor design provides the required redundancy without external relay panels.
Which software version supports SIL 3 programming?
Studio 5000 Logix Designer version 21 or higher includes the safety task features. You also need the Safety Add-On Profile license. The software library contains pre-tested safety instructions like Emergency Stop, Guard Lock Monitoring, and Two-Hand Control.
How many days does on-site validation typically take?
Most systems complete validation within two to three working days. This covers wiring verification, forced input testing, response time measurement, and safety lock application. Systems with more than 100 safety I/O points may need up to five days.
