F6217

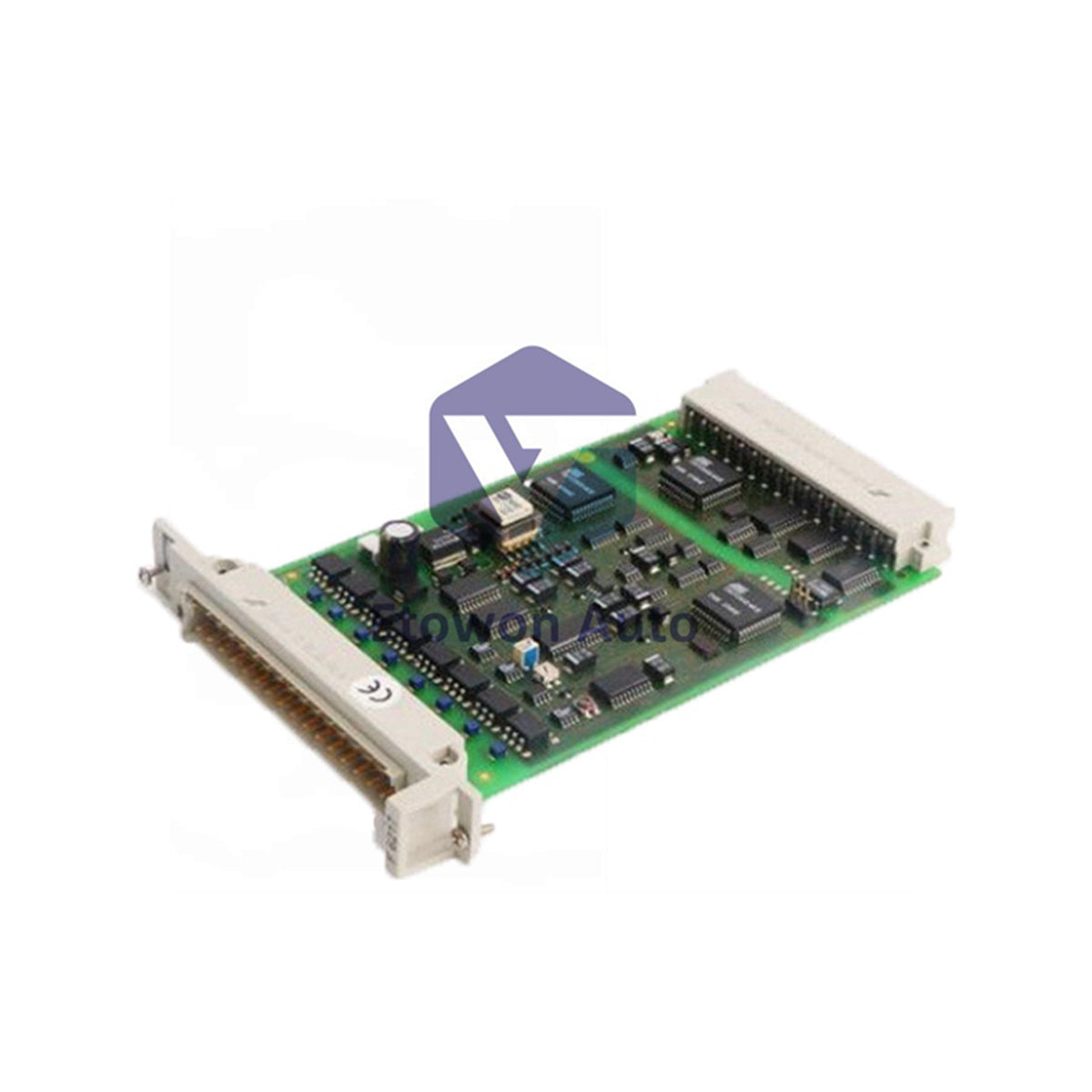

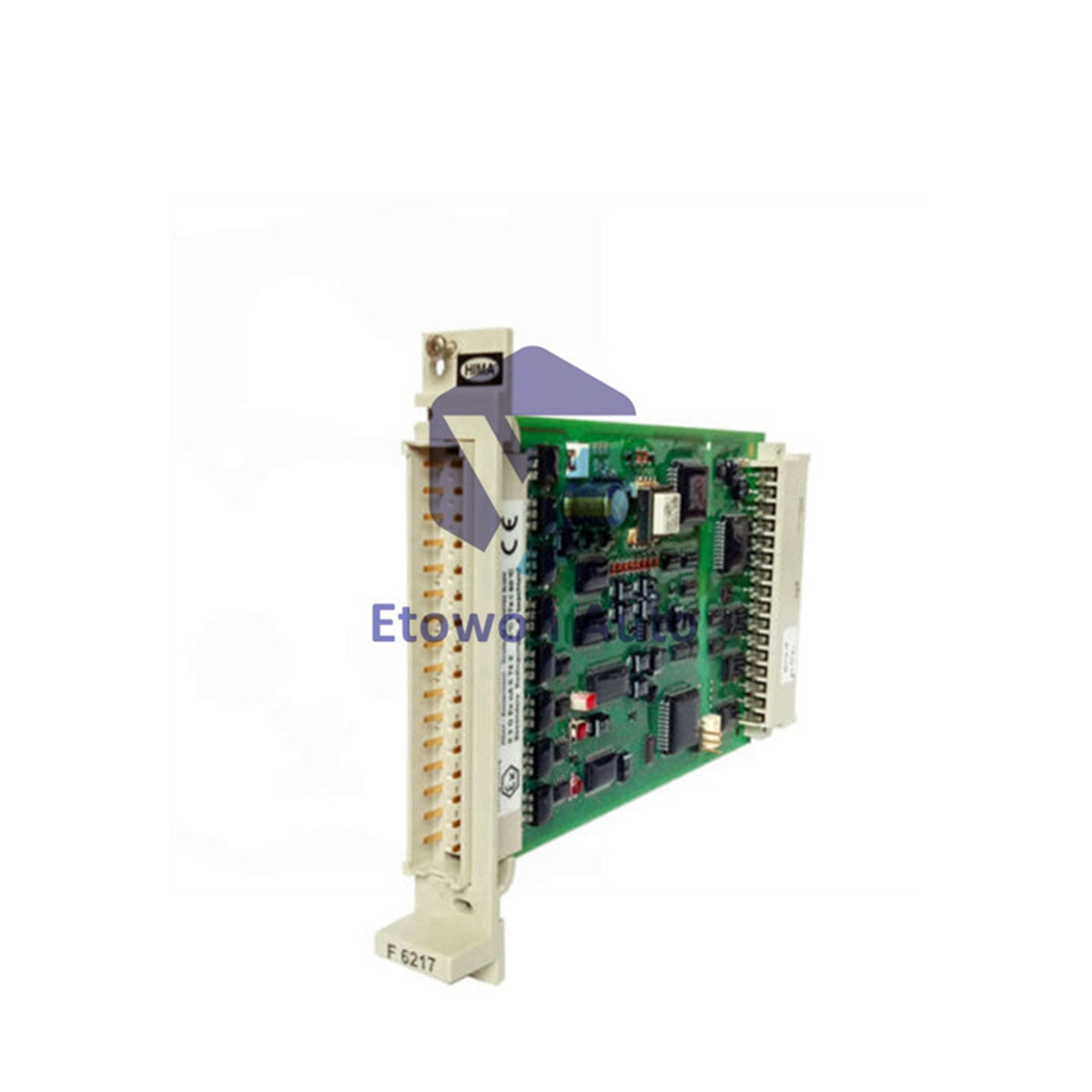

HIMA F6217 Analog Input Module 4-20mA 0-10V

Only 5 units left

  • Manufacturer: HIMA

  • Product No.: F6217

  • Product Type: Analog Input Module

  • Product Origin: DE

  • Payment:T/T, Western Union

  • Weight: 0g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

HIMA F6217 8-Channel Analog Input Module

The F6217 from HIMA provides eight safety-related analog input channels with SIL 3 certification according to IEC 61508. This module accepts both current (0/4-20mA) and voltage (0-5/10V) signals with safe isolation between channels. Featuring 12-bit resolution and fast 50ms update times, it delivers precise measurement for critical process safety applications.

Technical Specifications

  • Brand: HIMA
  • Model: F6217
  • Module Type: 8-Channel Analog Input
  • Safety Level: SIL 3 (IEC 61508)
  • Input Signals: 0/4-20mA, 0-5/10V
  • Isolation: Safe isolation between channels
  • Resolution: 12 bits
  • Max Input Voltage: 7.5V
  • Max Input Current: 30 mA
  • Shunt Resistor: 250Ω, 0.05%, 0.25W
  • Input Range: 0-5.5V (0=0, 5.5V=4095)
  • Update Time: 50 ms
  • Safety Time: <450 ms
  • Input Resistance: 100 kΩ
  • Filter Time Constant: ~10 ms
  • Basic Error: 0.1% at 25°C
  • Operating Error: 0.3% at 0-60°C
  • Safety Error Limit: 1%
  • Electric Strength: 200V against GND
  • Space Requirement: 4 SU
  • Operating Data: 5VDC/80mA, 24VDC/50mA
  • Weight: 0.3 kg

Measurement Performance

  • 12-bit resolution provides 4095 counts across measurement ranges
  • Fast 50ms update time ensures real-time process monitoring
  • 0.1% basic accuracy at 25°C delivers precise measurement data
  • 0.3% operating error maintained across 0°C to 60°C temperature range
  • 10ms input filter time constant effectively suppresses noise

Safety & Reliability

  • SIL 3 certification according to IEC 61508 for safety-critical applications
  • Safe isolation between channels prevents cross-talk and interference
  • 1% safety error limit ensures reliable operation in fault conditions
  • 450ms maximum safety time guarantees timely safety function execution
  • 200V electric strength rating provides robust electrical protection

Signal Compatibility

  • 4-20mA current input standard for process instrumentation
  • 0-10V voltage input support for various sensor types
  • 250Ω precision shunt resistor for current measurement
  • High 100kΩ input resistance minimizes signal loading
  • 30mA maximum input current protection prevents damage

Frequently Asked Questions

  • What signals does this module accept? 4-20mA current and 0-10V voltage inputs.
  • What is the measurement update rate? 50ms update time with 450ms safety time.
  • What safety certification does it have? SIL 3 according to IEC 61508 standard.
