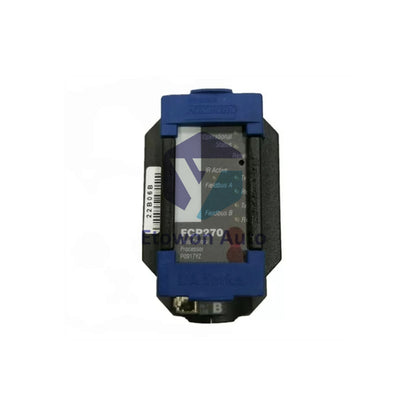

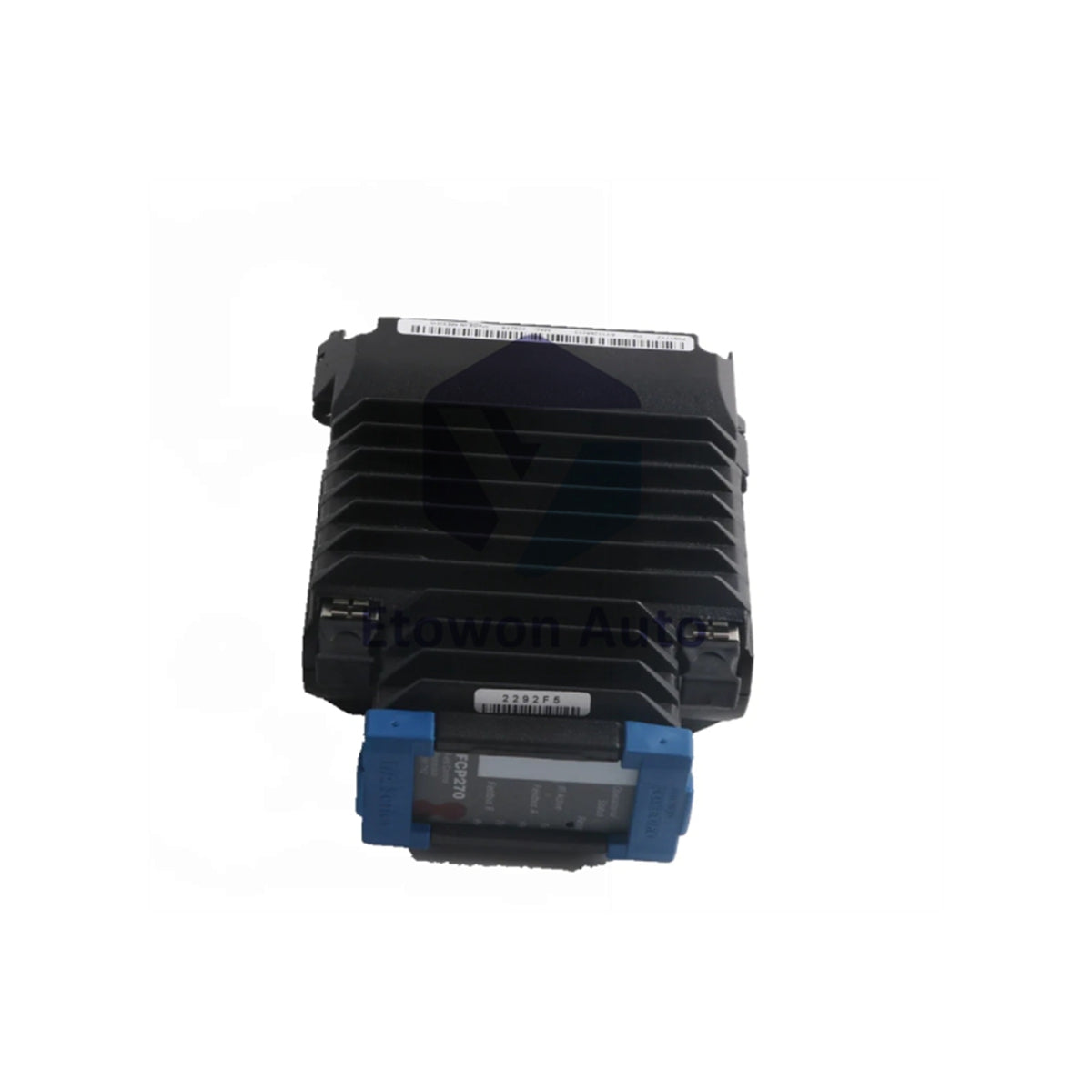

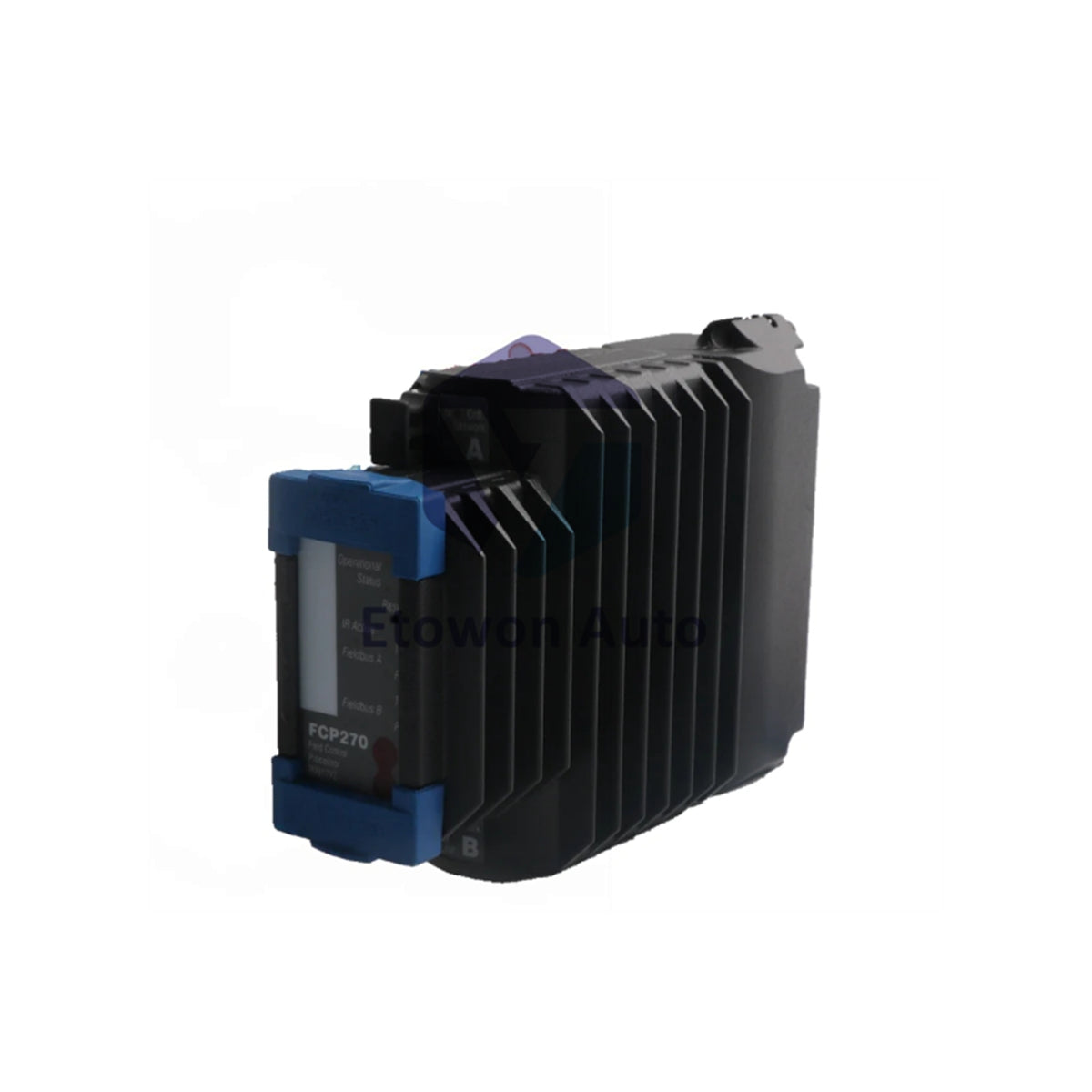

Foxboro FCP270 P0917YZ Field Control Processor Module

Foxboro FCP270 P0917YZ Field Control Processor Module

The Foxboro FCP270 P0917YZ is a robust control processor module designed for demanding industrial environments. It features fiber optic connectivity and a compact DIN rail form factor.

Environmental & Mechanical Specifications

• Brand & Model: Foxboro FCP270 P0917YZ
• Operating Temperature: 0 to +60°C (32 to 140°F)
• Storage Temperature: -40 to +70°C (-40 to 158°F)
• Humidity: 5% to 95% noncondensing
• Operating Altitude: -300 to +3,000 m (-1,000 to +10,000 ft)
• Vibration Tolerance: 0.5 g (5 to 500 Hz)
• Contamination Rating: G3 (Harsh) per ISA S71.04 / IEC 664-1 Pollution Degree 2
• Dimensions (HxWxD): 103 mm x 51.5 mm x 147 mm (4.04 x 2.03 x 5.80 in) - Height 114 mm with lugs
• Weight: 0.6 kg (1.3 lb) maximum
• Mounting: Compatible with 2- or 4-position DIN rail baseplates

Fiber Optic Ethernet Interface

• Switch Connection: MT-RJ type connector
• Module Connection: Dual ceramic LC-type connector with clip
• Fiber Type: Multimode 62.5/125 µm plenum cable
• Standard Cable Lengths: 3 m, 15 m, 50 m
• Maximum Distance: Up to 2,000 m (6,560 ft) from switch to processor

Features & Applications

• Rugged Design: Built to withstand harsh industrial conditions including vibration and particulate contamination.
• High-Speed Networking: Fiber optic Ethernet ensures noise-immune, long-distance communication for distributed control.
• Compact & Lightweight: Weighing only 0.6kg, it allows for high-density installations in control panels.
• Flexible Mounting: DIN rail mounting enables both horizontal and vertical orientation for versatile cabinet layouts.

FAQ

• Q: What is the FCP270 P0917YZ module used for?
  A: It serves as a field control processor within the Foxboro I/A Series system, executing control logic and communicating via fiber optic networks.
• Q: What is the G3 environmental rating?
  A: G3 (Harsh) indicates the module is protected against conductive dust and other contaminants typical in severe industrial settings.
• Q: What is the benefit of fiber optic connectivity?
  A: It provides electrical isolation, immunity to EMI/RFI, and enables reliable data transmission over much longer distances than copper Ethernet.

For pricing and technical support for the FCP270 P0917YZ, contact us at sale@etowonauto.com.
