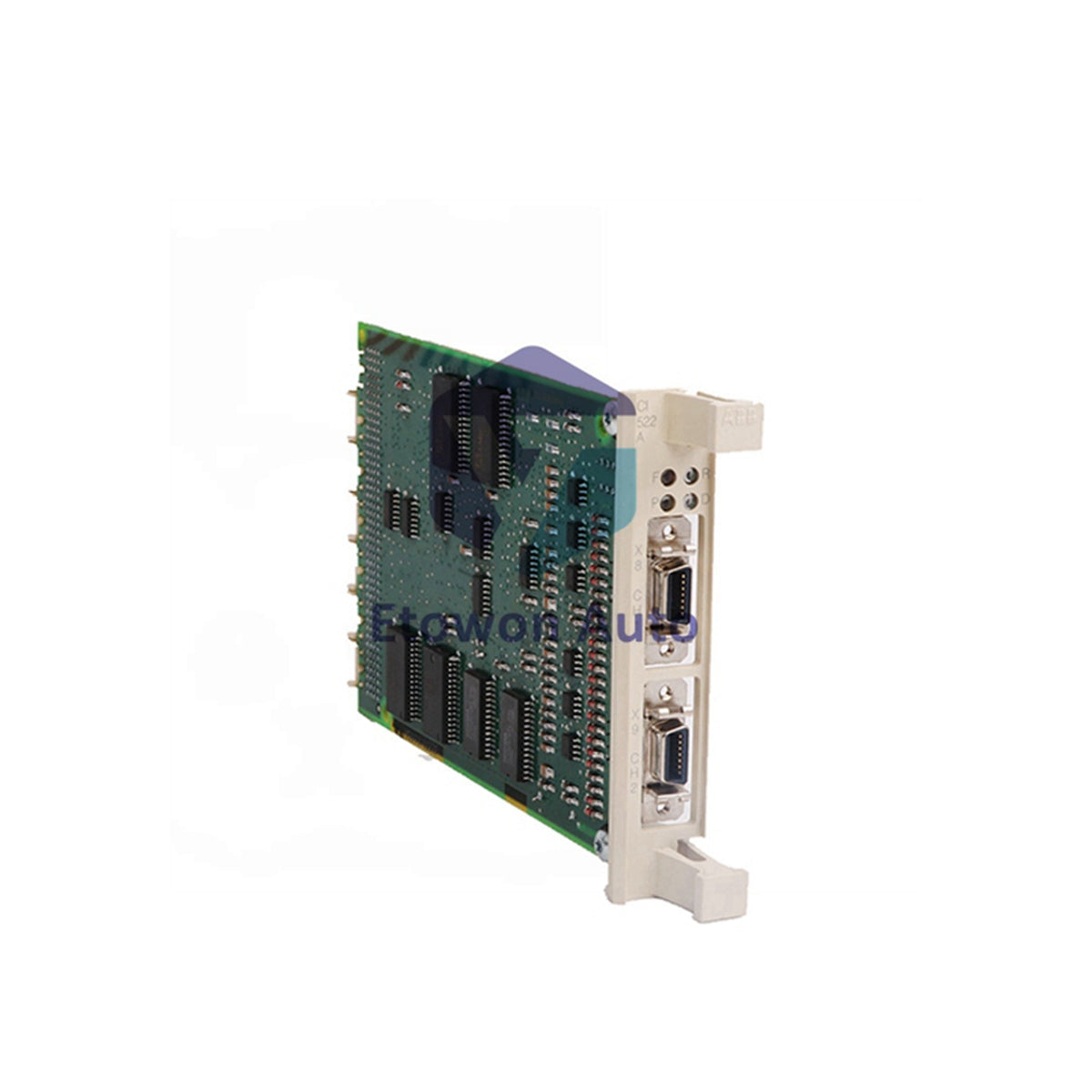

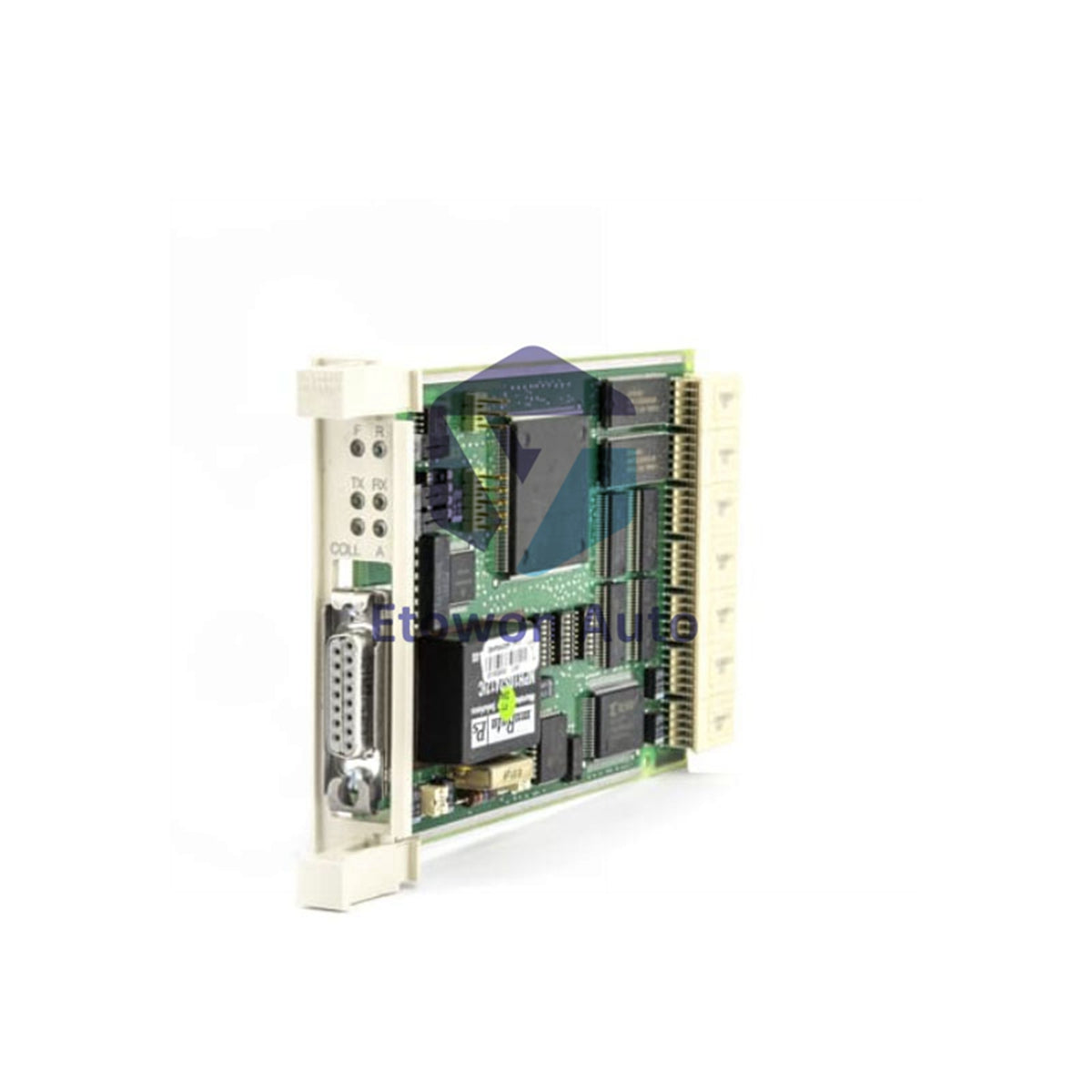

CI526

CI526 PROFIBUS Modbus Interface | ABB

In stock (100 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: CI526

  • Product Type: Interface Module

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 280g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB CI526 Communication Interface Module

High-performance communication interface module designed for industrial automation systems, providing reliable data exchange and network connectivity in demanding environments.

Core Capabilities

  • Dual Protocol Support: PROFIBUS DP and Modbus TCP communication protocols
  • High-Speed Data Transfer: 100 Mbps Ethernet communication capability
  • Extended Temperature Operation: Wide operating temperature range for harsh environments
  • Advanced Diagnostics: Comprehensive status monitoring and fault detection

Technical Specifications

  • Communication Protocols: PROFIBUS DP, Modbus TCP
  • Data Transfer Rate: 100 Mbps (Ethernet), 12 Mbps (PROFIBUS DP)
  • Isolation Voltage: 1500V AC (channel-to-channel)
  • Update Cycle Time: ≤ 5 ms
  • Memory Capacity: 8 MB flash, 2 MB RAM

Electrical Specifications

  • Supply Voltage: 24V DC ±10%
  • Power Consumption: 4.5W typical, 6W maximum
  • Current Consumption: 180 mA at 24V DC
  • Surge Protection: ±4 kV (power supply lines)

Physical Specifications

  • Module Dimensions: 35mm × 130mm × 110mm (W×H×D)
  • Module Weight: 0.28 kg
  • Connection Interfaces: 2 × RJ45 Ethernet, 1 × 9-pin D-sub PROFIBUS
  • Mounting Method: DIN rail TS35

Environmental Specifications

  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 5% to 95% non-condensing
  • Vibration Resistance: 2g (5-150 Hz)
  • Shock Resistance: 15g (11 ms duration)

Communication Parameters

  • PROFIBUS Address Range: 1-125
  • Maximum Stations: 32 devices per segment
  • Cable Length: Up to 100m (PROFIBUS), 100m (Ethernet)
  • LED Indicators: Power, Status, COM1, COM2, Error

Certifications and Standards

  • EMC Standards: EN 61000-6-2, EN 61000-6-4
  • Safety Standards: UL 61010-1, EN 61010-1
  • Industrial Certification: ATEX, IECEx, DNV GL
  • Protection Class: IP40

Frequently Asked Questions

What protocols are supported simultaneously?

The module supports concurrent operation of PROFIBUS DP and Modbus TCP protocols for flexible system integration.

What is the maximum operating temperature?

Designed for extended operation from -25°C to +70°C, suitable for harsh industrial environments.

How many devices can be connected via PROFIBUS?

Supports up to 32 devices per segment with address range from 1 to 125.

For pricing and technical support, please contact: sale@etowonauto.com
