Allen-Bradley 2094-BC07-M05-S Kinetix 6000 45kW Axis Module

Allen-Bradley 2094-BC07-M05-S Kinetix 6000 Integrated Axis Module

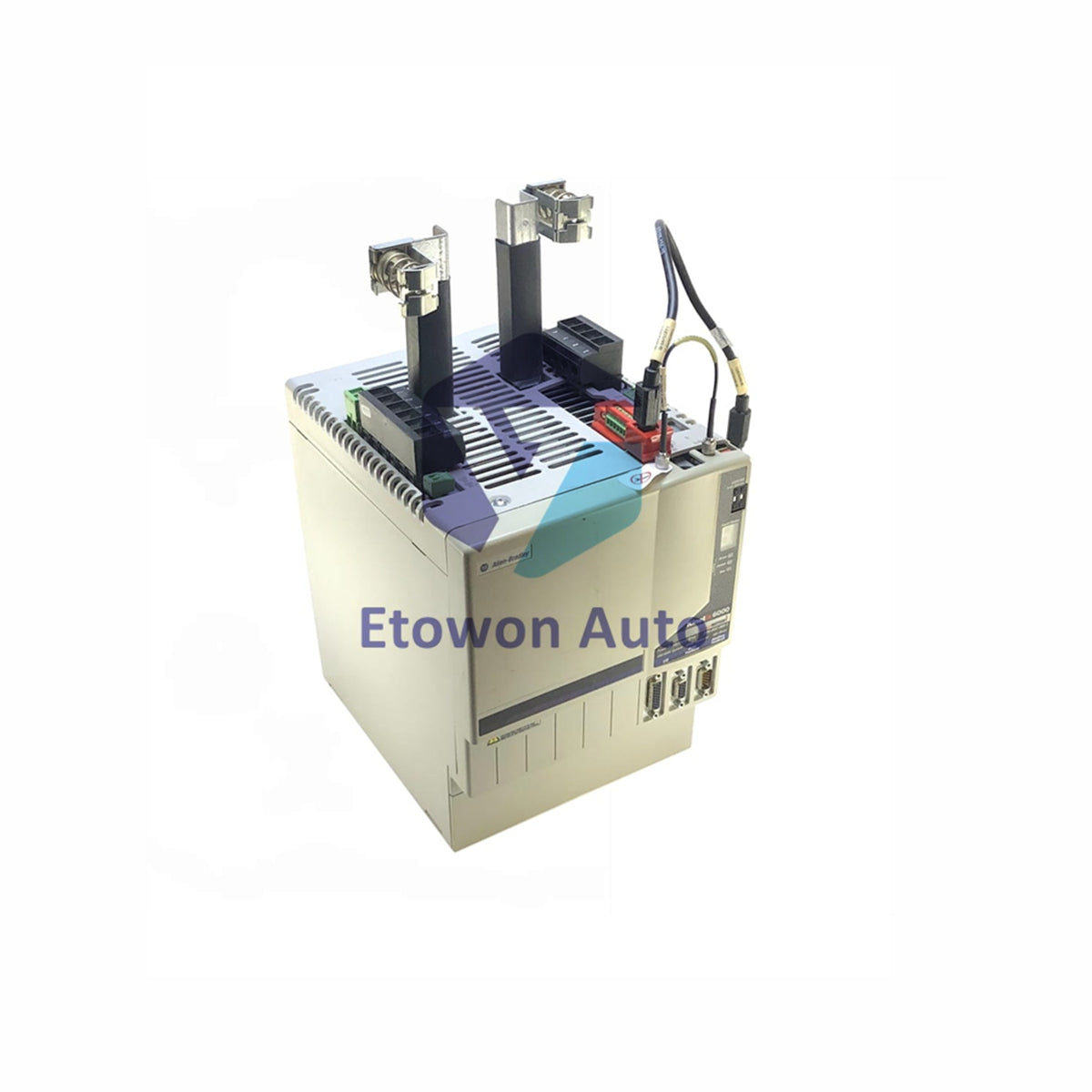

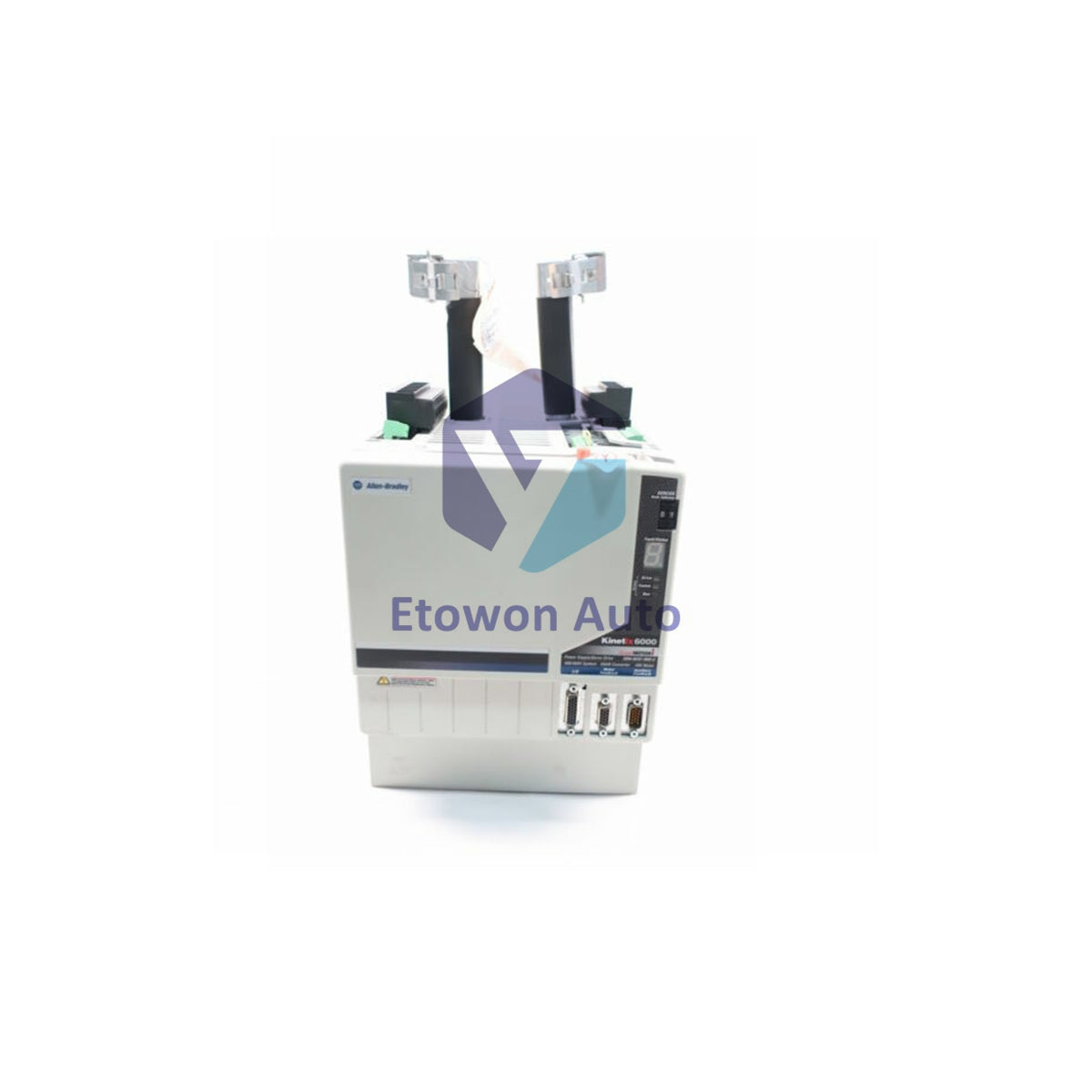

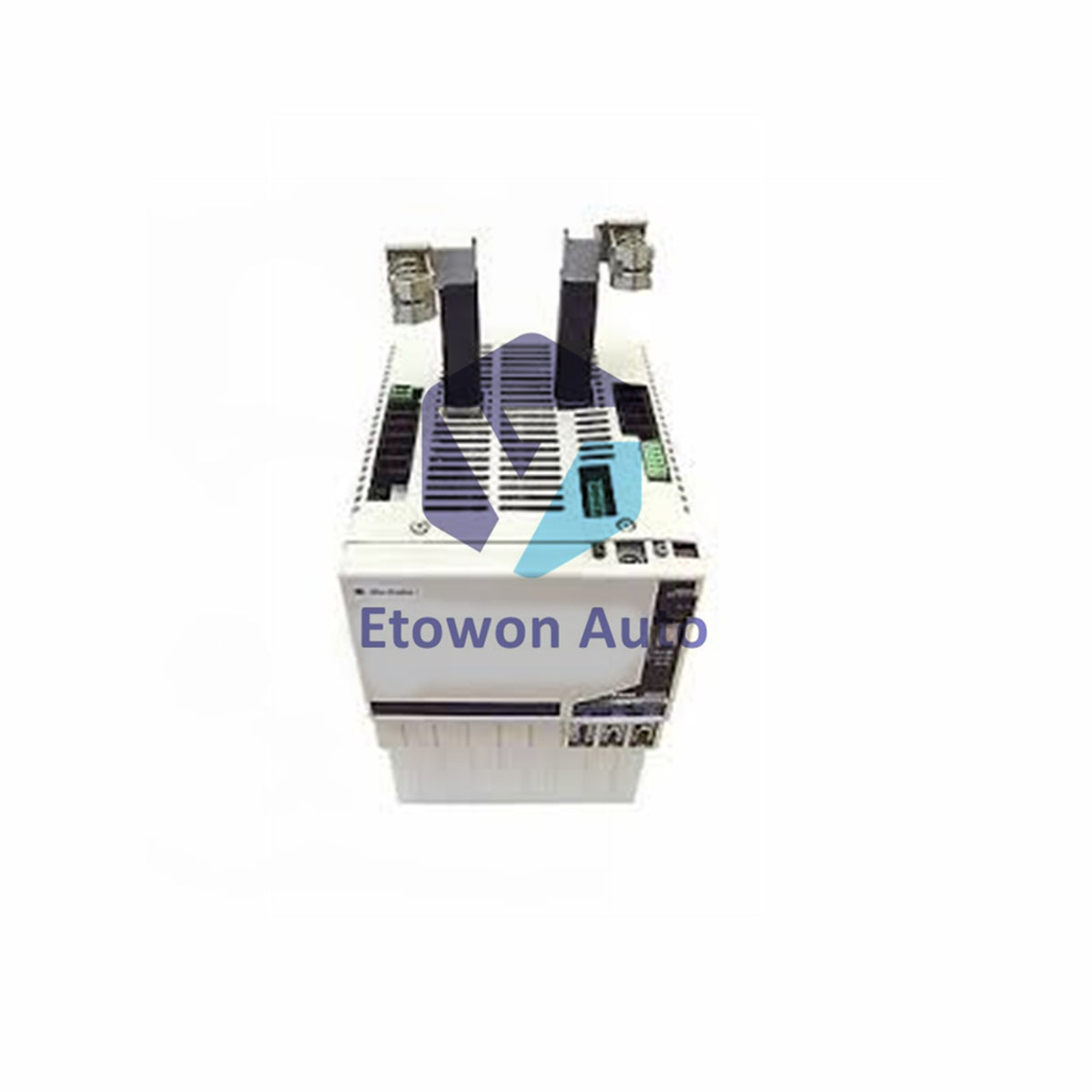

The 2094-BC07-M05-S is a high-power Allen-Bradley Kinetix 6000 integrated axis module (IAM). This unit combines a power supply/converter and an inverter in one module.

Core Technical Specifications

• Brand & Model: Allen-Bradley 2094-BC07-M05-S
• Product Line: Kinetix 6000 Multi-Axis Drive
• AC Input Power: 3-Phase, 360-480V AC nominal (324-528V range), 47-63 Hz
• DC Output to Bus: 458-747 V DC
• Continuous Power to Bus: 45 kW
• Continuous Current to Bus: 67.7 A DC
• Peak Power (Series B): Up to 135 kW
• Efficiency: 97%
• Safety: Integrated Safe Torque-Off (STO) feature.

Physical Data & System Features

• Weight: 10.1 kg (22.3 lbs)
• Power Dissipation: 71 - 226 W
• Internal Shunt: 28.75 Ohm resistor, 200W continuous, 22.5 kW peak power.
• Key Role: Acts as the main power supply for a bank of axis modules on a Kinetix power rail.
• Peak Enhancement: Series B/C models offer enhanced peak current (200-300%) for high-demand applications.
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Control Power: 95-264V AC single-phase for internal logic.

Frequently Asked Questions

• Q: What is an "Integrated Axis Module" (IAM)?
  A> It is a combined rectifier/power supply and inverter module. It converts AC line power to a stable DC bus and also contains one servo drive axis, all in one unit. It typically serves as the master module on a power rail.
• Q: How does this differ from a standard Axis Module (AM)?
  A> A standard AM (like BM01) only contains an inverter and requires a separate DC bus power source. This IAM provides both the DC bus power and an inverter channel, powering itself and downstream AMs.
• Q: What is the "common bus follower" mode?
  A> It allows multiple IAMs to be connected to share the load on a common DC bus, enabling scalable, high-power systems.
