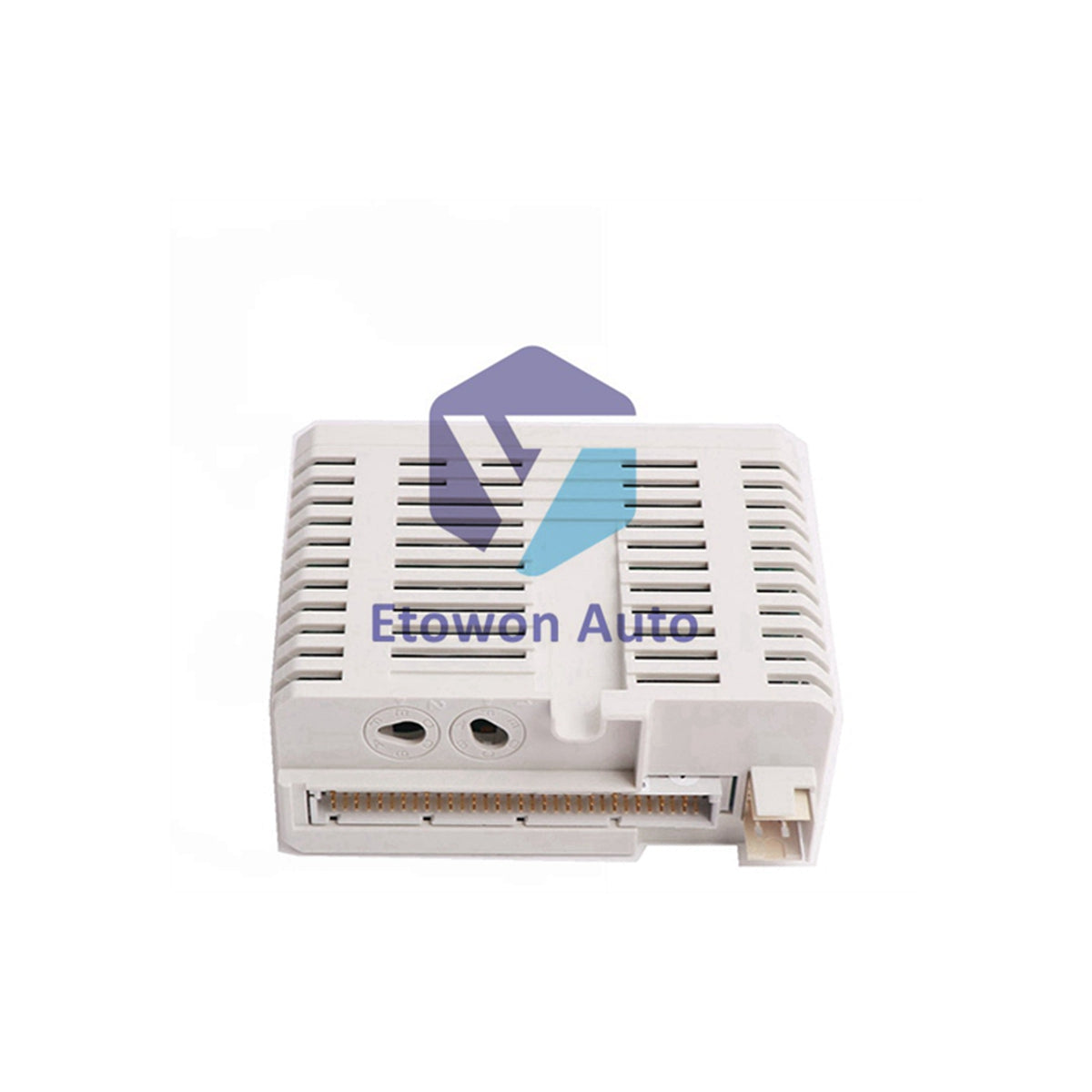

ABB - 24V DC Digital Input Module DI830

Product Overview

The ABB DI830 digital input module delivers precision signal acquisition for S800 I/O systems. This 16-channel module features advanced diagnostics, Sequence of Events functionality, and dual isolated groups for reliable industrial operation.

Key Technical Specifications

• Brand: ABB
• Model: DI830
• Article Number: 3BSE013210R1
• Product Type: Digital Input Module
• Signal Specification: 24 V DC
• Channel Count: 16 channels
• Input Type: Current sinking
• SOE Capability: Yes

Electrical Specifications

• Input Voltage Range: 18-30 V DC
• Input Current: 6 mA at 24V DC
• Logic "0" Level: -30 to +5 V
• Logic "1" Level: 13-30 V
• Input Impedance: 3.2 kΩ
• Power Dissipation: 2.3 W typical

Isolation & Group Configuration

• Isolation Scheme: Groupwise isolated from ground
• Group Configuration: 2 isolated groups of 8 channels
• Voltage Supervision: One monitoring input per group
• Dielectric Test: 500 V AC withstand voltage
• Insulation Rating: 50 V rated voltage

Sequence of Event Features

• SOE Functionality: Advanced event recording
• Event Accuracy: -0.3 ms to +0.7 ms
• Event Resolution: 0.4 ms precision
• Recording Capability: High-precision timing

Filtering & Signal Processing

• Digital Filters: 0-100 ms selectable range
• Filter Function: Pulse width discrimination
• Shutter Filter: Enhanced signal processing
• Noise Immunity: Programmable filtering

Diagnostics & Monitoring

• Self-Diagnostics: Cyclical automatic checking
• Process Power Supervision: Module warning on detection
• Event Queue Monitoring: Full queue detection
• Time Sync Monitoring: Missing synchronization detection
• Status LEDs: Fault, Run, Warning, Channel status

Physical Specifications

• Width: 45 mm
• Depth: 102 mm (111 mm with connector)
• Height: 119 mm
• Weight: 0.22 kg
• Mechanics: S800 form factor

Power Requirements

• ModuleBus +5V: 100 mA typical, 120 mA maximum
• ModuleBus +24V: Not required
• External +24V: Not required
• Efficiency: Optimized power management

Environmental & Compliance

• Operating Temperature: 0 to +55 °C
• Storage Temperature: -40 to +70 °C
• Hazardous Location: C1 Div 2 cULus, ATEX Zone 2
• Marine Certificates: ABS, BV, DNV, LR
• RoHS Compliance: DIRECTIVE/2011/65/EU

Compatibility

• Compatible MTUs: TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850
• Keying Code: AA
• System Integration: S800 I/O architecture

Frequently Asked Questions

• What is the SOE resolution?
  The DI830 provides 0.4ms event resolution with -0.3ms to +0.7ms accuracy.
• How are the channels isolated?
  The 16 channels are divided into two isolated groups of 8 with voltage supervision.
• What filtering options are available?
  The module offers programmable digital filtering from 0-100ms with shutter filter capability.
