51405040-176 Honeywell - Digital Input Module

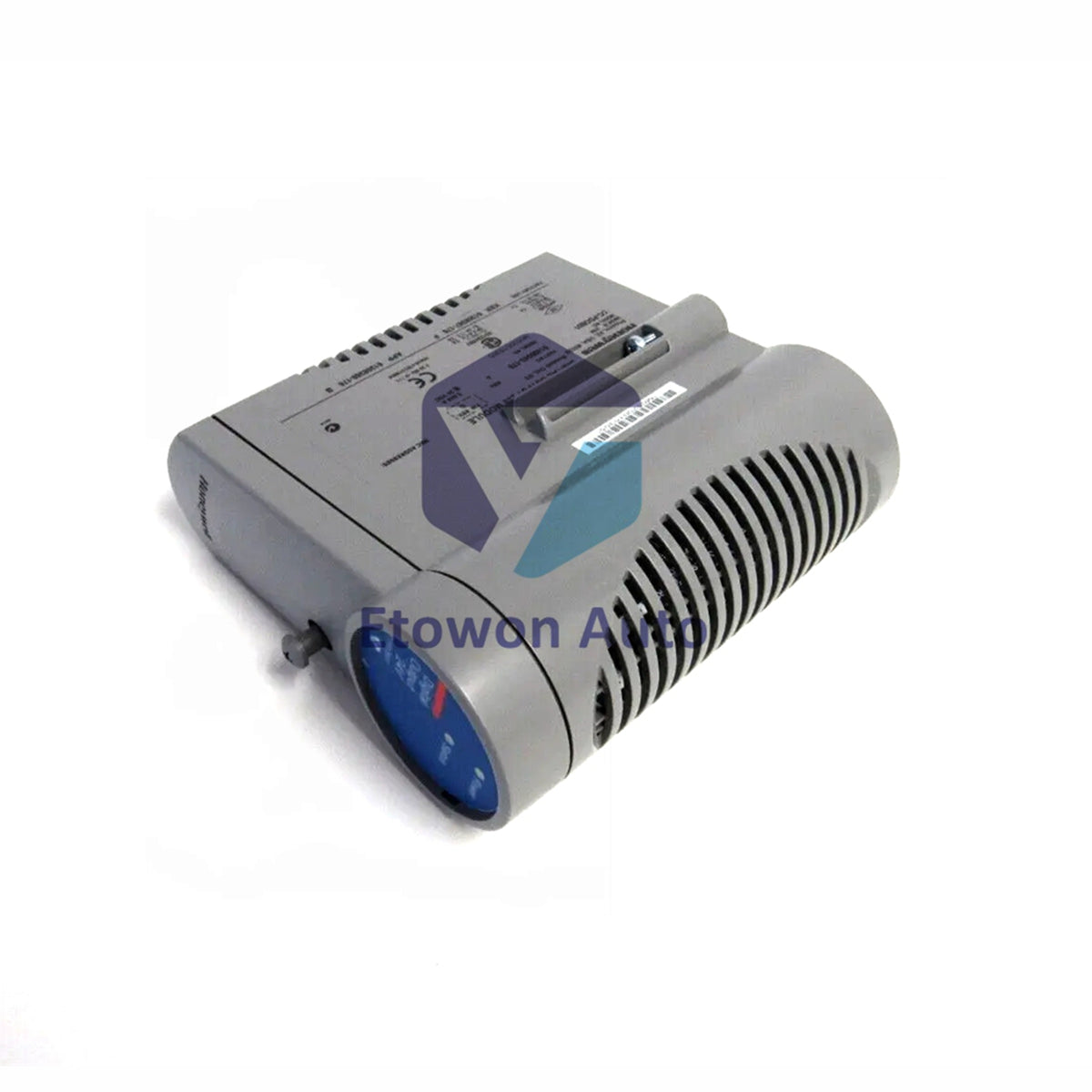

Honeywell 51405040-176 Digital Input Module

The CC-PDIL01 51405040-176 from Honeywell provides 32 channels of low voltage digital input capability for industrial control systems. This digital input module operates with 24VDC signals and is designated as IOM block type DI-24. With part number 51405040-176, it offers reliable performance for monitoring discrete field devices in various automation applications.

Technical Specifications

• Manufacturer: Honeywell
• Product Number: CC-PDIL01
• Part Number: 51405040-176
• Module Type: Digital Input
• IOM Block Name: DI-24
• Voltage Rating: 24 VDC Low Voltage
• Number of Channels: 32
• PMIO Compatibility: DI or DI24V Type
• Estimated Lead Time: 1-10 Working Days
• Input Voltage Range: 19-30 VDC
• Input Current: 5 mA per channel typical
• Response Time: 15 ms maximum
• Isolation: 500 V channel to channel
• Operating Temperature: -40°C to +70°C
• Connection Type: Removable terminal blocks
• Backplane Current: 850 mA @ 5VDC
• Status Indicators: Per channel and module status LEDs
• Weight: 0.45 kg

Input Channel Characteristics

• 32 independent digital input channels support extensive field device monitoring
• 24VDC low voltage operation ensures compatibility with standard industrial sensors
• 19-30VDC wide input voltage range accommodates power supply variations
• 5mA typical input current per channel minimizes power supply requirements
• Fast 15ms maximum response time enables quick system reaction to input changes

Frequently Asked Questions

• How many input channels are provided? 32 discrete digital input channels.
• What is the operating voltage range? 19-30 VDC input voltage range.
• What is the typical lead time? 1-10 working days for delivery.
