Bently Nevada 177313-02-02 TK-3E Proximity System Test Kit

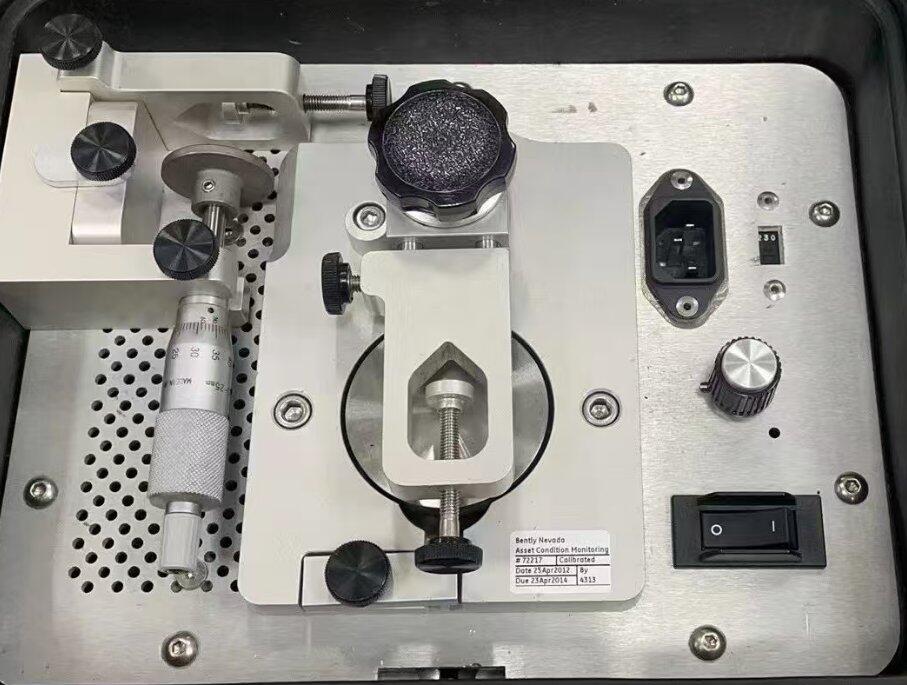

The Bently Nevada 177313-02-02 is an electric-driven test kit for proximity transducer systems. This professional tool calibrates and verifies proximity sensor performance in industrial settings.

Product Overview

• Brand & Manufacturer: Bently Nevada
• Model: 177313-02-02
• Product Type: Electric-Driven TK-3E Proximity System Test Kit
• Scale Units: Metric configuration (02)
• Power Cord: European standard cord type (02)

Technical Specifications

• Vibration Amplitude Range: 50 μm to 254 μm (2 to 10 mils) peak-to-peak
• Maximum Speed Range: 0 to 5000 cpm ± 1000 cpm
• Spindle Micrometer Range: 0 – 25.4 mm (0 – 1000 mils)
• Target Material: AISI 4140 Alloy Steel for target button and wobble plate
• Drive Modes: Electric-driven operation with air capability

Environmental Specifications

• Operating Temperature: 0°C to 54°C (32°F to 130°F)
• Storage Temperature: -18°C to 65°C (0°F to 150°F)
• Extended Storage: -40°C to 100°C for special conditions
• Humidity Tolerance: Up to 95% non-condensing
• IP Rating: IP54 for dust and water protection when closed

Physical Specifications

• Dimensions: 19.5 × 29.9 × 24.8 cm (H × W × D)
• Weight: 5.22 kg (11.5 lb)
• Height: 19.5 cm
• Width: 29.9 cm
• Depth: 24.8 cm

Power Requirements

• Electrical Input: 95-125 Vac, 50/60 Hz, 1A minimum
• Alternate Input: 190-250 Vac, 50/60 Hz, 1A minimum
• Air Pressure: 90 psi (6.2 bar) maximum for air-driven mode
• Power Consumption: Standard industrial electrical requirements

Package Contents

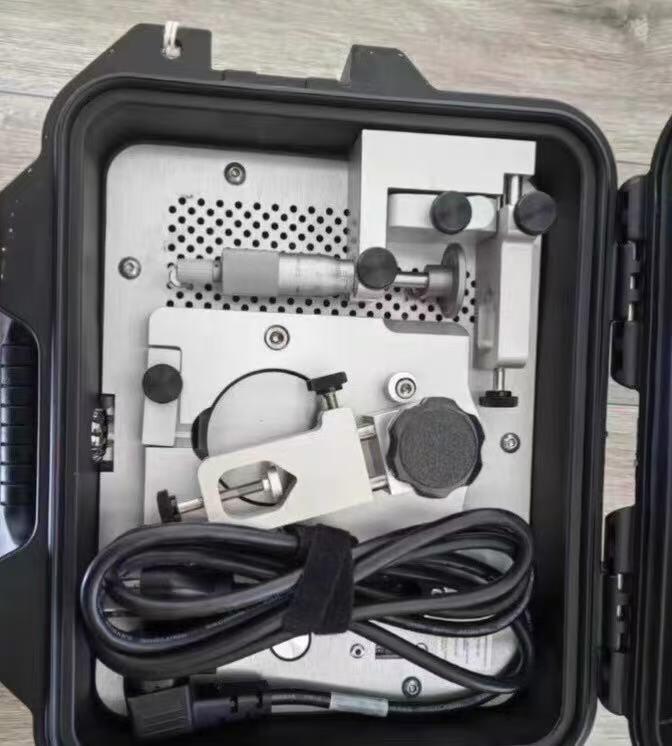

• One (1) Bently Nevada 177313-02-02 TK-3E test kit unit
• European standard power cord (type 02)
• All necessary calibration targets and accessories
• Complete user manual and calibration guide
• Carrying case or protective packaging for components

Shipping Information

• Secure packaging protects sensitive calibration equipment
• Global delivery via FedEx, UPS, or DHL
• Tracking provided for all international shipments
• Express shipping available for urgent calibration needs

Frequently Asked Questions (FAQ)

What is the primary purpose of this test kit?

• The 177313-02-02 TK-3E test kit calibrates and verifies proximity transducer systems. It tests sensor response across defined vibration and gap measurement ranges.

What power inputs does this test kit support?

• This kit supports dual voltage inputs: 95-125 Vac and 190-250 Vac at 50/60 Hz. It also supports air-driven operation up to 90 psi for flexible testing options.

What does the "02-02" suffix indicate in the model number?

• The first "02" indicates metric scale units for measurement. The second "02" specifies a European standard power cord configuration for the test kit.
